Ferrite Beads and Chips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Ratings | Operating Temperature | Mounting Type | Height (Max) | Size / Dimension | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
Z0805C250APWSTFERRITE BEAD 25 OHM 0805 1LN |
3,782 |
|
Datasheet | Z-PWS | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Power Line | 1 | 25 Ohms @ 100 MHz | 6A | 4mOhm | - | -40°C ~ 125°C | Surface Mount | 0.041" (1.05mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - |
|
Z0603C280APWSTFERRITE BEAD 28 OHM 0603 1LN |
2,767 |
|
Datasheet | Z-PWS | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Power Line | 1 | 28 Ohms @ 100 MHz | 4A | 7mOhm | - | -40°C ~ 125°C | Surface Mount | 0.039" (1.00mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - |
|
|
Z0805C800BPWZTFERRITE BEAD 80 OHM 0805 1LN |
2,717 |
|
Datasheet | Z-PWZ | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Power Line | 1 | 80 Ohms @ 100 MHz | 2.7A | 25mOhm | - | -40°C ~ 125°C | Surface Mount | 0.041" (1.05mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - |
|
|
Z0603C230BPWSTFERRITE BEAD 23 OHM 0603 1LN |
2,226 |
|
Datasheet | Z-PWS | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Power Line | 1 | 23 Ohms @ 100 MHz | 4A | 7mOhm | - | -40°C ~ 125°C | Surface Mount | 0.039" (1.00mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - |
|

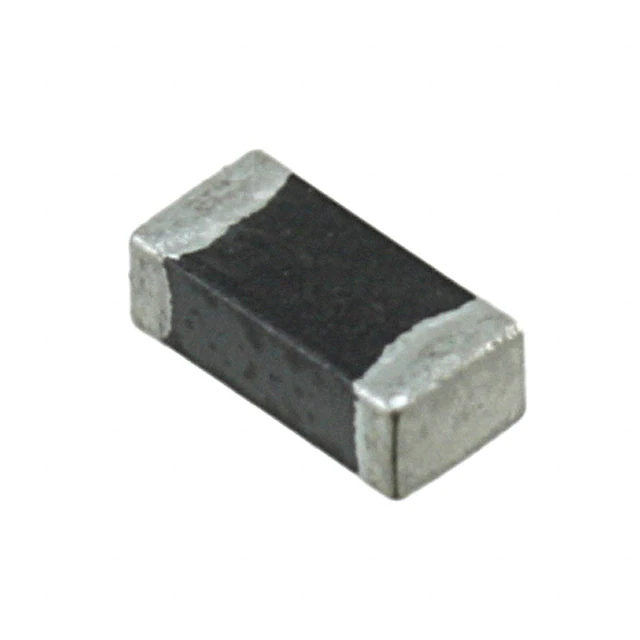

Z1206C380BPWSTFERRITE BEAD 38 OHM 1206 1LN |
39,055 |
|
Datasheet | Z-PWS | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Power Line | 1 | 38 Ohms @ 100 MHz | 6A | 5mOhm | - | -40°C ~ 125°C | Surface Mount | 0.051" (1.30mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - |
|
|
Z1206C600BPWSTFERRITE BEAD 60 OHM 1206 1LN |
3,214 |
|
Datasheet | Z-PWS | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Power Line | 1 | 60 Ohms @ 100 MHz | 4A | 10mOhm | - | -40°C ~ 125°C | Surface Mount | 0.051" (1.30mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - |
|
|
Z0805C221BPWZTFERRITE BEAD 220 OHM 0805 1LN |
2,733 |
|
Datasheet | Z-PWZ | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Power Line | 1 | 220 Ohms @ 100 MHz | 2A | 60mOhm | - | -40°C ~ 125°C | Surface Mount | 0.041" (1.05mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - |
|
|
Z1206C800APWSTFERRITE BEAD 80 OHM 1206 1LN |
2,368 |
|
Datasheet | Z-PWS | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Power Line | 1 | 80 Ohms @ 100 MHz | 4A | 10mOhm | - | -40°C ~ 125°C | Surface Mount | 0.071" (1.80mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - |
|
|
Z1806C900BPWSTFERRITE BEAD 90 OHM 1806 1LN |
1,904 |
|
Datasheet | Z-PWS | 1806 (4516 Metric) | Tape & Reel (TR) | Obsolete | Power Line | 1 | 90 Ohms @ 100 MHz | 4A | 14mOhm | - | -40°C ~ 125°C | Surface Mount | 0.051" (1.30mm) | 0.177" L x 0.063" W (4.50mm x 1.60mm) | - |
|
Z1806C851BPWZTFERRITE BEAD 850 OHM 1806 1LN |
1,879 |
|
Datasheet | Z-PWZ | 1806 (4516 Metric) | Tape & Reel (TR) | Obsolete | Power Line | 1 | 850 Ohms @ 100 MHz | 1.5A | 100mOhm | - | -40°C ~ 125°C | Surface Mount | 0.051" (1.30mm) | 0.177" L x 0.063" W (4.50mm x 1.60mm) | - |
|
|
Z1812C681BPWZTFERRITE BEAD 680 OHM 1812 1LN |
2,961 |
|
Datasheet | Z-PWZ | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Power Line | 1 | 680 Ohms @ 100 MHz | 4A | 28mOhm | - | -40°C ~ 125°C | Surface Mount | 0.138" (3.50mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - |
|
B-9FERRITE BEAD AXIAL RAD BEND 1LN |
490 |
|
Datasheet | BEAD W | Axial, Radial Bend | Bulk | Active | Signal Line | 1 | - | 2.5A | - | - | -25°C ~ 65°C | Through Hole | 0.315" (8.00mm) | 0.276" Dia (7.00mm) | - |
|
|
Z1810C102BPWZTFERRITE BEAD 1 OHM 1810 1LN |
202 |
|
Datasheet | Z-PWZ | 1810 (4525 Metric) | Tape & Reel (TR) | Obsolete | Power Line | 1 | 1 kOhms @ 100 MHz | 3A | 60mOhm | - | -40°C ~ 125°C | Surface Mount | 0.110" (2.80mm) | 0.177" L x 0.098" W (4.50mm x 2.50mm) | - |
|
B-8FERRITE BEAD WINDING 2.5A |
481 |
|
Datasheet | BEAD W | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - |
|
B-10FERRITE BEAD AXIAL RAD BEND 1LN |
497 |
|
Datasheet | BEAD W | Axial, Radial Bend | Bulk | Active | Signal Line | 1 | - | 2.5A | - | - | -25°C ~ 65°C | Through Hole | 0.315" (8.00mm) | 0.276" Dia (7.00mm) | - |
|
B-13FERRITE BEAD AXIAL RAD BEND 1LN |
500 |
|
Datasheet | BEAD W | Axial, Radial Bend | Bulk | Active | Signal Line | 1 | - | 2.5A | - | - | -25°C ~ 65°C | Through Hole | 0.315" (8.00mm) | 0.276" Dia (7.00mm) | - |
|
B-1FERRITE BEAD AXIAL RAD BEND 1LN |
242 |
|
Datasheet | B | Axial, Radial Bend | Bulk | Active | Signal Line | 1 | - | 1.5A | - | - | -25°C ~ 65°C | Through Hole | 0.217" (5.50mm) | - | - |
|
B-01-ATFFERRITE BEAD 2 OHM AXIAL 1LN |
240 |
|
Datasheet | BEAD L | Axial | Tape & Reel (TR) | Active | Signal Line | 1 | 2 Ohms @ 1 MHz | 5A | - | - | -20°C ~ 70°C | Through Hole | - | 0.134" Dia x 2.638" L (3.40mm x 67.00mm) | - |
|
B-4FERRITE BEAD WINDING 1.5A |
475 |
|
Datasheet | B | Axial, Radial Bend | Bulk | Active | Signal Line | 1 | 400 Ohms @ 500 MHz | 1.5A | - | - | -25°C ~ 65°C | Through Hole | - | - | - |
|
|
Z0805C241CSMSTFERRITE BEAD 240 OHM 0805 1LN |
800 |
|
Datasheet | Z-SMS | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Signal Line | 1 | 240 Ohms @ 100 MHz | 300mA | 350mOhm | - | -55°C ~ 125°C | Surface Mount | 0.041" (1.05mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - |
