RF, RFID, Wireless Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Frequency | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

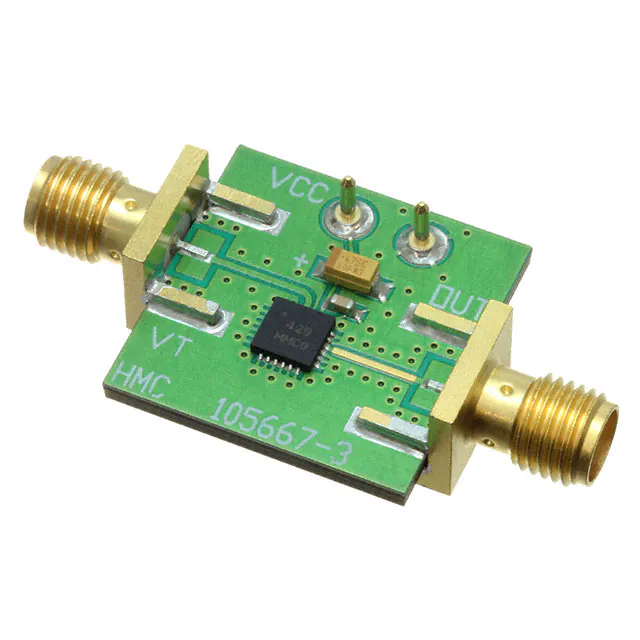

105706-HMC429LP4BOARD EVAL HMC429LP4E |
1 |
|
Datasheet | - | Bulk | Active | Voltage Controlled Oscillator (VCO) | 4.45GHz ~ 5GHz | Board(s) | HMC429LP4 |
|

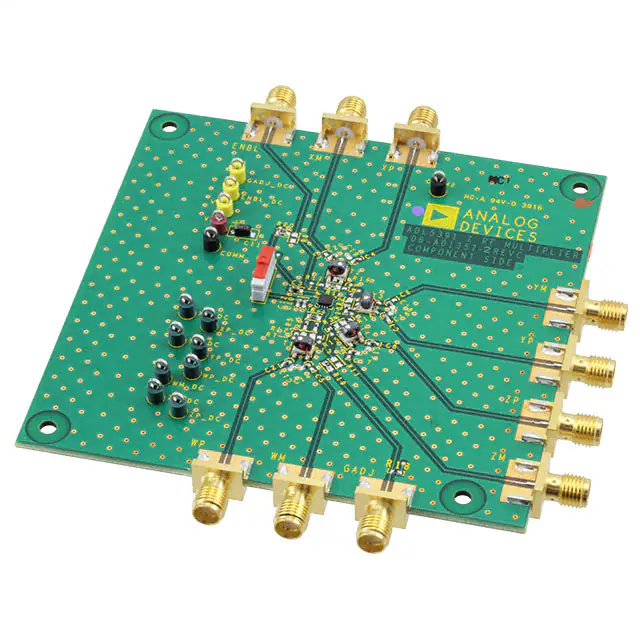

ADL5391-EVALZIC MULT 2.0GHZ CHIPSCALE |
1 |
|
Datasheet | - | Bulk | Active | Multiplier | 0Hz ~ 2GHz | Board(s) | ADL5391 |
|
F1200EVSRF |
5 |
|
Datasheet | - | Box | Active | Amplifier | 50MHz ~ 160MHz | Board(s) | F1200 |
|
|
F1451EVSKRF |
5 |
|
Datasheet | - | Box | Active | Amplifier | 700MHz ~ 1.1GHz | Board(s), Cable(s) | F1451 |
|
|
F1240EVSRF |
4 |
|
Datasheet | - | Box | Active | Amplifier | 10MHz ~ 500MHz | Board(s) | F1240 |
|
|
F1951EVSRF |
4 |
|
Datasheet | - | Box | Active | Attenuator | 100MHz ~ 4GHz | Board(s), Cable(s) | F1951 |
|
|
F1953EVSRF |
4 |
|
Datasheet | - | Box | Active | Attenuator | 400MHz ~ 4GHz | Board(s), Cable(s) | F1953 |
|
104356-HMC326MS8GEVAL BOARD HMC326MS8GE |
1 |
|
Datasheet | - | Box | Active | Amplifier | 3GHz ~ 4.5GHz | Board(s) | HMC326MS8G |
|

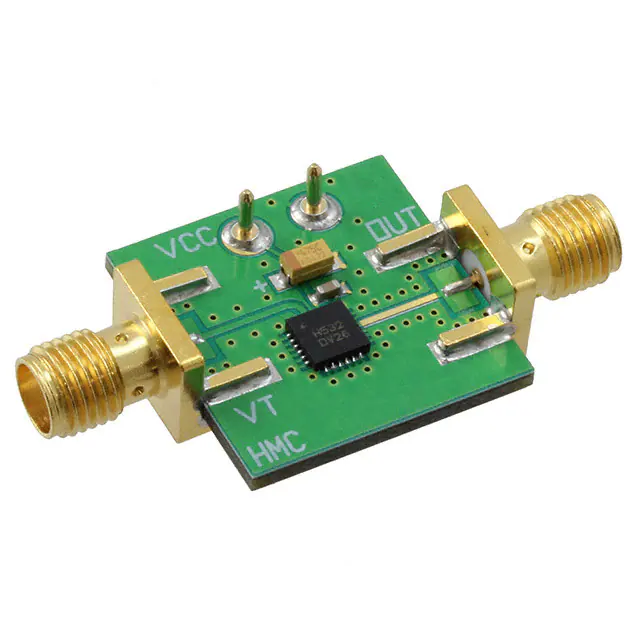

105706-HMC532LP4BOARD EVAL HMC532LP4E |
1 |
|
Datasheet | - | Box | Active | Voltage Controlled Oscillator (VCO) | 7.1GHz ~ 7.9GHz | Board(s) | HMC532LP4 |
|

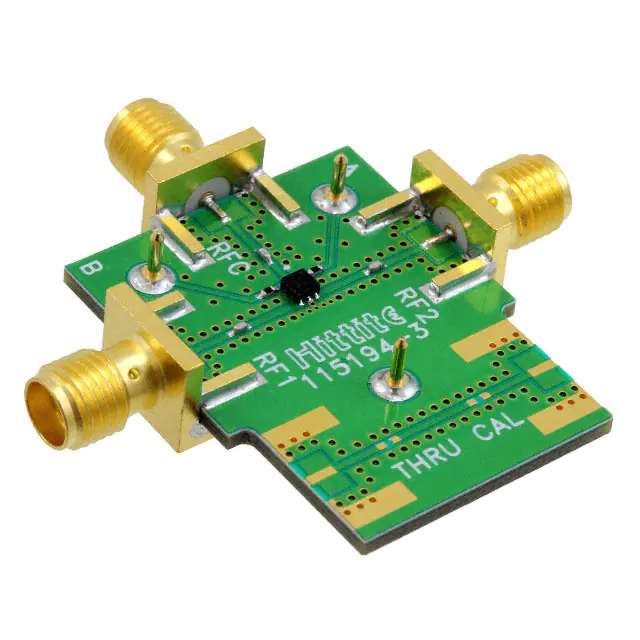

115195-HMC536LP2BOARD EVAL HMC536LP2E |
1 |
|
Datasheet | - | Box | Active | Switch, SPDT | 0Hz ~ 6GHz | Board(s) | HMC536LP2 |
|

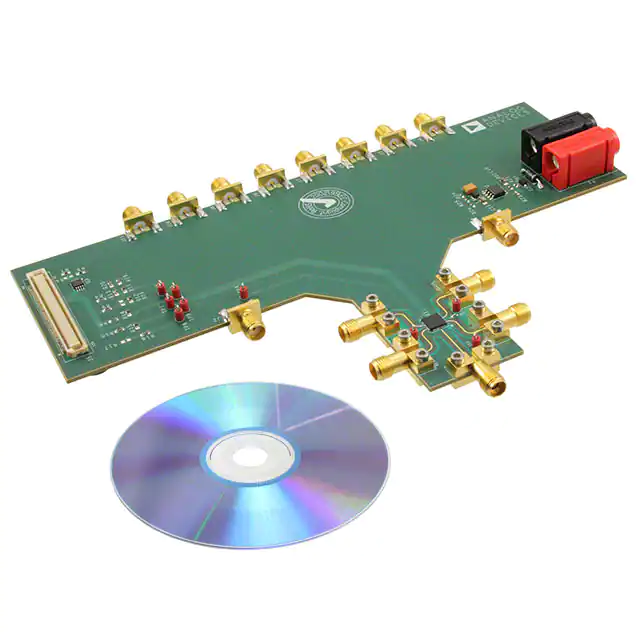

EV-ADF5904SD2ZEVAL BOARD ADF5904 DOWNCONVERTER |
1 |
|
Datasheet | - | Box | Active | Downconverter | 24GHz | Board(s) | ADF5904 |
|
107384-HMC494LP3BOARD EVAL HMC494LP3E |
2 |
|
Datasheet | - | Box | Active | Prescaler | 0Hz ~ 18GHz | Board(s) | HMC494LP3 |
|

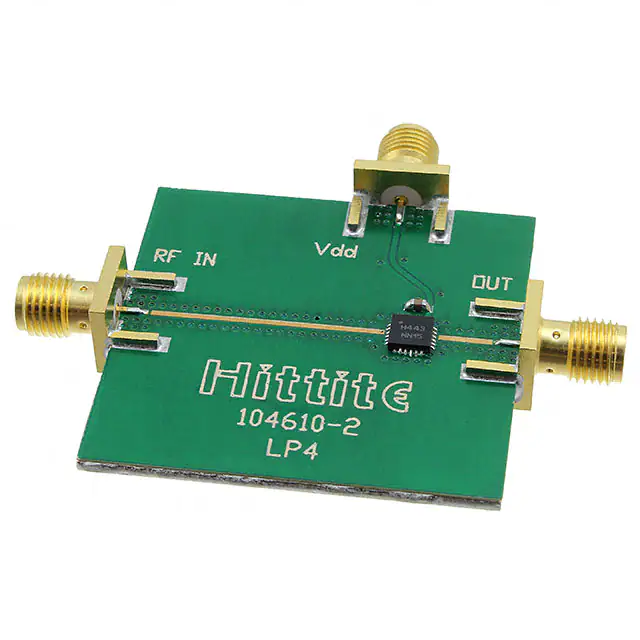

106137-HMC443LP4BOARD EVAL HMC443LP4E |
2 |
|
Datasheet | - | Box | Active | Multiplier | 2.45GHz ~ 2.8GHz | Board(s) | HMC443LP4 |
|

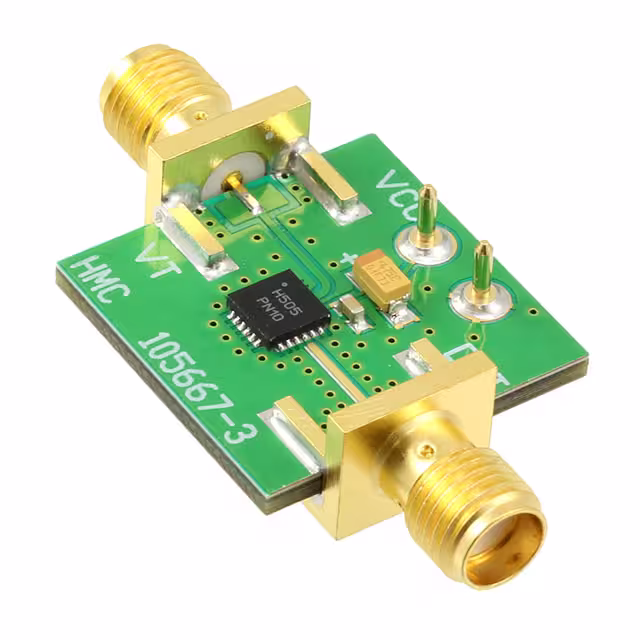

105706-HMC505LP4BOARD EVAL HMC505LP4E |
2 |
|
Datasheet | - | Box | Active | Voltage Controlled Oscillator (VCO) | 6.8GHz ~ 7.4GHz | Board(s) | HMC505LP4 |
|

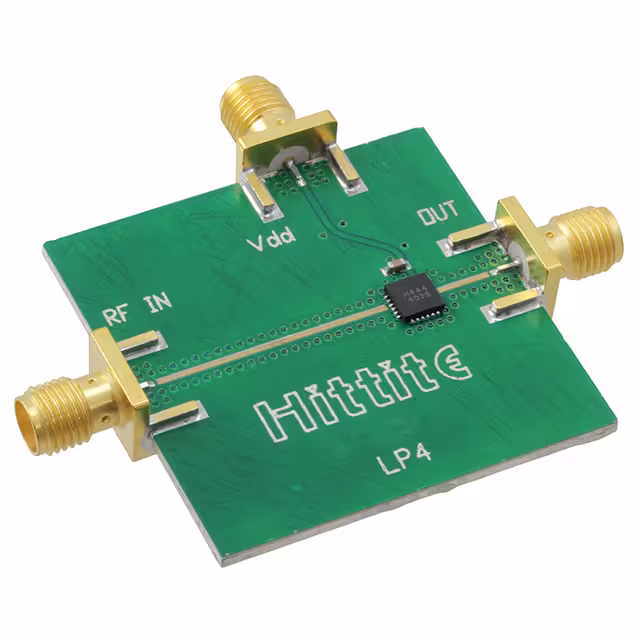

106137-HMC444LP4BOARD EVAL HMC444LP4E |
1 |
|
Datasheet | - | Box | Active | Multiplier | 1.2375GHz ~ 1.4GHz | Board(s) | HMC444LP4 |
|

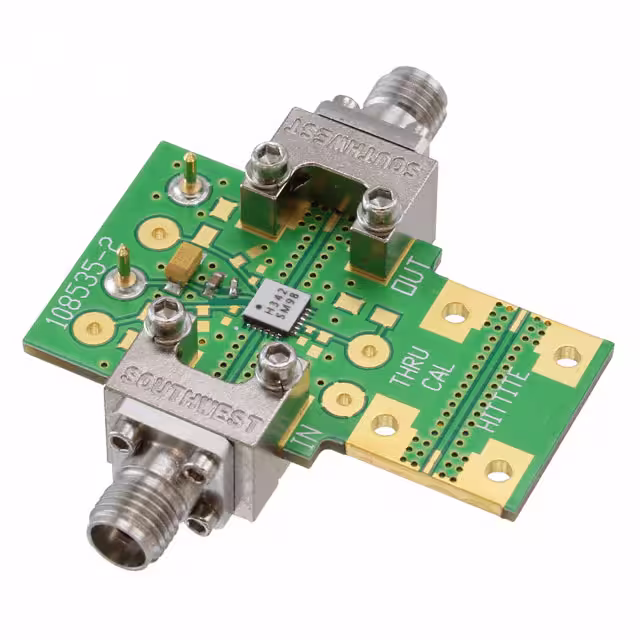

110209-HMC342LC4EVAL BOARD HMC342LC4 |
2 |
|
Datasheet | - | Box | Active | Amplifier | 13GHz ~ 25GHz | Board(s) | HMC342LC4 |
|

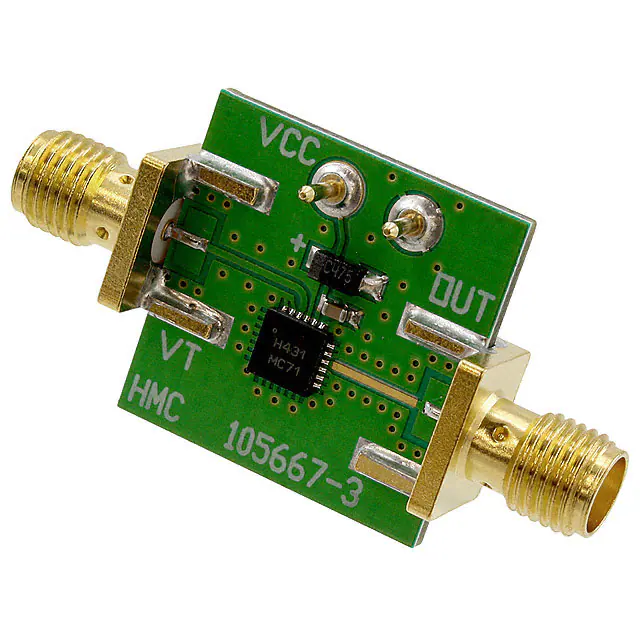

105706-HMC431LP4BOARD EVAL VCO MMIC HMC431 |
1 |
|
Datasheet | - | Bag | Active | Voltage Controlled Oscillator (VCO) | 5.5GHz ~ 6.1GHz | Board(s) | HMC431LP4 |
|
105006-HMC414MS8GEVAL BOARD HMC414MS8G |
1 |
|
Datasheet | - | Box | Active | Amplifier | 2.2GHz ~ 2.8GHz | Board(s) | HMC414MS8G |
|

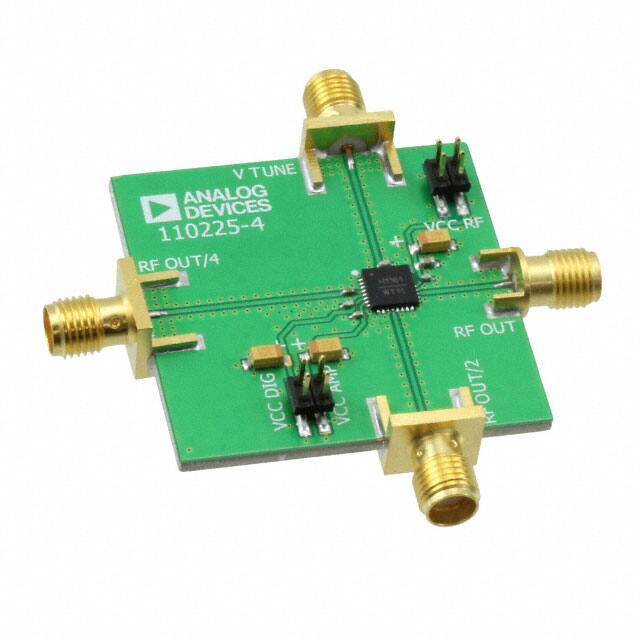

EV1HMC1161LP5EVAL BOARD FOR HMC1161 |
0 |
|
Datasheet | - | Box | Active | Voltage Controlled Oscillator (VCO) | 8.71GHz ~ 9.55GHz | Board(s) | HMC1161LP5 |
|

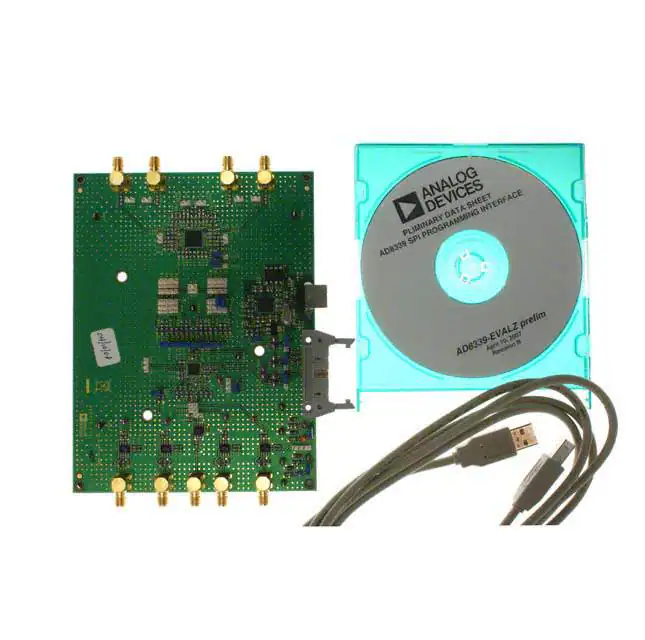

AD8339-EVALZBOARD EVAL AD8339 I/Q DEMOD |
1 |
|
Datasheet | - | Box | Active | Demodulator / Phase Shifter | - | Board(s) | AD8339 |
