RF, RFID, Wireless Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Frequency | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

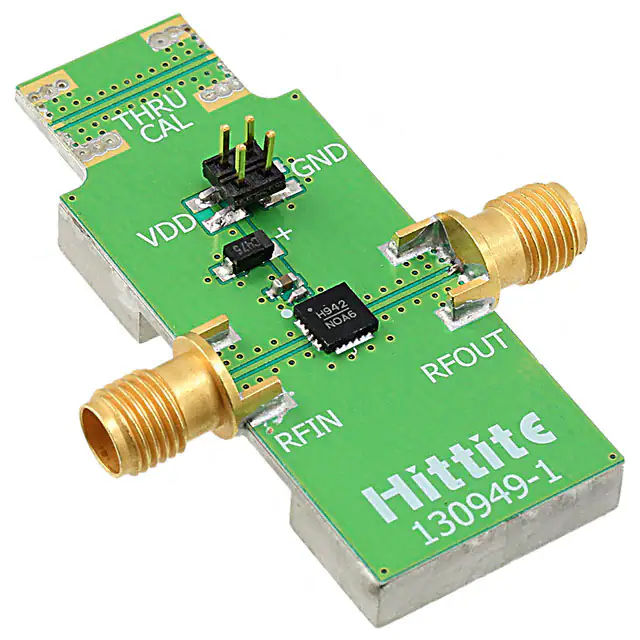

130602-HMC942LP4EBOARD EVAL HMC942LP4E |
1 |
|
Datasheet | - | Box | Active | Multiplier | 12.5GHz ~ 15.5GHz | Board(s) | HMC942LP4E |
|

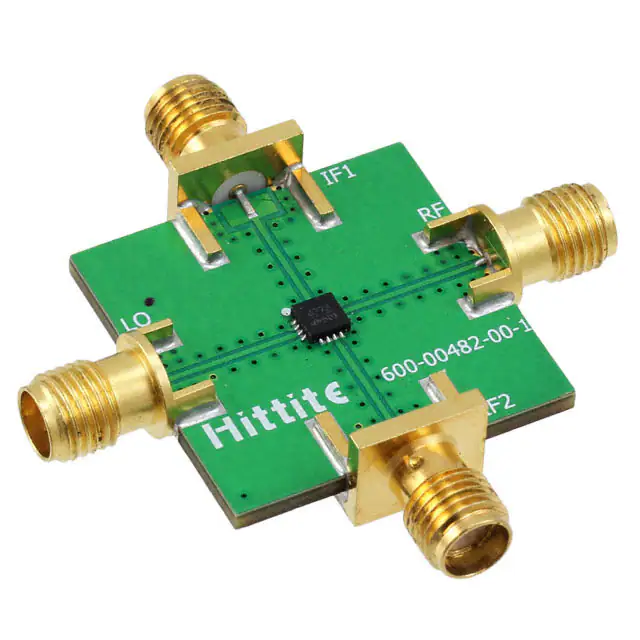

EVAL01-HMC1063LP3EVAL BOARD HMC1063LP3E |
1 |
|
Datasheet | - | Box | Active | Mixer | 24GHz ~ 28GHz | Board(s) | HMC1063LP3E |
|

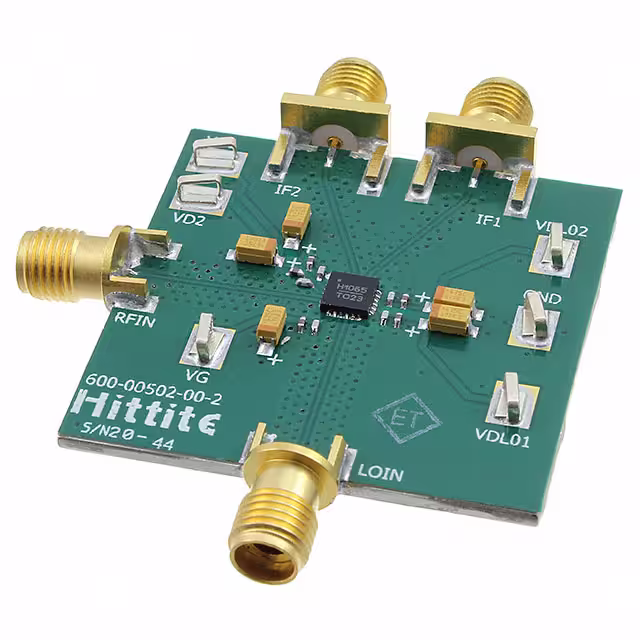

EVAL01-HMC1065LP4EVAL BOARD HMC1065LP4E |
1 |
|
Datasheet | - | Box | Active | Downconverter | 27GHz ~ 34GHz | Board(s) | HMC1065LP4E |
|

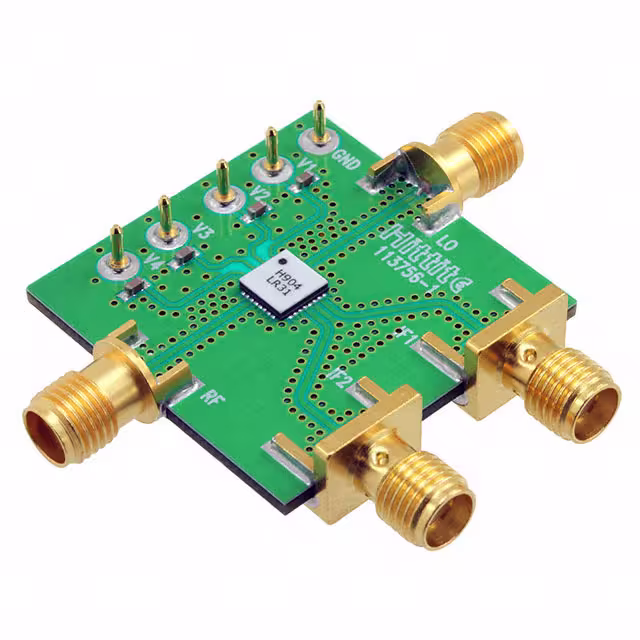

113758-HMC904LC5EVAL BOARD HMC904LC5 |
0 |
|
Datasheet | - | Box | Active | Downconverter | 17GHz ~ 24GHz | Board(s) | HMC904LC5 |
|
104631-HMC362S8GEVAL BOARD HMC362S8GE |
1 |
|
Datasheet | - | Box | Active | Prescaler | 0Hz ~ 12GHz | Board(s) | HMC362S8G |
|

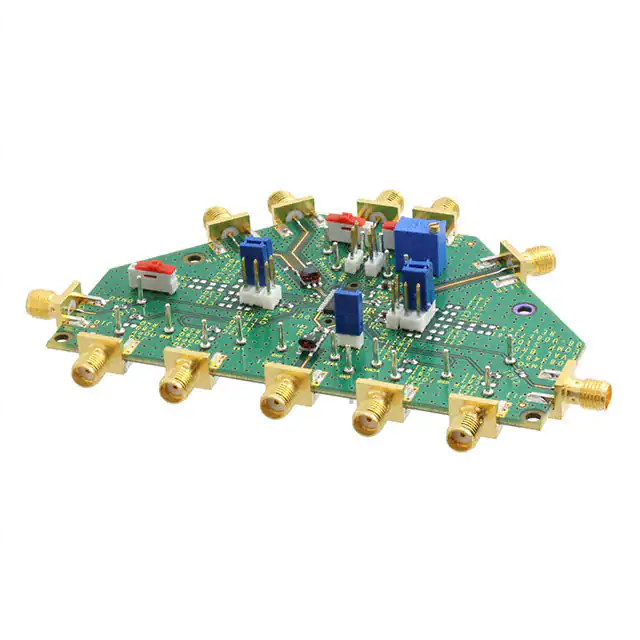

AD8348-EVALZBOARD EVAL FOR AD8348 |
0 |
|
Datasheet | - | Bulk | Active | Demodulator | 50MHz ~ 1GHz | Board(s) | AD8348 |
|

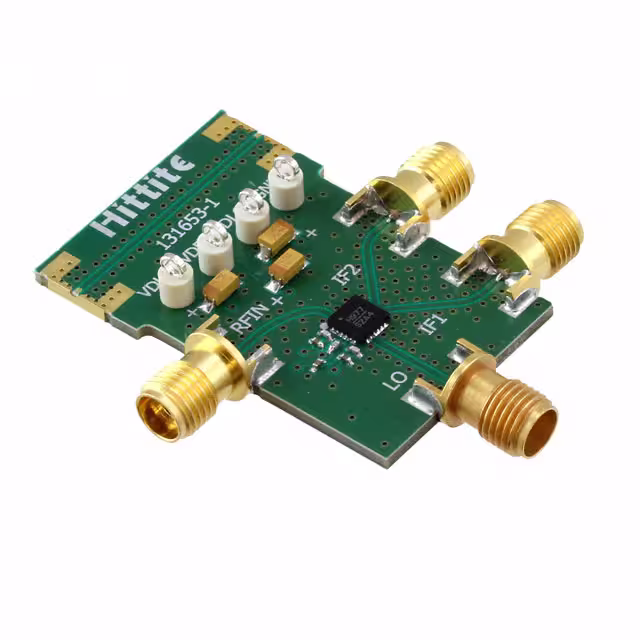

131656-HMC977LP4EEVAL BOARD HMC977LP4E |
3 |
|
Datasheet | - | Box | Active | Downconverter | 20GHz ~ 28GHz | Board(s) | HMC977LP4E |
|
112405-HMC575LP4BOARD EVAL HMC575LP4E |
1 |
|
Datasheet | - | Box | Active | Multiplier | 3GHz ~ 4.5GHz | Board(s) | HMC575LP4 |
|

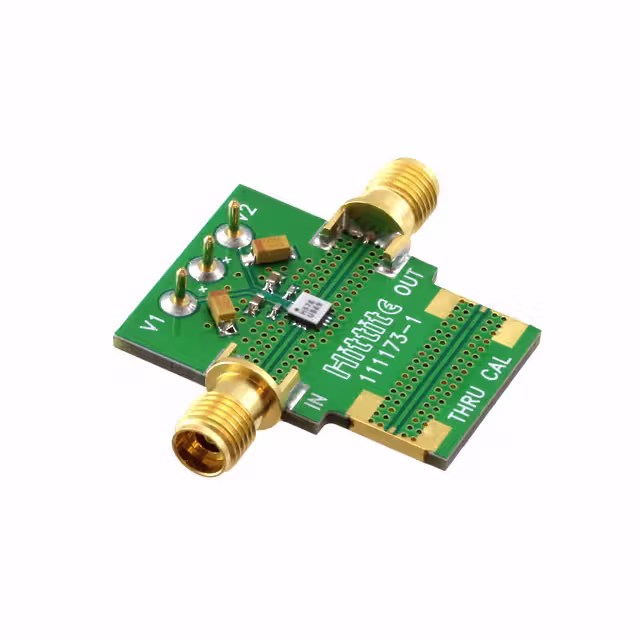

112409-HMC576LC3BEVAL BOARD HMC576LC3B |
1 |
|
Datasheet | - | Box | Active | Multiplier | 18GHz ~ 29GHz | Board(s) | HMC576LC3B |
|

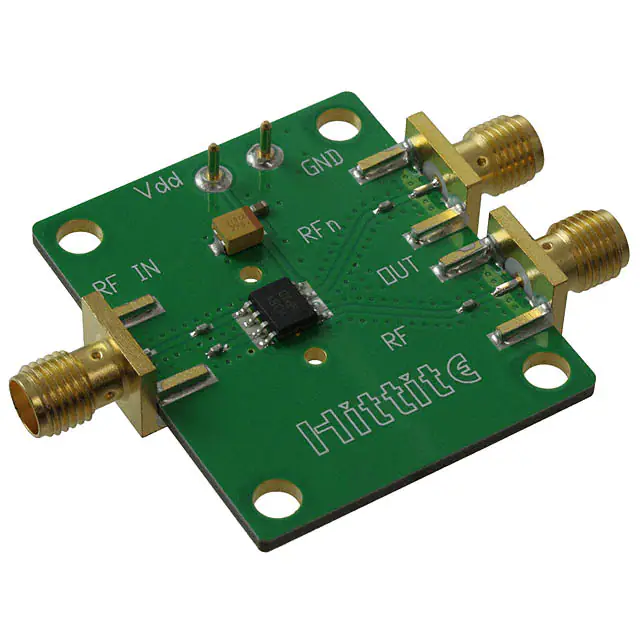

104631-HMC361S8GBOARD EVAL DIVIDER HMC361 |
1 |
|
Datasheet | - | Bag | Active | Prescaler | 0Hz ~ 10GHz | Board(s) | HMC361S8G |
|

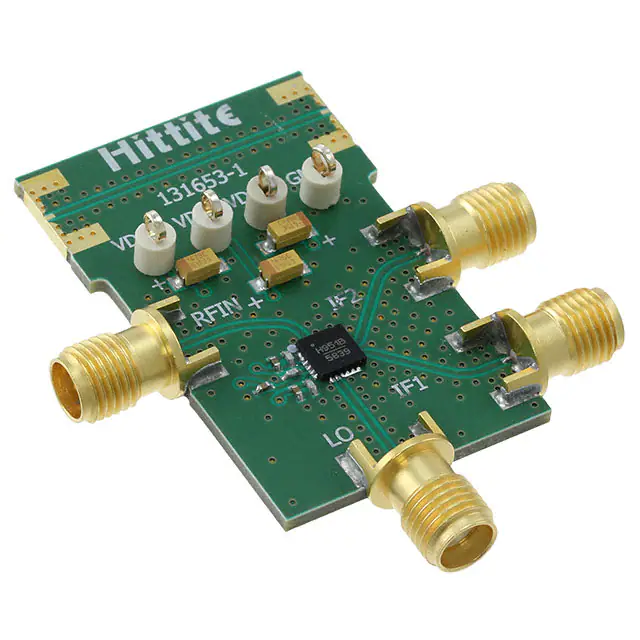

EV1HMC951BLP4EVAL BOARD FOR HMC951BLP4 |
2 |
|
Datasheet | - | Box | Active | Downconverter | 5.6GHz ~ 8.6GHz | Board(s) | HMC951BLP4E |
|

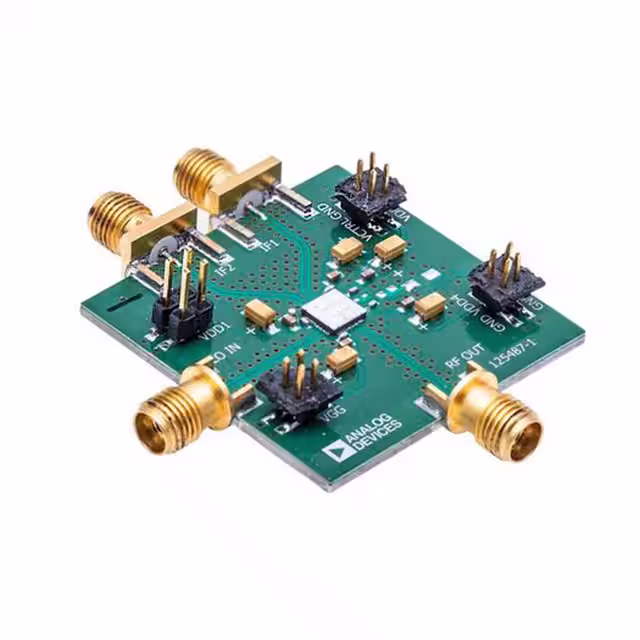

EV1HMC6505ALC5EVAL BOARD FOR HMC6505A |
2 |
|
Datasheet | - | Bulk | Active | Upconverter | 5.5GHz ~ 8.6GHz | Board(s) | HMC6505A |
|
EV1HMC554ALC3BMIXER |
2 |
|
Datasheet | - | Box | Active | Mixer | 10GHz ~ 20GHz | Board(s) | HMC554ALC3B |
|

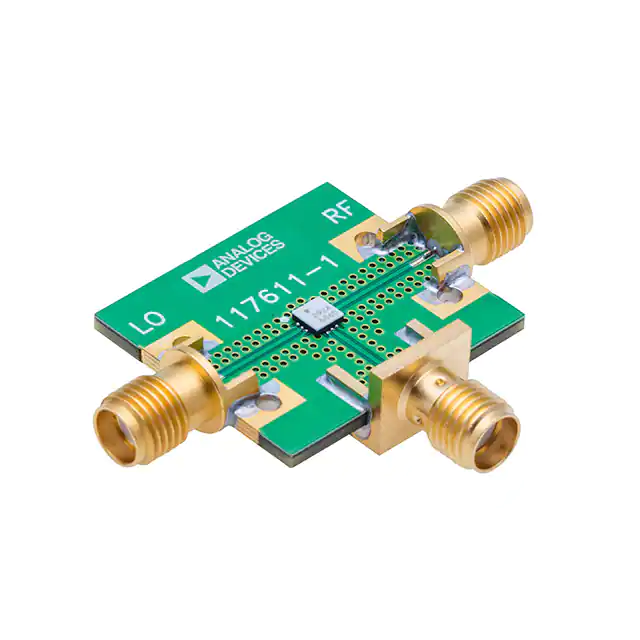

EV1HMC292ALC3BEVAL BOARD FOR HMC292ALC3B |
1 |
|
Datasheet | - | Bulk | Active | Mixer | 14GHz ~ 30GHz | Board(s) | HMC292ALC3B |
|

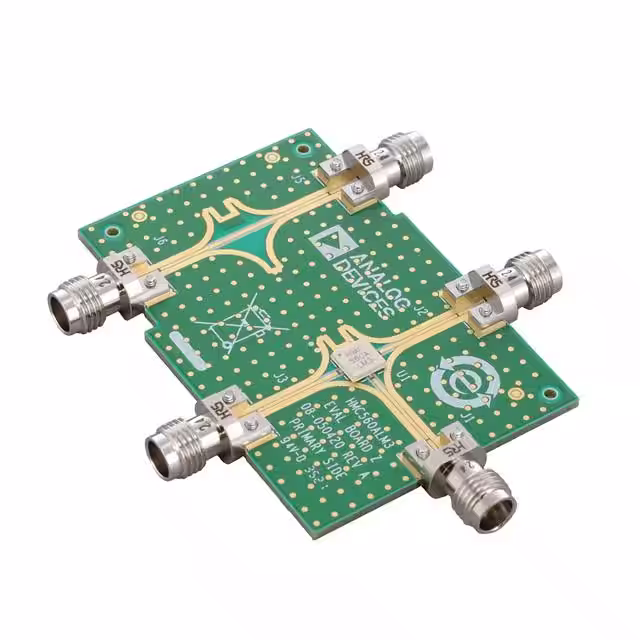

EV1HMC560ALM3EVALUATION PCB ASSEMBLY |
1 |
|
Datasheet | - | Box | Active | Mixer | 22GHz ~ 38GHz | Board(s) | HMC560ALM3 |
|

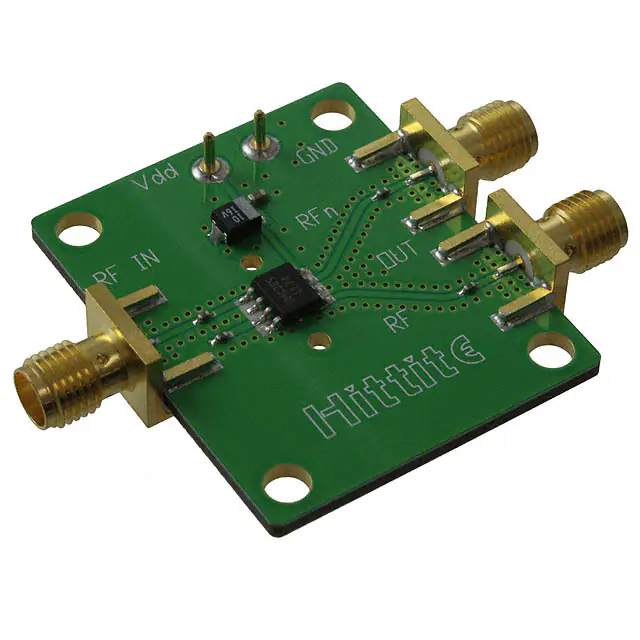

104631-HMC365S8GBOARD EVAL DIVIDER HMC365 |
1 |
|
Datasheet | - | Bag | Active | Prescaler | 0Hz ~ 13GHz | Board(s) | HMC365S8G |
|

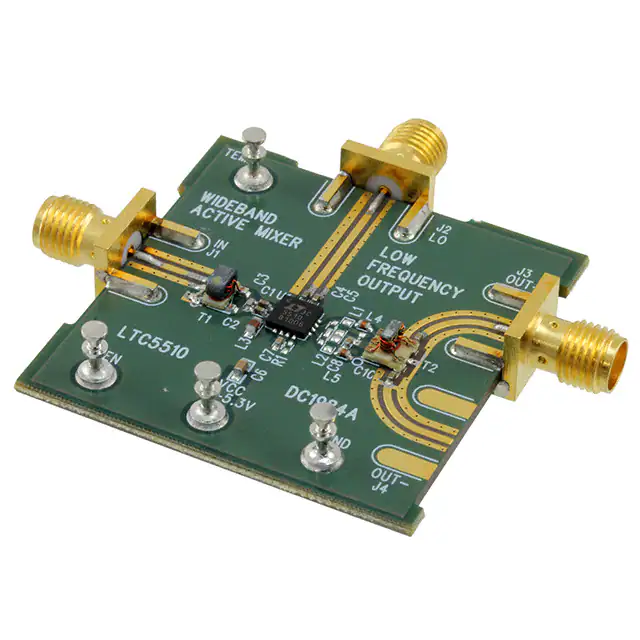

DC1984AEVAL BOARD MIXER LTC5510 |
3 |
|
Datasheet | - | Box | Active | Mixer | 1MHz ~ 6GHz | Board(s) | LTC5510 |
|

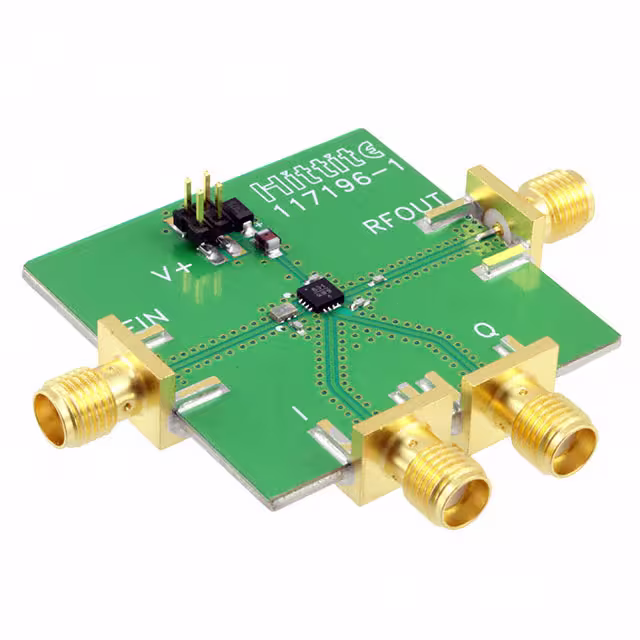

117201-HMC631LP3BOARD EVAL HMC631LP3E |
4 |
|
Datasheet | - | Box | Active | Modulator | 1.8GHz ~ 2.7GHz | Board(s) | HMC631LP3 |
|

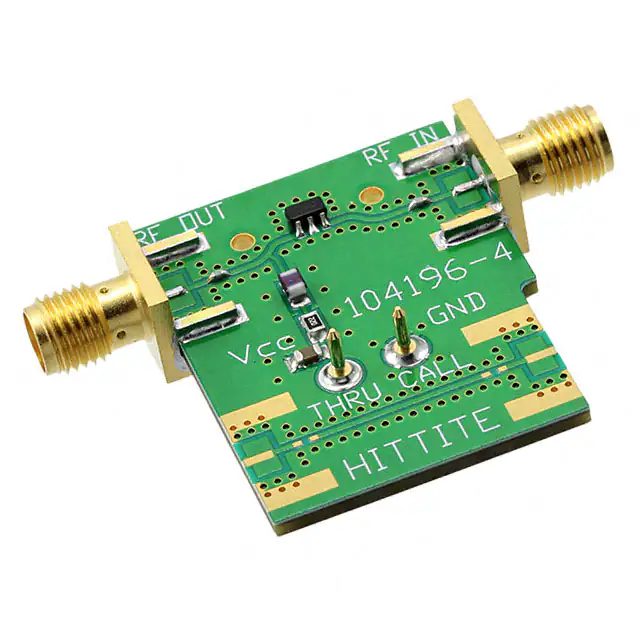

104217-HMC313EVAL BOARD HMC313 |
1 |
|
Datasheet | - | Box | Active | Amplifier | 0Hz ~ 3GHz | Board(s) | HMC313 |
|

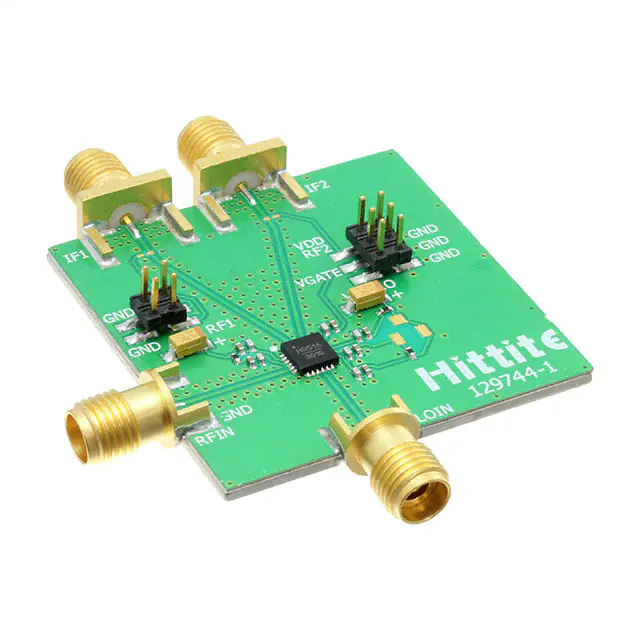

EV1HMC951ALP4HMC951A EVAL BOARD |
1 |
|
Datasheet | - | Box | Not For New Designs | Downconverter | 5.6GHz ~ 8.6GHz | Board(s) | HMC951A |
