RF, RFID, Wireless Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Frequency | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

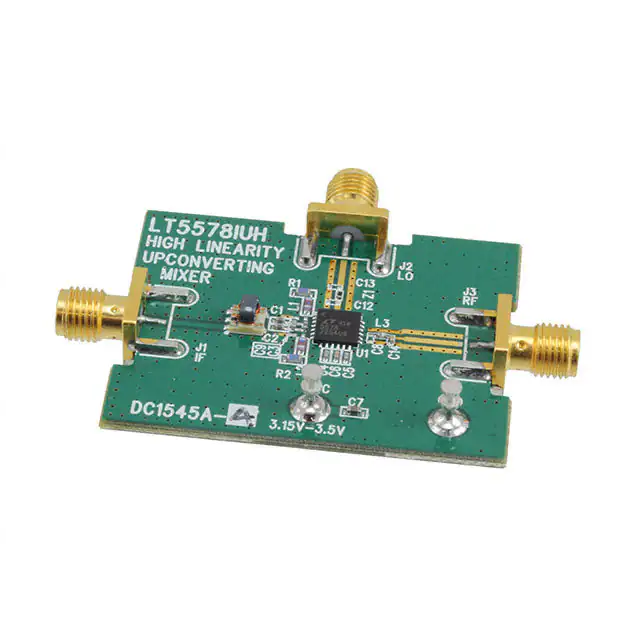

DC1545A-AEVAL BOARD FOR LT5578 |
2 |
|
Datasheet | - | Box | Active | Mixer | 1.95GHz | Board(s) | LT5578 |
|

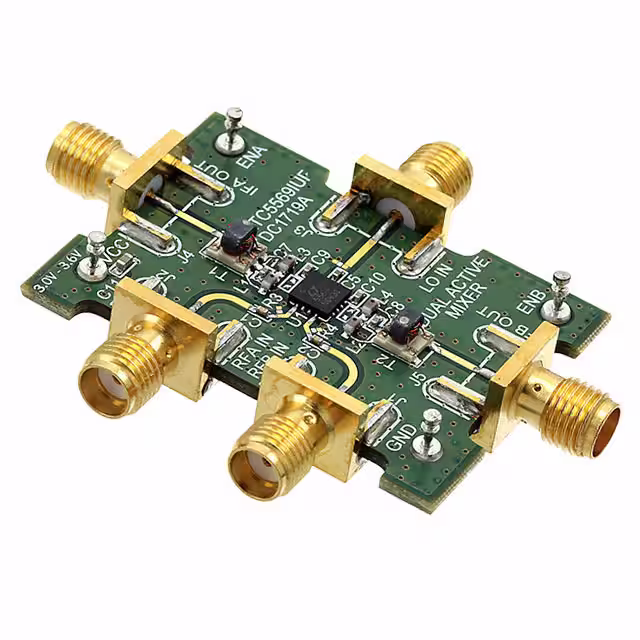

DC1719AEVAL BOARD FOR LTC5569 |
1 |
|
Datasheet | - | Box | Active | Mixer | 300MHz ~ 4GHz | Board(s) | LTC5569 |
|

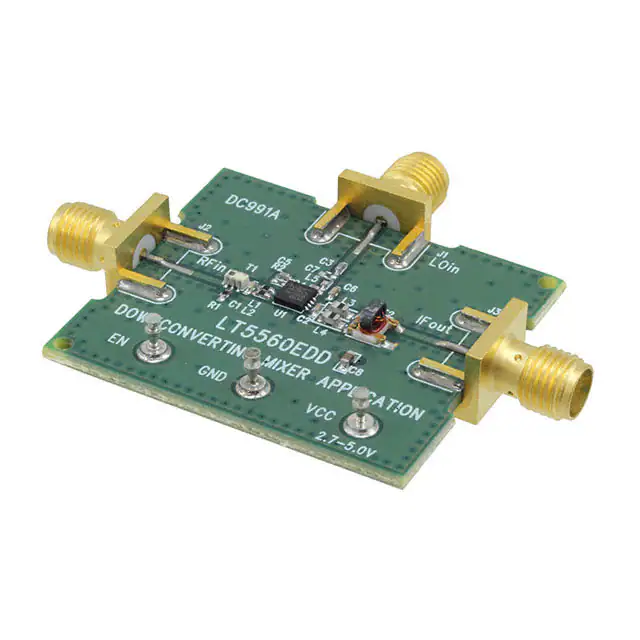

DC991AEVAL BOARD FOR LT5560EDD |
1 |
|
Datasheet | - | Box | Active | Mixer | 700MHz ~ 1.68GHz | Board(s) | LT5560 |
|
DC2322ADEMO BOARD FOR LTC5576 |
1 |
|
Datasheet | - | Box | Active | Mixer | 3GHz ~ 8GHz | Board(s) | LTC5576 |
|

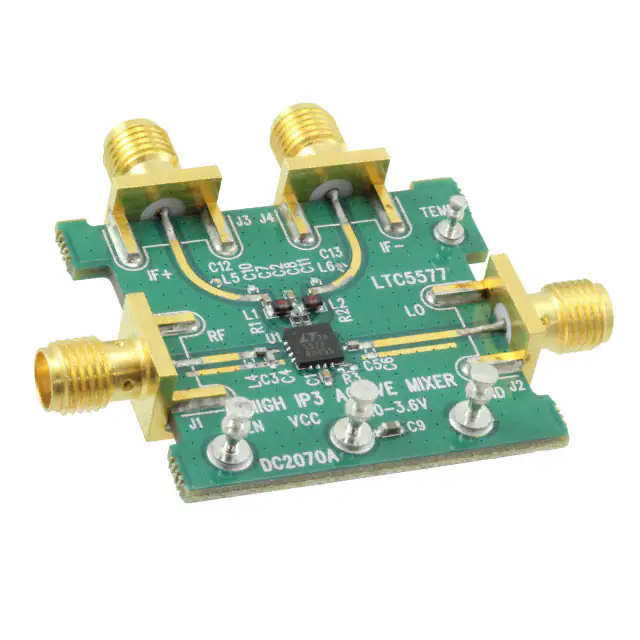

DC2070ADEMO BOARD FOR LTC5577 |
1 |
|
Datasheet | - | Box | Active | Mixer | 300MHz ~ 6GHz | Board(s) | LTC5577 |
|

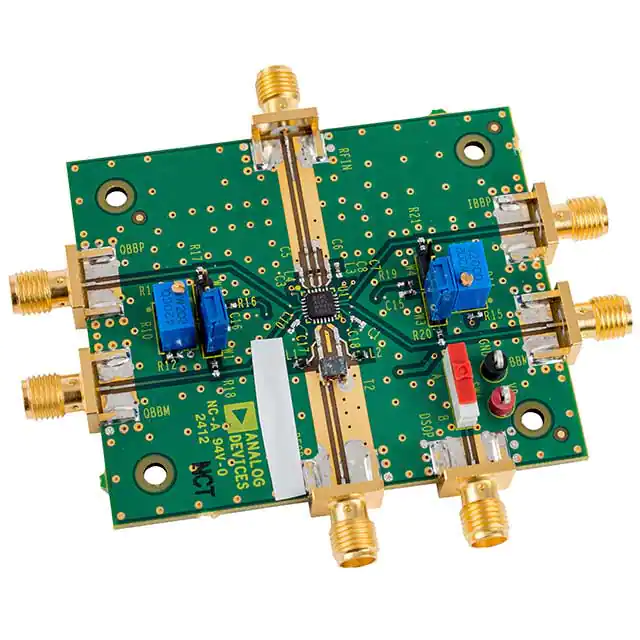

AD8340-EVALZBOARD EVAL FOR AD8340 VECT MOD |
1 |
|
Datasheet | - | Box | Active | Modulator | 700MHz ~ 1GHz | Board(s) | AD8340 |
|
RS9116X-SB-EVK2EVAL BOARD FOR RS9116 |
11 |
|
Datasheet | - | Bulk | Active | Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN), Bluetooth® 5.x (BLE) | 2.4GHz | Board(s) | RS9116 |
|

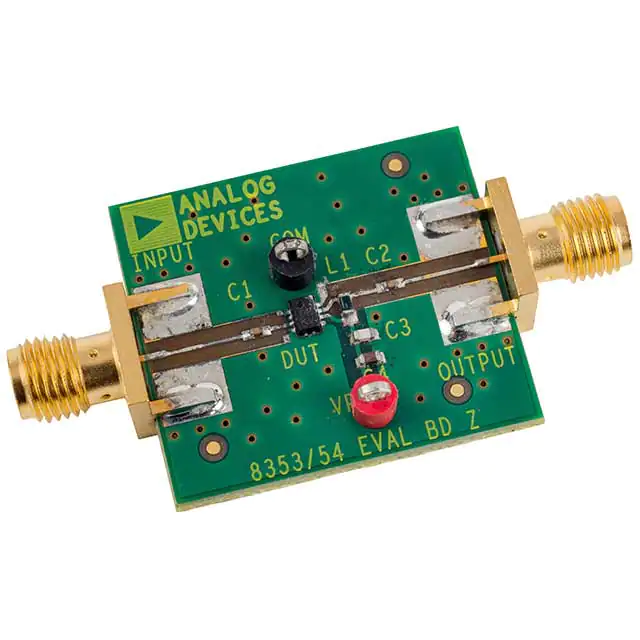

AD8353-EVALZBOARD EVAL FOR AD8353ACP |
2 |
|
Datasheet | - | Box | Active | Amplifier | 1MHz ~ 2.7GHz | Board(s) | AD8353 |
|

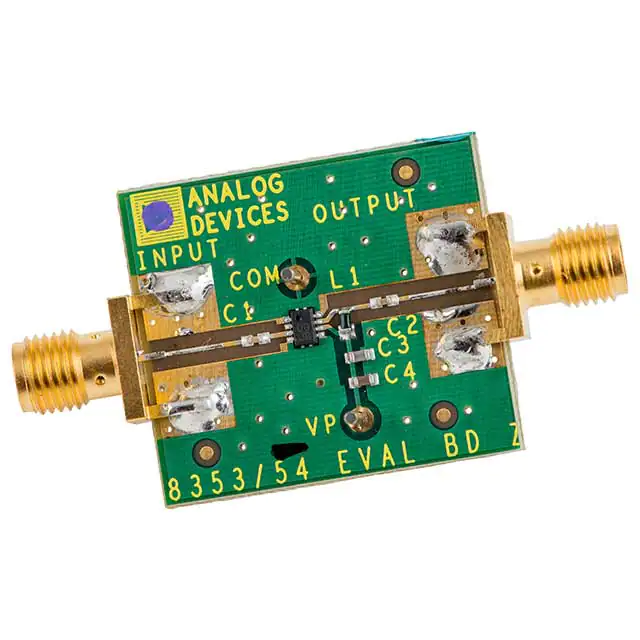

AD8354-EVALZBOARD EVAL FOR AD8354 |
2 |
|
Datasheet | - | Box | Active | Amplifier | 1MHz ~ 2.7GHz | Board(s) | AD8354 |
|

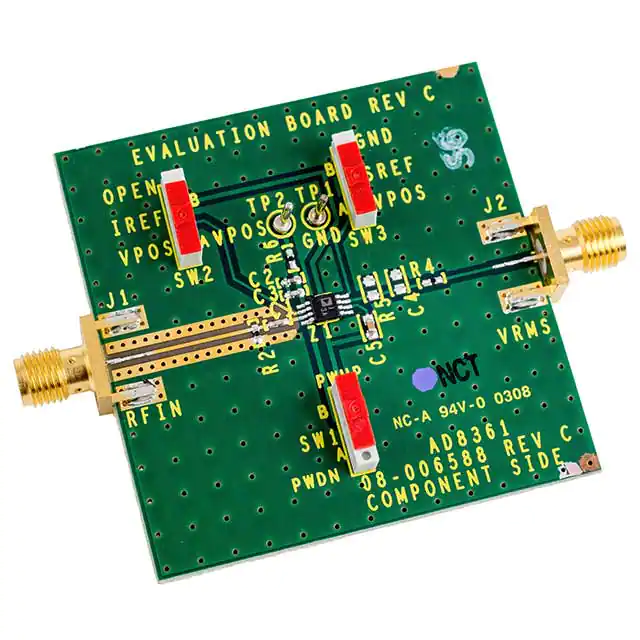

AD8361-EVALZEVAL BOARD FOR AD8361 |
3 |
|
Datasheet | TruPwr™ | Bag | Active | Power Detector | 100MHz ~ 2.5GHz | Board(s) | AD8361 |
|

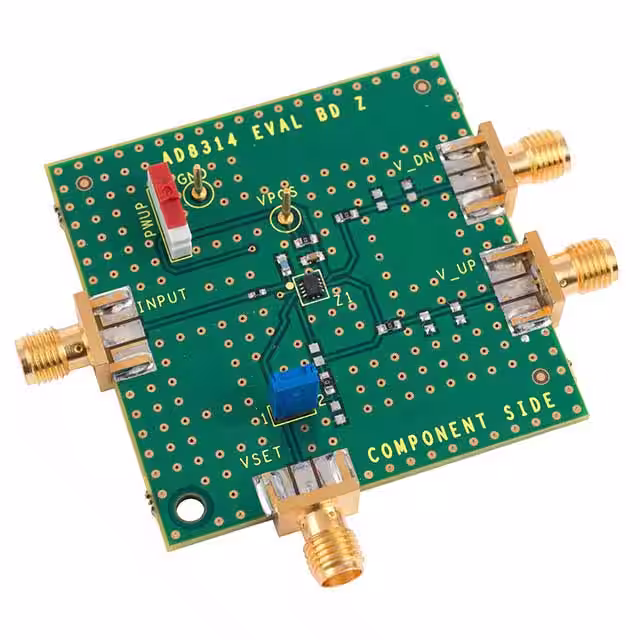

AD8314ACP-EVALZEVAL BOARD FOR AD8314 |
1 |
|
Datasheet | - | Box | Active | RF Log Detector/Controller | 100MHz ~ 2.7GHz | Board(s) | AD8314 |
|

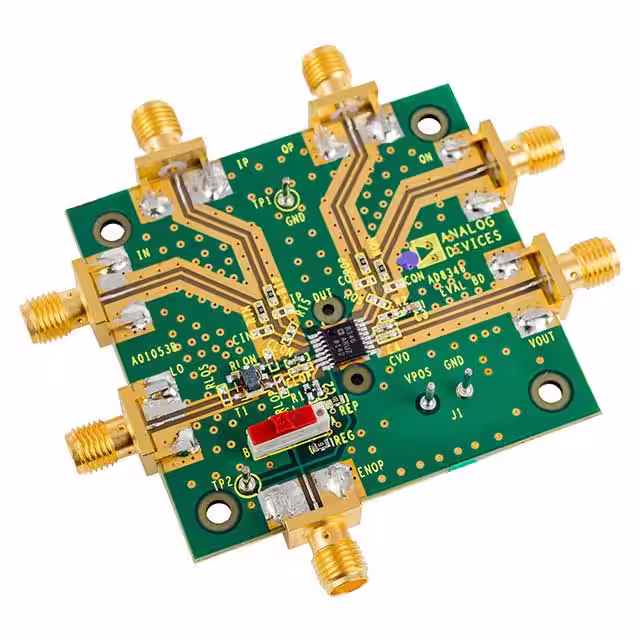

AD8346-EVALZEVAL BOARD FOR AD8346 |
1 |
|
Datasheet | - | Box | Active | Modulator | 800MHz ~ 2.5GHz | Board(s) | AD8346 |
|

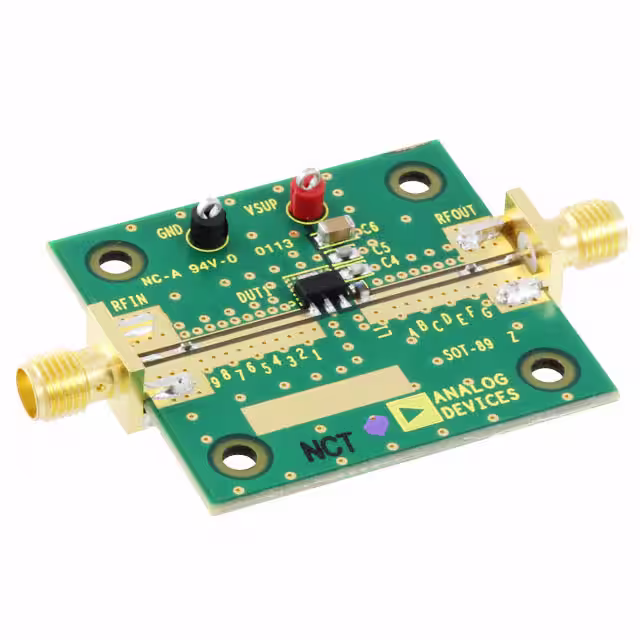

ADL5544-EVALZEVAL BOARD GAIN BLOCK ADL5544 |
1 |
|
Datasheet | - | Box | Active | Amplifier | 30MHz ~ 6GHz | Board(s) | ADL5544 |
|

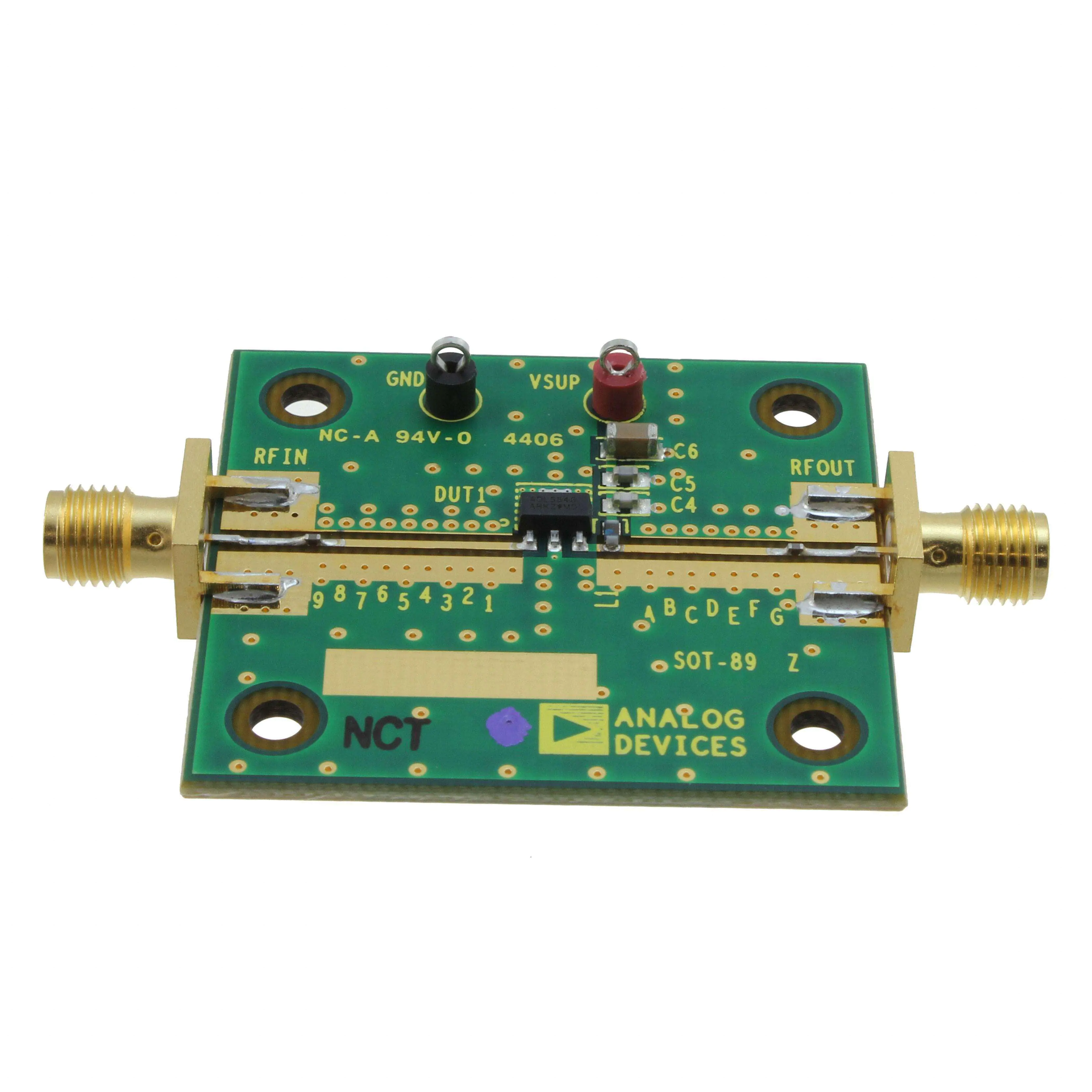

ADL5545-EVALZEVAL BOARD GAIN BLOCK ADL5545 |
1 |
|
Datasheet | - | Box | Active | Amplifier | 30MHz ~ 6GHz | Board(s) | ADL5545 |
|

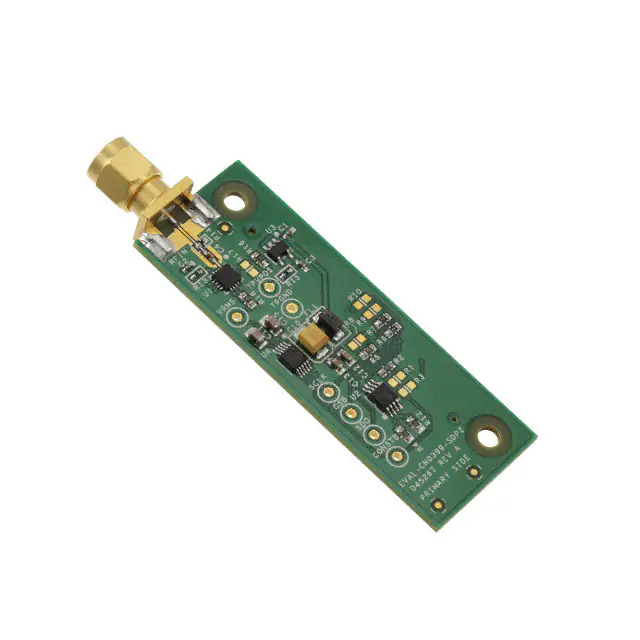

EVAL-CN0399-SDPZEVAL-CN0399-SDPZ |
2 |
|
Datasheet | Circuits from the Lab™ | Bulk | Active | Power Detector | 9kHz ~ 6GHz | Board(s) | ADL5904 |
|

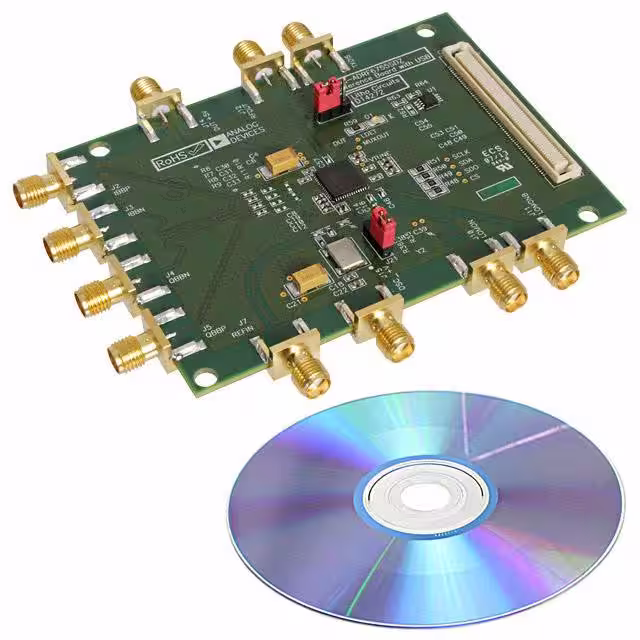

EVAL-ADRF6755SDZBOARD EVAL MODULATOR ADRF6755 |
2 |
|
Datasheet | - | Box | Active | Modulator | 100MHz ~ 2.4GHz | Board(s) | ADRF6755 |
|

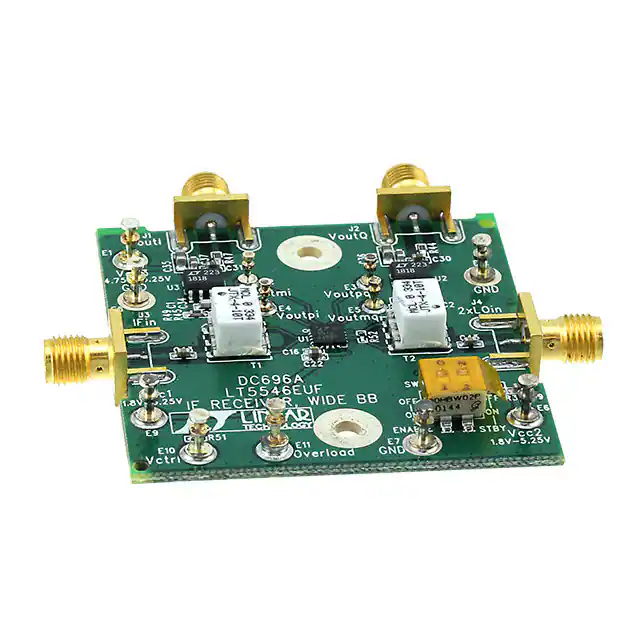

DC696AEVAL BOARD FOR LT5546EUF |
3 |
|
Datasheet | - | Box | Active | Demodulator | 40MHz ~ 500MHz | Board(s) | LT5546 |
|

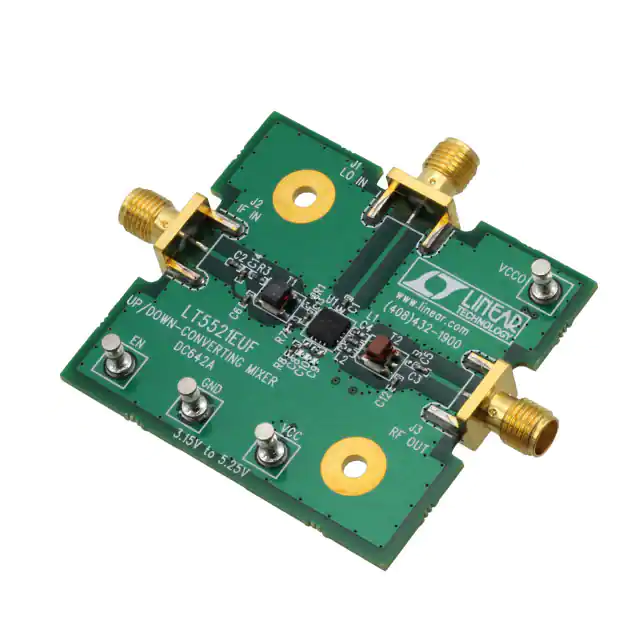

DC642AEVAL BOARD FOR LT5521EUF |
1 |
|
Datasheet | - | Box | Active | Mixer | 1.75GHz ~ 2.15GHz | Board(s) | LT5521 |
|

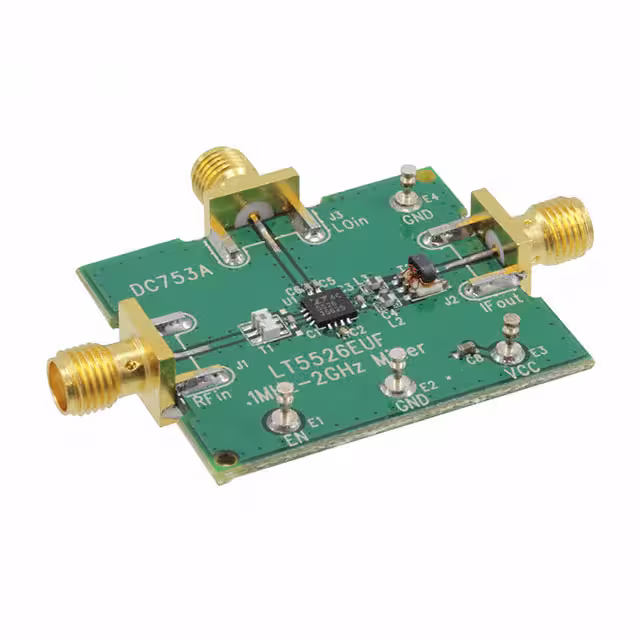

DC753AEVAL BOARD FOR LT5526EUF |
1 |
|
Datasheet | - | Box | Active | Mixer | - | Board(s) | LT5526 |
|
DC468ABOARD DEMO FOR LT5506EUF |
1 |
|
Datasheet | - | Box | Active | Demodulator | 50MHz ~ 500MHz | Board(s) | LT5506 |
