RF, RFID, Wireless Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Frequency | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

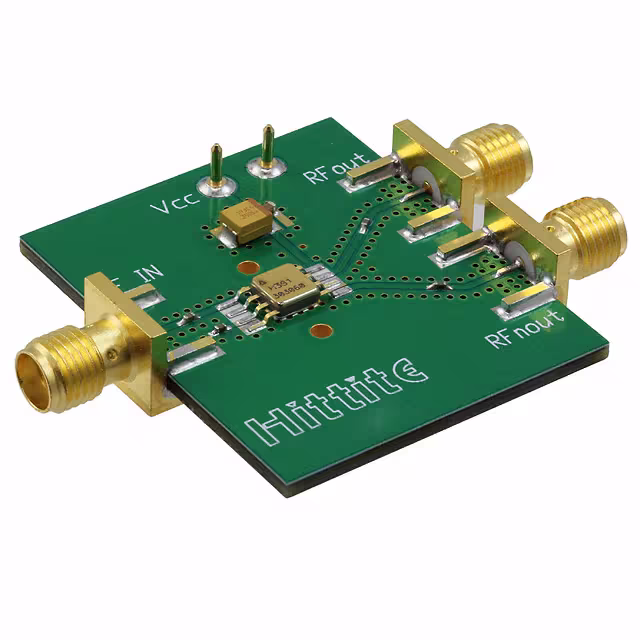

EVAL01-HMC361G8EVAL BOARD HMC361G8 |
1 |
|
Datasheet | - | Box | Active | Prescaler | 10MHz ~ 13GHz | Board(s) | HMC361G8 |
|

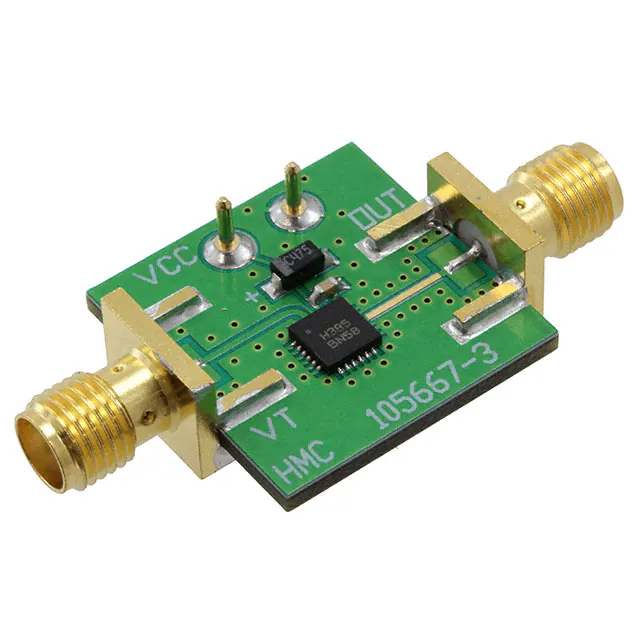

105706-HMC385LP4EVAL BOARD HMC385LP4 |
2 |
|
Datasheet | - | Box | Active | Voltage Controlled Oscillator (VCO) | 2.25GHz ~ 2.5GHz | Board(s) | HMC385LP4 |
|

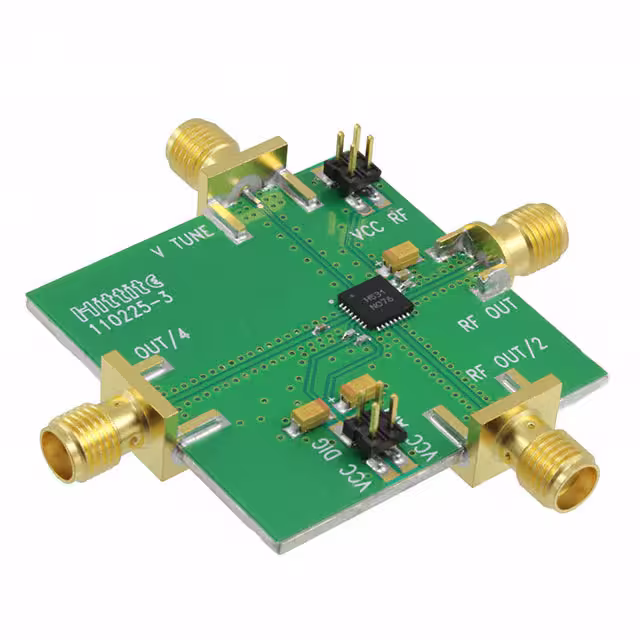

110227-HMC531LP5BOARD EVAL HMC531LP5E |
1 |
|
Datasheet | - | Box | Active | Voltage Controlled Oscillator (VCO) | 13.6GHz ~ 14.9GHz | Board(s) | HMC531LP5 |
|

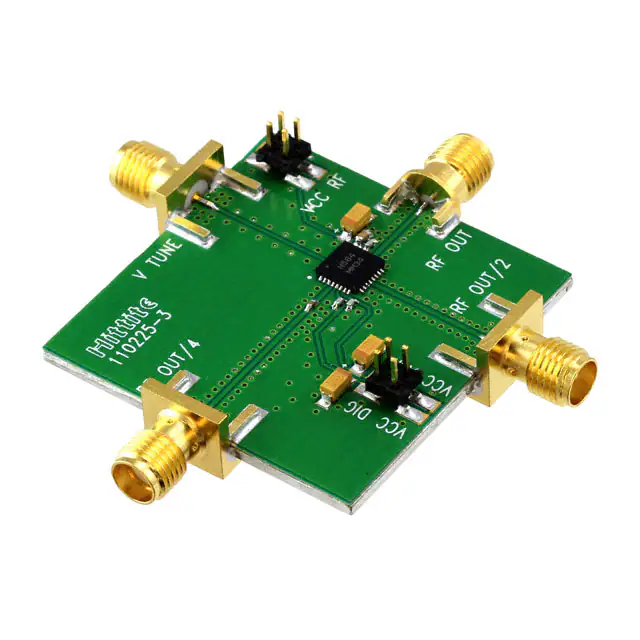

110227-HMC584LP5BOARD EVAL HMC584LP5E |
1 |
|
Datasheet | - | Box | Active | Voltage Controlled Oscillator (VCO) | 12.5GHz ~ 13.9GHz | Board(s) | HMC584LP5 |
|

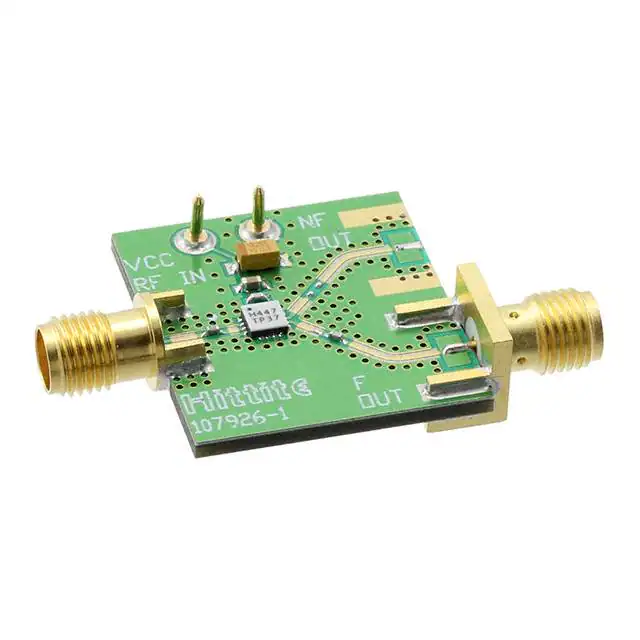

107928-HMC447LC3EVAL BOARD HMC447LC3 |
1 |
|
Datasheet | - | Box | Active | Prescaler | 10GHz ~ 26GHz | Board(s) | HMC447LC3 |
|
LMX2571EPEVMEVAL BOARD FOR LMX2571-EP |
3 |
|
Datasheet | - | Box | Active | Synthesizer | 10MHz ~ 1.4GHz | Board(s) | LMX2571-EP |
|
ADRF5721-EVALZADRF5721 EVAL BOARD |
1 |
|
Datasheet | - | Bulk | Active | Attenuator | 9kHz ~ 40GHz | Board(s) | ADRF5721 |
|

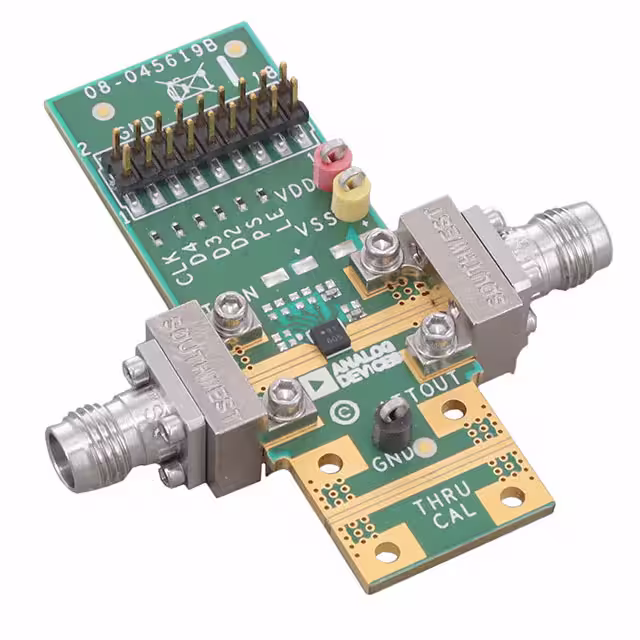

ADRF5731-EVALZADRF5731 EVAL BOARD |
1 |
|
Datasheet | - | Bulk | Active | Attenuator | 100MHz ~ 40GHz | Board(s) | ADRF5731 |
|

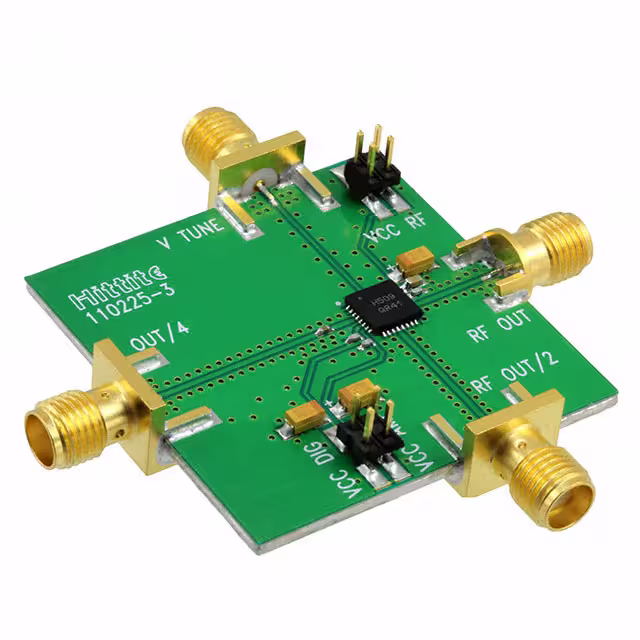

110227-HMC509LP5BOARD EVAL HMC509LP5E |
1 |
|
Datasheet | - | Box | Active | Voltage Controlled Oscillator (VCO) | 7.8GHz ~ 8.8GHz | Board(s) | HMC509LP5 |
|

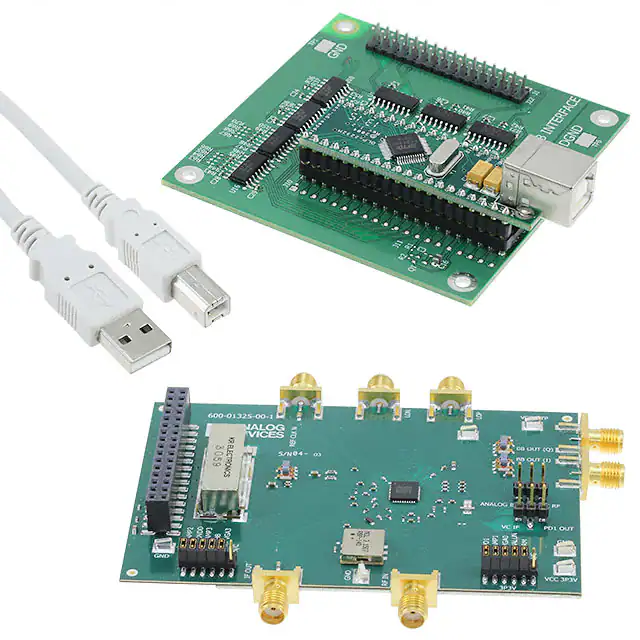

EK1HMC8100LP6JEVAL KIT FOR HMC8100LP6J |
1 |
|
Datasheet | - | Box | Active | Receiver | 800MHz ~ 4GHz | Board(s) | HMC8100LP6JE |
|
TSW3084EVMEVAL MODULE PLATFORM FOR DAC348X |
2 |
|
Datasheet | - | Box | Active | Signal Chain | - | Board(s) | LMK04906B, DAC34H84, TRF3705 |
|

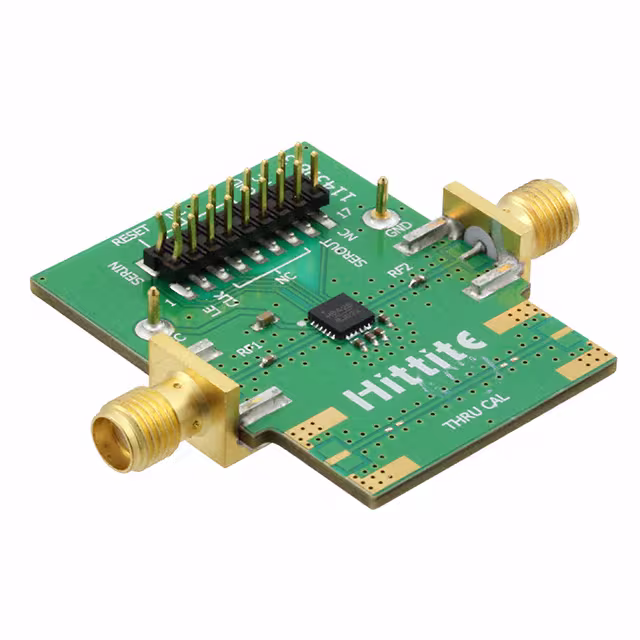

114399-HMC542BLP4BOARD EVALUATION HMC542BLP4 |
2 |
|
Datasheet | - | Box | Active | Attenuator | 0Hz ~ 4GHz | Board(s) | HMC542BLP4 |
|
ADRF5046-EVALZEVAL BOARD |
7 |
|
Datasheet | - | Box | Active | Switch, SP4T | 100MHz ~ 44GHz | Board(s) | ADRF5046 |
|

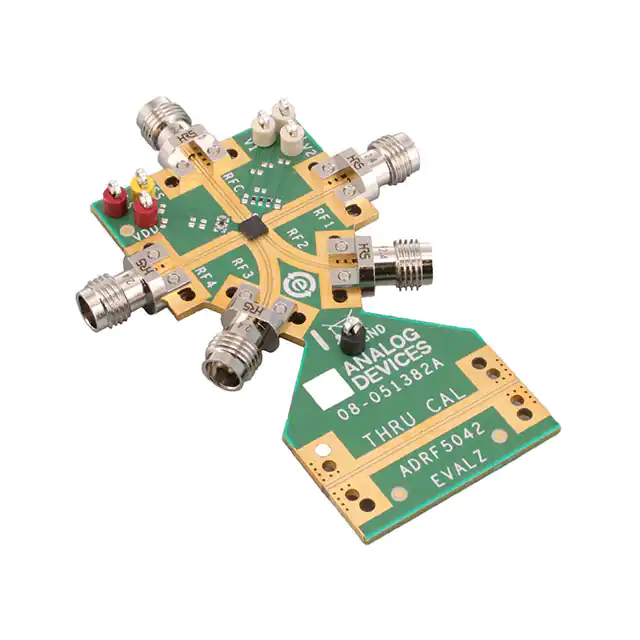

ADRF5042-EVALZEVAL BOARD FOR ADRF5042 |
6 |
|
Datasheet | - | Bulk | Active | Switch, SP4T | 100MHz ~ 44GHz | Board(s) | ADRF5042 |
|
ADRF5043-EVALZEVAL BOARD FOR ADRF5043 |
0 |
|
Datasheet | - | Bulk | Active | Switch, SP4T | 9kHz ~ 44GHz | Board(s) | ADRF5043 |
|

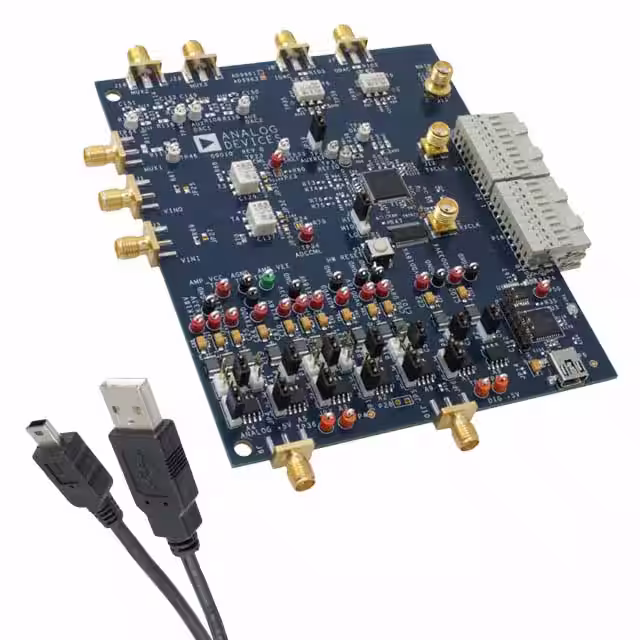

AD9963-EBZBOARD EVAL FOR AD9963 |
2 |
|
Datasheet | - | Bulk | Active | Transceiver | - | Board(s), Cable(s) | AD9963 |
|

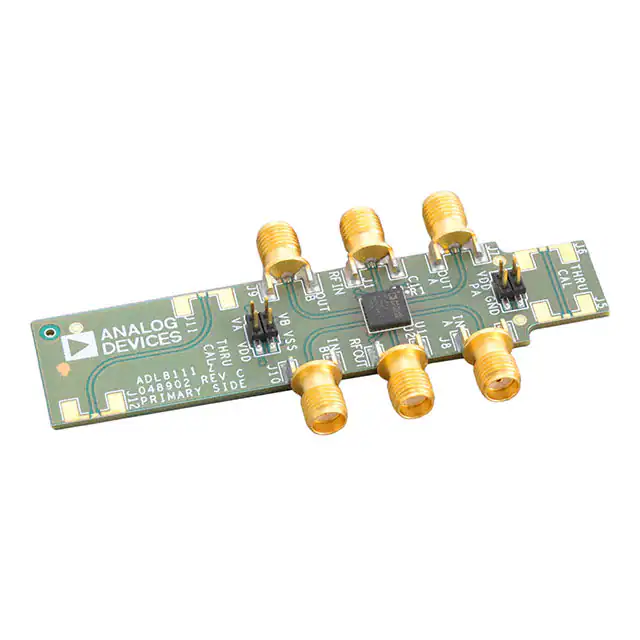

ADL8111-EVALZADL8111 EVAL BOARD |
3 |
|
Datasheet | - | Box | Active | Amplifier | 10MHz ~ 8GHz | Board(s) | ADL8111 |
|
SI4689-QFN-EVBEVAL BOARD QFN SI4689 |
6 |
|
- |
- | Box | Active | Receiver | 520kHz ~ 1.71MHz, 76MHz ~ 108MHz | Board(s) | Si4689 |
|
ADRF5740-EVALZ-185ADRF5740 EVAL BOARD |
1 |
|
Datasheet | - | Bulk | Active | Attenuator | 10GHz ~ 60GHz | Board(s) | ADRF5740 |
|
EV1HMC1132PM5HMC1132 EVAL BOARD |
1 |
|
Datasheet | - | Bulk | Active | Amplifier | 27GHz ~ 32GHz | Board(s) | HMC1132 |
