Linear Voltage Regulator Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Channels per IC | Voltage - Output | Current - Output | Voltage - Input | Regulator Type | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DEMOBOARDTLF42772ELTOBO1EVAL BOARD FOR TLF42772 |
4 |
|
Datasheet | - | Box | Active | 1 - Single | 5V | 300mA | - | Positive Adjustable | Board(s) | TLF4277-2 |
|
ADP161UJ-EVALZEVAL BOARD FOR ADP161 |
2 |
|
Datasheet | - | Bulk | Active | 1 - Single | 1V ~ 4.2V | 150mA | 2.2V ~ 5.5V | Positive Adjustable | Board(s) | ADP161 |
|
TPS7A14EVM-058EVAL BOARD FOR TPS7A14 |
8 |
|
Datasheet | - | Box | Active | 1 - Single | 0.8V | 1A | 0.7V ~ 2.2V | Positive Fixed | Board(s) | TPS7A14 |
|
ADP7104CP-EVALZEVAL BOARD FOR ADP7104 |
0 |
|
Datasheet | - | Bulk | Active | 1 - Single | 3.3V | 500mA | 3.3V ~ 20V | Positive Fixed | Board(s) | ADP7104 |
|

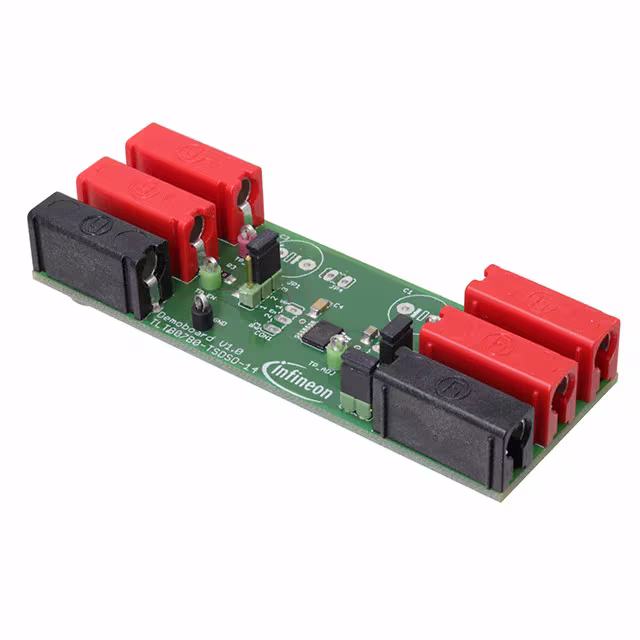

TLT807B0EPVBOARDTOBO1EVAL BOARD FOR TLT807B0EPV |
2 |
|
Datasheet | OPTIREG™ | Box | Active | 1 - Single | 1.2V ~ 20V | 70mA | 2.75V ~ 42V | Positive Adjustable | Board(s) | TLT807B0EPV |
|

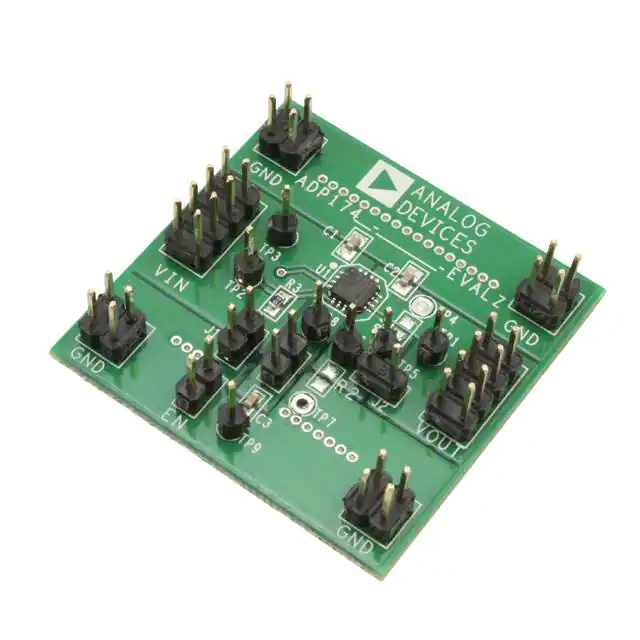

ADP1741-EVALZEVAL BOARD FOR ADP1741 |
1 |
|
Datasheet | - | Box | Active | 1 - Single | 0.75V ~ 3V | 2A | 1.6V ~ 3.6V | Positive Adjustable | Board(s) | ADP1741 |
|

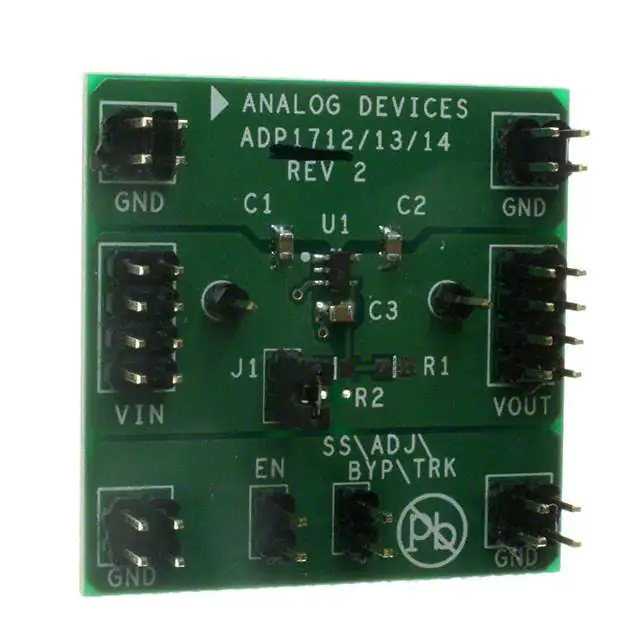

ADP1712-3.3-EVALZEVAL BOARD FOR ADP1712 |
2 |
|
Datasheet | - | Box | Active | 1 - Single | 3.3V | 300mA | 2.5V ~ 5.5V | Positive Fixed | Board(s) | ADP1712 |
|
ADP1715-3.3-EVALZEVAL BOARD FOR ADP1715 |
1 |
|
Datasheet | - | Box | Active | 1 - Single | 3.3V | 500mA | 2.5V ~ 5.5V | Positive Fixed | Board(s) | ADP1715 |
|

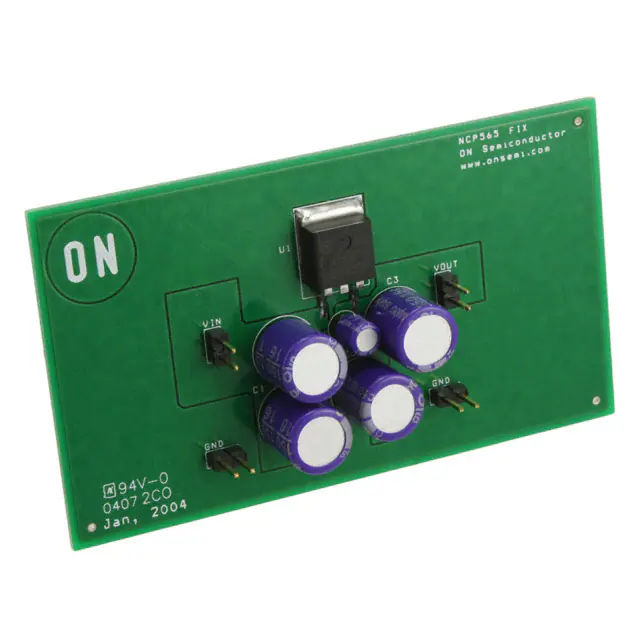

NCP565V12EVBEVAL BOARD FOR NCP565 |
2 |
|
Datasheet | - | Bulk | Active | 1 - Single | 1.2V | 1.5A | 4.5V ~ 5.5V | Positive Fixed | Board(s) | NCP565 |
|

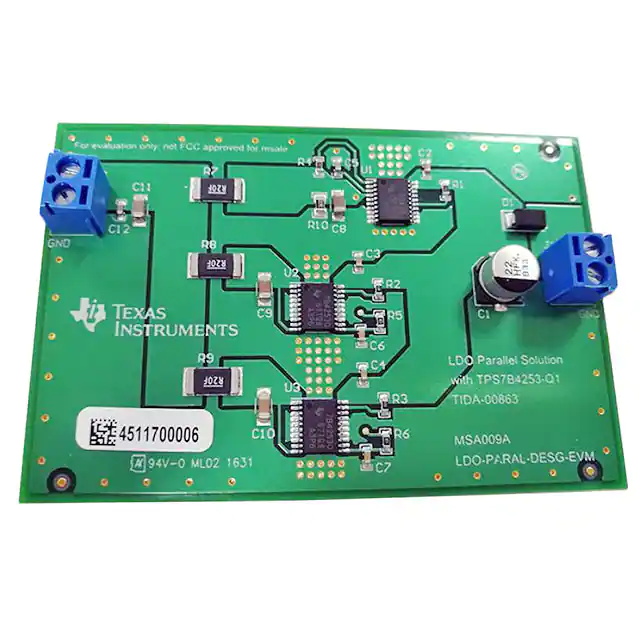

LDO-PARAL-DESG-EVMEVAL BOARD FOR TPS7B4253Q1 |
4 |
|
Datasheet | - | Bulk | Active | 1 - Single | 5V | 900mA | 4V ~ 40V | Positive Adjustable | Board(s) | TPS7B4253-Q1, TPS7B6750-Q1 |
|
|
DC368BEVAL BOARD FOR LT1763 |
1 |
|
Datasheet | - | Box | Active | 1 - Single | 1.22V, 1.5V, 1.8V, 2.5V, 3V, 3.3V or 5V | 500mA | 2.3V ~ 20V | Positive Adjustable | Board(s) | LT1763 |
|

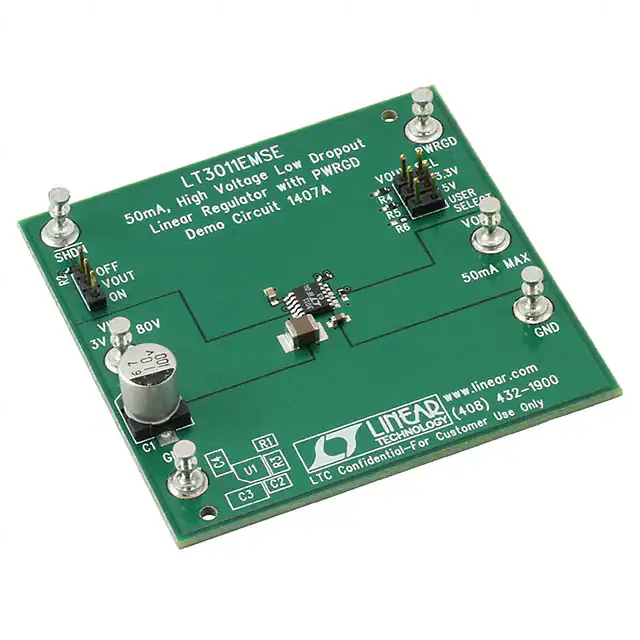

DC1407AEVAL BOARD FOR LT3011 |
0 |
|
Datasheet | - | Box | Active | 1 - Single | 3.3V or 5V | 50mA | 3V ~ 80V | Positive Adjustable | Board(s) | LT3011 |
|

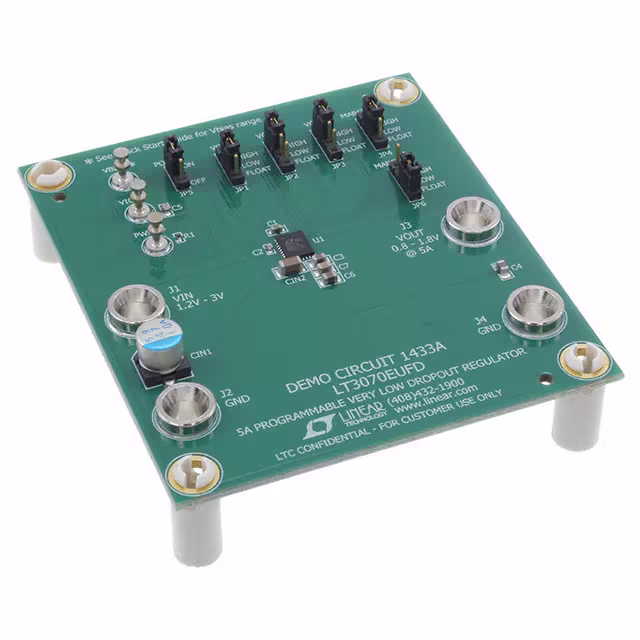

DC1433AEVAL BOARD FOR LT3070 |
0 |
|
Datasheet | - | Box | Obsolete | 1 - Single | 1.2V | 5A | 1.32V ~ 3V | Positive Adjustable | Board(s) | LT3070 |
|

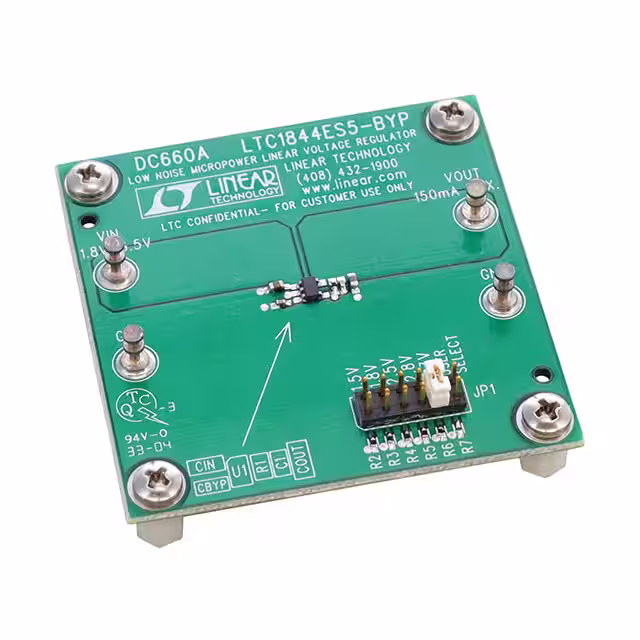

DC660AEVAL BOARD FOR LTC1844 |
1 |
|
Datasheet | - | Box | Active | 1 - Single | 1.5V, 1.8V, 2.5V, 2.8V or 3.3V | 150mA | 1.8V ~ 6.5V | Positive Adjustable | Board(s) | LTC1844 |
|

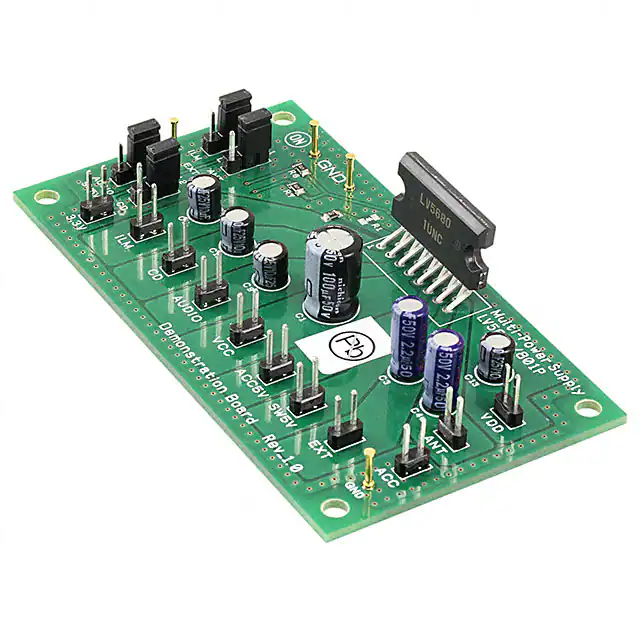

LV5680PGEVBEVAL BOARD FOR LV5680P |
2 |
|
Datasheet | - | Bulk | Active | 4 - Quad | - | 1.3A, 300mA, 300mA, 200mA | 7.5V ~ 16V | Positive Fixed and Adjustable | Board(s) | LV5680P |
|
DC1865AEVAL BOARD FOR LT3055 |
0 |
|
Datasheet | - | Box | Active | 1 - Single | 1.2V, 1.5V, 1.8V, 2.5V, 3.3V or 5V | 500mA | 5.6V ~ 45V | Positive Adjustable | Board(s) | LT3055 |
|

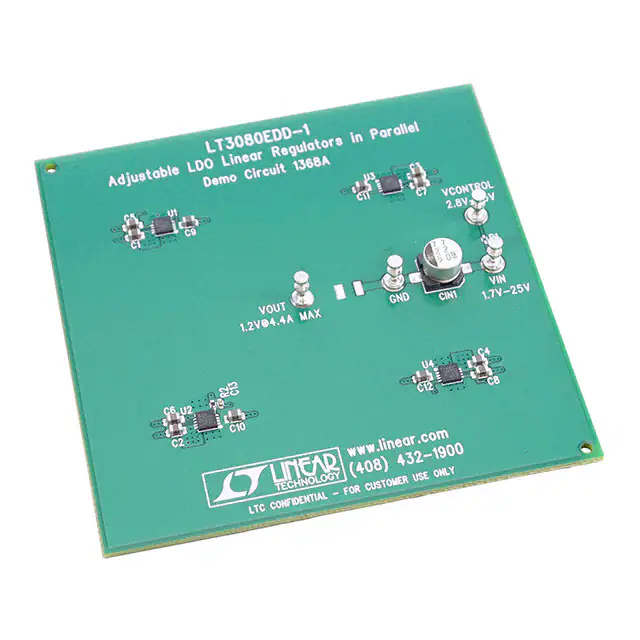

DC1368AEVAL BOARD FOR LT30801 |
0 |
|
Datasheet | - | Box | Active | 1 - Single | 1.2V | 4.4A | 1.7V ~ 25V | Positive Adjustable | Board(s) | LT3080-1 |
|

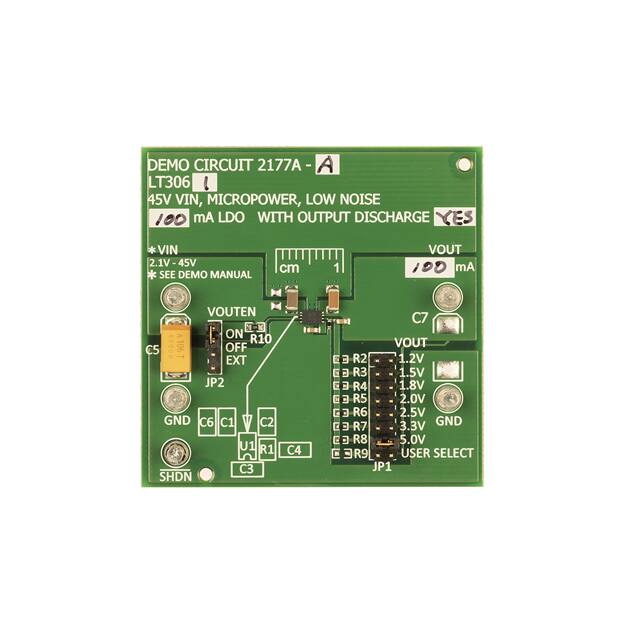

DC2177A-AEVAL BOARD FOR LT3061 |
1 |
|
Datasheet | - | Box | Active | 1 - Single | 1.2V, 1.5V, 1.8V, 2V, 2.5V, 3.3V or 5V | 100mA | 2.1V ~ 45V | Positive Adjustable | Board(s) | LT3061 |
|

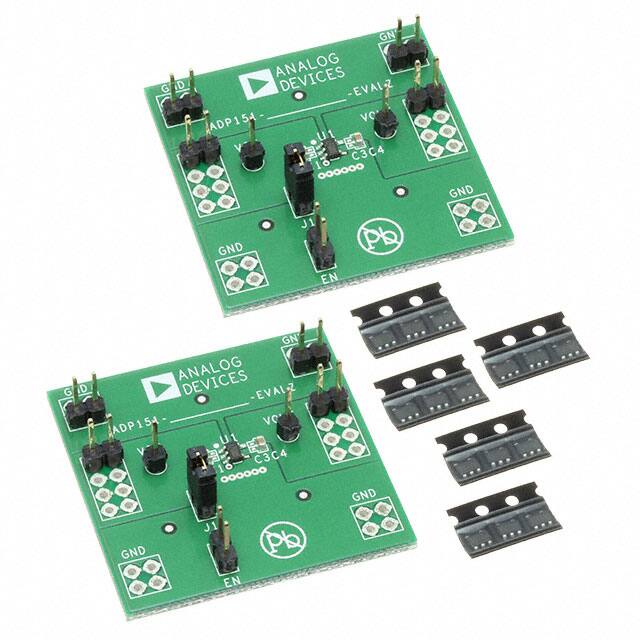

ADP151UJZ-REDYKITEVAL BOARD FOR ADP151 |
1 |
|
Datasheet | RedyKit™ | Bulk | Active | 1 - Single | 2.8V, 3.3V | 200mA | - | Positive Fixed | Board(s) | ADP151 |
|
|
TPS715EVM-074EVAL BOARD FOR TPS71501 |
7 |
|
Datasheet | - | Box | Active | 1 - Single | 1.8V, 3.3V, 5V or 10V | 50mA | 2.5V ~ 24V | Positive Fixed and Adjustable | Partially Populated Board(s) | TPS71501 |
