Linear Voltage Regulator Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Channels per IC | Voltage - Output | Current - Output | Voltage - Input | Regulator Type | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

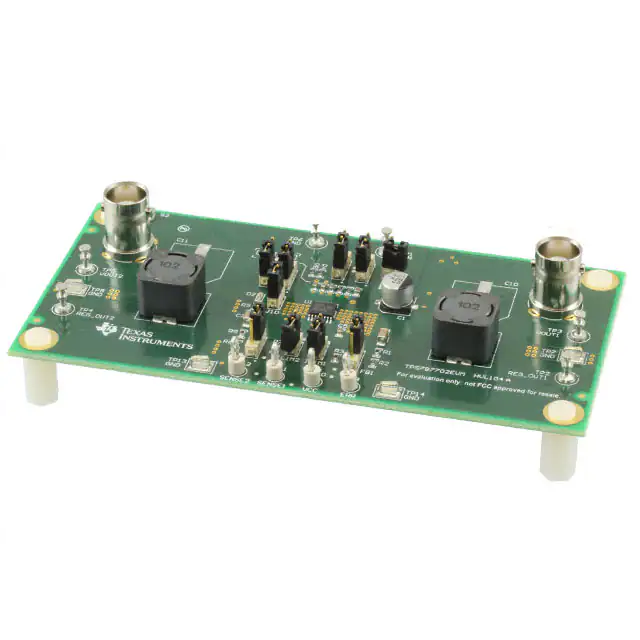

TPS7B7702EVMEVAL BOARD FOR TPS7B7702Q1 |
4 |
|
Datasheet | - | Box | Active | 2 - Dual | 5V, 8V | 300mA, 300mA | - | Positive Adjustable | Board(s) | TPS7B7702-Q1 |
|

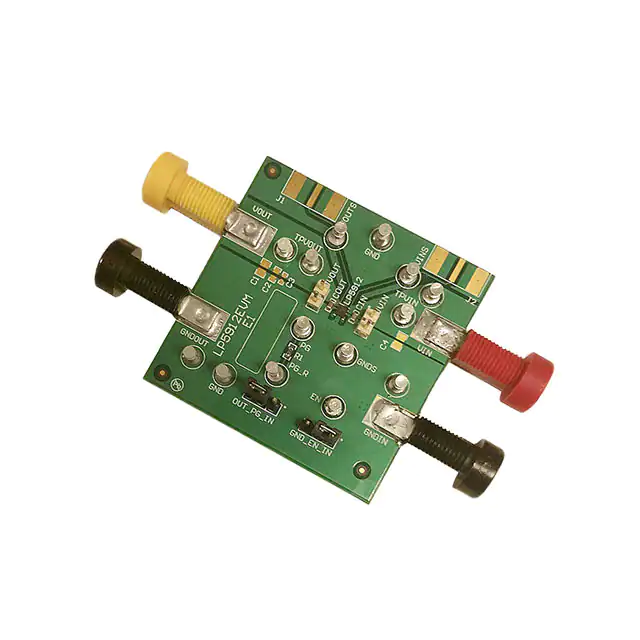

LP5912DRV33EVMEVAL BOARD FOR LP5912 |
2 |
|
Datasheet | - | Bulk | Active | 1 - Single | 3.3V | 500mA | 1.6V ~ 6.5V | Positive Fixed | Board(s) | LP5912 |
|

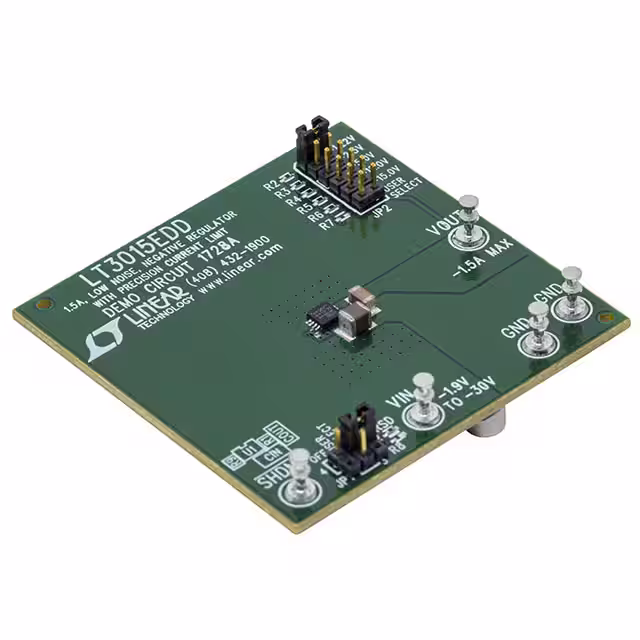

DC1728AEVAL BOARD FOR LT3015 |
2 |
|
Datasheet | - | Box | Active | 1 - Single | -1.22V, -2.5V, -5V, -12V or -15V | 1.5A | -1.8V ~ -30V | Negative Adjustable | Board(s) | LT3015 |
|

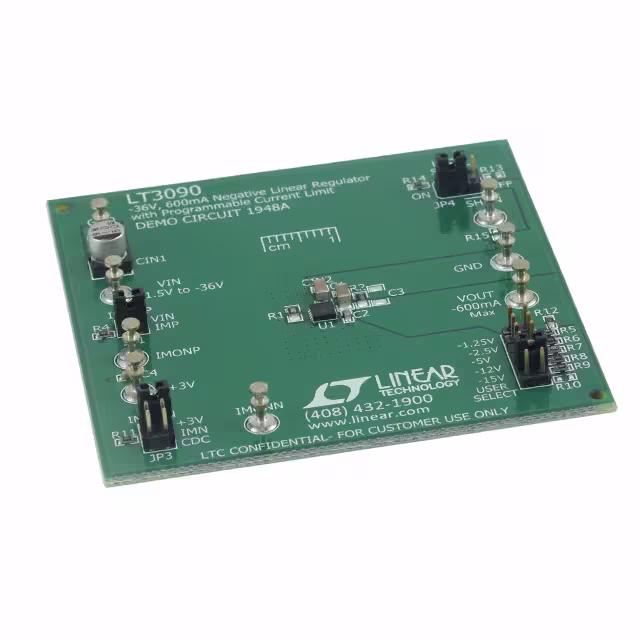

DC1948AEVAL BOARD FOR LT3090 |
1 |
|
Datasheet | - | Box | Active | 1 - Single | -1.25V, -2.5V, -5V, -12V or -15V | 600mA | -1.5V ~ -36V | Negative Adjustable | Board(s) | LT3090 |
|

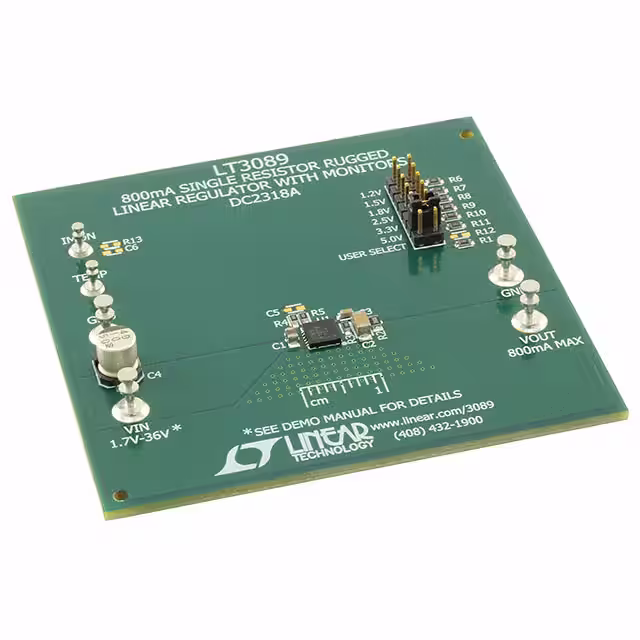

DC2318AEVAL BOARD FOR LT3089 |
1 |
|
Datasheet | - | Box | Active | 1 - Single | 1.2V, 1.5V, 1.8V, 2.5V, 3.3V or 5V | 800mA | 1.7V ~ 36V | Positive Adjustable | Board(s) | LT3089 |
|

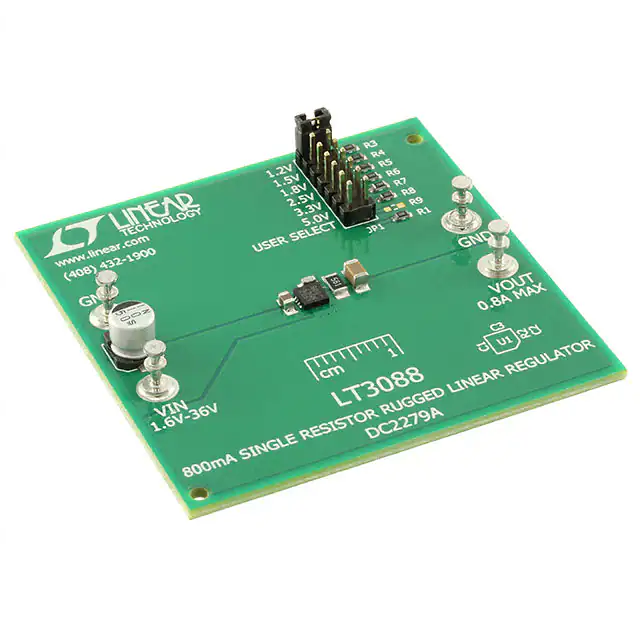

DC2279AEVAL BOARD FOR LT3088 |
0 |
|
Datasheet | - | Box | Active | 1 - Single | 1.2V, 1.5V, 1.8V, 2.5V, 3.3V or 5V | 800mA | 1.6V ~ 36V | Positive Adjustable | Board(s) | LT3088 |
|

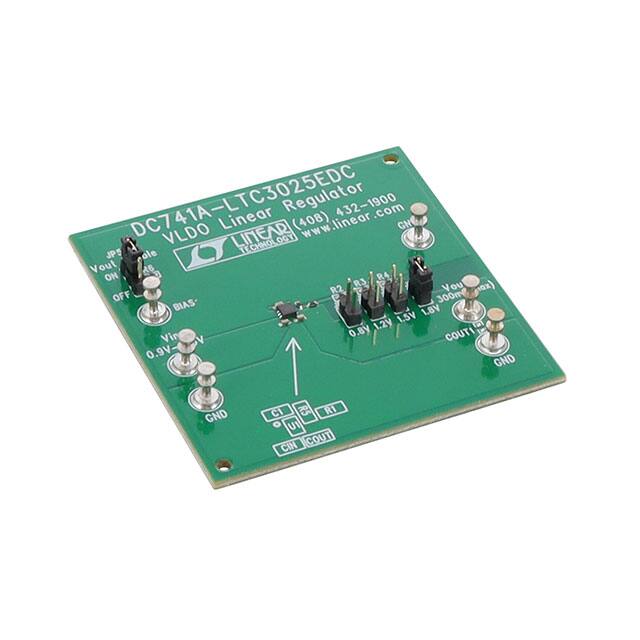

DC741AEVAL BOARD FOR LTC3025 |
2 |
|
Datasheet | - | Box | Active | 2 - Dual | 1.8V | 300mA | 0.9V ~ 5.5V | Positive Adjustable | Board(s) | LTC3025 |
|

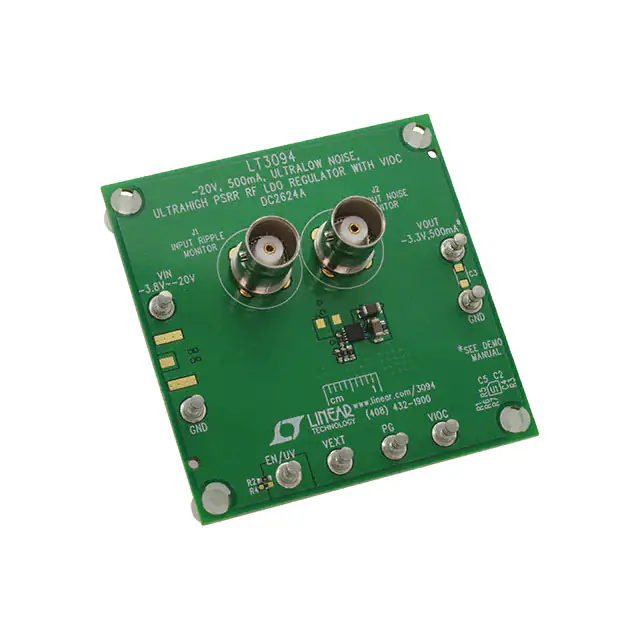

DC2624AEVAL BOARD FOR LT3094 |
12 |
|
Datasheet | - | Box | Active | 1 - Single | -3.3V | 500mA | -3.8V ~ -20V | Negative Adjustable | Board(s) | LT3094 |
|

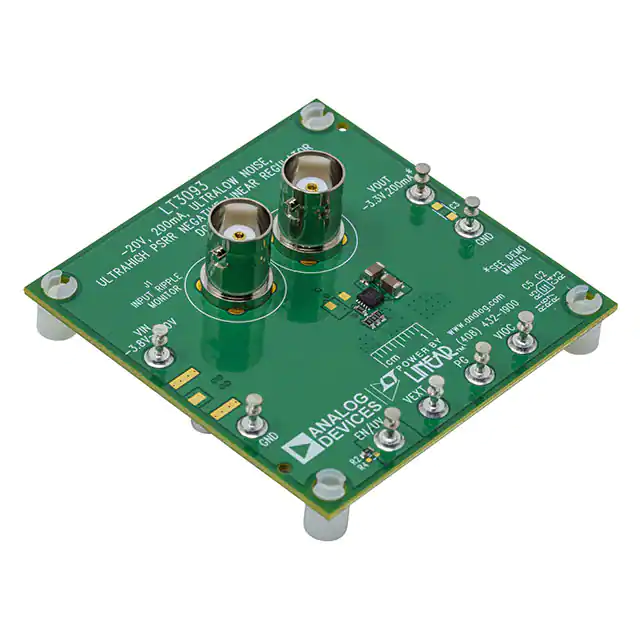

DC2952AEVAL BOARD FOR LT3093 |
2 |
|
Datasheet | - | Box | Active | 1 - Single | -3.3V | 200mA | -3.8V ~ -20V | Negative Adjustable | Board(s) | LT3093 |
|

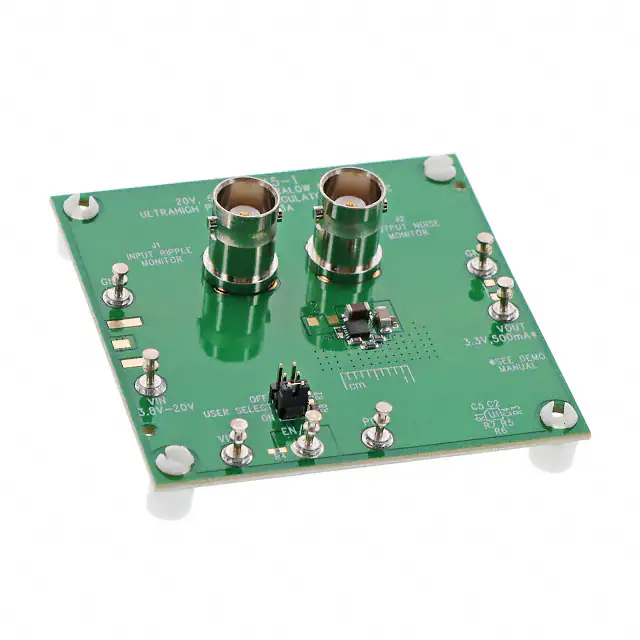

DC2593AEVAL BOARD FOR LT30451 |
1 |
|
Datasheet | - | Bulk | Active | 1 - Single | 3.3V | 500mA | 3.8V ~ 20V | Positive Adjustable | Board(s) | LT3045-1 |
|

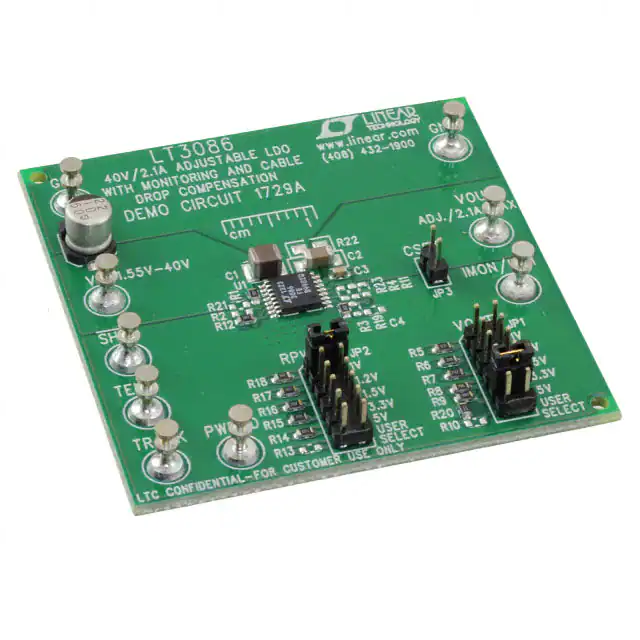

DC1729AEVAL BOARD FOR LT3086 |
6 |
|
Datasheet | - | Box | Active | 1 - Single | 1V, 1.2V, 1.5V, 3.3V or 5V | 2.1A | 1.4V ~ 40V | Positive Adjustable | Board(s) | LT3086 |
|

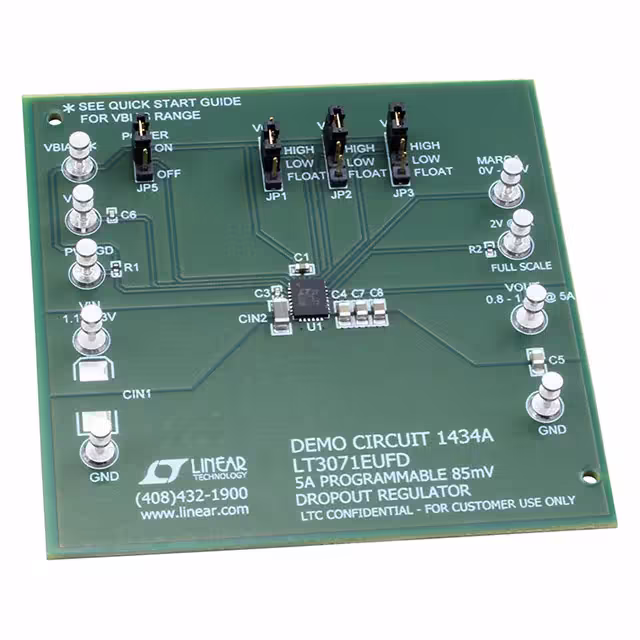

DC1434AEVAL BOARD FOR LT3071 |
1 |
|
Datasheet | - | Box | Active | 1 - Single | 0.8V ~ 1.8V | 5A | 1.2V | Positive Adjustable | Board(s) | LT3071 |
|

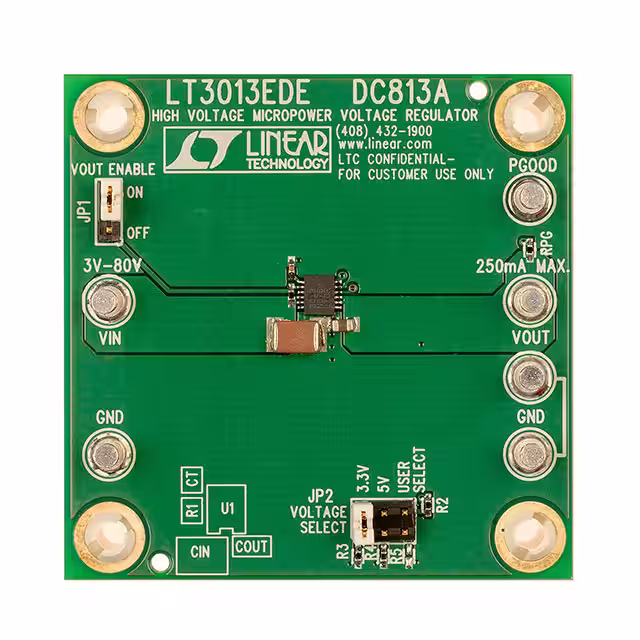

DC813AEVAL BOARD FOR LT3013 |
1 |
|
Datasheet | - | Box | Active | 1 - Single | 3.3V or 5V | 250mA | 3V ~ 80V | Positive Adjustable | Board(s) | LT3013 |
|

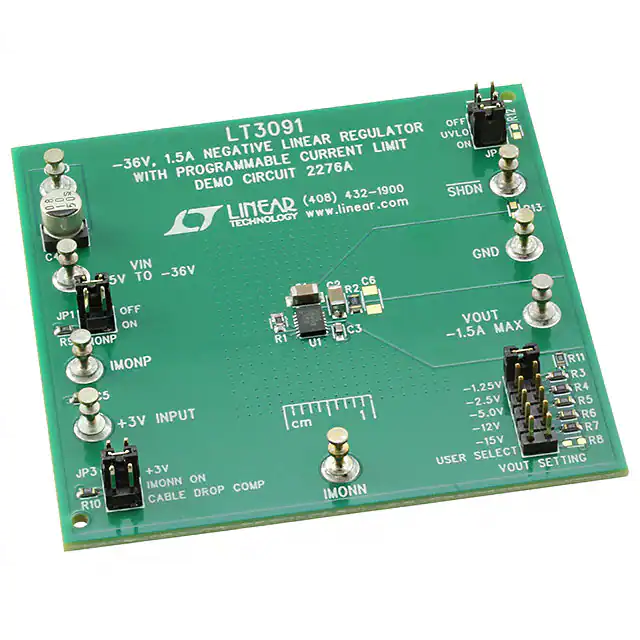

DC2276AEVAL BOARD FOR LT3091 |
1 |
|
Datasheet | - | Box | Active | 1 - Single | -1.25V, -2.5V, -5V, -12V or -15V | 1.5A | -1.5V ~ -36V | Negative Adjustable | Board(s) | LT3091 |
|

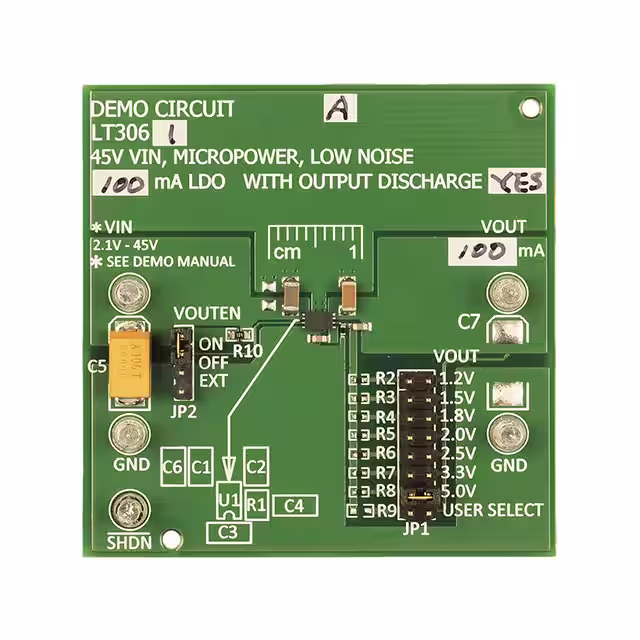

DC2177A-BEVAL BOARD FOR LT3062 |
1 |
|
Datasheet | - | Box | Active | 1 - Single | 1.2V, 1.5V, 1.8V, 2V, 2.5V, 3.3V or 5V | 200mA | 2.1V ~ 45V | Positive Adjustable | Board(s) | LT3062 |
|

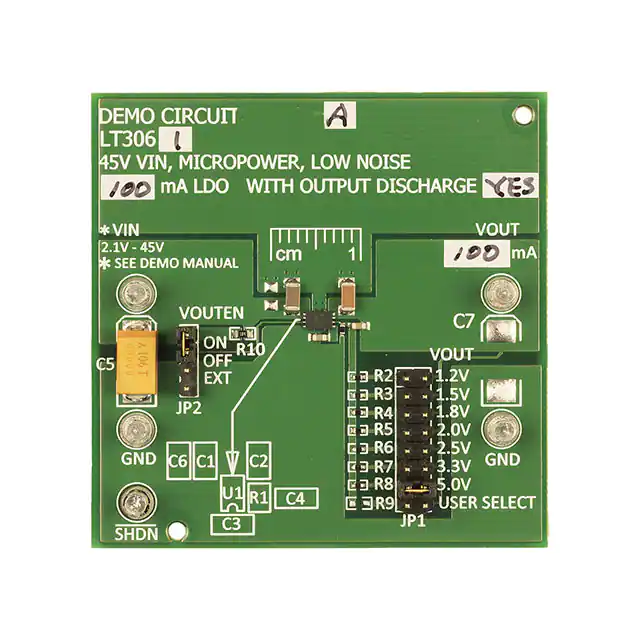

DC2177A-CEVAL BOARD FOR LT3063 |
1 |
|
Datasheet | - | Box | Active | 1 - Single | 1.2V, 1.5V, 1.8V, 2V, 2.5V, 3.3V or 5V | 200mA | 2.1V ~ 45V | Positive Adjustable | Board(s) | LT3063 |
|

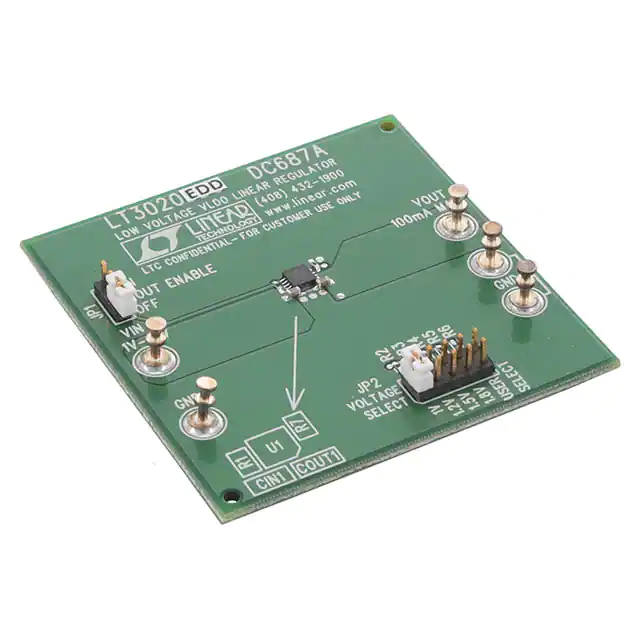

DC687AEVAL BOARD FOR LT3020 |
1 |
|
Datasheet | - | Box | Active | 1 - Single | 1V | 100mA | 1V ~ 10V | Positive Adjustable | Board(s) | LT3020 |
|

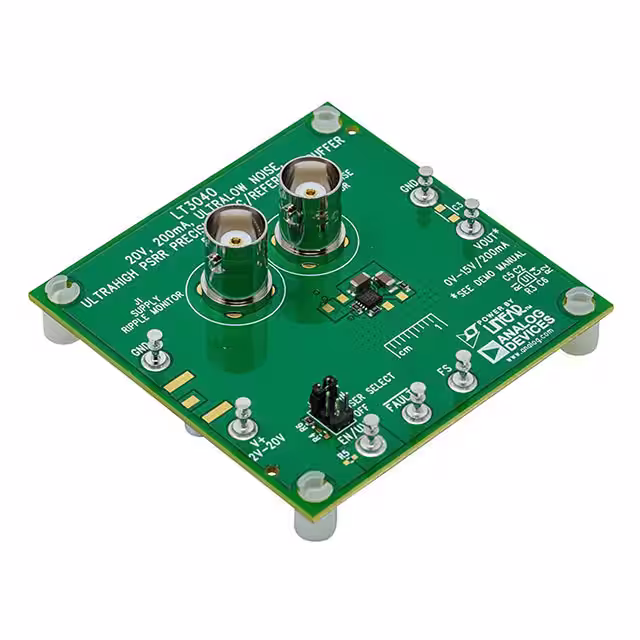

DC2783AEVAL BOARD FOR LT3040 |
1 |
|
Datasheet | - | Box | Active | 1 - Single | - | 200mA | 2V ~ 20V | Positive Adjustable | Board(s) | LT3040 |
|

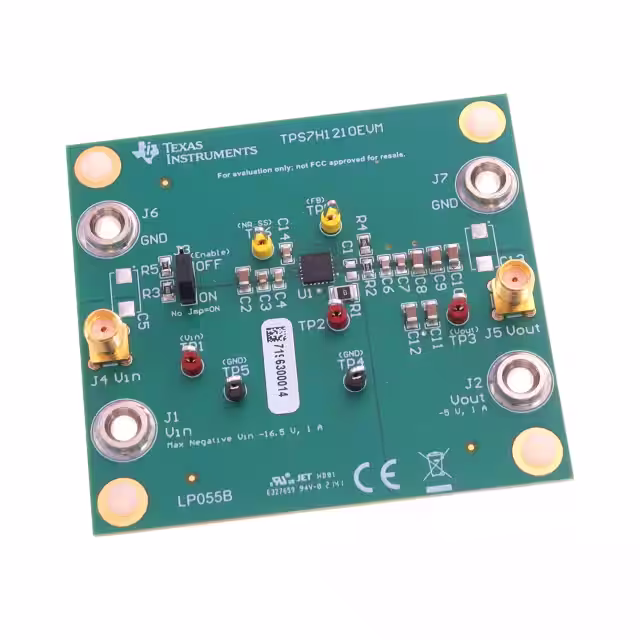

TPS7H1210EVMEVAL BOARD FOR TPS7H1210SEP |
2 |
|
Datasheet | - | Box | Active | 1 - Single | -5V | 1A | -3V ~ -16.5V | Negative Adjustable | Board(s) | TPS7H1210-SEP |
|

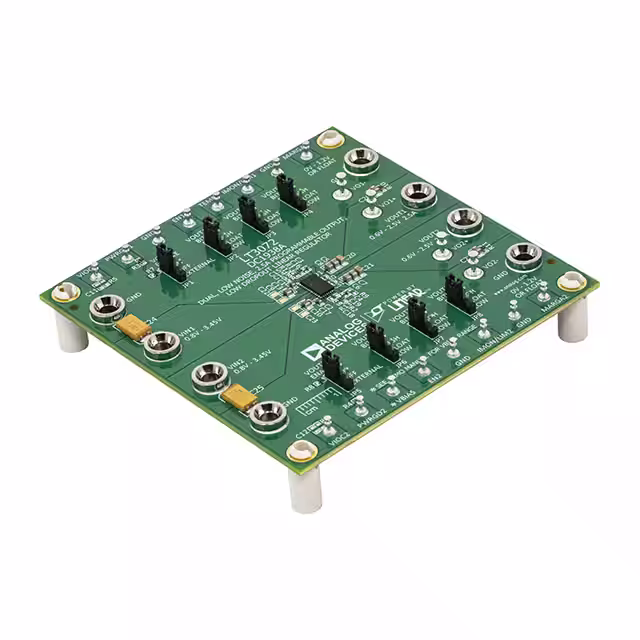

DC1938AEVAL BOARD FOR LT3072 |
3 |
|
Datasheet | - | Bulk | Active | 2 - Dual | 0.6V ~ 2.5V | 2.5A | 0.8V ~ 3.45V | Positive Adjustable | Board(s) | LT3072 |
