Linear Voltage Regulator Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Channels per IC | Voltage - Output | Current - Output | Voltage - Input | Regulator Type | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

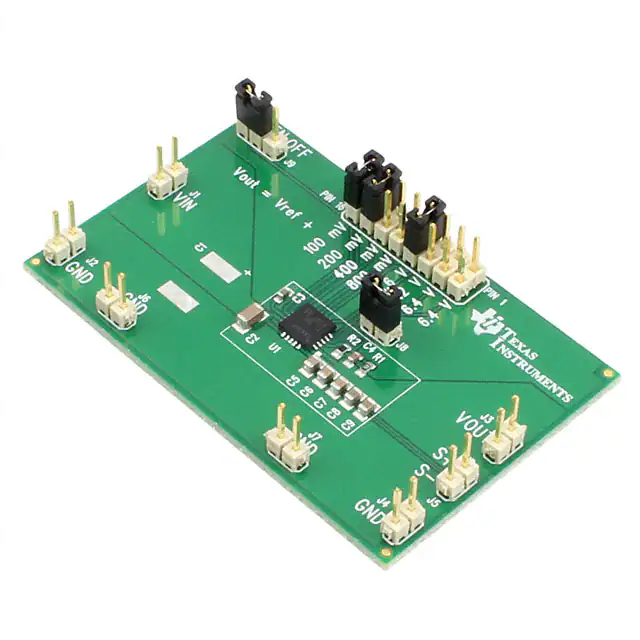

TPS7A4701EVM-094EVAL BOARD FOR TPS7A4701 |
138 |
|
Datasheet | - | Box | Active | 1 - Single | - | 1A | 3V ~ 35V | Positive Adjustable | Board(s) | TPS7A4701 |
|

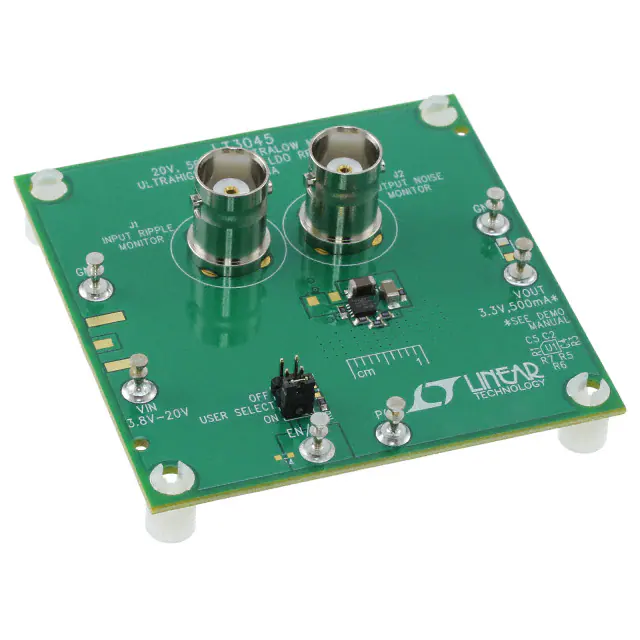

DC2491AEVAL BOARD FOR LT3045 |
34 |
|
Datasheet | - | Box | Active | 1 - Single | 3.3V | 500mA | 3.8V ~ 20V | Positive Adjustable | Board(s) | LT3045 |
|

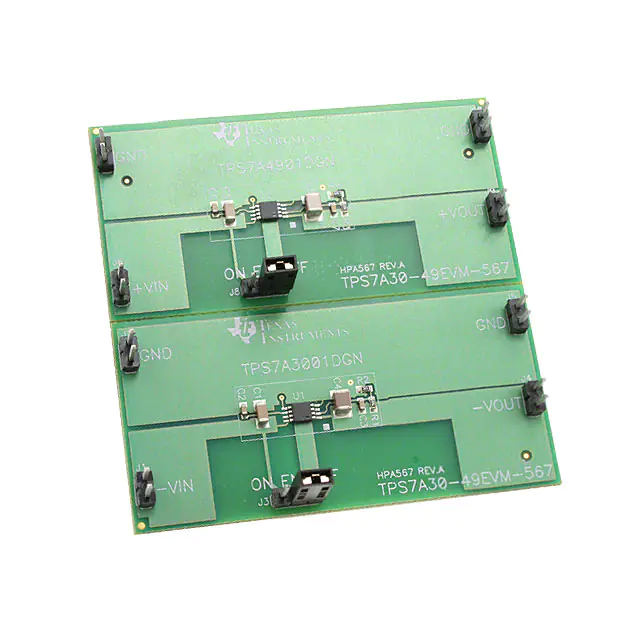

TPS7A30-49EVM-567EVAL BOARD FOR TPS7A3001 |
138 |
|
Datasheet | - | Box | Active | 1 - Single | ±15V | 200mA, 150mA | ±3V ~ ±35V | Positive and Negative Adjustable | Board(s) | TPS7A3001, TPS7A4901 |
|

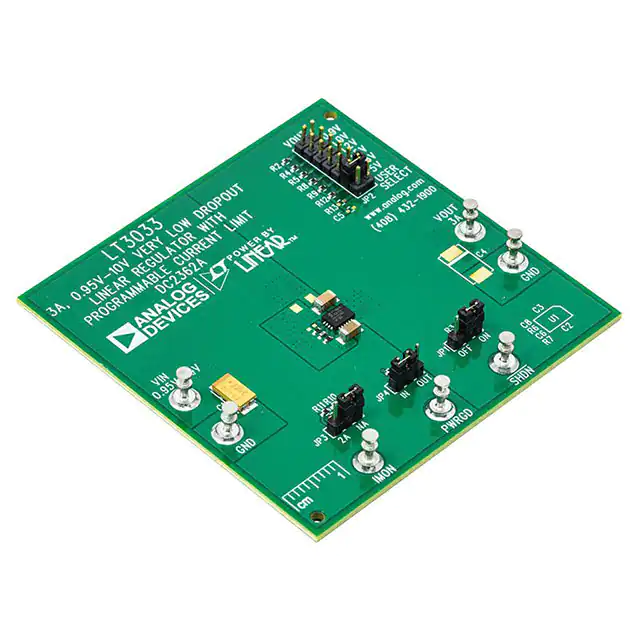

DC2362AEVAL BOARD FOR LT3033 |
55 |
|
Datasheet | - | Box | Active | 1 - Single | 0.9V | 3A | 1.05V ~ 10V | Positive Adjustable | Board(s) | LT3033 |
|

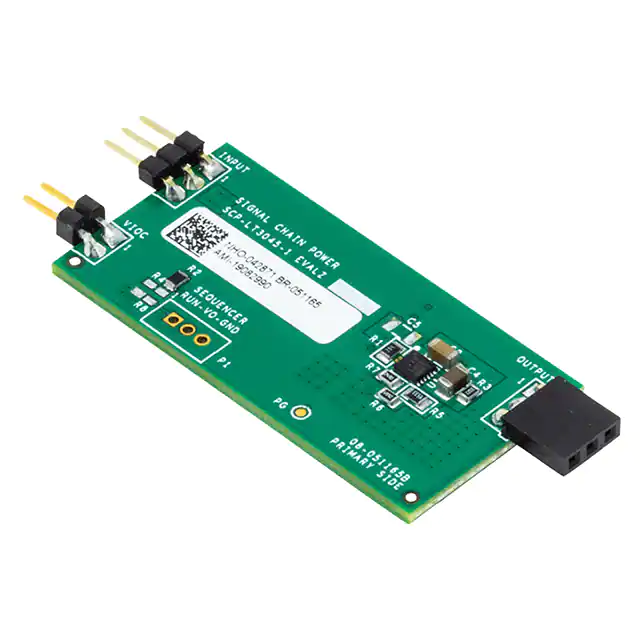

SCP-LT3045-1-EVALZEVAL BOARD FOR LT30451 |
21 |
|
Datasheet | SCP | Bulk | Active | 1 - Single | 19.5V | 500mA | 1.8V ~ 20V | Positive Adjustable | Board(s) | LT3045-1 |
|

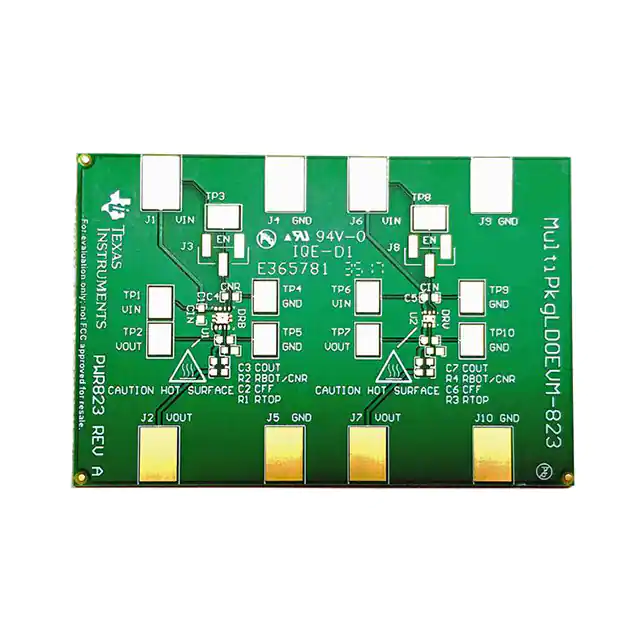

MULTIPKGLDOEVM-823EVAL BOARD DBV DQN DRB DRV |
22 |
|
Datasheet | - | Bulk | Active | 1 - Single | - | - | - | - | Unpopulated (Bare) Board(s) | - |
|

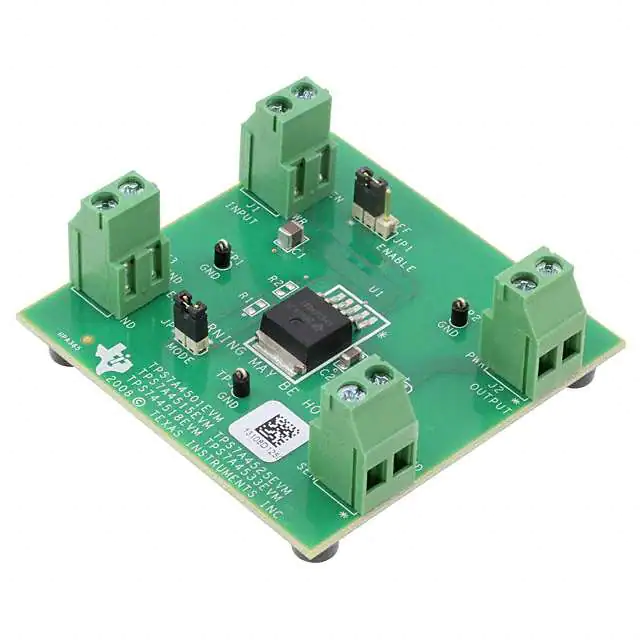

TPS7A4501EVM-385EVAL BOARD FOR TPS7A4501 |
9 |
|
Datasheet | - | Box | Active | 1 - Single | 1.21V ~ 20V | 1.5A | 2.1V ~ 20V | Positive Adjustable | Board(s) | TPS7A4501 |
|

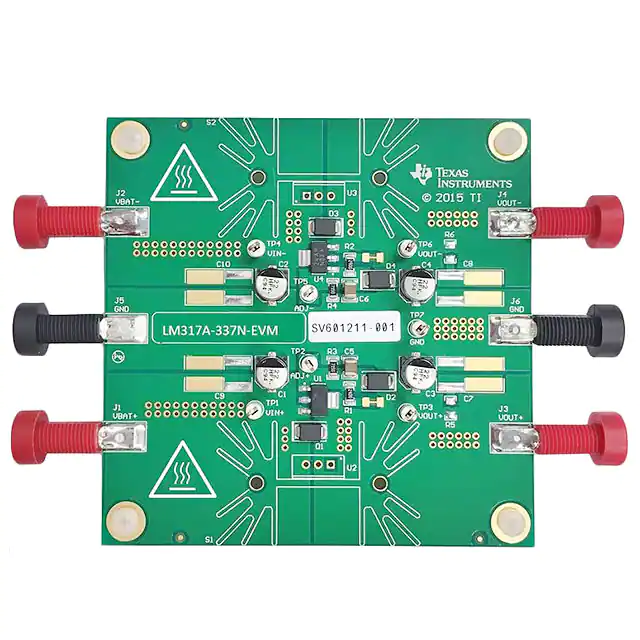

LM317A-337N-EVMEVAL BOARD FOR LM317A LM337-N |
45 |
|
Datasheet | - | Bulk | Active | 1 - Single | ±5V | 1.5A | - | Positive and Negative Adjustable | Board(s) | LM317A, LM337-N |
|

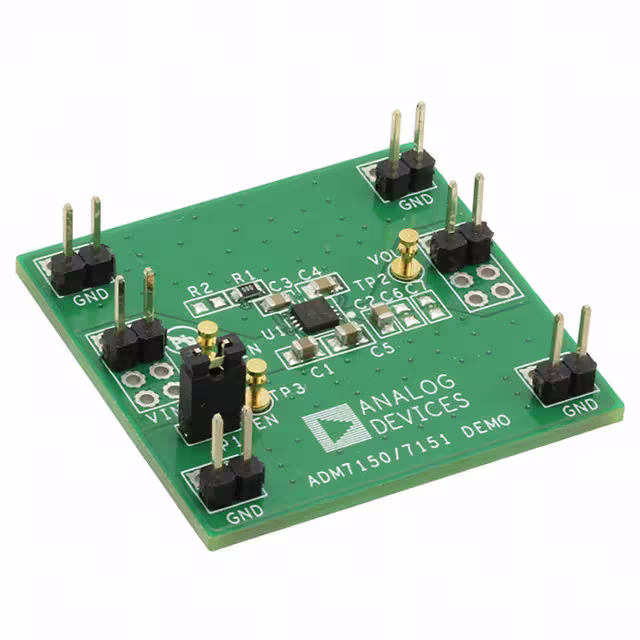

ADM7150CP-EVALZEVAL BOARD FOR ADM7150 |
11 |
|
Datasheet | - | Box | Active | 1 - Single | 5V | 800mA | 4.5V ~ 16V | Positive Fixed | Board(s) | ADM7150 |
|

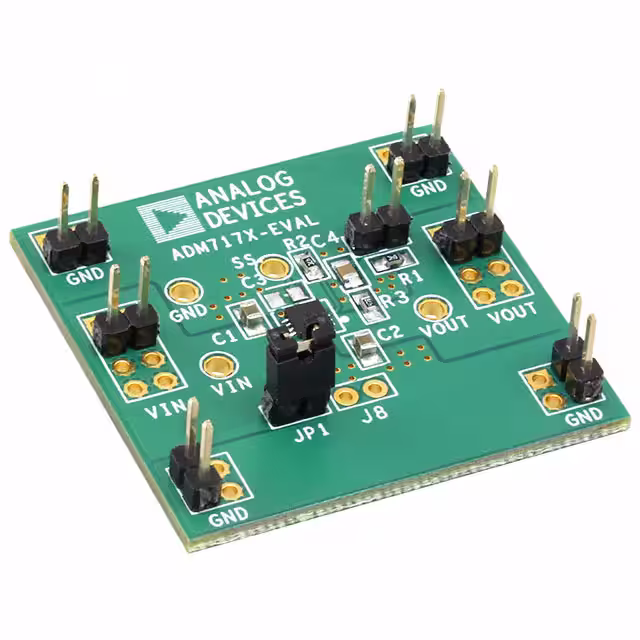

ADM7172CP-EVALZEVAL BOARD FOR ADM7172 |
10 |
|
Datasheet | - | Box | Active | 1 - Single | 3V | 2A | 2.3V ~ 6.5V | Positive Adjustable | Board(s) | ADM7172 |
|

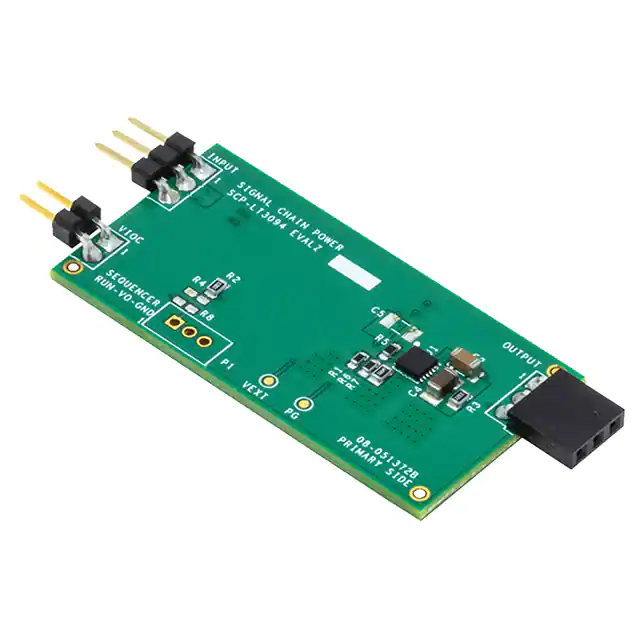

SCP-LT3094-EVALZEVAL BOARD FOR LT3094 |
6 |
|
Datasheet | SCP | Bulk | Active | 1 - Single | -3.3V | 500mA | -3.8V ~ -20V | Negative Adjustable | Board(s) | LT3094 |
|

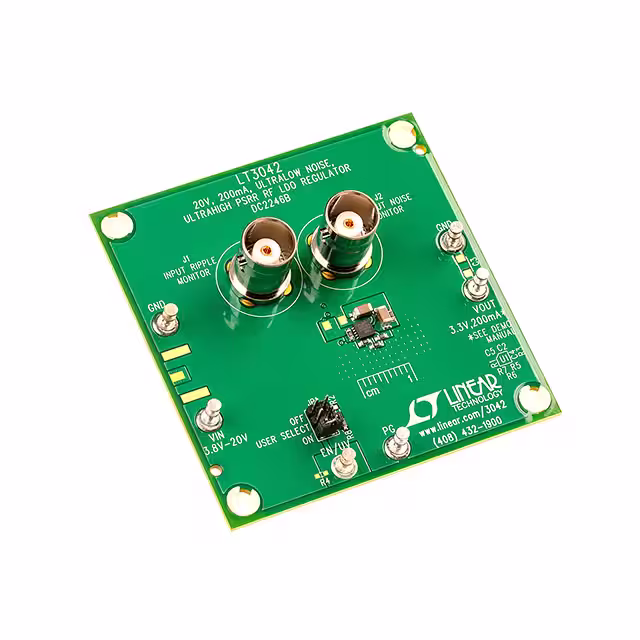

DC2246BEVAL BOARD FOR LT3042 |
11 |
|
Datasheet | - | Box | Active | 1 - Single | 3.3V | 200mA | 3.8V ~ 20V | Positive Adjustable | Board(s) | LT3042 |
|

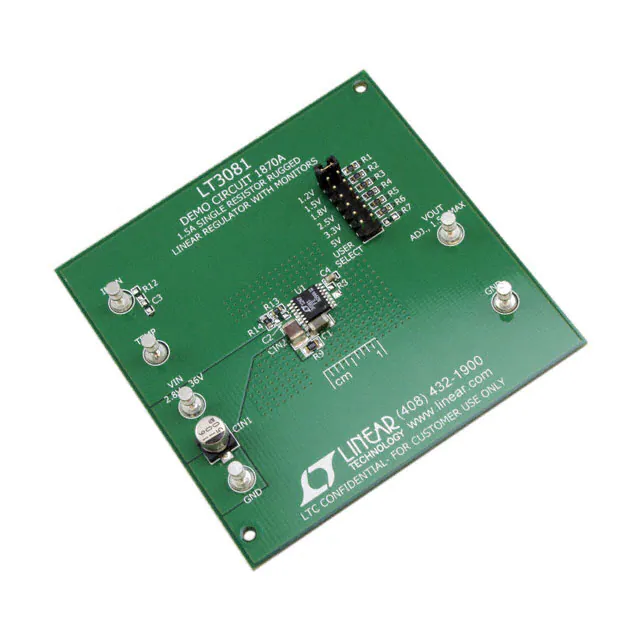

DC1870AEVAL BOARD FOR LT3081 |
9 |
|
Datasheet | - | Box | Active | 1 - Single | 1.2V, 1.5V, 1.8V, 2.5V, 3.3V or 5V | 1.5A | 2.8V ~ 36V | Positive Adjustable | Board(s) | LT3081 |
|
DC3158AEVAL BOARD FOR LT3041 |
11 |
|
Datasheet | - | Box | Active | 1 - Single | 3.32V | 1A | 2.2V ~ 20V | Positive Adjustable | Board(s) | LT3041 |
|
|
EVAL-LT3073-AZEVAL BOARD FOR LT3073 |
8 |
|
Datasheet | - | Box | Active | 1 - Single | 0.5V ~ 4.2V | 3A | 0.6V ~ 5.5V | Positive Adjustable | Board(s) | LT3073 |
|

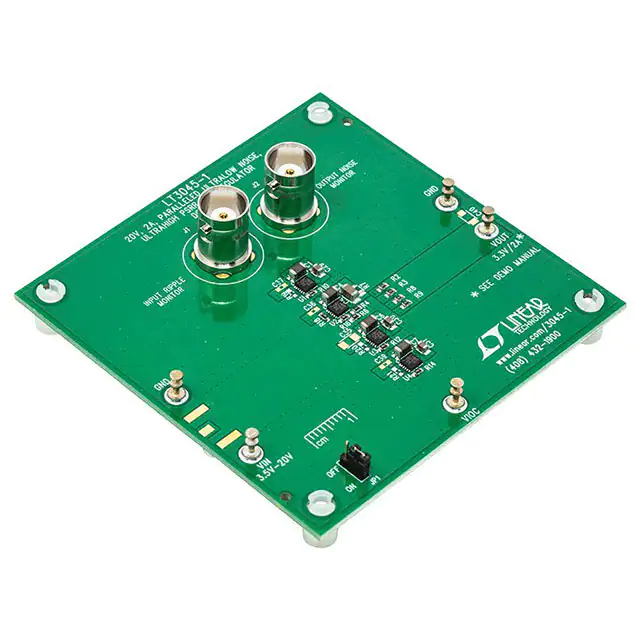

DC2637AEVAL BOARD FOR LT3045EDD1 |
5 |
|
Datasheet | - | Box | Active | 1 - Single | 3.29V | 2A | 3.8V ~ 20V | Positive Adjustable | Board(s) | LT3045EDD-1 |
|

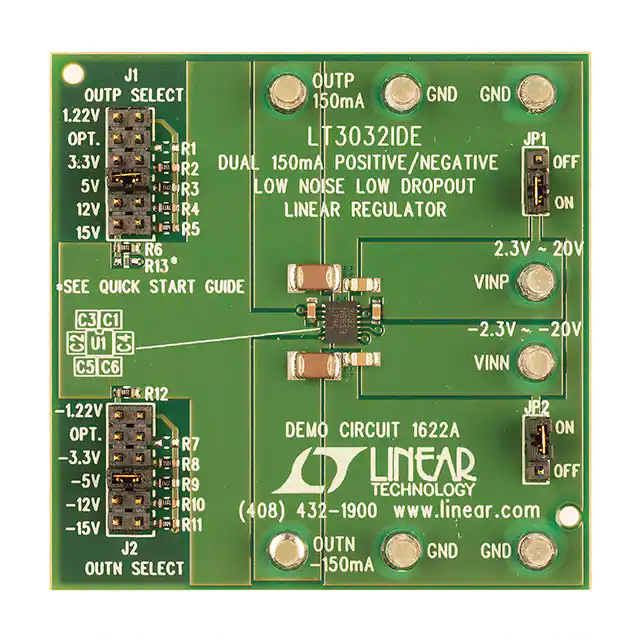

DC1622AEVAL BOARD FOR LT3032 |
1 |
|
Datasheet | - | Box | Active | 2 - Dual | ±5V | 150mA, 150mA | ±2.3V ~ ±20V | Positive and Negative Adjustable | Board(s) | LT3032 |
|
TPS7A94EVM-046EVAL BOARD FOR TPS7A94 |
7 |
|
Datasheet | - | Box | Active | 1 - Single | 0.4V ~ 5.5V | 1A | 1.7V ~ 5.7V | Positive Adjustable | Board(s) | TPS7A94 |
|
|
EVAL-LT3097-AZEVAL BOARD FOR LT3097 |
6 |
|
Datasheet | - | Box | Active | 2 - Dual | ±3.32V | 500mA | ±1.8V ~ ±20V | Positive and Negative Adjustable | Board(s) | LT3097 |
|

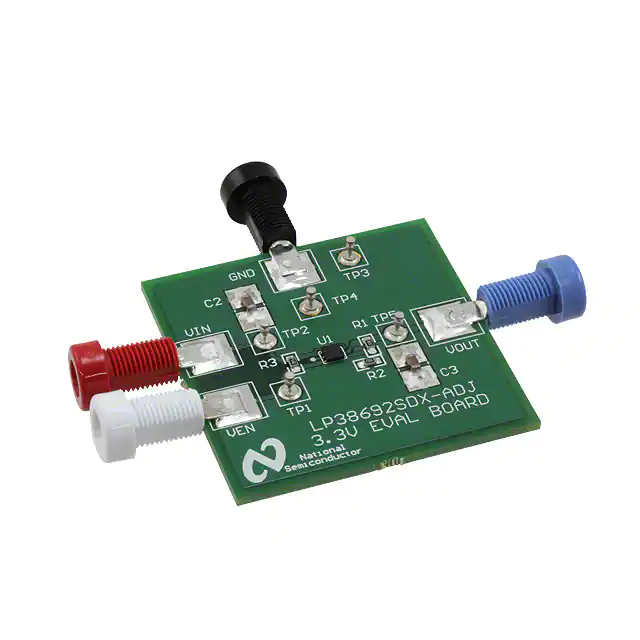

LP38692EVALEVAL BOARD FOR LP38692 |
8 |
|
Datasheet | - | Box | Active | 1 - Single | 3.3V | 1A | 2.7V ~ 10V | Positive Adjustable | Board(s) | LP38692 |
