DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVAL5BR3995BZBUCK1TOBO1EVAL BOARD FOR ICE5BR3995BZ |
3 |
|
Datasheet | CoolSET™ | Bulk | Active | AC/DC Converter | 1 Non-Isolated Output | 5.4 W | 18V | 300mA | 85 ~ 460 VAC | Buck | - | Board(s) | ICE5BR3995BZ |
|
BM2P141X-EVK-001EVAL BOARD FOR BM2P141X |
2 |
|
Datasheet | - | Bulk | Active | AC/DC, Non-Isolated | 1 Non-Isolated Output | 10 W | 14V | 715mA | 90 ~ 264 VAC | Buck | 65kHz | Board(s) | BM2P141X |
|
BM2P016-EVK-001EVAL BOARD FOR BM2P016 |
2 |
|
Datasheet | - | Bulk | Active | AC/DC, Non-Isolated | 1 Non-Isolated Output | 15 W | 15V | 1A | 90 ~ 264 VAC | Buck | 65kHz | Board(s) | BM2P016 |
|
|
BM2P121X-EVK-001EVAL BOARD FOR BM2P121X |
2 |
|
Datasheet | - | Bulk | Active | AC/DC, Non-Isolated | 1 Non-Isolated Output | 9 W | 12V | 750mA | 90 ~ 264 VAC | Buck | 65kHz | Board(s) | BM2P121X |
|
BM2P016-EVK-002EVAL BOARD FOR BM2P016 |
2 |
|
Datasheet | - | Bulk | Active | AC/DC, Non-Isolated | 1 Non-Isolated Output | 12 W | 12V | 1A | 90 ~ 264 VAC | Buck | 65kHz | Board(s) | BM2P016 |
|
DC383BEVAL BOARD FOR LT1930 LT1931 |
0 |
|
Datasheet | - | Box | Active | DC/DC, Positive and Negative | 3 Non-Isolated Outputs | - | 12V, 12V, -12V | 300mA, 300mA, 350mA | 5V, 12V, 10V ~ 16V | Boost, Inverting, SEPIC | 1.2MHz | Board(s) | LT1930, LT1931 |
|
|
DC2824A-AEVAL BOARD FOR LTC71311 |
1 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | - | Buck | - | Board(s) | LTC7131-1 |
|
DC204A-BEVAL BOARD FOR LT1776 |
4 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 500mA | 7V ~ 60V | Buck | 200kHz | Board(s) | LT1776 |
|
DC231AEVAL BOARD FOR LT1610 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 3.3V | 100mA | 3V ~ 4.2V | Boost | 1.7MHz | Board(s) | LT1610 |
|
|
DC3217AEVAL BOARD FOR LTC33110.75 |
8 |
|
Datasheet | Silent Switcher® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.85V | 12.5A | 3V ~ 3.6V | Buck | 2MHz | Board(s) | LTC3311-0.75 |
|
DC2779AEVAL BOARD FOR LT8644S |
0 |
|
Datasheet | Silent Switcher®2 | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.18V ~ 1.22V | 16A | 2.7V ~ 8V | Buck | 2MHz | Board(s) | LT8644S |
|
DC3054A-AEVAL BOARD FOR LTC3307B |
8 |
|
Datasheet | Silent Switcher® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 3A | 2.25V ~ 5.5V | Buck | 6.6MHz | Board(s) | LTC3307B |
|
BM2P0161-EVK-001EVAL BOARD FOR BM2P0161 |
3 |
|
Datasheet | - | Box | Active | AC/DC, Primary and Secondary Side | 1 Non-Isolated Output | 7.5 W | 15V | 500mA | 90 ~ 264 VAC | Buck | 65kHz | Board(s) | BM2P0161 |
|
|
REF5BR3995BZ16W1TOBO1EVAL BOARD FOR ICE5BR3995BZ |
3 |
|
Datasheet | CoolSET™ | Bulk | Active | AC/DC, Non-Isolated | 3 Non-Isolated Outputs | 16 W | 5V, 12V, 15V | 900mA, 300mA, 150mA | 85 ~ 264 VAC | Flyback | - | Board(s) | ICE5BR3995BZ |
|
BM2P0161-EVK-002EVAL BOARD FOR BM2P0161 |
2 |
|
Datasheet | - | Box | Active | AC/DC, Primary and Secondary Side | 1 Non-Isolated Output | 6 W | 12V | 500mA | 90 ~ 264 VAC | Buck | 65kHz | Board(s) | BM2P0161 |
|
DC1953AEVAL BOARD FOR LTC3374 |
1 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 8 Non-Isolated Outputs | - | 1V, 1.2V, 1.5V, 1.8V, 2V, 2.5V, 3V, 3.3V | 1A, 1A, 1A, 1A, 1A, 1A, 1A, 1A | 2.25V ~ 5.5V | Buck | 2MHz | Board(s) | LTC3374 |
|
DC1449AEVAL BOARD FOR LT8415 |
1 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 16V | 10mA | 3V ~ 10V | Boost | - | Board(s) | LT8415 |
|
DC1570A-AEVAL BOARD FOR LT36633.3 |
1 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.2A | 7.5V ~ 36V | Buck | 1MHz | Board(s) | LT3663-3.3 |
|
DC1095AEVAL BOARD FOR LTC3538 |
1 |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 800mA | 2.4V ~ 5.5V | Buck-Boost | 1MHz | Board(s) | LTC3538 |
|

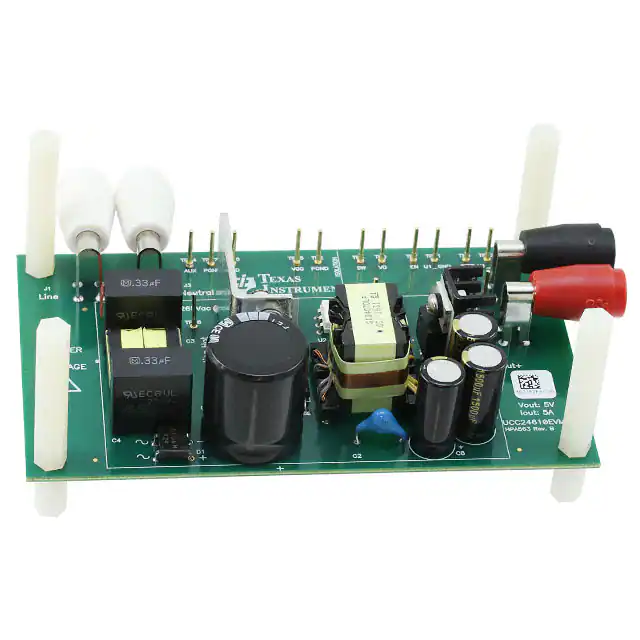

UCC24610EVM-563EVAL BOARD FOR UCC24610 |
5 |
|
Datasheet | GREEN Rectifier™ | Box | Active | AC/DC, Secondary Side | 1 Isolated Output | 25 W | 5V | 5A | 85 ~ 265 VAC | Flyback | 30kHz | Board(s) | UCC24610 |
