DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSD87384MEVM-603EVAL BOARD CSD87384M TPS51219 |
5 |
|
Datasheet | NexFET™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 30A | 8V ~ 20V | Buck | 300kHz | Board(s) | CSD87384M, TPS51219 |
|
CSD87355Q5DEVM-820EVAL BOARD CSD87355Q5D TPS51218 |
2 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 25A | 8V ~ 13V | Buck | 290kHz | Board(s) | CSD87355Q5D, TPS51218 |
|
DC2081A-AEVAL BOARD FOR LTM4630 |
4 |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 36A | 4.5V ~ 15V | Buck | 400kHz | Board(s) | LTM4630 |
|
DC2230A-AEVAL BOARD FOR LTM4636 |
1 |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 40A | 4.7V ~ 15V | Buck | 350kHz | Board(s) | LTM4636 |
|
DC1856B-BEVAL BOARD FOR LTM4649 |
0 |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V, 1.2V, 1.5V, 1.8V, 2.5V or 3.3V | 10A | 4.5V ~ 16V | Buck | 450kHz | Board(s) | LTM4649 |
|
ISL8022EVAL1ZEVAL BOARD FOR ISL8022 |
2 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 2.5V | 2A, 1.7A | 2.8V ~ 5.5V | Buck | 2.25MHz | Board(s) | ISL8022 |
|
ADM00664EVAL BOARD FOR MCP1663 |
4 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | - | - | 2.4V ~ 5.5V | Boost | 500kHz | Board(s) | MCP1663 |
|
DC627A-AEVAL BOARD FOR LT3461 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 70mA | 3V ~ 6V | Boost | 3MHz | Board(s) | LT3461 |
|
DC828AEVAL BOARD FOR LTC3409 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 600mA | 1.6V ~ 5.5V | Buck | 2.6MHz | Board(s) | LTC3409 |
|
DC670AEVAL BOARD FOR LT3462 |
1 |
|
Datasheet | - | Box | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -5V | 100mA | 5V | SEPIC, Inverting | 1.2MHz | Board(s) | LT3462 |
|
NCP3063BSTEXGEVBEVAL BOARD FOR NCP3063 |
4 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 25V | 3A | 12V | Boost | - | Board(s) | NCP3063 |
|
NCP3063SMDBCKEVBEVAL BOARD FOR NCP3063 |
2 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 800mA | 7V ~ 15V | Buck | 250kHz | Board(s) | NCP3063 |
|
NCP3063DFBCKGEVBEVAL BOARD FOR NCP3063 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 800mA | 12V | Buck | 150kHz | Board(s) | NCP3063 |
|
DC1897BEVAL BOARD FOR LTC3605A |
0 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 5A | 4V ~ 20V | Buck | 1MHz | Board(s) | LTC3605A |
|
DC2139AEVAL BOARD FOR LT8610A |
0 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3.5A | 5.5V ~ 42V | Buck | 2MHz | Board(s) | LT8610A |
|

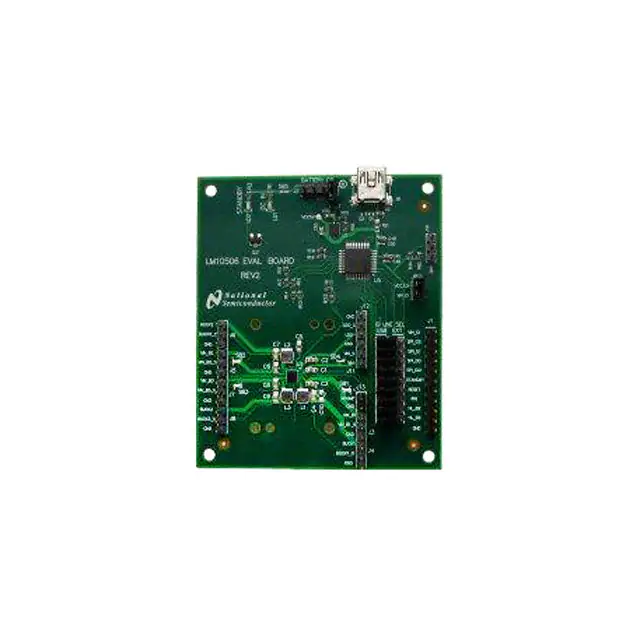

LM10506EVAL/NOPBEVAL BOARD FOR LM10506 |
5 |
|
Datasheet | - | Box | Active | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | - | 1.3A, 600mA, 400mA, 100mA | 3V ~ 5.5V | Buck | 2MHz | Board(s) | LM10506 |
|
DC3043AEVAL BOARD FOR LTC33101 |
5 |
|
Datasheet | Silent Switcher® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 10A | 2.25V ~ 5.5V | Buck | 2MHz | Board(s) | LTC3310-1 |
|
DC3021AEVAL BOARD FOR LTC3310S1 |
1 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 10A | 2.25V ~ 5.5V | Buck | 2MHz | Board(s) | LTC3310S-1 |
|
BM2PAB1Y-EVK-003EVAL BOARD FOR BM2PAB1Y |
2 |
|
Datasheet | - | Bulk | Active | AC/DC, Non-Isolated | 1 Non-Isolated Output | 8 W | 20V | 400mA | 90 ~ 264 VAC | Buck | 25kHz | Board(s) | BM2PAB1Y |
|
|
REF5QR1680BG30W1TOBO1EVAL BOARD FOR ICE5QR1680BG |
2 |
|
Datasheet | - | Bulk | Active | AC/DC Converter | 3 Non-Isolated Outputs | 30 W | 5V, 12V, 15V | 2.2A, 200mA, 150mA | 85 ~ 264 VAC | Flyback | - | Board(s) | ICE5QR1680BG |
