Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AEAT-8800-Q24ROTARY ENCODER MAGNETIC 4096PPR |
2,565 |
|
Datasheet | - | Tube | Active | Not Verified | Magnetic | SSI | 4096 | 5.6V | External Magnet, Not Included | No | No | Surface Mount | Vertical | Surface Mount (SMD,SMT) | - | - | - |
|
HEDS-9720#P50ROTARY ENCODR OPTICAL 150 LPI |
1,136 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 150 LPI | 5V | Codestrip Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
HEDS-9700#H50ROTARY ENCODER OPTICAL 400PPR |
493 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 400 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
AEAT-6600-T16ROTARY ENCODER MAGNETIC |
4,113 |
|
Datasheet | - | Bulk | Active | Not Verified | Magnetic | Quadrature (Incremental) | - | 3V ~ 3.6V, 4.5V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
AEDR-8710-102ROTARY ENCODER OPTICAL PROG |
24,241 |
|
Datasheet | AEDR | Tape & Reel (TR) | Active | Not Verified | Optical | Digital | Programmable | 3.3V, 5V | Codewheel Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
|
AEDR-8711-102ROTARY ENCODER OPTICAL PROG |
524 |
|
Datasheet | AEDR | Tape & Reel (TR) | Active | Not Verified | Optical | Digital | Programmable | 3.3V, 5V | Codewheel Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
|
AEDR-9830-100ENCODER 318LPI, REEL 1KPC |
3,188 |
|
- |
AEDR | Tape & Reel (TR) | Active | Not Verified | Optical | Digital | Programmable | 3.3V, 5V | Codewheel Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
HEDS-9040#B00ROTARY ENCODER OPTICAL 1000PPR |
425 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 1000 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
AEDR-9830-102ENCODER 318LPI, REEL 100PC |
200 |
|
Datasheet | AEDR | Tape & Reel (TR) | Active | Not Verified | Optical | Digital | Programmable | 3.3V, 5V | Codewheel Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
.jpg)
|
AEDR-9830A-102AUTO HT ENCODER 318LPI, REEL 100 |
500 |
|
- |
AEDR | Tape & Reel (TR) | Active | Not Verified | Optical | Digital | 318 LPI | 2.97V ~ 3.63V, 4.5V ~ 5.5V | Codewheel Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
|
AEDR-8723-102ROTARY ENCODER OPTICAL |
4,149 |
|
Datasheet | AEDR | Tape & Reel (TR) | Active | Not Verified | Optical | Differential Voltage | - | 4.5V ~ 5.5V | Codewheel Not Included | No | No | Surface Mount | - | Surface Mount (SMD,SMT) | - | - | - |
|

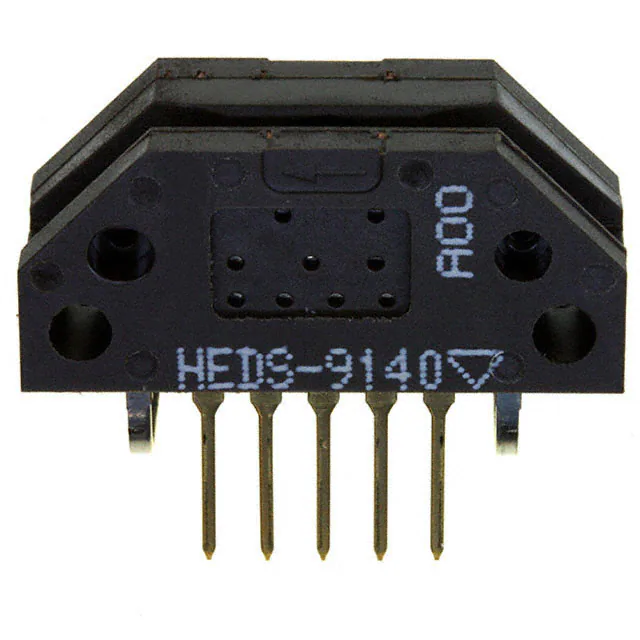

HEDS-9140#A00ROTARY ENCODER OPTICAL 500PPR |
244 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 500 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|

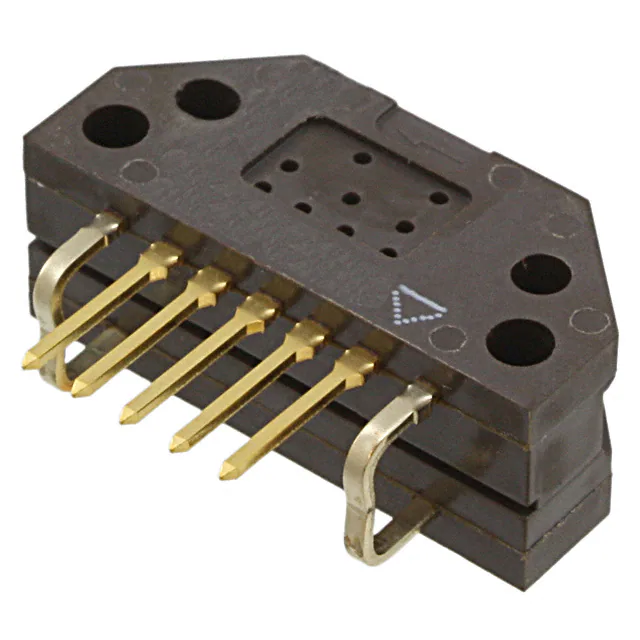

HEDS-9140#G00ROTARY ENCODER OPTICAL 360PPR |
576 |
|
Datasheet | HEDS | Tube | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 360 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
AEAT-9012-S06ROTARY ENCODER MAGNETIC 4096PPR |
455 |
|
- |
- | Bulk | Active | - | Absolute | Digital | - | - | 6mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|

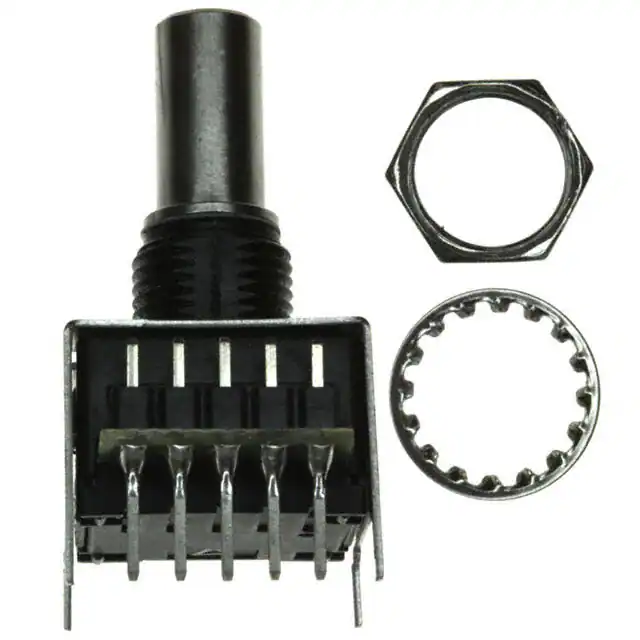

HRPG-ASCA#14RROTARY ENCODER OPTICAL 120PPR |
436 |
|
Datasheet | HRPG | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 120 | 5V | 1/4" Dia Round End | No | No | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|

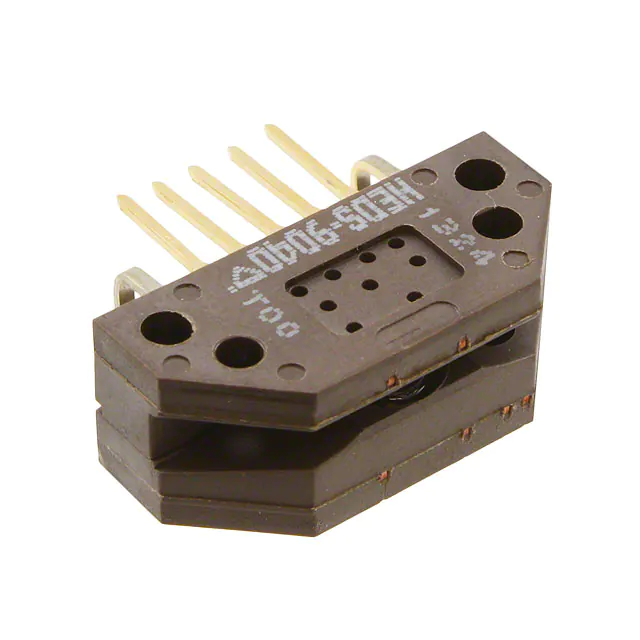

HEDS-9040#T00ROTARY ENCODER OPTICAL 2000PPR |
447 |
|
Datasheet | HEDS | Tray | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 2000 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|

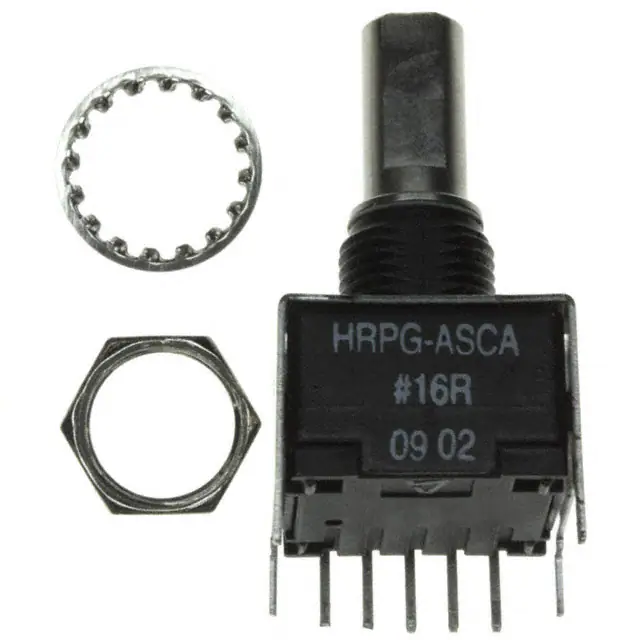

HRPG-ASCA#16RROTARY ENCODER OPTICAL 120PPR |
527 |
|
Datasheet | HRPG | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 120 | 5V | 1/4" Dia Flatted End | No | No | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|

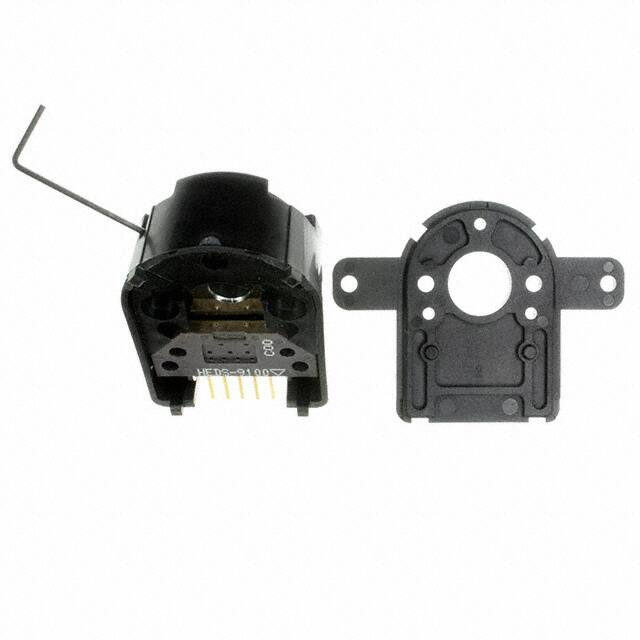

HEDS-5600#C06ROTARY ENCODER OPTICAL 100PPR |
140 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 100 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HEDS-5500#A14ROTARY ENCODER OPTICAL 500PPR |
129 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | 5mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|

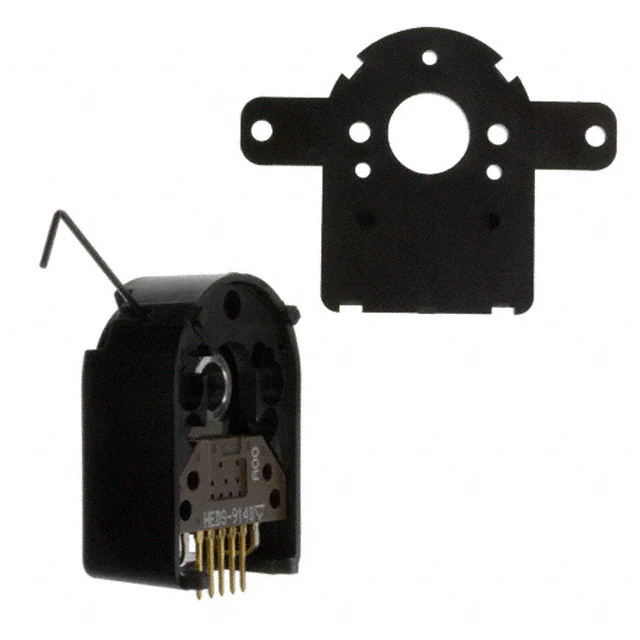

HEDS-5600#A13ROTARY ENCODER OPTICAL 500PPR |
102 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | 8mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
