Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AEAT-8800-Q24TRPROG 16BITS MAGNETIC ENCODER QFN |
446 |
|
Datasheet | - | Tape & Reel (TR) | Active | Not Verified | Magnetic | SSI | 4096 | 5.5V ~ 5.7V | External Magnet, Not Included | No | No | Surface Mount | Vertical | Surface Mount (SMD,SMT) | - | - | - |
|
HEDS-9700#E50ROTARY ENCODER OPTICAL 200PPR |
413 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 200 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
HEDS-9700-C545V, 2CH,100CPR, DIG |
734 |
|
Datasheet | HEDS | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 100 | 4.5V ~ 5.5V | Codewheel Not Included | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|
|
HEDS-9731#B50ROTARY ENCODER OPTICAL 1000PPR |
390 |
|
Datasheet | HEDS | Tube | Active | Not Verified | Optical | Quadrature (Incremental) | 1000 | 2.8V ~ 5.2V | Codewheel Not Included | No | No | Chassis Mount | Right Angle | Terminal Pins | - | - | - |
|
|
HEDS-9700#D50ROTARY ENCODER OPTICAL 192PPR |
316 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 192 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
|
HEDS-9730#A50ROTARY ENCODER OPTICAL 500PPR |
294 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 2.8V ~ 5.2V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
HEDS-9100#I00ROTARY ENCODER OPTICAL 512PPR |
197 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 512 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
HEDS-9100#E00ROTARY ENCODER OPTICAL 200PPR |
140 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 200 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
|
AR25-AS0225BITS ABS UPTO 60MM SSI/485/ESL |
941 |
|
Datasheet | - | Tray | Active | Not Verified | Absolute | Digital, SSI | - | - | - | No | No | - | - | - | - | - | - |
|
|
AR25-A12TALUM CW 512,THRU ID 6MM |
481 |
|
Datasheet | - | Tray | Active | Not Verified | - | - | 512 | - | - | No | No | - | - | - | - | - | - |
|
AEDR-8712-102ROTARY ENCODER OPTICAL PROG |
1,126 |
|
Datasheet | AEDR | Tape & Reel (TR) | Active | Not Verified | Optical | Digital | Programmable | 3.3V, 5V | Codewheel Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|

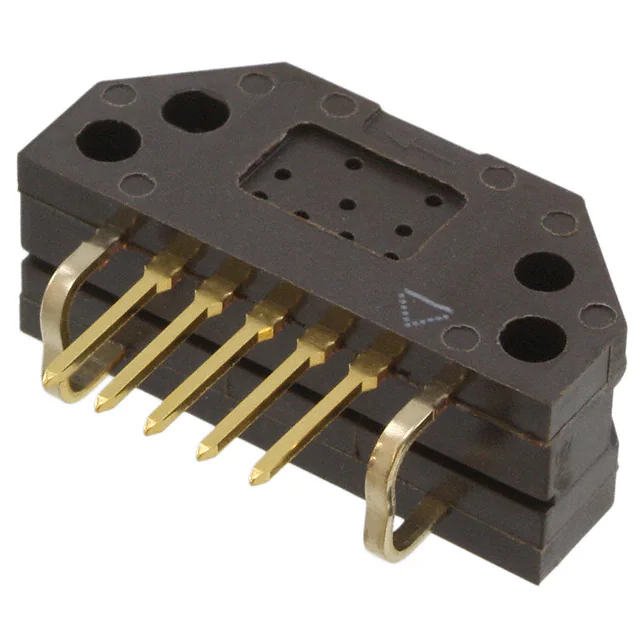

HEDS-9100#F00ROTARY ENCODER OPTICAL 256PPR |
218 |
|
Datasheet | HEDS | Tube | Active | Not Verified | Optical | Quadrature (Incremental) | 256 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|

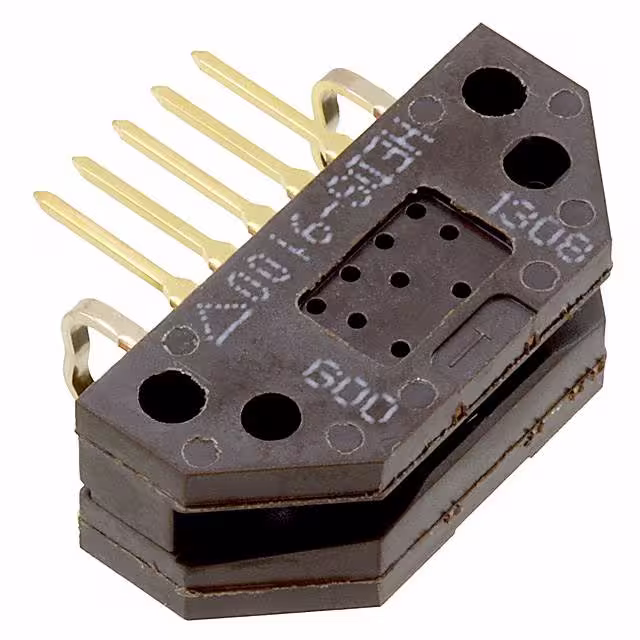

HEDS-9100#G00ROTARY ENCODER OPTICAL 360PPR |
199 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 360 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|

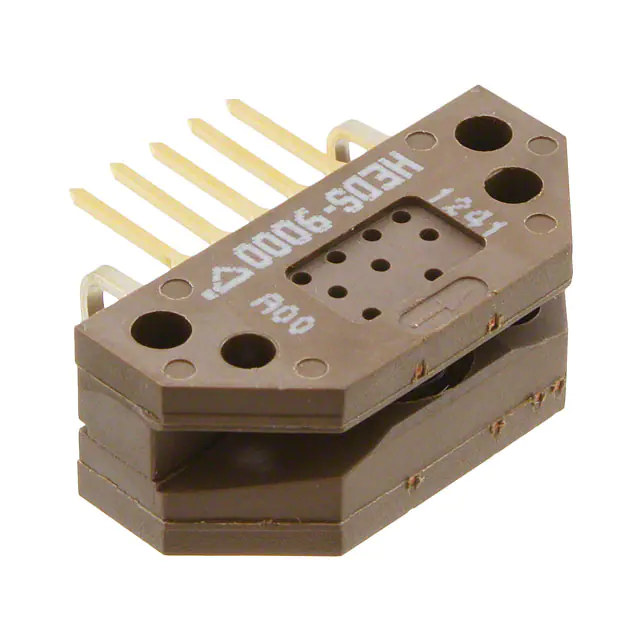

HEDS-9000#A00ROTARY ENCODER OPTICAL 500PPR |
198 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|

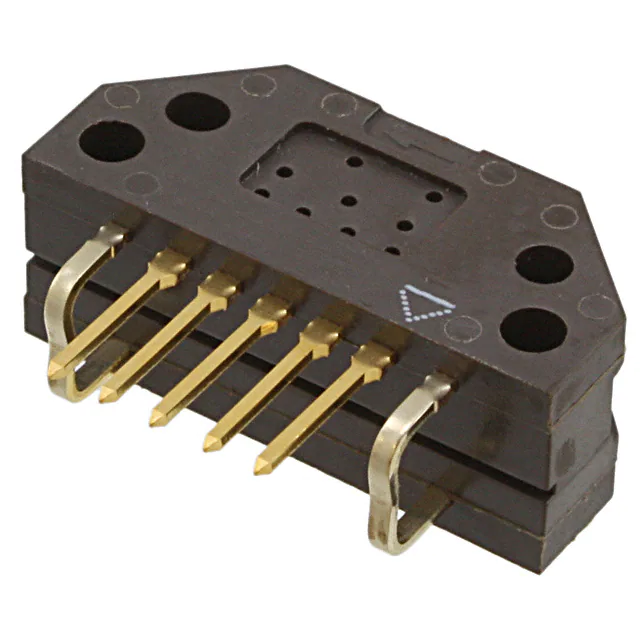

HEDS-9000#B00ROTARY ENCODER OPTICAL 1000PPR |
176 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 1000 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|

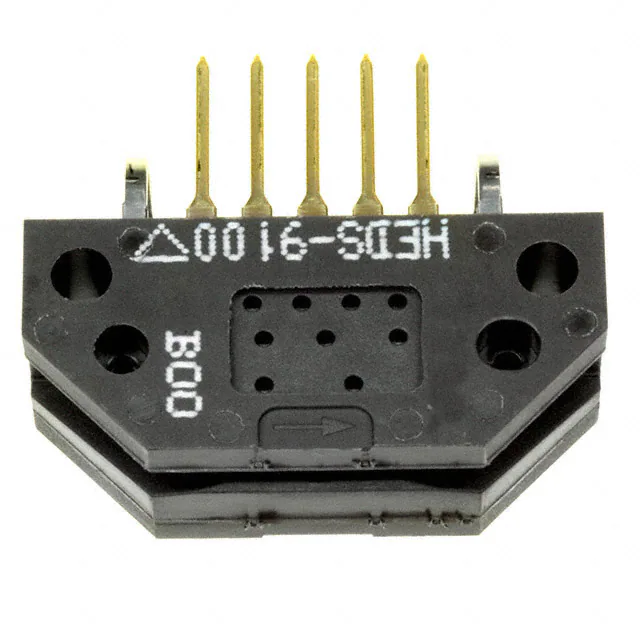

HEDS-9100#B00ROTARY ENCODER OPTICAL 1000PPR |
984 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 1000 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
HEDR-5421-EP111ROTARY ENCODER OPTICAL 200PPR |
1,178 |
|
Datasheet | HEDR | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 200 | 5V | 4mm Open Center | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|

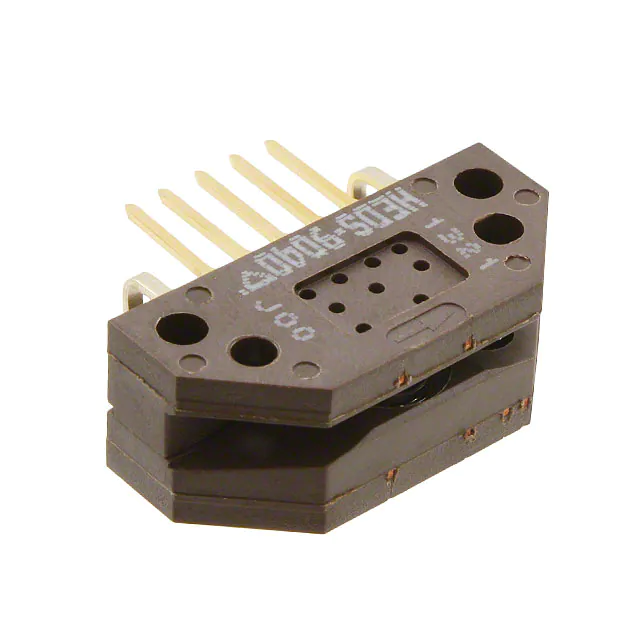

HEDS-9040#J00ROTARY ENCODER OPTICAL 1024PPR |
352 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 1024 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|

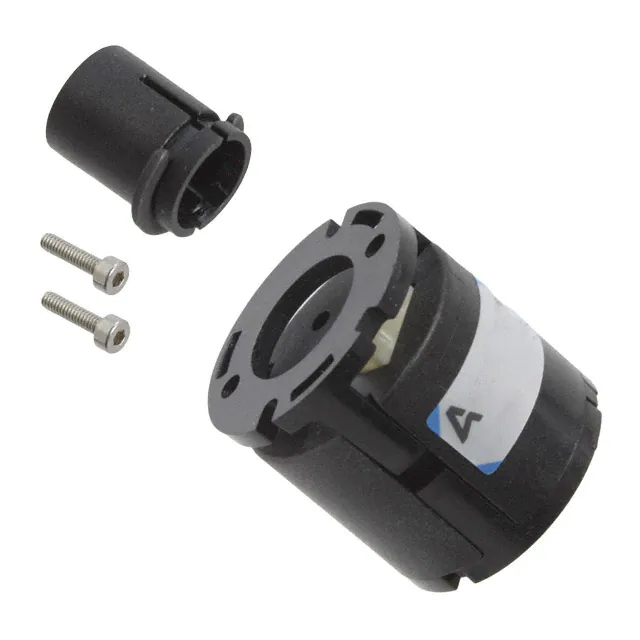

AEAT-6010-A06ROTARY ENCODER MAGNETIC 1024PPR |
554 |
|
Datasheet | AEAT-60xx | Bulk | Active | Not Verified | Magnetic | Binary (Absolute) | 1024 | 5V | 6mm Dia Round End | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
HEDS-5505#A14ROTARY ENCODER OPTICAL 500PPR |
319 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | 5mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
