Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CCMR050.TFUSE CARTRIDGE 50A 600VAC/250VDC |
3,850 |
|
Datasheet | POWR-GARD®, POWR-PRO® CCMR | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 50A | 600 VAC | 250 VDC | Slow Blow | Motor Protection | - | CD | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.850" Dia x 1.880" L (21.60mm x 47.80mm) | - | - |
|
PSX3XLUB1000XFUSE SEMI 1500VDC 3XL SIZE 1000A |
9,573 |
|
Datasheet | POWR-SPEED® PSX | Rectangular, Blade | Box | Active | Bolt Mount | Square | 1kA | - | 1.5 kVDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA | 5.067" L x 2.894" W x 3.130" H (128.70mm x 73.50mm x 79.50mm) | - | - |
|

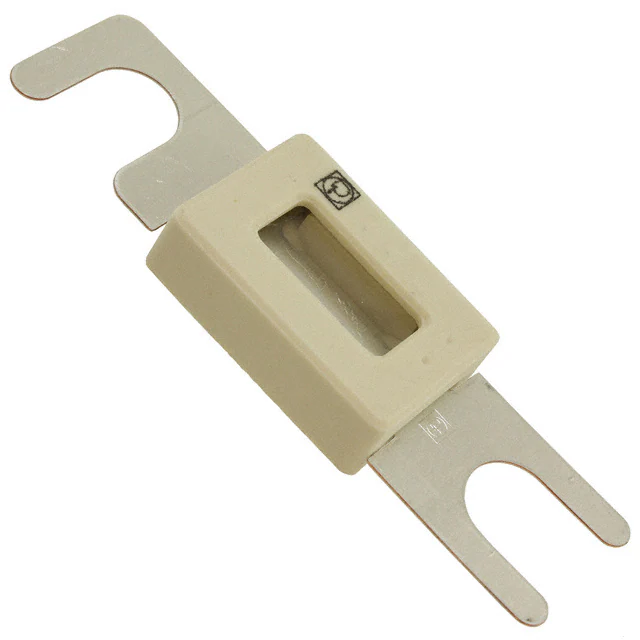

157.5701.6251FUSE STRIP 250A 48VDC BOLT MOUNT |
3,705 |
|
Datasheet | - | Metal Strip | Bulk | Active | Bolt Mount | Fuse Strip | 250A | - | 48 VDC | - | Lift Trucks | Indicating | - | cURus | -40°C ~ 125°C | 1.5kA | 3.228" L x 0.866" W x 0.413" H (82.00mm x 22.00mm x 10.50mm) | - | - |
|
0BLN020.TFUSE CARTRIDGE 20A 250VAC 5AG |
3,808 |
|
Datasheet | BLN | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 20A | 250 VAC | - | Fast Blow | Electrical, Industrial | - | - | CSA, PSE, UR | - | 10kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
|
0BLN030.TFUSE CARTRIDGE 30A 250VAC 5AG |
5,925 |
|
Datasheet | BLN | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 30A | 250 VAC | - | Fast Blow | Electrical, Industrial | - | - | CSA, PSE, UR | - | 10kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
0FLM005.TFUSE CARTRIDGE 5A 250VAC/125VDC |
2 |
|
Datasheet | FLM | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 5A | 250 VAC | 125 VDC | Slow Blow | Motor Protection | - | - | CSA, PSE, QPL, UL | - | 10kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
0BLS003.TFUSE CARTRIDGE 3A 600VAC 5AG |
5,223 |
|
Datasheet | BLS | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 3A | 600 VAC | - | Fast Blow | Electrical, Industrial | - | - | CSA, UL | - | 10kA | 0.406" Dia x 1.375" L (10.31mm x 34.93mm) | - | - |
|
0SPF025.TFUSE CARTRIDGE 25A 1KVDC 5AG |
7,516 |
|
Datasheet | POWR-GARD® SPF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 25A | - | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL, VDE | - | 20kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
0KLK010.TFUSE CARTRIDGE 10A 600VAC/500VDC |
1 |
|
Datasheet | POWR-GARD® KLK | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 10A | 600 VAC | 500 VDC | Fast Blow | Electrical, Industrial | - | - | CE, CSA, QPL, UL | - | 100kA AC, 50kA DC | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
|
0KLK.500TFUSE CRTRDGE 500MA 600VAC/500VDC |
3,913 |
|
Datasheet | POWR-GARD® KLK | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 500mA | 600 VAC | 500 VDC | Fast Blow | Electrical, Industrial | - | - | CE, CSA, QPL, UL | - | 100kA AC, 50kA DC | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
KLKD010.TFUSE CARTRIDGE 10A 600VAC/VDC |
3,019 |
|
Datasheet | POWR-GARD® KLKD | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | 10A | 600 VAC | 600 VDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL, VDE | - | 100kA AC, 50kA DC | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
|
KLKD030.HFUSE CARTRIDGE 30A 600VAC/VDC |
9,356 |
|
Datasheet | POWR-GARD® KLKD | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 30A | 600 VAC | 600 VDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, UL | - | 100kA AC, 50kA DC | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
|
CCMR004.TXPFUSE CARTRIDGE 4A 600VAC/300VDC |
3,724 |
|
Datasheet | POWR-GARD®, POWR-PRO® CCMR | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 4A | 600 VAC | 300 VDC | Slow Blow | Motor Protection | - | CC | CE, CSA, UL | - | 300kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
KLDR1.25TXPFUSE CRTRDGE 1.25A 600VAC/300VDC |
4,550 |
|
Datasheet | POWR-GARD® KLDR | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 1.25A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
|
CCMR040.TFUSE CARTRIDGE 40A 600VAC/250VDC |
2,518 |
|
Datasheet | POWR-GARD®, POWR-PRO® CCMR | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 40A | 600 VAC | 250 VDC | Slow Blow | Motor Protection | - | CD | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.850" Dia x 1.880" L (21.60mm x 47.80mm) | - | - |
|
L50QS300.VFUSE CRTRDGE 300A 500VAC/VDC |
5,350 |
|
Datasheet | POWR-SPEED™ L50QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 300A | 500 VAC | 500 VDC | Fast Blow | Semiconductors | - | - | CE, cURus, UR | -55°C ~ 125°C | 200kA AC, 50kA DC | 1.500" Dia x 4.343" L (38.10mm x 110.31mm) | - | - |
|

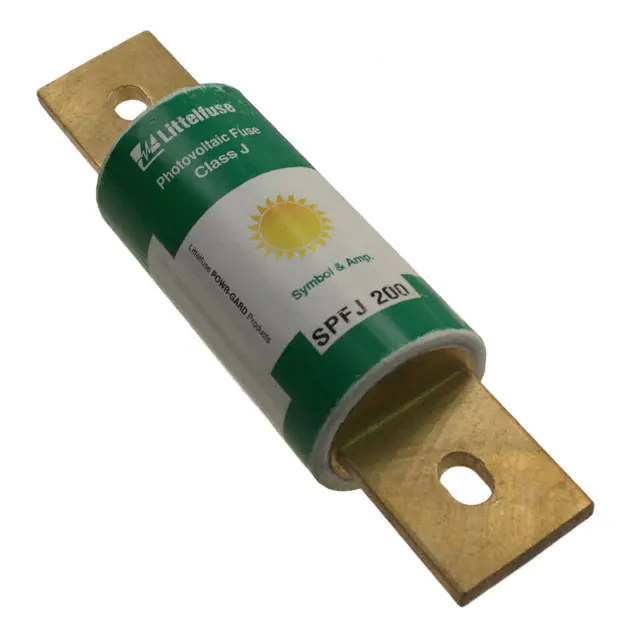

SPFJ200.XFUSE CARTRIDGE 200A 600VAC/1KVDC |
7,165 |
|
Datasheet | POWR-GARD® SPFJ | Cylindrical, Blade Terminals | Bulk | Active | Requires Holder | Cartridge | 200A | 600 VAC | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | J | CE, cULus, UL, VDE | - | 200kA AC, 20kA DC | 1.500" Dia x 5.670" L (38.10mm x 144.02mm) | - | - |
|
|
L50QS600.XFUSE CRTRDGE 600A 500VAC/VDC |
9,774 |
|
Datasheet | POWR-SPEED™ L50QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 600A | 500 VAC | 500 VDC | Fast Blow | Semiconductors | - | - | CE, cURus, UR | -55°C ~ 125°C | 200kA AC, 50kA DC | 2.000" Dia x 4.468" L (50.80mm x 113.49mm) | - | - |
|
PSR073DL0800XFUSES POWR-SPEED |
1 |
|
Datasheet | POWR-SPEED® PSR | Rectangular, Blade | Bulk | Active | Bolt Mount | Square | 800A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.921" L x 2.894" W x 3.130" H (74.20mm x 73.50mm x 79.50mm) | - | - |
|
|
PSX3XLUB0800XFUSE SEMI 1500VDC 3XL SIZE 800A |
9,376 |
|
Datasheet | POWR-SPEED® PSX | Rectangular, Blade | Box | Active | Bolt Mount | Square | 800A | - | 1.5 kVDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA | 5.067" L x 2.894" W x 3.130" H (128.70mm x 73.50mm x 79.50mm) | - | - |
