Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JLLN150.XFUSE CRTRDGE 150A 300VAC/125VDC |
5 |
|
Datasheet | POWR-GARD® JLLN | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 150A | 300 VAC | 125 VDC | Fast Blow | Electrical, Industrial | - | T | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.063" Dia x 0.843" L (27.00mm x 21.40mm) | - | - |
|
L17T400.VFUSE CRTRDGE 400A 170VDC CYLINDR |
2 |
|
Datasheet | POWR-GARD® L17T | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 400A | - | 170 VDC | Fast Blow | Telecom | - | - | CE, CSA, UR | - | 100kA | 1.500" Dia x 1.252" L (38.10mm x 31.80mm) | - | - |
|
0CNN325E.VFUSE STRP 325A 125VAC/80VDC BOLT |
5 |
|
Datasheet | POWR-GARD® CNN_E | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Fuse Strip | 325A | 125 VAC | 80 VDC | Fast Blow | Lift Trucks | Indicating | - | cURus | - | 2.5kA | - | - | - |
|
L75QS040.V750VDC HIGHSPEED SEMICONDUCTOR F |
9 |
|
Datasheet | POWR-SPEED® L75QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 40A | - | 750 VDC | Fast Blow | Electrical, Industrial | - | - | CE, cURus, UL | -55°C ~ 125°C | 50kA | 1.000" Dia x 2.875" L (25.40mm x 73.03mm) | - | - |
|
|
L75QS035.V750VDC HIGHSPEED SEMICONDUCTOR F |
3 |
|
Datasheet | POWR-SPEED® L75QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 35A | - | 750 VDC | Fast Blow | Electrical, Industrial | - | - | CE, cURus, UL | -55°C ~ 125°C | 50kA | 1.000" Dia x 2.875" L (25.40mm x 73.03mm) | - | - |
|
|
JLLN400.XXPFUSE CRTRDGE 400A 300VAC/125VDC |
14 |
|
Datasheet | POWR-GARD® JLLN | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 400A | 300 VAC | 125 VDC | Fast Blow | Electrical, Industrial | - | T | CE, CSA, UL, UR | - | 200kA AC, 20kA DC | 1.311" Dia x 2.752" L (33.30mm x 69.90mm) | - | - |
|
L70S070.VFUSE CARTRIDGE 70A 700VAC/650VDC |
5 |
|
Datasheet | POWR-GARD® L70S | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 70A | 700 VAC | 650 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 200kA AC, 20kA DC | 1.220" Dia x 2.874" L (31.00mm x 73.00mm) | - | - |
|
L17T300.VFUSE CRTRDGE 300A 170VDC CYLINDR |
2 |
|
Datasheet | POWR-GARD® L17T | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 300A | - | 170 VDC | Fast Blow | Telecom | - | - | CE, CSA, UR | - | 100kA | 1.500" Dia x 1.252" L (38.10mm x 31.80mm) | - | - |
|
|
0581500.XFUSE STRIP 500A 48VAC/VDC RECT |
3 |
|
Datasheet | POWR-GARD® HAZGARD | Rectangular, Blade | Bulk | Active | Bolt Mount | Fuse Strip | 500A | 48 VAC | 48 VDC | Fast Blow | Lift Trucks | - | - | UR | - | 2.5kA | 3.228" L x 1.195" W x 0.683" H (82.00mm x 30.35mm x 17.35mm) | - | - |
|
|
0581800.XFUSE STRIP 800A 48VAC/VDC RECT |
3 |
|
Datasheet | POWR-GARD® HAZGARD | Rectangular, Blade | Bulk | Active | Bolt Mount | Fuse Strip | 800A | 48 VAC | 48 VDC | Fast Blow | Lift Trucks | - | - | UR | - | 2.5kA | 3.228" L x 1.195" W x 0.683" H (82.00mm x 30.35mm x 17.35mm) | - | - |
|
|
JLLS400.XFUSE CRTRDGE 400A 600VAC/300VDC |
3 |
|
Datasheet | POWR-GARD® JLLS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 400A | 600 VAC | 300 VDC | Fast Blow | Electrical, Industrial | - | T | CE, CSA, UL | - | 200kA | 1.594" Dia x 1.720" L (40.50mm x 43.70mm) | - | - |
|
|
SPFJ080.XFUSE CARTRIDGE 80A 1KVDC CYLINDR |
6 |
|
Datasheet | POWR-GARD® SPFJ | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 80A | - | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | J | CE, UL | - | 20kA | 1.500" Dia x 3.012" L (38.10mm x 76.50mm) | - | - |
|
|
L70S250.VFUSE CRTRDGE 250A 700VAC/650VDC |
3 |
|
Datasheet | POWR-GARD® L70S | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 250A | 700 VAC | 650 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 200kA AC, 20kA DC | 2.000" Dia x 2.843" L (50.80mm x 72.20mm) | - | - |
|
|
PSR071FL0250ZFUSE SQUARE 250A 1.3KVAC/1KVDC |
2 |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 250A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.913" L x 2.028" W x 2.264" H (74.00mm x 51.50mm x 57.50mm) | - | - |
|
PSR071FL0315ZFUSE SQUARE 315A 1.3KVAC/1KVDC |
2 |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 315A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.913" L x 2.028" W x 2.264" H (74.00mm x 51.50mm x 57.50mm) | - | - |
|
|
PSR072FL0550ZFUSE SQUARE 550A 1.3KVAC/1KVDC |
2 |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 550A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.953" L x 2.362" W x 2.598" H (75.00mm x 60.00mm x 66.00mm) | - | - |
|
L50QS700.XFUSE CRTRDGE 700A 500VAC/VDC |
8 |
|
Datasheet | POWR-SPEED™ L50QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 700A | 500 VAC | 500 VDC | Fast Blow | Semiconductors | - | - | CE, cURus, UR | -55°C ~ 125°C | 200kA AC, 50kA DC | 2.500" Dia x 6.187" L (63.50mm x 157.15mm) | - | - |
|
|
PSR073FL0700ZFUSE SQUARE 700A 1.3KVAC/1KVDC |
2 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 700A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.953" L x 2.894" W x 3.130" H (75.00mm x 73.50mm x 79.50mm) | - | - |
|

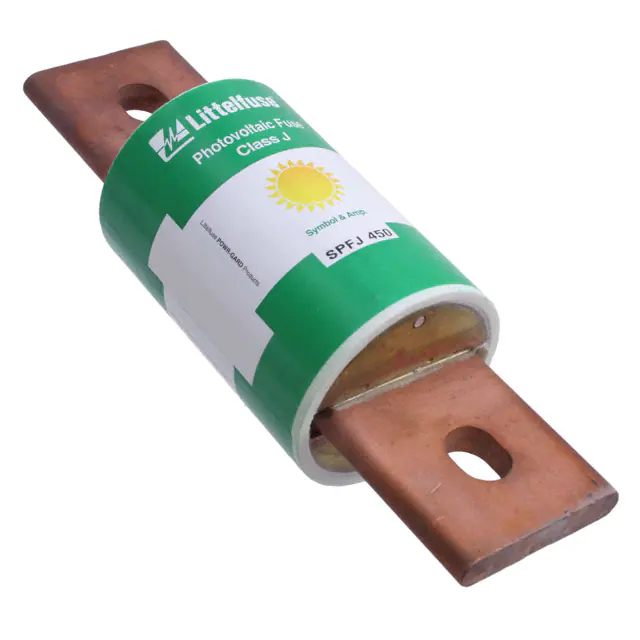

SPFJ450.XFUSE CARTRIDGE 450A 600VAC/1KVDC |
2 |
|
Datasheet | POWR-GARD® SPFJ | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 450A | 600 VAC | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | J | CE, cULus, UL, VDE | - | 200kA AC, 20kA DC | 2.500" Dia x 8.000" L (63.50mm x 203.20mm) | - | - |
|
CY14X51G20FUSE F/A 20A 500V 14X51MM EURO |
10 |
|
Datasheet | CY | Cartridge, Non-Standard | Box | Obsolete | Requires Holder | Cartridge | - | - | - | Fast Blow | - | - | - | - | - | - | 0.551" Dia x 2.008" L (14.00mm x 51.00mm) | - | - |
