Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CY22X58G80FUSE F/A 80A 500V 22X58MM EURO |
24 |
|
Datasheet | CY | Cartridge, Non-Standard | Box | Obsolete | Requires Holder | Cartridge | - | - | - | Fast Blow | - | - | - | - | - | - | 0.866" Dia x 2.283" L (22.00mm x 58.00mm) | - | - |
|
LA60Q302FUSE CRTRDGE 30A 600VAC/VDC 5AG |
79 |
|
Datasheet | POWR-GARD® LA60Q | 5AG, 10mm x 38mm (Midget) | Box | Obsolete | Requires Holder | Cartridge | 30A | 600 VAC | 600 VDC | Fast Blow | Electrical, Industrial | - | - | UR | - | 200kA AC, 100kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
0HEV040.ZXPCBLFUSE CARTRIDGE 40A 425VDC 5AG |
17 |
|
Datasheet | LC HEV | 5AG, 10mm x 38mm w/PC Pins (Midget) | Bulk | Obsolete | Through Hole | Cartridge | 40A | - | 425 VDC | - | Lift Trucks | - | - | - | -40°C ~ 125°C | 10kA | 0.406" Dia x 1.532" L (10.30mm x 38.90mm) | - | - |
|
SPXV016.TFUSE SOLAR 1500VDC 16A |
35 |
|
Datasheet | POWR-GARD® SPXV | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | 16A | - | 1.5 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, gPV, UL | - | 50kA | 0.406" Dia x 3.333" L (10.31mm x 84.65mm) | - | - |
|
0KLK001.TSFUSE CARTRIDGE 1A 600VAC/500VDC |
18 |
|
Datasheet | POWR-GARD® KLK | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 1A | 600 VAC | 500 VDC | Fast Blow | Electrical, Industrial | - | - | CE, CSA, QPL, UL | - | 100kA AC, 50kA DC | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
SPXV005.T1500 VDC 5 AMP PHOTOVOLTAIC FUSE |
20 |
|
Datasheet | POWR-GARD® SPXV | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | 5A | - | 1.5 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, gPV, UL | - | 50kA | 0.406" Dia x 3.333" L (10.30mm x 84.65mm) | - | - |
|
|
SPXI001.TFUSE SOLAR 1500VDC 1A |
15 |
|
Datasheet | POWR-GARD® SPXI | Cartridge, Inline, Double Ended | Box | Active | Free Hanging (In-Line) | Cartridge | 1A | - | 1.5 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, gPV, UL, UR | - | 30kA | 0.406" Dia x 3.205" L (10.31mm x 81.41mm) | - | - |
|
FLSR050.TFUSE CARTRIDGE 50A 600VAC/300VDC |
3 |
|
Datasheet | POWR-GARD® FLSR | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | 50A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | RK5 | CE, CSA, QPL, UL | - | 200kA AC, 20kA DC | 1.063" Dia x 5.500" L (27.00mm x 139.70mm) | - | - |
|
0JTD001.TXIDFUSE CARTRIDGE 1A 600VAC/300VDC |
2 |
|
Datasheet | POWR-GARD®, POWR-PRO® JTD_ID | Cylindrical, Alarm Indicating | Bulk | Active | Requires Holder | Cartridge | 1A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | Indicating | J | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.811" Dia x 2.252" L (20.60mm x 57.20mm) | - | - |
|

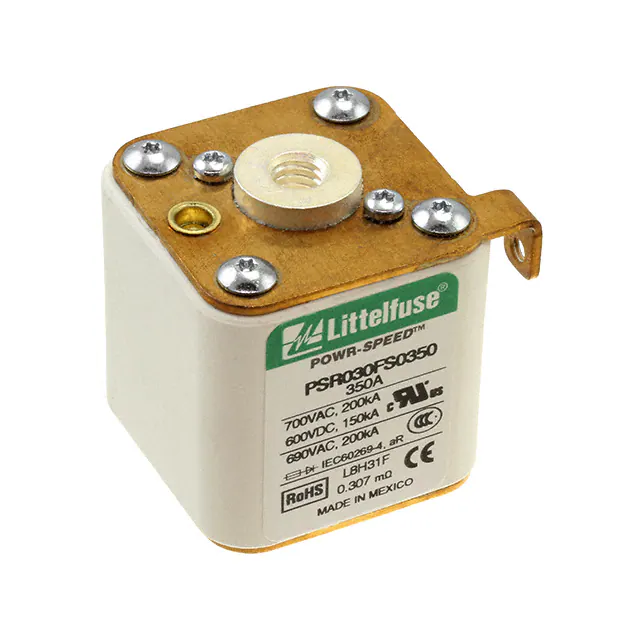

PSR030FS0350ZFUSE SQUARE 350A 700VAC/600VDC |
3 |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 350A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.969" L x 1.693" W x 1.929" H (50.00mm x 43.00mm x 49.00mm) | - | - |
|

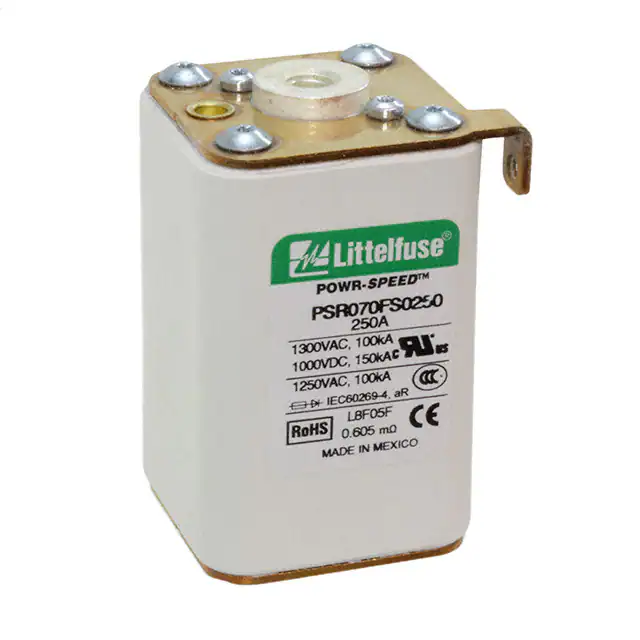

PSR070FS0250ZFUSE SQUARE 250A 1.3KVAC/1KVDC |
2 |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 250A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.913" L x 1.693" W x 1.929" H (74.00mm x 43.00mm x 49.00mm) | - | - |
|
LA100P8004FUSE CARTRIDGE 800A 1KVAC/750VDC |
12 |
|
Datasheet | POWR-GARD® LA100P | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 800A | 1 kVAC | 750 VDC | Fast Blow | Electrical, Industrial | - | - | UR | - | 100kA | 2.882" Dia x 3.937" L (73.20mm x 100.00mm) | - | - |
|
PSX1XLUB0630XFUSE SEMI 1500VDC 1XL SIZE 630A |
6 |
|
Datasheet | POWR-SPEED® PSX | Rectangular, Blade | Box | Active | Bolt Mount | Square | 630A | - | 1.5 kVDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA | 4.988" L x 2.028" W x 2.264" H (126.70mm x 51.50mm x 57.50mm) | - | - |
|
ITV5432L5030WRFUSE BATTERY PROTECTOR 50V 30A |
7,861 |
|
Datasheet | POLYSWITCH®, ITV5432 | Nonstandard SMD | Tape & Reel (TR) | Active | Surface Mount | Board Mount | 30A | - | 62 VDC | Fast Blow | Battery Protection | 45.2 ~ 62V Triggerable | - | cURus, TUV | -10°C ~ 65°C | 80A | 0.213" L x 0.126" W x 0.071" H (5.40mm x 3.20mm x 1.80mm) | - | - |
|
|
0KLK030.TFUSE CARTRIDGE 30A 600VAC/500VDC |
2,376 |
|
Datasheet | POWR-GARD® KLK | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 30A | 600 VAC | 500 VDC | Fast Blow | Electrical, Industrial | - | - | CE, CSA, QPL, UL | - | 100kA AC, 50kA DC | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
KLKR020.TFUSE CARTRIDGE 20A 600VAC/300VDC |
2,297 |
|
Datasheet | POWR-GARD® KLKR | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 20A | 600 VAC | 300 VDC | Fast Blow | Electrical, Industrial | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
|
KLKR002.TFUSE CARTRIDGE 2A 600VAC/300VDC |
2,358 |
|
Datasheet | POWR-GARD® KLKR | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 2A | 600 VAC | 300 VDC | Fast Blow | Electrical, Industrial | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
0SPF020.HXRFUSE CARTRIDGE 20A 1KVDC 5AG |
2,899 |
|
Datasheet | POWR-GARD® SPF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Through Hole | Cartridge | 20A | - | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL | - | 20kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
KLDR007.TXPFUSE CARTRIDGE 7A 600VAC/300VDC |
5,423 |
|
Datasheet | POWR-GARD® KLDR | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 7A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|

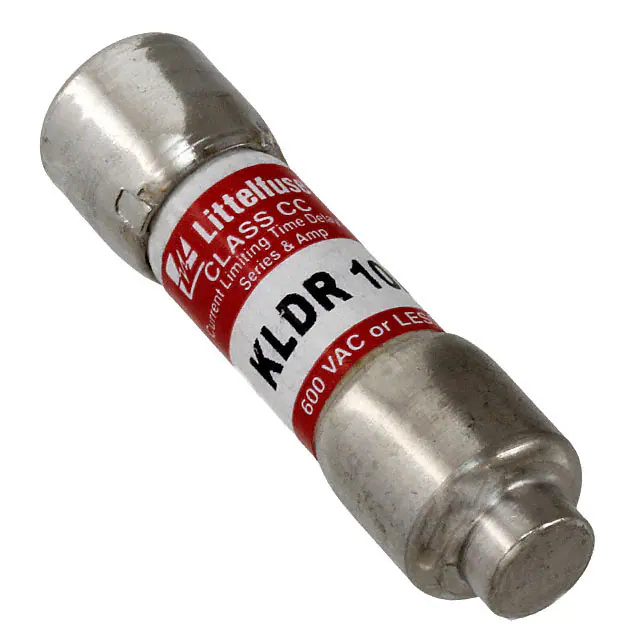

KLDR010.TXPFUSE CARTRIDGE 10A 600VAC/300VDC |
8,418 |
|
Datasheet | POWR-GARD® KLDR | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 10A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
