Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LA070URD31KI0250FUSE SQUARE 250A 700VAC RECT |
2,803 |
|
Datasheet | POWR-GARD® LA | Rectangular, Blade | Box | Obsolete | Bolt Mount | Square | 250A | 700 VAC | - | Fast Blow | Electrical, Industrial | - | - | UR | - | 200kA | 1.874" L x 2.008" W x 2.205" H (47.60mm x 51.00mm x 56.00mm) | - | - |
|
PSR030UL0450ZFUSE SQUARE 450A 700VAC/600VDC |
4,077 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 450A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.866" L x 1.693" W x 1.929" H (47.40mm x 43.00mm x 49.00mm) | - | - |
|
PSR030DL0450ZFUSE SQUARE 450A 700VAC/600VDC |
9,978 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 450A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.866" L x 1.693" W x 1.929" H (47.40mm x 43.00mm x 49.00mm) | - | - |
|
|
LA070URD30TTI0550FUSE SQUARE 550A 700VAC RECT |
4,376 |
|
Datasheet | POWR-GARD® LA | Rectangular | Box | Obsolete | Bolt Mount | Square | 550A | 700 VAC | - | Fast Blow | Electrical, Industrial | - | - | UR | - | 200kA | 1.992" L x 1.575" W x 1.874" H (50.60mm x 40.00mm x 46.70mm) | - | - |
|
|
LA070URD30TTI0500FUSE SQUARE 500A 700VAC RECT |
3,560 |
|
Datasheet | POWR-GARD® LA | Rectangular | Box | Obsolete | Bolt Mount | Square | 500A | 700 VAC | - | Fast Blow | Electrical, Industrial | - | - | UR | - | 200kA | 1.992" L x 1.575" W x 1.874" H (50.60mm x 40.00mm x 46.70mm) | - | - |
|
PSR030US0550ZFUSE SQUARE 550A 700VAC/600VDC |
4,132 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 550A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.866" L x 1.693" W x 1.929" H (47.40mm x 43.00mm x 49.00mm) | - | - |
|
PSR030DS0550ZFUSE SQUARE 550A 700VAC/600VDC |
4,576 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 550A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.866" L x 1.693" W x 1.929" H (47.40mm x 43.00mm x 49.00mm) | - | - |
|
|
PSR030US0500ZFUSE SQUARE 500A 700VAC/600VDC |
8,486 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 500A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.866" L x 1.693" W x 1.929" H (47.40mm x 43.00mm x 49.00mm) | - | - |
|
|
PSR030FL0315ZFUSE SQUARE 315A 700VAC/600VDC |
5,222 |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 315A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.969" L x 1.693" W x 1.929" H (50.00mm x 43.00mm x 49.00mm) | - | - |
|
|
PSR030FL0350ZFUSE SQUARE 350A 700VAC/600VDC |
4,551 |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 350A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.969" L x 1.693" W x 1.929" H (50.00mm x 43.00mm x 49.00mm) | - | - |
|

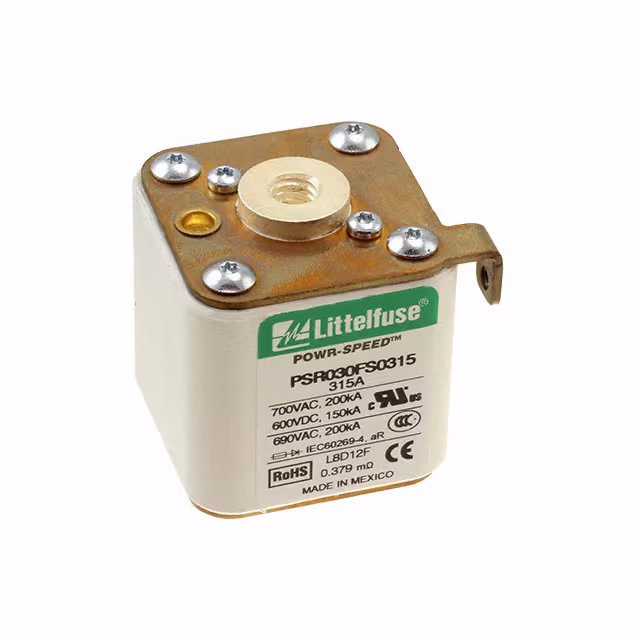

PSR030FS0315ZFUSE SQUARE 315A 700VAC/600VDC |
5,092 |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 315A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.969" L x 1.693" W x 1.929" H (50.00mm x 43.00mm x 49.00mm) | - | - |
|
|
KLSR080.VFUSE CARTRIDGE 80A 600VAC/300VDC |
3,573 |
|
Datasheet | POWR-GARD® KLSR | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 80A | 600 VAC | 300 VDC | Fast Blow | Electrical, Industrial | - | RK1 | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.311" Dia x 7.874" L (33.30mm x 200.00mm) | - | - |
|
|
KLSR070.VFUSE CARTRIDGE 70A 600VAC/300VDC |
6,085 |
|
Datasheet | POWR-GARD® KLSR | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 70A | 600 VAC | 300 VDC | Fast Blow | Electrical, Industrial | - | RK1 | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.311" Dia x 7.874" L (33.30mm x 200.00mm) | - | - |
|
|
KLSR090.VFUSE CARTRIDGE 90A 600VAC/300VDC |
9,703 |
|
Datasheet | POWR-GARD® KLSR | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 90A | 600 VAC | 300 VDC | Fast Blow | Electrical, Industrial | - | RK1 | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.311" Dia x 7.874" L (33.30mm x 200.00mm) | - | - |
|
|
KLSR100.VFUSE CRTRDGE 100A 600VAC/300VDC |
4,261 |
|
Datasheet | POWR-GARD® KLSR | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 100A | 600 VAC | 300 VDC | Fast Blow | Electrical, Industrial | - | RK1 | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.311" Dia x 7.874" L (33.30mm x 200.00mm) | - | - |
|
|
0JLS150.XFUSE CRTRDGE 150A 600VAC CYLINDR |
8,431 |
|
Datasheet | POWR-GARD® JLS | Cylindrical, Blade Terminals | Bulk | Active | Requires Holder | Cartridge | 150A | 600 VAC | - | Fast Blow | Electrical, Industrial | - | J | CE, CSA, QPL, UL | - | 200kA | 1.500" Dia x 3.000" L (38.10mm x 76.20mm) | - | - |
|
SPNH063.X1500VDC 63 AMP PHOTOVOLTAIC FUSE |
3,712 |
|
Datasheet | POWR-GARD® SPNH | Rectangular, Blade | Box | Obsolete | Requires Holder | Rectangular | 63A | - | 1.5 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, gPV, IEC, UL | - | 30kA | 5.165" L x 2.008" W x 2.008" H (131.20mm x 51.00mm x 51.00mm) | - | - |
|
JLLN600.XXPFUSE CRTRDGE 600A 300VAC/125VDC |
7,658 |
|
Datasheet | POWR-GARD® JLLN | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 600A | 300 VAC | 125 VDC | Fast Blow | Electrical, Industrial | - | T | CE, CSA, UL, UR | - | 200kA AC, 20kA DC | 1.594" Dia x 3.063" L (40.50mm x 77.80mm) | - | - |
|
|
PSR030DL0500ZFUSE SQUARE 500A 700VAC/600VDC |
4,980 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 500A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.866" L x 1.693" W x 1.929" H (47.40mm x 43.00mm x 49.00mm) | - | - |
|
|
PSR030UL0500ZFUSE SQUARE 500A 700VAC/600VDC |
7,926 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 500A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.866" L x 1.693" W x 1.929" H (47.40mm x 43.00mm x 49.00mm) | - | - |
