Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L25S700.VFUSE CRTRDGE 700A 250VAC/200VDC |
7,923 |
|
Datasheet | POWR-GARD® L25S | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 700A | 250 VAC | 200 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 200kA AC, 20kA DC | 1.500" Dia x 1.594" L (38.10mm x 40.50mm) | - | - |
|
|
L25S800.VFUSE CRTRDGE 800A 250VAC/200VDC |
6,948 |
|
Datasheet | POWR-GARD® L25S | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 800A | 250 VAC | 200 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 200kA AC, 20kA DC | 2.000" Dia x 1.594" L (50.80mm x 40.50mm) | - | - |
|
KLNR090.VFUSE CARTRIDGE 90A 250VAC/125VDC |
9,822 |
|
Datasheet | POWR-GARD® KLNR | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 90A | 250 VAC | 125 VDC | Fast Blow | Electrical, Industrial | - | RK1 | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.063" Dia x 5.874" L (27.00mm x 149.20mm) | - | - |
|
|
KLNR070.VFUSE CARTRIDGE 70A 250VAC/125VDC |
3,584 |
|
Datasheet | POWR-GARD® KLNR | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 70A | 250 VAC | 125 VDC | Fast Blow | Electrical, Industrial | - | RK1 | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.063" Dia x 5.874" L (27.00mm x 149.20mm) | - | - |
|
|
FLSR110.XXIDFUSE CRTRDGE 110A 600VAC/300VDC |
2,348 |
|
Datasheet | POWR-GARD® FLSR_ID | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 110A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | Indicating | RK5 | CE, CSA, QPL, UL | - | 200kA AC, 20kA DC | 1.843" Dia x 9.626" L (46.80mm x 244.50mm) | - | - |
|
|
FLSR175.XXIDFUSE CRTRDGE 175A 600VAC/300VDC |
8,394 |
|
Datasheet | POWR-GARD® FLSR_ID | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 175A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | Indicating | RK5 | CE, CSA, QPL, UL | - | 200kA AC, 20kA DC | 1.843" Dia x 9.626" L (46.80mm x 244.50mm) | - | - |
|
|
PSR030FL0125ZFUSE SQUARE 125A 700VAC/600VDC |
5,901 |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 125A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.969" L x 1.693" W x 1.929" H (50.00mm x 43.00mm x 49.00mm) | - | - |
|
|
PSR030FL0160ZFUSE SQUARE 160A 700VAC/600VDC |
2,124 |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 160A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.969" L x 1.693" W x 1.929" H (50.00mm x 43.00mm x 49.00mm) | - | - |
|
|
PSR030FS0160ZFUSE SQUARE 160A 700VAC/600VDC |
6,920 |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 160A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.969" L x 1.693" W x 1.929" H (50.00mm x 43.00mm x 49.00mm) | - | - |
|

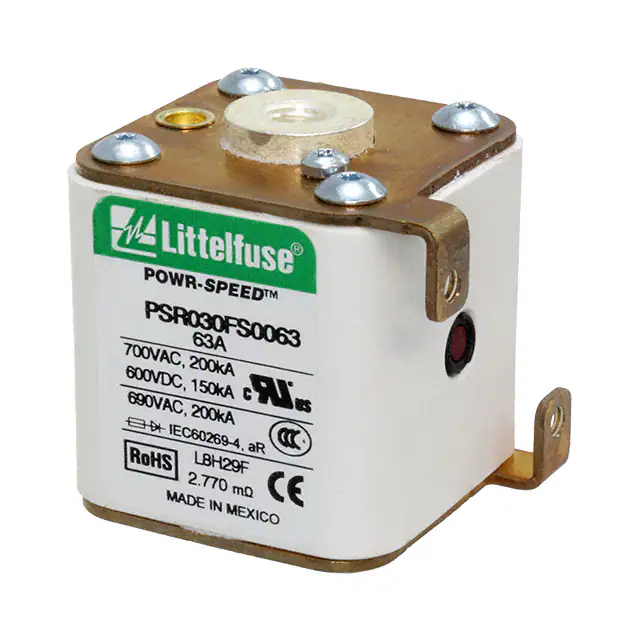

PSR030FS0063ZFUSE SQUARE 63A 700VAC/600VDC |
2,230 |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 63A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.969" L x 1.693" W x 1.929" H (50.00mm x 43.00mm x 49.00mm) | - | - |
|
|
PSR030FS0080ZFUSE SQUARE 80A 700VAC/600VDC |
4,388 |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 80A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.969" L x 1.693" W x 1.929" H (50.00mm x 43.00mm x 49.00mm) | - | - |
|
|
PSR030FL0040ZFUSE SQUARE 40A 700VAC/600VDC |
5,253 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 40A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.969" L x 1.693" W x 1.929" H (50.00mm x 43.00mm x 49.00mm) | - | - |
|
|
PSR030FL0050ZFUSE SQUARE 50A 700VAC/600VDC |
3,100 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 50A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.969" L x 1.693" W x 1.929" H (50.00mm x 43.00mm x 49.00mm) | - | - |
|
|
PSR030FL0063ZFUSE SQUARE 63A 700VAC/600VDC |
5,741 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 63A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.969" L x 1.693" W x 1.929" H (50.00mm x 43.00mm x 49.00mm) | - | - |
|
|
PSR030FL0080ZFUSE SQUARE 80A 700VAC/600VDC |
9,406 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 80A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.969" L x 1.693" W x 1.929" H (50.00mm x 43.00mm x 49.00mm) | - | - |
|
|
PSR030FL0100ZFUSE SQUARE 100A 700VAC/600VDC |
3,808 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 100A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.969" L x 1.693" W x 1.929" H (50.00mm x 43.00mm x 49.00mm) | - | - |
|
|
PSR030FS0040ZFUSE SQUARE 40A 700VAC/600VDC |
4,822 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 40A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.969" L x 1.693" W x 1.929" H (50.00mm x 43.00mm x 49.00mm) | - | - |
|

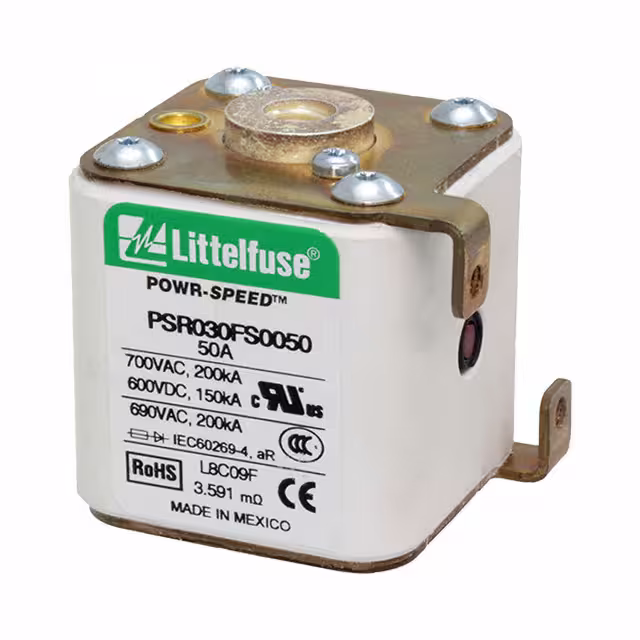

PSR030FS0050ZFUSE SQUARE 50A 700VAC/600VDC |
2,688 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 50A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.969" L x 1.693" W x 1.929" H (50.00mm x 43.00mm x 49.00mm) | - | - |
|
JLLN450.XXPFUSE CRTRDGE 450A 300VAC/125VDC |
6,957 |
|
Datasheet | POWR-GARD® JLLN | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 450A | 300 VAC | 125 VDC | Fast Blow | Electrical, Industrial | - | T | CE, CSA, UL, UR | - | 200kA AC, 20kA DC | 1.594" Dia x 3.063" L (40.50mm x 77.80mm) | - | - |
|
PSR030UL0400ZFUSE SQUARE 400A 700VAC/600VDC |
2,031 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 400A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.866" L x 1.693" W x 1.929" H (47.40mm x 43.00mm x 49.00mm) | - | - |
