Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L17T1100VFUSE CARTRIDGE 1.1KA 170VDC CYL |
8,843 |
|
Datasheet | POWR-GARD® L17T | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 1.1kA | - | 170 VDC | Fast Blow | Telecom | - | - | CE, CSA, UR | - | 100kA | 1.000" Dia x 1.157" L (25.40mm x 29.40mm) | - | - |
|
|
L17T1000VFUSE CRTRDGE 1KA 170VDC CYLINDR |
2,393 |
|
Datasheet | POWR-GARD® L17T | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 1kA | - | 170 VDC | Fast Blow | Telecom | - | - | CE, CSA, UR | - | 100kA | 1.000" Dia x 1.157" L (25.40mm x 29.40mm) | - | - |
|
|
L17T1200VFUSE CARTRIDGE 1.2KA 170VDC CYL |
7,437 |
|
Datasheet | POWR-GARD® L17T | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 1.2kA | - | 170 VDC | Fast Blow | Telecom | - | - | CE, CSA, UR | - | 100kA | 1.000" Dia x 1.157" L (25.40mm x 29.40mm) | - | - |
|
|
PSR030FL0500ZFUSE SQUARE 500A 700VAC/600VDC |
4,692 |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 500A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.969" L x 1.693" W x 1.929" H (50.00mm x 43.00mm x 49.00mm) | - | - |
|
|
PSR030FS0550ZFUSE SQUARE 550A 700VAC/600VDC |
4,583 |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 550A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.969" L x 1.693" W x 1.929" H (50.00mm x 43.00mm x 49.00mm) | - | - |
|
JLLS300.XXPFUSE CRTRDGE 300A 600VAC/300VDC |
6,597 |
|
Datasheet | POWR-GARD® JLLS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 300A | 600 VAC | 300 VDC | Fast Blow | Electrical, Industrial | - | T | CE, CSA, UL, UR | - | 200kA AC, 20kA DC | 1.594" Dia x 3.626" L (40.50mm x 92.10mm) | - | - |
|
L15S800.VFUSE CRTRDGE 800A 150VAC/100VDC |
5,670 |
|
Datasheet | POWR-GARD® L15S | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 800A | 150 VAC | 100 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 100kA AC, 20kA DC | 1.500" Dia x 1.252" L (38.10mm x 31.80mm) | - | - |
|
|
L15S600.VFUSE CRTRDGE 600A 150VAC/100VDC |
5,076 |
|
Datasheet | POWR-GARD® L15S | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 600A | 150 VAC | 100 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 100kA AC, 20kA DC | 1.500" Dia x 1.252" L (38.10mm x 31.80mm) | - | - |
|
|
0RLS200.XFUSE CRTRDGE 200A 600VAC CYLINDR |
8,885 |
|
Datasheet | POWR-GARD® RLS | Cylindrical, Blade Terminals | Bulk | Obsolete | Requires Holder | Cartridge | 200A | 600 VAC | - | Fast Blow | Electrical, Industrial | - | H | CE, CSA, UL | - | 10kA | 1.843" Dia x 6.878" L (46.80mm x 174.70mm) | - | - |
|
PSR031FS0315ZFUSE SQUARE 315A 700VAC/600VDC |
3,669 |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 315A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.969" L x 2.028" W x 2.264" H (50.00mm x 51.50mm x 57.50mm) | - | - |
|

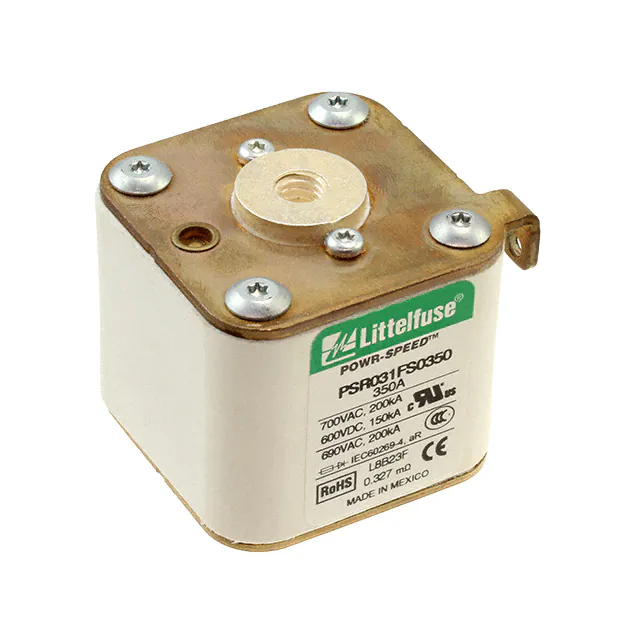

PSR031FS0350ZFUSE SQUARE 350A 700VAC/600VDC |
9,179 |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 350A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.969" L x 2.028" W x 2.264" H (50.00mm x 51.50mm x 57.50mm) | - | - |
|
|
PSR031FL0200ZFUSE SQUARE 200A 700VAC/600VDC |
8,889 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 200A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.969" L x 2.028" W x 2.264" H (50.00mm x 51.50mm x 57.50mm) | - | - |
|
|
PSR031FL0315ZFUSE SQUARE 315A 700VAC/600VDC |
6,907 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 315A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.969" L x 2.028" W x 2.264" H (50.00mm x 51.50mm x 57.50mm) | - | - |
|
|
PSR031FL0350ZFUSE SQUARE 350A 700VAC/600VDC |
5,870 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 350A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.969" L x 2.028" W x 2.264" H (50.00mm x 51.50mm x 57.50mm) | - | - |
|
|
PSR031FL0400ZFUSE SQUARE 400A 700VAC/600VDC |
6,629 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 400A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.969" L x 2.028" W x 2.264" H (50.00mm x 51.50mm x 57.50mm) | - | - |
|
|
SPFJ200.XXLFUSE CARTRIDGE 200A 600VAC/1KVDC |
8,538 |
|
Datasheet | POWR-GARD® SPFJ | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 200A | 600 VAC | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, UL | - | 200kA AC, 20kA DC | 1.500" Dia x 3.012" L (38.10mm x 76.50mm) | - | - |
|
|
LA130URD70LI0080FUSE SQUARE 80A 1.3KVAC RECT |
4,029 |
|
Datasheet | POWR-GARD® LA | Rectangular, Blade | Box | Obsolete | Bolt Mount | Square | 80A | 1.3 kVAC | - | Fast Blow | Electrical, Industrial | - | - | UR | - | 100kA | 2.854" L x 1.575" W x 1.773" H (72.50mm x 40.00mm x 45.03mm) | - | - |
|
|
LA130URD70LI0063FUSE SQUARE 63A 1.3KVAC RECT |
5,560 |
|
Datasheet | POWR-GARD® LA | Rectangular, Blade | Box | Obsolete | Bolt Mount | Square | 63A | 1.3 kVAC | - | Fast Blow | Electrical, Industrial | - | - | UR | - | 100kA | 2.854" L x 1.575" W x 1.773" H (72.50mm x 40.00mm x 45.03mm) | - | - |
|
|
LA130URD70LI0100FUSE SQUARE 100A 1.3KVAC RECT |
5,714 |
|
Datasheet | POWR-GARD® LA | Rectangular, Blade | Box | Obsolete | Bolt Mount | Square | 100A | 1.3 kVAC | - | Fast Blow | Electrical, Industrial | - | - | UR | - | 100kA | 2.854" L x 1.575" W x 1.773" H (72.50mm x 40.00mm x 45.03mm) | - | - |
|
|
LSRK110.XFUSE CRTRDGE 110A 600VAC/300VDC |
2,171 |
|
Datasheet | POWR-GARD®, POWR-PRO® LLSRK | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 110A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | RK1 | CE, CSA, QPL, UL | - | 200kA AC, 20kA DC | 2.094" Dia x 9.626" L (53.19mm x 244.50mm) | - | - |
