Chassis Mount Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Temperature Coefficient | Operating Temperature | Features | Coating, Housing Type | Mounting Feature | Size / Dimension | Height - Seated (Max) | Lead Style | Failure Rate | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

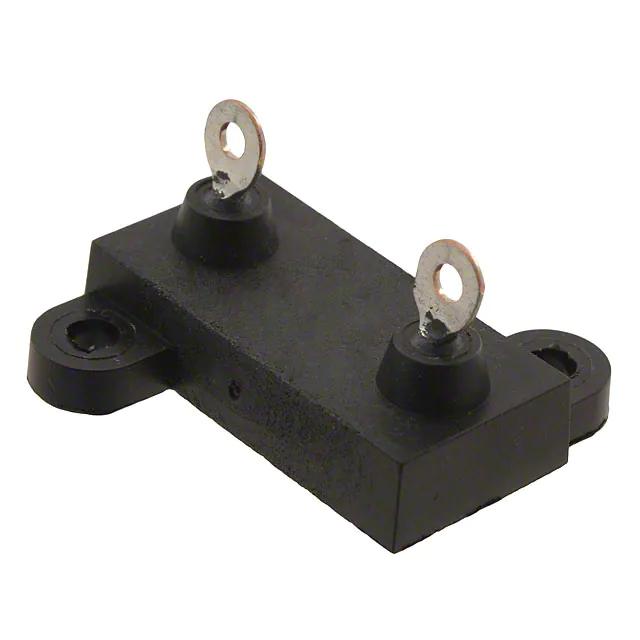

RCH25S22R00JS06SFERNICE FIXED RESISTORS |
47 |
|
Datasheet | RCH | Radial, Rectangular Case | Bag | Active | 22 Ohms | ±5% | 25W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Non-Inductive | Aluminum Oxide | Flanges | 1.102" L x 0.551" W (28.00mm x 14.00mm) | 0.602" (15.30mm) | Solder Lugs | - | - | - |
|
|
RCH25S33R00JS06SFERNICE FIXED RESISTORS |
36 |
|
Datasheet | RCH | Radial, Rectangular Case | Bag | Active | 33 Ohms | ±5% | 25W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Non-Inductive | Aluminum Oxide | Flanges | 1.102" L x 0.551" W (28.00mm x 14.00mm) | 0.602" (15.30mm) | Solder Lugs | - | - | - |
|
|
RCH25S4R700JS06SFERNICE FIXED RESISTORS |
50 |
|
Datasheet | RCH | Radial, Rectangular Case | Bag | Active | 4.7 Ohms | ±5% | 25W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Non-Inductive | Aluminum Oxide | Flanges | 1.102" L x 0.551" W (28.00mm x 14.00mm) | 0.602" (15.30mm) | Solder Lugs | - | - | - |
|
RCH50S100R0JS06RES CHAS MNT 100 OHM 5% 50W |
69 |
|
Datasheet | RCH | Radial, Rectangular Case | Bulk | Active | 100 Ohms | ±5% | 50W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Non-Inductive | Aluminum Oxide | Flanges | 1.882" L x 1.157" W (47.80mm x 29.40mm) | 0.602" (15.30mm) | Solder Lugs | - | - | - |
|
|
RCH50S680R0JS06RES CHAS MNT 680 OHM 5% 50W |
69 |
|
Datasheet | RCH | Radial, Rectangular Case | Bulk | Active | 680 Ohms | ±5% | 50W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Non-Inductive | Aluminum Oxide | Flanges | 1.882" L x 1.157" W (47.80mm x 29.40mm) | 0.602" (15.30mm) | Solder Lugs | - | - | - |
|
|
RCH50S22000JS06RES CHAS MNT 2.2K OHM 5% 50W |
50 |
|
Datasheet | RCH | Radial, Rectangular Case | Bulk | Active | 2.2 kOhms | ±5% | 50W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Non-Inductive | Aluminum Oxide | Flanges | 1.882" L x 1.157" W (47.80mm x 29.40mm) | 0.602" (15.30mm) | Solder Lugs | - | - | - |
|
|
RCH50S15R00JS06RES CHAS MNT 15 OHM 5% 50W |
49 |
|
Datasheet | RCH | Radial, Rectangular Case | Bulk | Active | 15 Ohms | ±5% | 50W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Non-Inductive | Aluminum Oxide | Flanges | 1.882" L x 1.157" W (47.80mm x 29.40mm) | 0.602" (15.30mm) | Solder Lugs | - | - | - |
|
|
RCH50S470R0JS06RES CHAS MNT 470 OHM 5% 50W |
41 |
|
Datasheet | RCH | Radial, Rectangular Case | Bulk | Active | 470 Ohms | ±5% | 50W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Non-Inductive | Aluminum Oxide | Flanges | 1.882" L x 1.157" W (47.80mm x 29.40mm) | 0.602" (15.30mm) | Solder Lugs | - | - | - |
|
ISOA100R12202JTISOA 100 R1 22K 5% TUBE |
30 |
|
Datasheet | ISOA | SOT-227-4 | Tube | Active | 22 kOhms | ±5% | 100W | Thick Film | ±100ppm/°C | -55°C ~ 150°C | Non-Inductive | Aluminum | Flanges | 1.504" L x 0.984" W (38.20mm x 25.00mm) | 0.480" (12.20mm) | M4 Threaded | - | - | - |
|
|
ISOA100R14700JTISOA 100 R1 470R 5% TUBE |
29 |
|
Datasheet | ISOA | SOT-227-4 | Tube | Active | 470 Ohms | ±5% | 100W | Thick Film | ±100ppm/°C | -55°C ~ 150°C | Non-Inductive | Aluminum | Flanges | 1.504" L x 0.984" W (38.20mm x 25.00mm) | 0.480" (12.20mm) | M4 Threaded | - | - | - |
|
|
RCH50S22001JS06RES CHAS MNT 22K OHM 5% 50W |
59 |
|
Datasheet | RCH | Radial, Rectangular Case | Bulk | Active | 22 kOhms | ±5% | 50W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Non-Inductive | Aluminum Oxide | Flanges | 1.882" L x 1.157" W (47.80mm x 29.40mm) | 0.602" (15.30mm) | Solder Lugs | - | - | - |
|
|
RCH50S33R00JS06SFERNICE FIXED RESISTORS |
20 |
|
Datasheet | RCH | Radial, Rectangular Case | Bag | Active | 33 Ohms | ±5% | 50W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Non-Inductive | Aluminum Oxide | Flanges | 1.882" L x 0.610" W (47.80mm x 15.50mm) | 0.602" (15.30mm) | Solder Lugs | - | - | - |
|
FVT02506E100R0JERES CHAS MNT 100 OHM 5% 25W |
67 |
|
Datasheet | FVT | Radial, Tubular | Bulk | Active | 100 Ohms | ±5% | 25W | Wirewound | ±260ppm/°C | -55°C ~ 350°C | - | Vitreous Enamel Coated | Brackets (not included) | 0.563" Dia x 2.000" L (14.30mm x 50.80mm) | - | Solder Lugs | - | - | - |
|
|
FVT20020E500R0JERES CHAS MNT 500 OHM 5% 225W |
67 |
|
Datasheet | FVT | Radial, Tubular | Bulk | Active | 500 Ohms | ±5% | 225W | Wirewound | ±260ppm/°C | -55°C ~ 350°C | - | Vitreous Enamel Coated | Brackets (not included) | 1.125" Dia x 10.500" L (28.58mm x 266.70mm) | - | Solder Lugs | - | - | - |
|
|
RCH50S5R000JS06SFERNICE FIXED RESISTORS |
30 |
|
Datasheet | RCH | Radial, Rectangular Case | Bag | Active | 5 Ohms | ±5% | 50W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Non-Inductive | Aluminum Oxide | Flanges | 1.882" L x 0.610" W (47.80mm x 15.50mm) | 0.602" (15.30mm) | Solder Lugs | - | - | - |
|
|
FVT02506E5K000JERES CHAS MNT 5K OHM 5% 25W |
93 |
|
Datasheet | FVT | Radial, Tubular | Bulk | Active | 5 kOhms | ±5% | 25W | Wirewound | ±260ppm/°C | -55°C ~ 350°C | - | Vitreous Enamel Coated | Brackets (not included) | 0.563" Dia x 2.000" L (14.30mm x 50.80mm) | - | Solder Lugs | - | - | - |
|
|
ISOA100N11001JTISOA 100 N1 1K 5% TUBE |
30 |
|
Datasheet | ISOA | SOT-227-4 | Tube | Active | 1 kOhms | ±5% | 100W | Thick Film | ±100ppm/°C | -55°C ~ 150°C | Non-Inductive | Aluminum | Flanges | 1.504" L x 0.984" W (38.20mm x 25.00mm) | 0.480" (12.20mm) | M4 Threaded | - | - | - |
|
|
RCH25S10002FS06SFERNICE FIXED RESISTORS |
55 |
|
Datasheet | RCH | Radial, Rectangular Case | Bag | Active | 100 kOhms | ±1% | 25W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Non-Inductive | Aluminum Oxide | Flanges | 1.102" L x 0.551" W (28.00mm x 14.00mm) | 0.602" (15.30mm) | Solder Lugs | - | - | - |
|
|
ISOA100N11601JTISOA 100 N1 1K6 5% TUBE |
60 |
|
Datasheet | ISOA | SOT-227-4 | Tube | Active | 1.6 kOhms | ±5% | 100W | Thick Film | ±100ppm/°C | -55°C ~ 150°C | Non-Inductive | Aluminum | Flanges | 1.504" L x 0.984" W (38.20mm x 25.00mm) | 0.480" (12.20mm) | M4 Threaded | - | - | - |
|
|
FVT05006E500R0JERES CHAS MNT 500 OHM 5% 50W |
89 |
|
Datasheet | FVT | Radial, Tubular | Bulk | Active | 500 Ohms | ±5% | 50W | Wirewound | ±260ppm/°C | -55°C ~ 350°C | - | Vitreous Enamel Coated | Brackets (not included) | 0.563" Dia x 4.000" L (14.30mm x 101.60mm) | - | Solder Lugs | - | - | - |
