Chassis Mount Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Temperature Coefficient | Operating Temperature | Features | Coating, Housing Type | Mounting Feature | Size / Dimension | Height - Seated (Max) | Lead Style | Failure Rate | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FVT10006E2R000JERES CHAS MNT 2 OHM 5% 100W |
187 |
|
Datasheet | FVT | Radial, Tubular | Bulk | Active | 2 Ohms | ±5% | 100W | Wirewound | ±400ppm/°C | -55°C ~ 350°C | - | Vitreous Enamel Coated | Brackets (not included) | 0.750" Dia x 6.500" L (19.05mm x 165.10mm) | - | Solder Lugs | - | - | - |
|
|
FVT10006E1R000JERES CHAS MNT 1 OHM 5% 100W |
148 |
|
Datasheet | FVT | Radial, Tubular | Bulk | Active | 1 Ohms | ±5% | 100W | Wirewound | ±400ppm/°C | -55°C ~ 350°C | - | Vitreous Enamel Coated | Brackets (not included) | 0.750" Dia x 6.500" L (19.05mm x 165.10mm) | - | Solder Lugs | - | - | - |
|
|
FVT10006E50R00JERES CHAS MNT 50 OHM 5% 100W |
146 |
|
Datasheet | FVT | Radial, Tubular | Bulk | Active | 50 Ohms | ±5% | 100W | Wirewound | ±260ppm/°C | -55°C ~ 350°C | - | Vitreous Enamel Coated | Brackets (not included) | 0.750" Dia x 6.500" L (19.05mm x 165.10mm) | - | Solder Lugs | - | - | - |
|
|
FVT10006E1K000JERES CHAS MNT 1K OHM 5% 100W |
100 |
|
Datasheet | FVT | Radial, Tubular | Bulk | Active | 1 kOhms | ±5% | 100W | Wirewound | ±260ppm/°C | -55°C ~ 350°C | - | Vitreous Enamel Coated | Brackets (not included) | 0.750" Dia x 6.500" L (19.05mm x 165.10mm) | - | Solder Lugs | - | - | - |
|
FVTS05R2E75R00JERES CHAS MNT 75 OHM 5% 5W |
82 |
|
Datasheet | FVTS | Radial, Tubular | Bulk | Active | 75 Ohms | ±5% | 5W | Wirewound | ±260ppm/°C | -55°C ~ 350°C | - | Vitreous Enamel Coated | Brackets (not included) | 0.313" Dia x 1.000" L (7.94mm x 25.40mm) | - | Combo Leads | - | - | - |
|
|
FVTS05R2E2K000JERES CHAS MNT 2K OHM 5% 5W |
73 |
|
Datasheet | FVTS | Radial, Tubular | Bulk | Active | 2 kOhms | ±5% | 5W | Wirewound | ±260ppm/°C | -55°C ~ 350°C | - | Vitreous Enamel Coated | Brackets (not included) | 0.313" Dia x 1.000" L (7.94mm x 25.40mm) | - | Combo Leads | - | - | - |
|
LPS0300H4R70JBRES CHAS MNT 4.7 OHM 5% 300W |
64 |
|
Datasheet | LPS 300 | Box | Bulk | Active | 4.7 Ohms | ±5% | 300W | Thick Film | ±300ppm/°C | -55°C ~ 120°C | Non-Inductive | - | Flanges | 2.362" L x 2.244" W (60.00mm x 57.00mm) | 1.055" (26.80mm) | M4 Threaded | - | - | - |
|
|
FVT20020E100R0JERES CHAS MNT 100 OHM 5% 225W |
199 |
|
Datasheet | FVT | Radial, Tubular | Bulk | Active | 100 Ohms | ±5% | 225W | Wirewound | ±260ppm/°C | -55°C ~ 350°C | - | Vitreous Enamel Coated | Brackets (not included) | 1.125" Dia x 10.500" L (28.58mm x 266.70mm) | - | Solder Lugs | - | - | - |
|
HRHAFN1000KBHRHA FN 100U 10% BO12 |
26 |
|
Datasheet | HRHA | Box | Bulk | Active | 100 Ohms | ±10% | 90W | Wirewound | ±100ppm/°C | -55°C ~ 250°C | - | - | Flanges | 2.756" L x 2.362" W (70.00mm x 60.00mm) | 0.646" (16.40mm) | Quick Connects, 0.250" (6.35mm) | - | Automotive | AEC-Q200 |
|

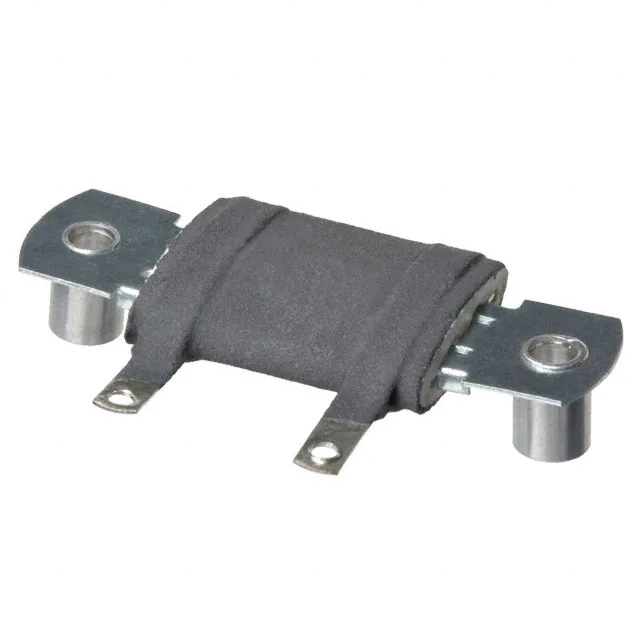

FSOT5509E25R00KERES CHAS MNT 25 OHM 10% 55W |
529 |
|
Datasheet | FSOT | Radial, Flat Oval | Bulk | Active | 25 Ohms | ±10% | 55W | Wirewound | ±260ppm/°C | -55°C ~ 350°C | - | Silicone Coated | Flange Braces, Right Angle | 3.500" L x 1.187" W (88.90mm x 30.16mm) | 0.594" (15.08mm) | Solder Lugs | - | - | - |
|
|
FSOT5509E1K000KERES CHAS MNT 1K OHM 10% 55W |
471 |
|
Datasheet | FSOT | Radial, Flat Oval | Bulk | Active | 1 kOhms | ±10% | 55W | Wirewound | ±260ppm/°C | -55°C ~ 350°C | - | Silicone Coated | Flange Braces, Right Angle | 3.500" L x 1.187" W (88.90mm x 30.16mm) | 0.594" (15.08mm) | Solder Lugs | - | - | - |
|
|
FVT20020E3R000JERES CHAS MNT 3 OHM 5% 225W |
76 |
|
Datasheet | FVT | Radial, Tubular | Bulk | Active | 3 Ohms | ±5% | 225W | Wirewound | ±400ppm/°C | -55°C ~ 350°C | - | Vitreous Enamel Coated | Brackets (not included) | 1.125" Dia x 10.500" L (28.58mm x 266.70mm) | - | Solder Lugs | - | - | - |
|
|
FVT20020E50R00JERES CHAS MNT 50 OHM 5% 225W |
84 |
|
Datasheet | FVT | Radial, Tubular | Bulk | Active | 50 Ohms | ±5% | 225W | Wirewound | ±260ppm/°C | -55°C ~ 350°C | - | Vitreous Enamel Coated | Brackets (not included) | 1.125" Dia x 10.500" L (28.58mm x 266.70mm) | - | Solder Lugs | - | - | - |
|
FSOT2011E10R00KERES CHAS MNT 10 OHM 10% 20W |
313 |
|
Datasheet | FSOT | Radial, Flat Oval | Bulk | Active | 10 Ohms | ±10% | 20W | Wirewound | ±400ppm/°C | -55°C ~ 350°C | - | Silicone Coated | Flange Braces, Right Angle | 2.000" L x 0.375" W (50.80mm x 9.52mm) | 0.343" (8.71mm) | Solder Lugs | - | - | - |
|
|
FSOT2011E5R000KERES CHAS MNT 5 OHM 10% 20W |
174 |
|
Datasheet | FSOT | Radial, Flat Oval | Bulk | Active | 5 Ohms | ±10% | 20W | Wirewound | ±400ppm/°C | -55°C ~ 350°C | - | Silicone Coated | Flange Braces, Right Angle | 2.000" L x 0.375" W (50.80mm x 9.52mm) | 0.343" (8.71mm) | Solder Lugs | - | - | - |
|
|
FSOT3009E10R00KERES CHAS MNT 10 OHM 10% 30W |
77 |
|
Datasheet | FSOT | Radial, Flat Oval | Bulk | Active | 10 Ohms | ±10% | 30W | Wirewound | ±400ppm/°C | -55°C ~ 350°C | - | Silicone Coated | Flange Braces, Right Angle | 1.252" L x 1.000" W (31.80mm x 25.40mm) | 0.594" (15.08mm) | Solder Lugs | - | - | - |
|
|
LPS0600H4R70JBRES CHAS MNT 4.7 OHM 5% 600W |
30 |
|
Datasheet | LPS 600 | Box | Bulk | Active | 4.7 Ohms | ±5% | 600W | Thick Film | ±300ppm/°C | -55°C ~ 155°C | Non-Inductive | - | Flanges | 2.362" L x 2.244" W (60.00mm x 57.00mm) | 1.055" (26.80mm) | M4 Threaded | - | - | - |
|
|
FSOT4009E250R0KERES CHAS MNT 250 OHM 10% 40W |
347 |
|
Datasheet | FSOT | Radial, Flat Oval | Bulk | Active | 250 Ohms | ±10% | 40W | Wirewound | ±260ppm/°C | -55°C ~ 350°C | - | Silicone Coated | Flange Braces, Right Angle | 2.000" L x 1.187" W (50.80mm x 30.16mm) | 0.594" (15.08mm) | Solder Lugs | - | - | - |
|
|
FSOT4009E25R00KERES CHAS MNT 25 OHM 10% 40W |
218 |
|
Datasheet | FSOT | Radial, Flat Oval | Bulk | Active | 25 Ohms | ±10% | 40W | Wirewound | ±260ppm/°C | -55°C ~ 350°C | - | Silicone Coated | Flange Braces, Right Angle | 2.000" L x 1.187" W (50.80mm x 30.16mm) | 0.594" (15.08mm) | Solder Lugs | - | - | - |
|
|
FSOT5509E10R00KERES CHAS MNT 10 OHM 10% 55W |
102 |
|
Datasheet | FSOT | Radial, Flat Oval | Bulk | Active | 10 Ohms | ±10% | 55W | Wirewound | ±400ppm/°C | -55°C ~ 350°C | - | Silicone Coated | Flange Braces, Right Angle | 3.500" L x 1.187" W (88.90mm x 30.16mm) | 0.594" (15.08mm) | Solder Lugs | - | - | - |
