Chassis Mount Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Temperature Coefficient | Operating Temperature | Features | Coating, Housing Type | Mounting Feature | Size / Dimension | Height - Seated (Max) | Lead Style | Failure Rate | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

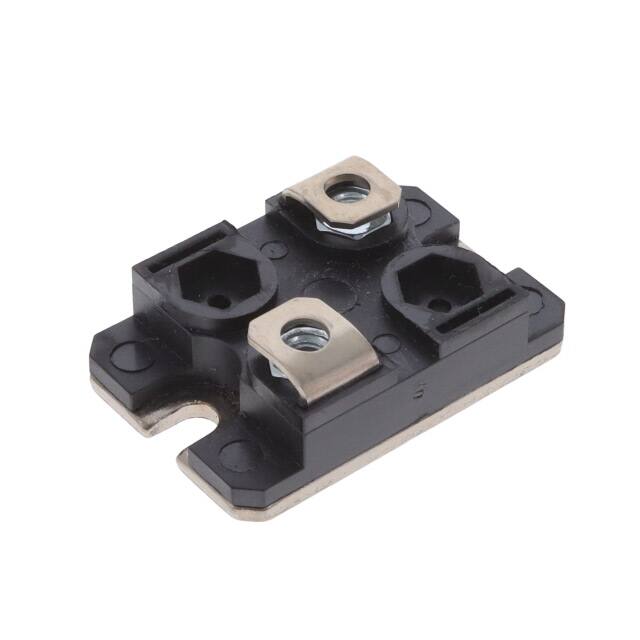

RTOP200VR100JBSFERNICE FIXED RESISTORS |
8 |
|
Datasheet | RTOP | SOT-227-4 | Box | Active | 100 mOhms | ±5% | 200W | Thick Film | ±300ppm/°C | -55°C ~ 125°C | Non-Inductive | Aluminum | Flanges | 1.496" L x 0.984" W (38.00mm x 25.00mm) | 0.508" (12.90mm) | M4 Threaded | - | - | - |
|
LPSA800H1000JBLPSA 800 H 100U 5% BO15 E |
6 |
|
Datasheet | LPS 800 | Box | Box | Active | 100 Ohms | ±5% | 800W | Thick Film | ±150ppm/°C | -55°C ~ 175°C | Non-Inductive | - | Screw Holes | 2.362" L x 2.244" W (60.00mm x 57.00mm) | 1.055" (26.80mm) | M4 Threaded | - | Automotive | AEC-Q200 |
|
LPS0800H5R00JBSFERNICE FIXED RESISTORS |
14 |
|
Datasheet | LPS 800 | Box | Box | Active | 5 Ohms | ±5% | 800W | Thick Film | ±300ppm/°C | -55°C ~ 175°C | Non-Inductive | - | Screw Holes | 2.362" L x 2.244" W (60.00mm x 57.00mm) | 1.055" (26.80mm) | M4 Threaded | - | - | - |
|
|
LPS0800H2200JBSFERNICE FIXED RESISTORS |
24 |
|
Datasheet | LPS 800 | Box | Box | Active | 220 Ohms | ±5% | 800W | Thick Film | ±150ppm/°C | -55°C ~ 175°C | Non-Inductive | - | Screw Holes | 2.362" L x 2.244" W (60.00mm x 57.00mm) | 1.055" (26.80mm) | M4 Threaded | - | - | - |
|
|
LPS1100H10R0JBRES CHAS MNT 10 OHM 5% 1100W |
18 |
|
Datasheet | LPS 1100 | Box | Bulk | Active | 10 Ohms | ±5% | 1100W | Thick Film | ±300ppm/°C | -55°C ~ 200°C | Non-Inductive | - | Flanges | 2.362" L x 2.244" W (60.00mm x 57.00mm) | 1.055" (26.80mm) | M4 Threaded | - | - | - |
|
RCH25S150R0JS06SFERNICE FIXED RESISTORS |
33 |
|
Datasheet | RCH | Radial, Rectangular Case | Bag | Active | 150 Ohms | ±5% | 25W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Non-Inductive | Aluminum Oxide | Flanges | 1.102" L x 1.083" W (28.00mm x 27.50mm) | 0.602" (15.30mm) | Solder Lugs | - | - | - |
|
|
RCH25S2R200JS06SFERNICE FIXED RESISTORS |
23 |
|
Datasheet | RCH | Radial, Rectangular Case | Bag | Active | 2.2 Ohms | ±5% | 25W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Non-Inductive | Aluminum Oxide | Flanges | 1.102" L x 1.083" W (28.00mm x 27.50mm) | 0.602" (15.30mm) | Solder Lugs | - | - | - |
|
|
RCH25S330R0JS06SFERNICE FIXED RESISTORS |
20 |
|
Datasheet | RCH | Radial, Rectangular Case | Bag | Active | 330 Ohms | ±5% | 25W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Non-Inductive | Aluminum Oxide | Flanges | 1.102" L x 1.083" W (28.00mm x 27.50mm) | 0.602" (15.30mm) | Solder Lugs | - | - | - |
|
|
RCH25S68R00JS06SFERNICE FIXED RESISTORS |
20 |
|
Datasheet | RCH | Radial, Rectangular Case | Bag | Active | 68 Ohms | ±5% | 25W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Non-Inductive | Aluminum Oxide | Flanges | 1.102" L x 1.083" W (28.00mm x 27.50mm) | 0.602" (15.30mm) | Solder Lugs | - | - | - |
|
|
RCH25S22000JS06SFERNICE FIXED RESISTORS |
9 |
|
Datasheet | RCH | Radial, Rectangular Case | Bag | Active | 2.2 kOhms | ±5% | 25W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Non-Inductive | Aluminum Oxide | Flanges | 1.102" L x 1.083" W (28.00mm x 27.50mm) | 0.602" (15.30mm) | Solder Lugs | - | - | - |
|
|
RCH25S15R00JS06SFERNICE FIXED RESISTORS |
49 |
|
Datasheet | RCH | Radial, Rectangular Case | Bag | Active | 15 Ohms | ±5% | 25W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Non-Inductive | Aluminum Oxide | Flanges | 1.102" L x 1.083" W (28.00mm x 27.50mm) | 0.602" (15.30mm) | Solder Lugs | - | - | - |
|
|
RCH25S15001JS06SFERNICE FIXED RESISTORS |
26 |
|
Datasheet | RCH | Radial, Rectangular Case | Bag | Active | 15 kOhms | ±5% | 25W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Non-Inductive | Aluminum Oxide | Flanges | 1.102" L x 1.083" W (28.00mm x 27.50mm) | 0.602" (15.30mm) | Solder Lugs | - | - | - |
|
RCH50R75001JS06SFERNICE FIXED RESISTORS |
43 |
|
Datasheet | RCH | Radial, Rectangular Case | Bag | Active | 75 kOhms | ±5% | 50W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Non-Inductive | Aluminum Oxide | Flanges | 1.882" L x 1.161" W (47.80mm x 29.50mm) | 0.602" (15.30mm) | Solder Lugs | - | - | - |
|
|
RCH50SR3300JS06SFERNICE FIXED RESISTORS |
43 |
|
Datasheet | RCH | Radial, Rectangular Case | Bag | Active | 330 mOhms | ±5% | 50W | Thick Film | ±250ppm/°C | -55°C ~ 125°C | Non-Inductive | Aluminum Oxide | Flanges | 1.882" L x 1.161" W (47.80mm x 29.50mm) | 0.602" (15.30mm) | Solder Lugs | - | - | - |
|
|
RCH50S560R0JS06SFERNICE FIXED RESISTORS |
15 |
|
Datasheet | RCH | Radial, Rectangular Case | Bag | Active | 560 Ohms | ±5% | 50W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Non-Inductive | Aluminum Oxide | Flanges | 1.882" L x 1.161" W (47.80mm x 29.50mm) | 0.602" (15.30mm) | Solder Lugs | - | - | - |
|
RCH05S47002FS06SFERNICE FIXED RESISTORS |
20 |
|
Datasheet | RCH | Radial, Rectangular Case | Bag | Active | 470 kOhms | ±1% | 5W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Non-Inductive | Aluminum Oxide | Flanges | 0.654" L x 0.354" W (16.60mm x 9.00mm) | 0.366" (9.30mm) | Solder Lugs | - | - | - |
|
FVT02506E10R00JERES CHAS MNT 10 OHM 5% 25W |
25 |
|
Datasheet | FVT | Radial, Tubular | Bulk | Active | 10 Ohms | ±5% | 25W | Wirewound | ±400ppm/°C | -55°C ~ 350°C | - | Vitreous Enamel Coated | Brackets (not included) | 0.563" Dia x 2.000" L (14.30mm x 50.80mm) | - | Solder Lugs | - | - | - |
|
|
RCH05S1R000FS06SFERNICE FIXED RESISTORS |
45 |
|
Datasheet | RCH | Radial, Rectangular Case | Bag | Active | 1 Ohms | ±1% | 5W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Non-Inductive | Aluminum Oxide | Flanges | 0.654" L x 0.354" W (16.60mm x 9.00mm) | 0.602" (15.30mm) | Solder Lugs | - | - | - |
|

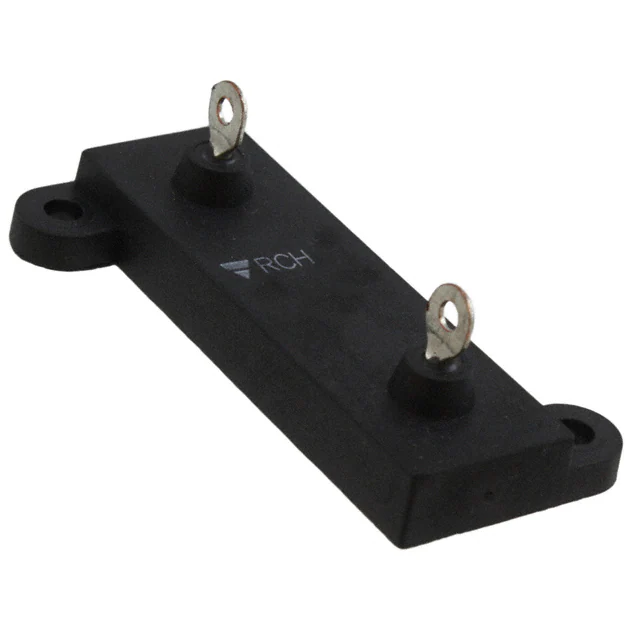

RCH10S10000FS06SFERNICE FIXED RESISTORS |
46 |
|
Datasheet | RCH | Radial, Rectangular Case | Bag | Active | 1 kOhms | ±1% | 10W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Non-Inductive | Aluminum Oxide | Flanges | 0.654" L x 0.354" W (16.60mm x 9.00mm) | 0.602" (15.30mm) | Solder Lugs | - | - | - |
|
|
RA1000-20-8X20W (100 OHM) ALN FLANGED RESIST |
100 |
|
Datasheet | RAxxxx-20-8X | Axial | Tray | Active | 100 Ohms | ±5% | 20W | Thick Film | - | -55°C ~ 150°C | - | Aluminum | Flanges | 0.300" L x 0.200" W (7.62mm x 5.08mm) | 0.140" (3.56mm) | Tab | - | - | - |
