Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

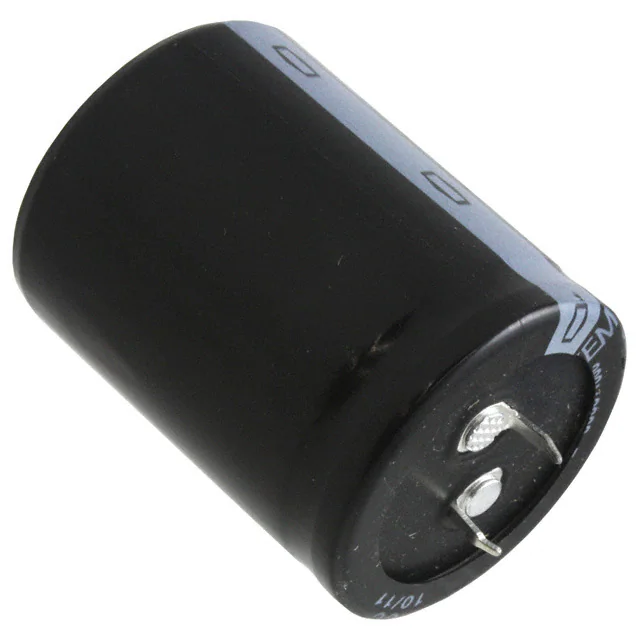

ELH477M400AT4AACAP ALUM 470UF 20% 400V SNAP TH |
0 |
|
Datasheet | ELH | Bulk | Active | 470 µF | ±20% | 400 V | 130mOhm @ 20kHz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.4 A @ 120 Hz | 3.48 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALF70C822DC063CAP ALUM 8200UF 20% 63V PRESS |
0 |
|
Datasheet | ALF70 | Bulk | Active | 8200 µF | ±20% | 63 V | 52.58mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.79 A @ 100 Hz | 7.5 A @ 10 kHz | 41 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole, Press-Fit | |
|
ALC40A221EC500CAP ALUM 220UF 20% 500V SNAP TH |
0 |
|
Datasheet | ALC40 | Box | Active | 220 µF | ±20% | 500 V | 1.02Ohm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.03 A @ 100 Hz | 4.09 A @ 10 kHz | 820 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
ALC70A221DC550CAP ALUM 220UF 20% 550V SNAP TH |
5 |
|
Datasheet | ALC70 | Bulk | Active | 220 µF | ±20% | 550 V | 1.958Ohm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.49 A @ 100 Hz | 2.33 A @ 10 kHz | 1.703 Ohms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
ALF70C562DF100CAP ALUM 5600UF 20% 100V PRESS |
0 |
|
Datasheet | ALF70 | Bulk | Active | 5600 µF | ±20% | 100 V | 50.93mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.77 A @ 100 Hz | 8.76 A @ 10 kHz | 41 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole, Press-Fit | |
|
ALH82A221DF600CAP ALUM 220UF 20% 600V SNAP TH |
0 |
|
Datasheet | ALH82 | Tray | Active | 220 µF | ±20% | 600 V | 639mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.05 A @ 100 Hz | 5.5 A @ 10 kHz | 432 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|

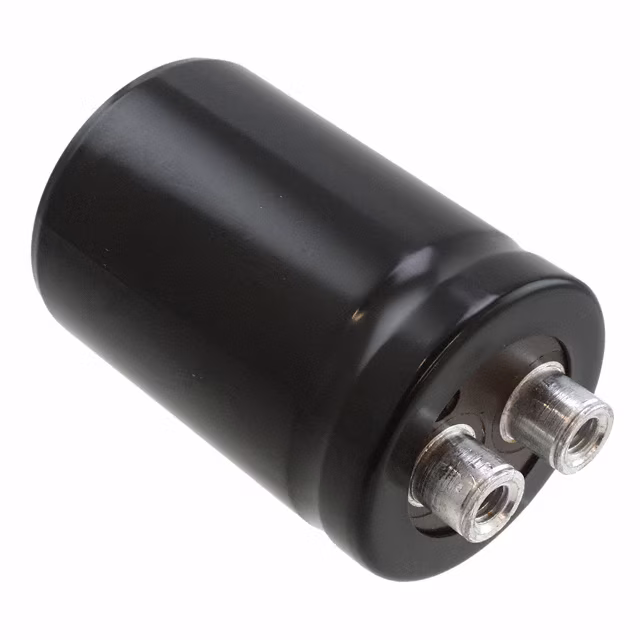

ALS30A471DA200CAP ALUM 470UF 20% 200V SCREW CH |
0 |
|
Datasheet | ALS30 | Bulk | Active | 470 µF | ±20% | 200 V | 286mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.6 A @ 100 Hz | 4.3 A @ 10 kHz | 227 mOhms | 0.504" (12.80mm) | 1.417" Dia (36.00mm) | 2.126" (54.00mm) | - | Chassis Mount | |
|
ALS30A151DB500CAP ALUM 150UF 20% 500V SCREW CH |
0 |
|
Datasheet | ALS30 | Box | Active | 150 µF | ±20% | 500 V | 930mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2 A @ 100 Hz | 3.7 A @ 10 kHz | 566 mOhms | 0.504" (12.80mm) | 1.417" Dia (36.00mm) | 2.441" (62.00mm) | - | Chassis Mount | |
|

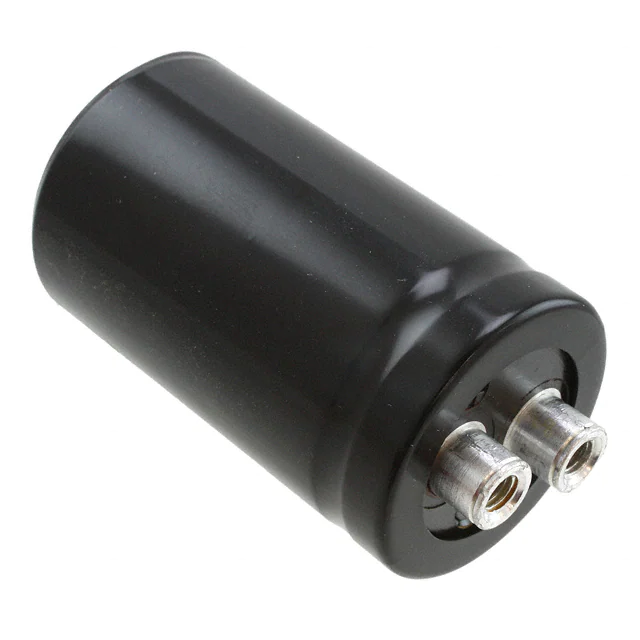

ALS40A472DB063CAP ALUM 4700UF 20% 63V SCREW CH |
0 |
|
Datasheet | ALS40 | Bulk | Active | 4700 µF | ±20% | 63 V | 27mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 6.7 A @ 100 Hz | 7.5 A @ 10 kHz | 22 mOhms | 0.504" (12.80mm) | 1.417" Dia (36.00mm) | 2.520" (64.00mm) | - | Chassis Mount | |
|
ALS70A183DA040CAP ALUM 18000UF 20% 40V SCREW |
0 |
|
Datasheet | ALS70 | Bulk | Active | 18000 µF | ±20% | 40 V | 49mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9 A @ 100 Hz | 11.2 A @ 10 kHz | 42 mOhms | 0.504" (12.80mm) | 1.417" Dia (36.00mm) | 2.126" (54.00mm) | - | Chassis Mount | |
|
|
ALS70A393DB025CAP ALUM 39000UF 20% 25V SCREW |
0 |
|
Datasheet | ALS70 | Bulk | Active | 39000 µF | ±20% | 25 V | 37mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11 A @ 100 Hz | 12.7 A @ 10 kHz | 33 mOhms | 0.504" (12.80mm) | 1.417" Dia (36.00mm) | 2.520" (64.00mm) | - | Chassis Mount | |
|
|
ALS30A102DE250CAP ALUM 1000UF 20% 250V SCREW |
0 |
|
Datasheet | ALS30 | Box | Active | 1000 µF | ±20% | 250 V | 117mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5 A @ 100 Hz | 7.4 A @ 10 kHz | 89 mOhms | 0.504" (12.80mm) | 1.417" Dia (36.00mm) | 3.228" (82.00mm) | - | Chassis Mount | |
|
|
ALS70A471DB500CAP ALUM 470UF 20% 500V SCREW CH |
1 |
|
Datasheet | ALS70 | Bulk | Active | 470 µF | ±20% | 500 V | 531mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.1 A @ 100 Hz | 6 A @ 10 kHz | 399 mOhms | 0.504" (12.80mm) | 1.417" Dia (36.00mm) | 2.520" (64.00mm) | - | Chassis Mount | |
|
|
ALS30A473DF025CAP ALUM 47000UF 20% 25V SCREW |
0 |
|
Datasheet | ALS30 | Box | Active | 47000 µF | ±20% | 25 V | 9mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 16.6 A @ 100 Hz | 17.4 A @ 10 kHz | 7 mOhms | 0.504" (12.80mm) | 1.417" Dia (36.00mm) | 4.134" (105.00mm) | - | Chassis Mount | |
|
|
ALS70A133KE100CAP ALUM 13000UF 20% 100V SCREW |
0 |
|
Datasheet | ALS70 | Bulk | Active | 13000 µF | ±20% | 100 V | 31mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.3 A @ 100 Hz | 17.3 A @ 10 kHz | 26 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 3.307" (84.00mm) | - | Chassis Mount | |
|
ALS30A222MF400CAP ALUM 2200UF 20% 400V SCREW |
0 |
|
Datasheet | ALS30 | Bulk | Active | 2200 µF | ±20% | 400 V | 62mOhm @ 100Hz | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.2 A @ 100 Hz | 18.8 A @ 10 kHz | 44 mOhms | 1.122" (28.50mm) | 2.598" Dia (66.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
|
ALS70A912MF250CAP ALUM 9100UF 20% 250V SCREW |
0 |
|
Datasheet | ALS70 | Bulk | Active | 9100 µF | ±20% | 250 V | 32mOhm @ 100Hz | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.8 A @ 100 Hz | 22.7 A @ 10 kHz | 22 mOhms | 1.122" (28.50mm) | 2.598" Dia (66.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
ALS30A222NP500CAP ALUM 2200UF 20% 500V SCREW |
0 |
|
Datasheet | ALS30 | Bulk | Active | 2200 µF | ±20% | 500 V | 80mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.3 A @ 100 Hz | 21.8 A @ 10 kHz | 44 mOhms | 1.252" (31.80mm) | 3.032" Dia (77.00mm) | 5.827" (148.00mm) | - | Chassis Mount | |
|
|
ALS70A243QT350CAP ALUM 24000UF 20% 350V SCREW |
0 |
|
Datasheet | ALS70 | Bulk | Active | 24000 µF | ±20% | 350 V | 12mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 30 A @ 100 Hz | 38 A @ 10 kHz | 9 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
EXV476M6R3A9DAACAP ALUM 47UF 20% 6.3V SMD |
0 |
|
Datasheet | EXV | Tape & Reel (TR) | Active | 47 µF | ±20% | 6.3 V | 1Ohm @ 100kHz | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 112 mA @ 120 Hz | 160 mA @ 100 kHz | 1 Ohms | - | 0.197" Dia (5.00mm) | 0.222" (5.65mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
