Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESK478M010AL4AACAP ALUM 4700UF 20% 10V RADIAL |
0 |
|
Datasheet | ESK | Box | Active | 4700 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 1.725 A @ 10 kHz | - | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
ESE228M035AM7AACAP ALUM 2200UF 20% 35V RADIAL |
0 |
|
Datasheet | ESE | Box | Active | 2200 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.23 A @ 120 Hz | 1.415 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EDH336M400A9TAACAP ALUM 33UF 20% 400V SMD |
11 |
|
Datasheet | EDH | Tape & Reel (TR) | Active | 33 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 85 mA @ 120 Hz | 106.25 mA @ 10 kHz | - | - | 0.630" Dia (16.00mm) | 0.689" (17.50mm) | 0.642" L x 0.642" W (16.30mm x 16.30mm) | Surface Mount | |
|

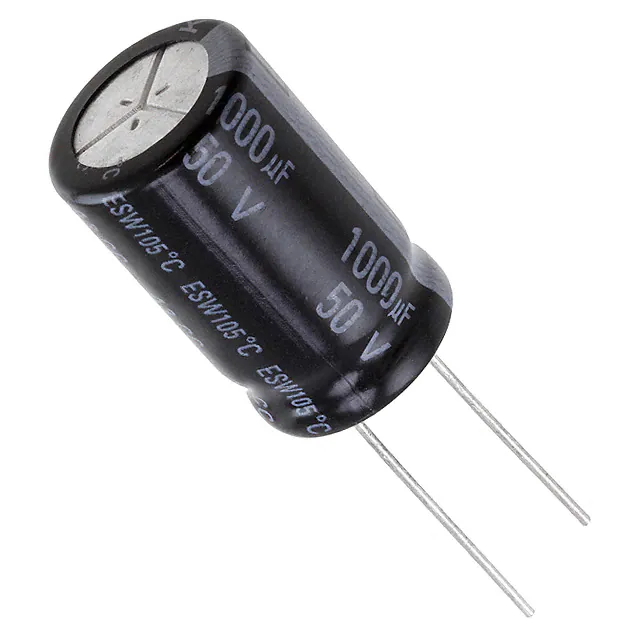

ESW108M050AM7AACAP ALUM 1000UF 20% 50V RADIAL |
0 |
|
Datasheet | ESW | Bulk | Active | 1000 µF | ±20% | 50 V | 25mOhm @ 100kHz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.533 A @ 120 Hz | 2.555 A @ 100 kHz | 34 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ESK227M350AQ4AACAP ALUM 220UF 20% 350V RADIAL |
0 |
|
Datasheet | ESK | Box | Active | 220 µF | ±20% | 350 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 470 mA @ 120 Hz | 564 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ELH478M050AS1AACAP ALUM 4700UF 20% 50V SNAP TH |
0 |
|
Datasheet | ELH | Box | Active | 4700 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.95 A @ 120 Hz | 3.422 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
ESK478M050AQ3AACAP ALUM RAD 85C |
0 |
|
Datasheet | ESK | Bulk | Active | 4.7 mF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 2.875 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
511D477M040DK4DCAP ALUM 470UF 20% 40V RADIAL TH |
23 |
|
Datasheet | 511D | Bulk | Active | 470 µF | ±20% | 40 V | 407mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 719 mA @ 120 Hz | 1.19 A @ 40 kHz | 157 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.043" (26.50mm) | - | Through Hole | |
|
TVA1411CAP ALUM 25UF 150V AXIAL TH |
1 |
|
Datasheet | TVA ATOM® | Bulk | Active | 25 µF | - | 150 V | - | - | -20°C ~ 85°C | Polar | - | Audio | - | - | - | - | 0.375" Dia x 1.250" L (9.53mm x 31.75mm) | - | - | Through Hole | |
|
30D477M035DD5ACAP ALUM 470UF 20% 35V AXIAL TH |
11 |
|
Datasheet | 30D | Bulk | Active | 470 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.374" Dia x 0.945" L (9.50mm x 24.00mm) | - | - | Through Hole | |
|
TVA1312ECAP ALUM 250UF 50V AXIAL TH |
0 |
|
Datasheet | TVA ATOM® | Bulk | Active | 250 µF | - | 50 V | - | - | - | Polar | - | Audio | - | - | - | - | - | - | - | Through Hole | |
|
|
30D227M035DB5ACAP ALUM 220UF 20% 35V AXIAL TH |
10 |
|
Datasheet | 30D | Bulk | Active | 220 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | - | - | - | Through Hole | |
|
TVA1414CAP ALUM 50UF 150V AXIAL TH |
15 |
|
Datasheet | TVA ATOM® | Bulk | Active | 50 µF | - | 150 V | - | - | -20°C ~ 85°C | Polar | - | Audio | - | - | - | - | 0.438" Dia x 1.500" L (11.12mm x 38.10mm) | - | - | Through Hole | |
|
|
TVA1703CAP ALUM 5UF 450V AXIAL TH |
0 |
|
Datasheet | TVA ATOM® | Bulk | Active | 5 µF | - | 450 V | - | - | -20°C ~ 85°C | Polar | - | Audio | - | - | - | - | 0.438" Dia x 1.500" L (11.12mm x 38.10mm) | - | - | Through Hole | |
|
ALS40A222DB100CAP ALUM 2200UF 20% 100V SCREW |
0 |
|
Datasheet | ALS40 | Box | Active | 2200 µF | ±20% | 100 V | 56mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.8 A @ 100 Hz | 5.5 A @ 10 kHz | 44 mOhms | 0.504" (12.80mm) | 1.417" Dia (36.00mm) | 2.441" (62.00mm) | - | Chassis Mount | |
|
ALA7DA471DD450CAP ALUM 470UF 20% 450V SNAP TH |
0 |
|
Datasheet | ALA7D | Bulk | Active | 470 µF | ±20% | 450 V | 327mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 1.79 A @ 100 Hz | 3.92 A @ 10 kHz | 299 mOhms | - | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALC80A473DF025CAP ALUM 47000UF 20% 25V SNAP TH |
0 |
|
Datasheet | ALC80 | Bulk | Active | 47000 µF | ±20% | 25 V | 28.43mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 9.79 A @ 100 Hz | 11.43 A @ 10 kHz | 25 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
ALA7DA391CF500CAP ALUM 390UF 20% 500V SNAP TH |
0 |
|
Datasheet | ALA7D | Bulk | Active | 390 µF | ±20% | 500 V | 636mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 2.4 A @ 100 Hz | 5.24 A @ 10 kHz | 193.6 mOhms | - | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
PEH205KA4470QU0CAP ALUM 4700UF 40V SCREW CHAS M |
0 |
|
Datasheet | PEH205 | Bulk | Active | 4700 µF | -10%, +30% | 40 V | 32mOhm @ 100kHz | 4000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 4.8 A @ 100 Hz | - | 17 mOhms | 0.512" (13.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Chassis Mount | |
|
ALS30A472DA063CAP ALUM 4700UF 20% 63V SCREW CH |
0 |
|
Datasheet | ALS30 | Box | Active | 4700 µF | ±20% | 63 V | 36mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.7 A @ 100 Hz | 7.4 A @ 10 kHz | 28 mOhms | 0.504" (12.80mm) | 1.417" Dia (36.00mm) | 2.047" (52.00mm) | - | Chassis Mount |
