Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALS70A182LM630CAP ALUM 1800UF 20% 630V SCREW |
0 |
|
Datasheet | ALS70 | Bulk | Active | 1800 µF | ±20% | 630 V | 84.45mOhm @ 100Hz | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11 A @ 100 Hz | 20.5 A @ 10 kHz | 57 mOhms | 1.122" (28.50mm) | 2.500" Dia (63.50mm) | 5.157" (131.00mm) | - | Chassis Mount | |
|

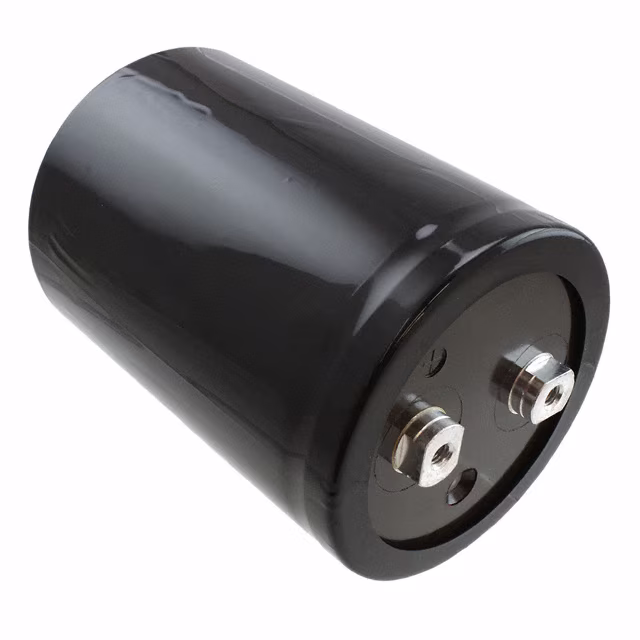

ALS30A332NF450CAP ALUM 3300UF 20% 450V SCREW |
0 |
|
Datasheet | ALS30 | Bulk | Active | 3300 µF | ±20% | 450 V | 40mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.8 A @ 100 Hz | 21.2 A @ 10 kHz | 30 mOhms | 1.252" (31.80mm) | 3.032" Dia (77.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
ALS31A332NP450CAP ALUM 3300UF 20% 450V SCREW |
0 |
|
Datasheet | ALS31 | Box | Active | 3300 µF | ±20% | 450 V | 39mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 16.1 A @ 100 Hz | 25.1 A @ 10 kHz | 27 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 5.748" (146.00mm) | - | Chassis, Stud Mount | |
|
ALS70A244NS063CAP ALUM 240000UF 20% 63V SCREW |
0 |
|
Datasheet | ALS70 | Bulk | Active | 240000 µF | ±20% | 63 V | 7mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 33.7 A @ 100 Hz | 35.1 A @ 10 kHz | 8 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 7.717" (196.00mm) | - | Chassis Mount | |
|
ESK225M100AC3AACAP ALUM 2.2UF 20% 100V RADIAL |
0 |
|
Datasheet | ESK | Bulk | Active | 2.2 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 30 mA @ 120 Hz | 45 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
ESH336M050AC3AACAP ALUM 33UF 20% 50V RADIAL TH |
5 |
|
Datasheet | ESH | Bulk | Active | 33 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 95 mA @ 120 Hz | 190 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
ESH106M035AC3AACAP ALUM 10UF 20% 35V RADIAL TH |
0 |
|
Datasheet | ESH | Box | Active | 10 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 44 mA @ 120 Hz | 88 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
ESK226M050AC3AACAP ALUM 22UF 20% 50V RADIAL TH |
0 |
|
Datasheet | ESK | Bulk | Active | 22 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 100 mA @ 120 Hz | 150 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
ESY106M035AB2AACAP ALUM 10UF 20% 35V RADIAL TH |
34 |
|
Datasheet | ESY | Box | Active | 10 µF | ±20% | 35 V | 960mOhm @ 100kHz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 91 mA @ 120 Hz | 130 mA @ 100 kHz | 960 mOhms | 0.059" (1.50mm) | 0.157" Dia (4.00mm) | 0.335" (8.50mm) | - | Through Hole | |
|
ESK476M063AE3AACAP ALUM 47UF 20% 63V RADIAL TH |
2 |
|
Datasheet | ESK | Box | Active | 47 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 190 mA @ 120 Hz | 285 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
EDK106M035A9BAACAP ALUM 10UF 20% 35V SMD |
16 |
|
Datasheet | EDK | Tape & Reel (TR) | Active | 10 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24 mA @ 120 Hz | 30 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.222" (5.65mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
ESY226M063AE3AACAP ALUM 22UF 20% 63V RADIAL TH |
0 |
|
Datasheet | ESY | Box | Active | 22 µF | ±20% | 63 V | 880mOhm @ 100kHz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 123.2 mA @ 120 Hz | 176 mA @ 100 kHz | 880 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
EST107M025AE3AACAP ALUM 100UF 20% 25V RADIAL TH |
0 |
|
Datasheet | EST | Bulk | Active | 100 µF | ±20% | 25 V | 380mOhm @ 100kHz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 136 mA @ 120 Hz | 340 mA @ 100 kHz | - | 0.098" (2.50mm) | 0.236" Dia (6.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
ESY107M050AG3AACAP ALUM 100UF 20% 50V RADIAL TH |
0 |
|
Datasheet | ESY | Bulk | Active | 100 µF | ±20% | 50 V | 74mOhm @ 100kHz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 511 mA @ 120 Hz | 730 mA @ 100 kHz | 74 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
ESC227M035AH1AACAP ALUM 220UF 20% 35V RADIAL TH |
0 |
|
Datasheet | ESC | Bulk | Active | 220 µF | ±20% | 35 V | 69mOhm @ 100kHz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 720 mA @ 120 Hz | 800 mA @ 100 kHz | 69 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|
ESL477M025AH9AACAP ALUM 470UF 20% 25V RADIAL TH |
0 |
|
Datasheet | ESL | Bulk | Active | 470 µF | ±20% | 25 V | 43mOhm @ 100kHz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 662.5 mA @ 120 Hz | 1.325 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
ESK106M400AH2EACAP ALUM 10UF 20% 400V RADIAL TH |
0 |
|
Datasheet | ESK | Cut Tape (CT) | Active | 10 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 50 mA @ 120 Hz | 70 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.669" (17.00mm) | - | Through Hole | |
|
|
ESK477M050AH4KACAP ALUM 470UF 20% 50V RADIAL TH |
0 |
|
Datasheet | ESK | Tape & Reel (TR) | Active | 470 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 610 mA @ 120 Hz | 732 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
ESH477M050AH4AACAP ALUM 470UF 20% 50V RADIAL TH |
0 |
|
Datasheet | ESH | Bulk | Active | 470 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 630 mA @ 120 Hz | 945 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
ESY227M050AH2AACAP ALUM 220UF 20% 50V RADIAL TH |
0 |
|
Datasheet | ESY | Bulk | Active | 220 µF | ±20% | 50 V | 42mOhm @ 100kHz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 959 mA @ 120 Hz | 1.37 A @ 100 kHz | 42 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.669" (17.00mm) | - | Through Hole |
