Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

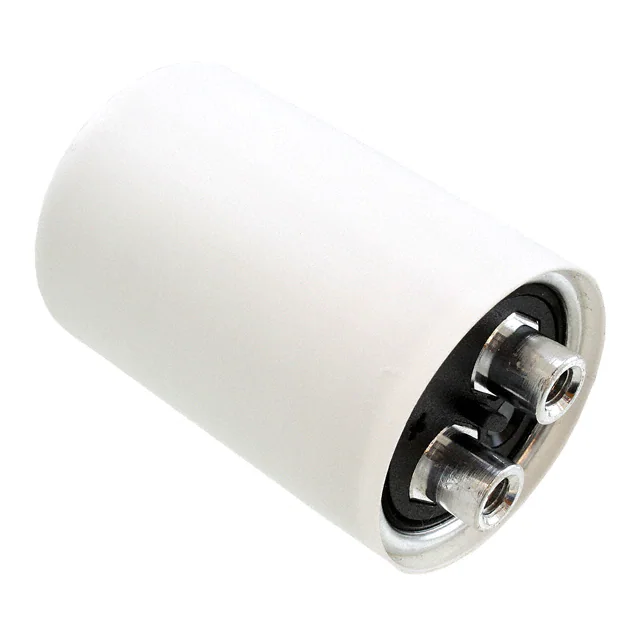

PEH169HA4470QU2CAP ALUM 4700UF 25V SCREW CHAS M |
32 |
|
Datasheet | PEH169 | Bulk | Active | 4700 µF | -10%, +30% | 25 V | 41mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.512" (13.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Chassis Mount | |
|
53D502G050JP6CAP ALUM 5000UF 50V AXIAL TH |
50 |
|
Datasheet | 53D | Bulk | Active | 5000 µF | -10%, +75% | 50 V | 40mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.81 A @ 120 Hz | 4.382 A @ 1 kHz | - | - | 1.012" Dia x 2.642" L (25.70mm x 67.10mm) | - | - | Through Hole | |
|
53D402G063JP6CAP ALUM 4000UF 63V AXIAL TH |
46 |
|
Datasheet | 53D | Bulk | Active | 4000 µF | -10%, +75% | 63 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 1.012" Dia x 2.642" L (25.70mm x 67.10mm) | - | - | Through Hole | |
|
ALS70A162KE450CAP ALUM 1600UF 20% 450V SCREW |
35 |
|
Datasheet | ALS70 | Bulk | Active | 1600 µF | ±20% | 450 V | 117mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7 A @ 100 Hz | 12.5 A @ 10 kHz | 76 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 3.307" (84.00mm) | - | Chassis Mount | |
|
ALS30A102KE415CAP ALUM 1000UF 20% 415V SCREW |
53 |
|
Datasheet | ALS30 | Bulk | Active | 1000 µF | ±20% | 415 V | 136mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.7 A @ 100 Hz | 10.4 A @ 10 kHz | 94 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 3.307" (84.00mm) | - | Chassis Mount | |
|
53D183G025JT6CAP ALUM 18000UF 25V AXIAL TH |
80 |
|
Datasheet | 53D | Bulk | Active | 18000 µF | -10%, +75% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 1.012" Dia x 3.642" L (25.70mm x 92.50mm) | - | - | Through Hole | |
|
PEH169VH368VMU2CAP ALUM 680UF 20% 400V SCREW CH |
78 |
|
Datasheet | PEH169 | Bulk | Active | 680 µF | ±20% | 400 V | 120mOhm @ 100Hz | 14500 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | 74 mOhms | 0.866" (22.00mm) | 2.032" Dia (51.60mm) | 3.071" (78.00mm) | - | Chassis Mount | |
|
ALS80A513KE040CAP ALUM 51000UF 20% 40V SCREW |
31 |
|
Datasheet | ALS80 | Bulk | Active | 51000 µF | ±20% | 40 V | 18mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 14.6 A @ 100 Hz | 16.2 A @ 10 kHz | 16 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 3.307" (84.00mm) | - | Chassis Mount | |
|
53D103G050JT7CAP ALUM 10000UF 50V AXIAL TH |
37 |
|
Datasheet | 53D | Bulk | Active | 10000 µF | -10%, +75% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 1.012" Dia x 3.642" L (25.70mm x 92.50mm) | - | - | Through Hole | |
|
|
ALS70A202KE400CAP ALUM 2000UF 20% 400V SCREW |
86 |
|
Datasheet | ALS70 | Bulk | Active | 2000 µF | ±20% | 400 V | 87mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.6 A @ 100 Hz | 13.6 A @ 10 kHz | 52 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 3.307" (84.00mm) | - | Chassis Mount | |
|
|
ALS70A753KE040CAP ALUM 75000UF 20% 40V SCREW |
78 |
|
Datasheet | ALS70 | Bulk | Active | 75000 µF | ±20% | 40 V | 18mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17 A @ 100 Hz | 18.6 A @ 10 kHz | 16 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 3.307" (84.00mm) | - | Chassis Mount | |
|
ALS30A473KE040CAP ALUM 47000UF 20% 40V SCREW |
53 |
|
Datasheet | ALS30 | Bulk | Active | 47000 µF | ±20% | 40 V | 12mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.2 A @ 100 Hz | 16.7 A @ 10 kHz | 11 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 3.307" (84.00mm) | - | Chassis Mount | |
|
ALS31A473KE040CAP ALUM 47000UF 20% 40V SCREW |
68 |
|
Datasheet | ALS31 | Bulk | Active | 47000 µF | ±20% | 40 V | 12mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.2 A @ 100 Hz | 16.7 A @ 10 kHz | 11 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 3.307" (84.00mm) | - | Chassis, Stud Mount | |
|
|
ALS80A163KF100CAP ALUM 16000UF 20% 100V SCREW |
41 |
|
Datasheet | ALS80 | Bulk | Active | 16000 µF | ±20% | 100 V | 23mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 14.7 A @ 100 Hz | 17.8 A @ 10 kHz | 19 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|

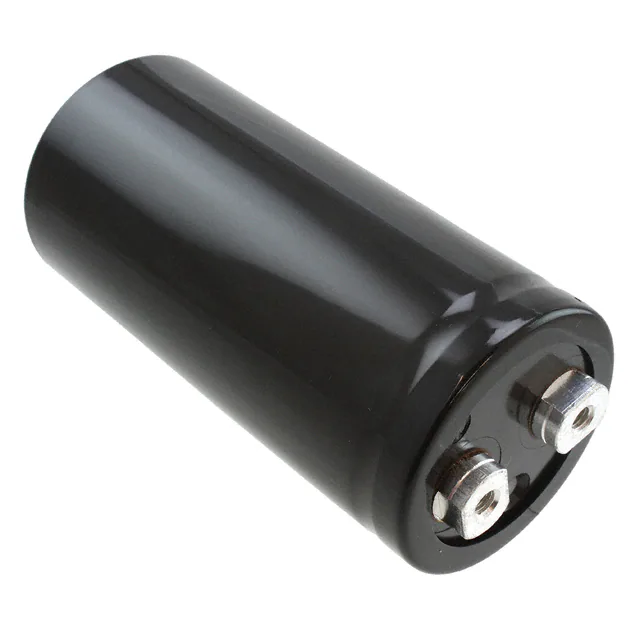

ALS40A104KF025CAP ALUM 100000UF 20% 25V SCREW |
49 |
|
Datasheet | ALS40 | Bulk | Active | 100000 µF | ±20% | 25 V | 9mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 16.4 A @ 100 Hz | 16.7 A @ 10 kHz | 8 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
|
ALS80A683QC063CAP ALUM 68000UF 20% 63V SCREW |
89 |
|
Datasheet | ALS80 | Bulk | Active | 68000 µF | ±20% | 63 V | 14mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 18.9 A @ 100 Hz | 20.5 A @ 10 kHz | 13 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 2.717" (69.00mm) | - | Chassis Mount | |
|
PEH200KD5220MB2CAP ALUM 22000UF 20% 40V SCREW |
71 |
|
Datasheet | PEH200 | Bulk | Active | 22000 µF | ±20% | 40 V | 12mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17.1 A @ 100 Hz | - | 9 mOhms | 0.512" (13.00mm) | 1.441" Dia (36.60mm) | 3.760" (95.50mm) | - | Chassis Mount | |
|
ALS30A152KF450CAP ALUM 1500UF 20% 450V SCREW |
64 |
|
Datasheet | ALS30 | Bulk | Active | 1500 µF | ±20% | 450 V | 93mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | 65 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
|
ALS80A243QC100CAP ALUM 24000UF 20% 100V SCREW |
35 |
|
Datasheet | ALS80 | Bulk | Active | 24000 µF | ±20% | 100 V | 19mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 17.9 A @ 100 Hz | 20.2 A @ 10 kHz | 17 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 2.717" (69.00mm) | - | Chassis Mount | |
|
ALF80G243KP100CAP ALUM 24000UF 20% 100V PRESS |
9 |
|
Datasheet | ALF80 | Bulk | Active | 24000 µF | ±20% | 100 V | 16.96mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 15.9 A @ 100 Hz | 18.4 A @ 10 kHz | 15 mOhms | 0.984" (25.00mm) | 1.969" Dia (50.00mm) | 4.213" (107.00mm) | - | Through Hole, Press-Fit |
