Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALC10A121CC550CAP ALUM 120UF 20% 550V SNAP TH |
9 |
|
Datasheet | ALC10 | Bulk | Active | 120 µF | ±20% | 550 V | 2.874Ohm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.14 A @ 100 Hz | 1.86 A @ 10 kHz | 2.506 Ohms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
TVA1420-E3CAP ALUM 100UF 150V AXIAL TH |
66 |
|
Datasheet | TVA ATOM® | Bulk | Active | 100 µF | - | 150 V | - | - | -20°C ~ 85°C | Polar | - | Audio | - | - | - | - | 0.625" Dia x 1.750" L (15.88mm x 44.45mm) | - | - | Through Hole | |
|
ALT22A103CB040CAP ALUM 10000UF 20% 40V SNAP TH |
31 |
|
Datasheet | ALT22 | Box | Active | 10000 µF | ±20% | 40 V | - | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ALA7DA471CF450CAP ALUM 470UF 20% 450V SNAP TH |
9 |
|
Datasheet | ALA7D | Bulk | Active | 470 µF | ±20% | 450 V | 322.4mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 1.99 A @ 100 Hz | 4.77 A @ 10 kHz | 506.4 mOhms | - | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ELG477M450AT6AAKCAP ALUM 470UF 20% 450V SNAP TH |
94 |
|
Datasheet | ELG | Bulk | Active | 470 µF | ±20% | 450 V | 145mOhm @ 20kHz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.465 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ALC80A681EF400CAP ALUM 680UF 20% 400V SNAP TH |
8 |
|
Datasheet | ALC80 | Bulk | Active | 680 µF | ±20% | 400 V | 187.3mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.36 A @ 100 Hz | 8.22 A @ 10 kHz | 98 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ALS71A332DA100CAP ALUM 3300UF 20% 100V SCREW |
95 |
|
Datasheet | ALS71 | Bulk | Active | 3300 µF | ±20% | 100 V | 99mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.6 A @ 100 Hz | 9.3 A @ 10 kHz | 81 mOhms | 0.504" (12.80mm) | 1.417" Dia (36.00mm) | 2.126" (54.00mm) | - | Chassis Mount | |
|
ALS31A153DB040CAP ALUM 15000UF 20% 40V SCREW |
27 |
|
Datasheet | ALS31 | Box | Active | 15000 µF | ±20% | 40 V | 17mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.5 A @ 100 Hz | 10 A @ 10 kHz | 14 mOhms | 0.504" (12.80mm) | 1.417" Dia (36.00mm) | 2.441" (62.00mm) | - | Chassis, Stud Mount | |
|
|
ALS70A511DB450CAP ALUM 510UF 20% 450V SCREW CH |
60 |
|
Datasheet | ALS70 | Bulk | Active | 510 µF | ±20% | 450 V | 337mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.2 A @ 100 Hz | 6.9 A @ 10 kHz | 212 mOhms | 0.504" (12.80mm) | 1.417" Dia (36.00mm) | 2.520" (64.00mm) | - | Chassis Mount | |
|
53D272G050HJ6CAP ALUM 2700UF 50V AXIAL TH |
51 |
|
Datasheet | 53D | Bulk | Active | 2700 µF | -10%, +75% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 0.886" Dia x 1.642" L (22.50mm x 41.70mm) | - | - | Through Hole | |
|
53D222G063HL6CAP ALUM 2200UF 63V AXIAL TH |
68 |
|
Datasheet | 53D | Bulk | Active | 2200 µF | -10%, +75% | 63 V | 86mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.21 A @ 120 Hz | 2.652 A @ 1 kHz | - | - | 0.886" Dia x 2.142" L (22.50mm x 54.40mm) | - | - | Through Hole | |
|
|
ALS70A511DA400CAP ALUM 510UF 20% 400V SCREW CH |
61 |
|
Datasheet | ALS70 | Bulk | Active | 510 µF | ±20% | 400 V | 304mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.1 A @ 100 Hz | 6.9 A @ 10 kHz | 172 mOhms | 0.504" (12.80mm) | 1.417" Dia (36.00mm) | 2.126" (54.00mm) | - | Chassis Mount | |
|
|
ALS70A911DA250CAP ALUM 910UF 20% 250V SCREW CH |
26 |
|
Datasheet | ALS70 | Bulk | Active | 910 µF | ±20% | 250 V | 256mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.6 A @ 100 Hz | 6.9 A @ 10 kHz | 166 mOhms | 0.504" (12.80mm) | 1.417" Dia (36.00mm) | 2.126" (54.00mm) | - | Chassis Mount | |
|
ALS30A221DB450CAP ALUM 220UF 20% 450V SCREW CH |
84 |
|
Datasheet | ALS30 | Box | Active | 220 µF | ±20% | 450 V | 502mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.4 A @ 100 Hz | 5.1 A @ 10 kHz | 332 mOhms | 0.504" (12.80mm) | 1.417" Dia (36.00mm) | 2.441" (62.00mm) | - | Chassis Mount | |
|
PEH200MA4470MB2CAP ALUM 4700UF 20% 63V SCREW CH |
73 |
|
Datasheet | PEH200 | Bulk | Active | 4700 µF | ±20% | 63 V | 32mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9 A @ 100 Hz | - | 21 mOhms | 0.512" (13.00mm) | 1.441" Dia (36.60mm) | 2.067" (52.50mm) | - | Chassis Mount | |
|
|
PEH200MA4470MU2CAP ALUM 4700UF 20% 63V SCREW CH |
86 |
|
Datasheet | PEH200 | Bulk | Active | 4700 µF | ±20% | 63 V | 32mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9 A @ 100 Hz | - | - | 0.512" (13.00mm) | 1.441" Dia (36.60mm) | 2.067" (52.50mm) | - | Chassis Mount | |
|
PEH200KB5100MB2CAP ALUM 10000UF 20% 40V SCREW |
75 |
|
Datasheet | PEH200 | Bulk | Active | 10000 µF | ±20% | 40 V | 23mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12 A @ 100 Hz | - | 18 mOhms | 0.512" (13.00mm) | 1.441" Dia (36.60mm) | 2.382" (60.50mm) | - | Chassis Mount | |
|
ALS80A393DB025CAP ALUM 39000UF 20% 25V SCREW |
100 |
|
Datasheet | ALS80 | Bulk | Active | 39000 µF | ±20% | 25 V | 38mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 9.8 A @ 100 Hz | 11.7 A @ 10 kHz | 34 mOhms | 0.504" (12.80mm) | 1.417" Dia (36.00mm) | 2.520" (64.00mm) | - | Chassis Mount | |
|

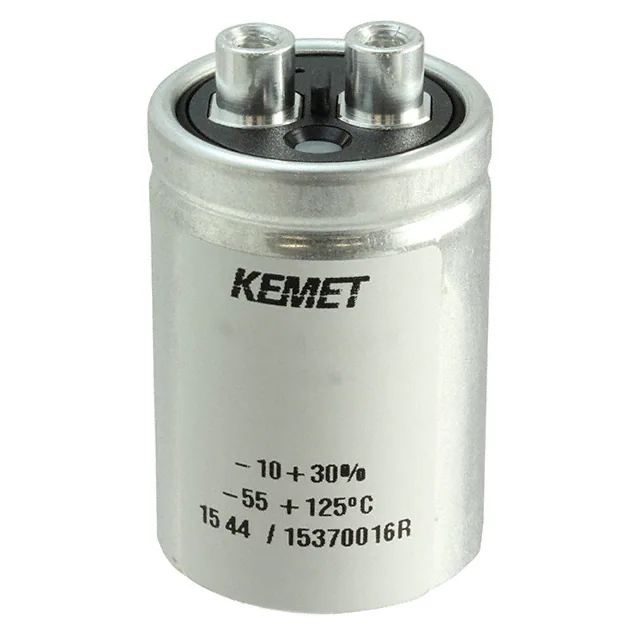

PEH205HA5100QU0CAP ALUM 10000UF 25V SCREW CHAS |
77 |
|
Datasheet | PEH205 | Bulk | Active | 10000 µF | -10%, +30% | 25 V | 27mOhm @ 100Hz | 4000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 5.3 A @ 100 Hz | - | 17 mOhms | 0.512" (13.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Chassis Mount | |
|
|
ALS70A823DF025CAP ALUM 82000UF 20% 25V SCREW |
94 |
|
Datasheet | ALS70 | Bulk | Active | 82000 µF | ±20% | 25 V | 20mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.6 A @ 100 Hz | 16.1 A @ 10 kHz | 19 mOhms | 0.504" (12.80mm) | 1.417" Dia (36.00mm) | 4.213" (107.00mm) | - | Chassis Mount |
