Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
39D507G050GL6CAP ALUM 500UF 50V AXIAL TH |
38 |
|
Datasheet | 39D | Bulk | Active | 500 µF | -10%, +75% | 50 V | - | 500 Hrs @ 85°C | -20°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 0.760" Dia x 2.142" L (19.30mm x 54.40mm) | - | - | Through Hole | |
|
ALS80A223DF063CAP ALUM 22000UF 20% 63V SCREW |
48 |
|
Datasheet | ALS80 | Bulk | Active | 22000 µF | ±20% | 63 V | 22mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 11.5 A @ 100 Hz | 14.7 A @ 10 kHz | 18 mOhms | 0.504" (12.80mm) | 1.417" Dia (36.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
ALS30A153KE063CAP ALUM 15000UF 20% 63V SCREW |
13 |
|
Datasheet | ALS30 | Box | Active | 15000 µF | ±20% | 63 V | 12mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.9 A @ 100 Hz | 14.4 A @ 10 kHz | 11 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 3.228" (82.00mm) | - | Chassis Mount | |
|
|
ALS80A122DF400CAP ALUM 1200UF 20% 400V SCREW |
46 |
|
Datasheet | ALS80 | Bulk | Active | 1200 µF | ±20% | 400 V | 113mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.7 A @ 100 Hz | 10.6 A @ 10 kHz | 64 mOhms | 0.504" (12.80mm) | 1.417" Dia (36.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
ALS70A122DF450CAP ALUM 1200UF 20% 450V SCREW |
36 |
|
Datasheet | ALS70 | Bulk | Active | 1200 µF | ±20% | 450 V | 146mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.3 A @ 100 Hz | 10.6 A @ 10 kHz | 93 mOhms | 0.504" (12.80mm) | 1.417" Dia (36.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
|
ALS70A203KF100CAP ALUM 20000UF 20% 100V SCREW |
25 |
|
Datasheet | ALS70 | Tray | Active | 20000 µF | ±20% | 100 V | 22mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17.2 A @ 100 Hz | 20.1 A @ 10 kHz | 19 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
ALC10A102EP550CAP ALUM 1000UF 20% 550V SNAP TH |
62 |
|
Datasheet | ALC10 | Bulk | Active | 1000 µF | ±20% | 550 V | 352mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.86 A @ 100 Hz | 7.59 A @ 10 kHz | 308 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 4.213" (107.00mm) | - | Through Hole | |
|
ALS30A223KE063CAP ALUM 22000UF 20% 63V SCREW |
72 |
|
Datasheet | ALS30 | Bulk | Active | 22000 µF | ±20% | 63 V | 12mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.9 A @ 100 Hz | 14.4 A @ 10 kHz | 11 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 3.307" (84.00mm) | - | Chassis Mount | |
|
|
ALS30A102KF450CAP ALUM 1000UF 20% 450V SCREW |
77 |
|
Datasheet | ALS30 | Box | Active | 1000 µF | ±20% | 450 V | 118mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.5 A @ 100 Hz | 12.6 A @ 10 kHz | 79 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 4.134" (105.00mm) | - | Chassis Mount | |
|
ALS31A102KF450CAP ALUM 1000UF 20% 450V SCREW |
55 |
|
Datasheet | ALS31 | Box | Active | 1000 µF | ±20% | 450 V | 118mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.5 A @ 100 Hz | 12.6 A @ 10 kHz | 79 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 4.134" (105.00mm) | - | Chassis, Stud Mount | |
|
|
ALS80A473KF063CAP ALUM 47000UF 20% 63V SCREW |
48 |
|
Datasheet | ALS80 | Bulk | Active | 47000 µF | ±20% | 63 V | 14mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 16.4 A @ 100 Hz | 18.7 A @ 10 kHz | 13 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
|
ALS70A332KF350CAP ALUM 3300UF 20% 350V SCREW |
23 |
|
Datasheet | ALS70 | Bulk | Active | 3300 µF | ±20% | 350 V | 59mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.7 A @ 100 Hz | 16.2 A @ 10 kHz | 36 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
|
ALS80A242KF400CAP ALUM 2400UF 20% 400V SCREW |
75 |
|
Datasheet | ALS80 | Bulk | Active | 2400 µF | ±20% | 400 V | 63mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 7.8 A @ 100 Hz | 14.2 A @ 10 kHz | 37 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
ALS30A153KF100CAP ALUM SCRW TERM 85C |
43 |
|
Datasheet | ALS30 | Box | Active | 15 mF | ±20% | 100 V | 20mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.6 A @ 100 Hz | 13.1 A @ 10 kHz | 18 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
ALS31A332NF400CAP ALUM 3300UF 20% 400V SCREW |
15 |
|
Datasheet | ALS31 | Bulk | Active | 3300 µF | ±20% | 400 V | 49mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.4 A @ 100 Hz | 21.3 A @ 10 kHz | 36 mOhms | 1.252" (31.80mm) | 3.032" Dia (77.00mm) | 4.213" (107.00mm) | - | Chassis, Stud Mount | |
|
ALS70A102KF630CAP ALUM 1000UF 20% 630V SCREW |
97 |
|
Datasheet | ALS70 | Bulk | Active | 1000 µF | ±20% | 630 V | 139.7mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.3 A @ 100 Hz | 13.8 A @ 10 kHz | 97 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 4.134" (105.00mm) | - | Chassis Mount | |
|

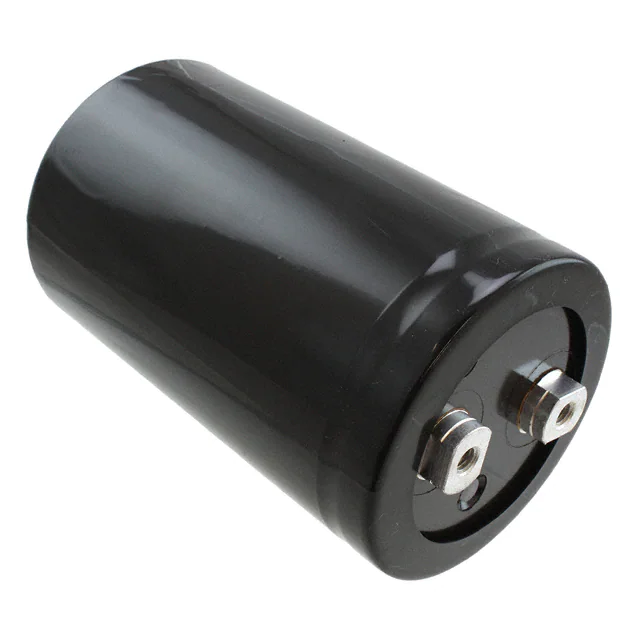

ALS40A333MF063CAP ALUM 33000UF 20% 63V SCREW |
15 |
|
Datasheet | ALS40 | Bulk | Active | 33000 µF | ±20% | 63 V | 8mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 21.3 A @ 100 Hz | 22.2 A @ 10 kHz | 7 mOhms | 1.122" (28.50mm) | 2.598" Dia (66.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
|
ALS30A472MF250CAP ALUM SCRW TERM 85C |
44 |
|
Datasheet | ALS30 | Box | Active | 4.7 mF | ±20% | 250 V | 31mOhm @ 100Hz | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15 A @ 100 Hz | 18.2 A @ 10 kHz | 24 mOhms | 1.122" (28.50mm) | 2.598" Dia (66.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
|
ALS70A363MF100CAP ALUM 36000UF 20% 100V SCREW |
54 |
|
Datasheet | ALS70 | Bulk | Active | 36000 µF | ±20% | 100 V | 14mOhm @ 100Hz | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24.5 A @ 100 Hz | 27.7 A @ 10 kHz | 12 mOhms | 1.122" (28.50mm) | 2.598" Dia (66.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
|
ALS31A682MF200CAP ALUM 6800UF 20% 200V SCREW |
96 |
|
Datasheet | ALS31 | Box | Active | 6800 µF | ±20% | 200 V | 27mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.7 A @ 100 Hz | 17.7 A @ 10 kHz | 23 mOhms | 1.122" (28.50mm) | 2.598" Dia (66.00mm) | 4.134" (105.00mm) | - | Chassis, Stud Mount |
