Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALC10A471EH550CAP ALUM 470UF 20% 550V SNAP TH |
1,181 |
|
Datasheet | ALC10 | Bulk | Active | 470 µF | ±20% | 550 V | 742mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.05 A @ 100 Hz | 4.93 A @ 10 kHz | 648 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 2.441" (62.00mm) | - | Through Hole | |
|
ALC80C202KP450CAP ALUM 2000UF 20% 450V SNAP TH |
715 |
|
Datasheet | ALC80 | Bulk | Active | 2000 µF | ±20% | 450 V | 84.28mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 7.58 A @ 100 Hz | 15.77 A @ 10 kHz | 55 mOhms | 0.886" (22.50mm) | 1.969" Dia (50.00mm) | 4.213" (107.00mm) | - | Through Hole | |
|
ALS70A164NP063CAP ALUM 160000UF 20% 63V SCREW |
126 |
|
Datasheet | ALS70 | Bulk | Active | 160000 µF | ±20% | 63 V | 8mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 30.6 A @ 100 Hz | 32.2 A @ 10 kHz | 9 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 5.827" (148.00mm) | - | Chassis Mount | |
|
PEH200XO4220MU2CAP ALUM 2200UF 20% 385V SCREW |
107 |
|
Datasheet | PEH200 | Box | Active | 2200 µF | ±20% | 385 V | 38mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.6 A @ 100 Hz | 26.1 A @ 10 kHz | - | 1.260" (32.00mm) | 2.622" Dia (66.60mm) | 4.173" (106.00mm) | - | Chassis Mount | |
|
ALS80A113NF250CAP ALUM 11000UF 20% 250V SCREW |
95 |
|
Datasheet | ALS80 | Bulk | Active | 11000 µF | ±20% | 250 V | 27mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 15.1 A @ 100 Hz | 19.9 A @ 10 kHz | 19 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
|
ALS70A752NP450CAP ALUM 7500UF 20% 450V SCREW |
73 |
|
Datasheet | ALS70 | Bulk | Active | 7500 µF | ±20% | 450 V | 31mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17.9 A @ 100 Hz | 25.3 A @ 10 kHz | 21 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 5.827" (148.00mm) | - | Chassis Mount | |
|

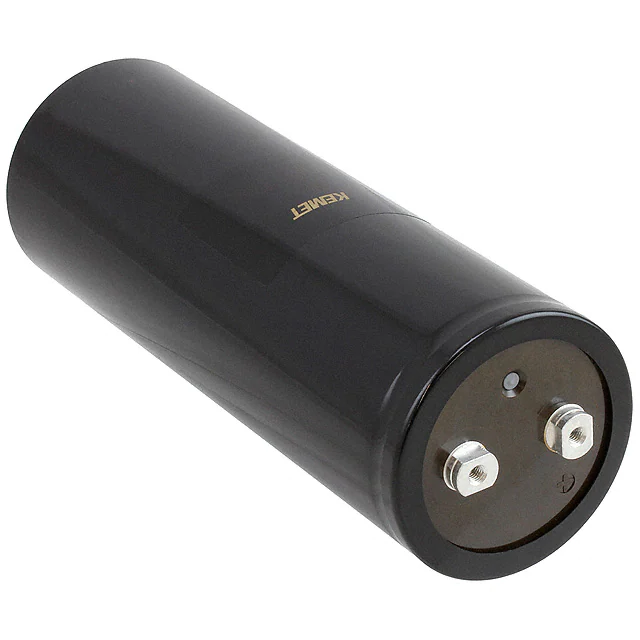

ALS30A682NT500CAP ALUM 6800UF 20% 500V SCREW |
3 |
|
Datasheet | ALS30 | Bulk | Active | 6800 µF | ±20% | 500 V | 34mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.252" (31.80mm) | 3.032" Dia (77.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
ESW226M010AC3AACAP ALUM 22UF 20% 10V RADIAL TH |
27,606 |
|
Datasheet | ESW | Box | Active | 22 µF | ±20% | 10 V | 600mOhm @ 100kHz | - | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
ESE227M6R3AC3AACAP ALUM RAD 105C |
19,950 |
|
Datasheet | ESE | Bulk | Active | 220 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 140 mA @ 120 Hz | 175 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
ESK105M100AC3AACAP ALUM RAD 85C |
37,973 |
|
Datasheet | ESK | Bulk | Active | 1 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 21 mA @ 120 Hz | 31.5 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
ESK105M250AE3AACAP ALUM RAD 85C |
39,945 |
|
Datasheet | ESK | Bulk | Active | 1 µF | ±20% | 250 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 19 mA @ 120 Hz | 26.6 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
ESK476M016AC3AACAP ALUM RAD 85C |
39,735 |
|
Datasheet | ESK | Bulk | Active | 47 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 130 mA @ 120 Hz | 195 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
ESH107M6R3AC3AACAP ALUM 100UF 20% 6.3V RADIAL |
39,844 |
|
Datasheet | ESH | Bulk | Active | 100 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 100 mA @ 120 Hz | 150 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
ESH685M063AC3AACAP ALUM 6.8UF 20% 63V RADIAL TH |
19,795 |
|
Datasheet | ESH | Bulk | Active | 6.8 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 37 mA @ 120 Hz | 74 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
ESS476M016AC2AACAP ALUM RAD 105C |
40,001 |
|
Datasheet | ESS | Bulk | Active | 47 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 75 mA @ 120 Hz | 112.5 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.335" (8.50mm) | - | Through Hole | |
|
|
ESK106M025AC3AACAP ALUM RAD 85C |
39,954 |
|
Datasheet | ESK | Bulk | Active | 10 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 50 mA @ 120 Hz | 75 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
ESS106M035AC2AACAP ALUM RAD 105C |
39,409 |
|
Datasheet | ESS | Bulk | Active | 10 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 36 mA @ 120 Hz | 54 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.335" (8.50mm) | - | Through Hole | |
|
ESS226M035AE2EACAP ALUM 22UF 20% 35V RADIAL TH |
38,223 |
|
Datasheet | ESS | Cut Tape (CT) | Active | 22 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 57 mA @ 120 Hz | 85.5 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.335" (8.50mm) | - | Through Hole | |
|
|
ESK226M6R3AC3AACAP ALUM RAD 85C |
39,933 |
|
Datasheet | ESK | Bulk | Active | 22 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 35 mA @ 120 Hz | 52.5 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
ESC475M035AC3AACAP ALUM RAD 105C |
39,870 |
|
Datasheet | ESC | Bulk | Active | 4.7 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 46 mA @ 120 Hz | 115 mA @ 100 kHz | 1.2 Ohms | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole |
