Trimmer Potentiometers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Power (Watts) | Tolerance | Temperature Coefficient | Number of Turns | Adjustment Type | Resistive Material | Mounting Type | Termination Style | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M70Y203KB25TRIMMER 20K OHM 0.5W WIRE LEADS |
2 |
|
Datasheet | 70 | Box | Active | 20 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 20.0 | Side Adjustment | Cermet | Through Hole | Wire Leads | Rectangular - 0.492" x 0.196" Face (12.50mm x 4.98mm) |
|
T93XA503KT20TRIMMER 50K OHM 0.5W PC PIN SIDE |
0 |
|
Datasheet | T93 | Tube | Active | 50 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 21.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.382" x 0.197" Face (9.70mm x 5.00mm) |
|
|
T93XB103KT20TRIMMER 10K OHM 0.5W PC PIN SIDE |
0 |
|
Datasheet | T93 | Tube | Active | 10 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 21.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.382" x 0.197" Face (9.70mm x 5.00mm) |
|
|
M64Y504KB40TRIMMER 500K OHM 0.125W PC PIN |
0 |
|
Datasheet | 64 | Box | Active | 500 kOhms | 0.125W, 1/8W | ±10% | ±100ppm/°C | 21.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.382" x 0.197" Face (9.70mm x 5.00mm) |
|
|
T7YA471MB40TRIMMER 470 OHM 0.5W PC PIN TOP |
12 |
|
Datasheet | T7 | Box | Active | 470 Ohms | 0.5W, 1/2W | ±20% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Round - 0.276" Dia (7.00mm) |
|

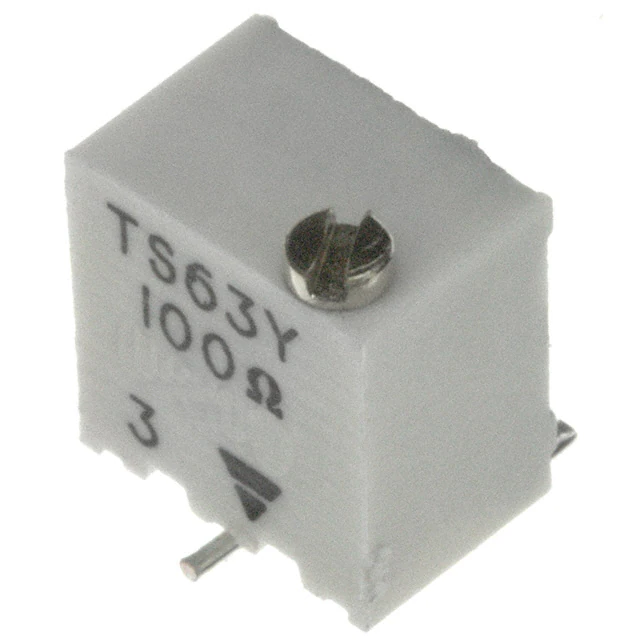

TS63Y101KR10TRIMMER 100 OHM 0.25W GW TOP ADJ |
0 |
|
Datasheet | TS63 | Tape & Reel (TR) | Active | 100 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 15.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.270" x 0.197" Face (6.85mm x 5.00mm) |
|
M43P105KB40TRIMMER 1M OHM 0.16W PC PIN SIDE |
21 |
|
Datasheet | 43 | Box | Active | 1 MOhms | 0.16W | ±10% | ±100ppm/°C | 18.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.252" x 0.189" Face (6.40mm x 4.80mm) |
|
TSM4YL103KB25TRIMMER 10K OHM 0.25W J LEAD TOP |
24 |
|
Datasheet | TSM4 | Box | Active | 10 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 13.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|
|
M64X201KB40TRIMMER 200 OHM 0.5W PC PIN SIDE |
0 |
|
Datasheet | 64 | Box | Active | 200 Ohms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 23.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.382" x 0.197" Face (9.70mm x 5.00mm) |
|
|
M64X501KB40TRIMMER 500 OHM 0.5W PC PIN SIDE |
0 |
|
Datasheet | 64 | Box | Active | 500 Ohms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 23.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.382" x 0.197" Face (9.70mm x 5.00mm) |
|
|
M64Z501KB40TRIMMER 500 OHM 0.5W PC PIN SIDE |
0 |
|
Datasheet | 64 | Box | Active | 500 Ohms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 21.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.382" x 0.197" Face (9.70mm x 5.00mm) |
|
|
M64Y201KB40TRIMMER 200 OHM 0.5W PC PIN TOP |
0 |
|
Datasheet | 64 | Box | Active | 200 Ohms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 21.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.382" x 0.197" Face (9.70mm x 5.00mm) |
|
M64P502KB40TRIMMER 5K OHM 0.5W PC PIN SIDE |
0 |
|
Datasheet | 64 | Box | Active | 5 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 21.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.382" x 0.205" Face (9.70mm x 5.20mm) |
|
T7YB222MB40TRIMMER 2.2K OHM 0.5W PC PIN TOP |
0 |
|
Datasheet | T7 | Bulk | Active | 2.2 kOhms | 0.5W, 1/2W | ±20% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Round - 0.276" Dia (7.00mm) |
|
|
TSM4YL503KB25TRIMMER 50K OHM 0.25W J LEAD TOP |
0 |
|
Datasheet | TSM4 | Box | Active | 50 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 13.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|
|
TS4YL503MR10TRIMMER 50K OHM 0.25W GW TOP ADJ |
0 |
|
Datasheet | TS4 | Tape & Reel (TR) | Active | 50 kOhms | 0.25W, 1/4W | ±20% | ±100ppm/°C | 1.0 | Top Adjustment | - | Surface Mount | Gull Wing | Square - 0.197" x 0.197" Face (5.00mm x 5.00mm) |
|
T7YB474MB40TRIMMER 470K OHM 0.5W PC PIN TOP |
11 |
|
Datasheet | T7 | Bulk | Active | 470 kOhms | 0.5W, 1/2W | ±20% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Round - 0.276" Dia (7.00mm) |
|
|
TSM3ZJ103MR10TSM3 ZJ 10K 20% TR E3 |
0 |
|
Datasheet | TSM3 | Tape & Reel (TR) | Active | 10 kOhms | 0.125W, 1/8W | ±20% | ±100ppm/°C | 11.0 | Side Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.158" x 0.156" Face (4.01mm x 3.96mm) |
|
T73XX202KT20TRIMMER 2K OHM 0.5W PC PIN SIDE |
0 |
|
Datasheet | T73 | Tube | Active | 2 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.276" x 0.260" Face (7.00mm x 6.60mm) |
|
T73XX204KT20TRIMMER 200KOHM 0.5W PC PIN SIDE |
0 |
|
Datasheet | T73 | Tube | Active | 200 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.276" x 0.260" Face (7.00mm x 6.60mm) |
