Trimmer Potentiometers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Power (Watts) | Tolerance | Temperature Coefficient | Number of Turns | Adjustment Type | Resistive Material | Mounting Type | Termination Style | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T7YA104MB40TRIMMER 100K OHM 0.5W PC PIN TOP |
55 |
|
Datasheet | T7 | Bulk | Active | 100 kOhms | 0.5W, 1/2W | ±20% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Round - 0.276" Dia (7.00mm) |
|
T7YA222MB40TRIMMER 2.2K OHM 0.5W PC PIN TOP |
55 |
|
Datasheet | T7 | Bulk | Active | 2.2 kOhms | 0.5W, 1/2W | ±20% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Round - 0.276" Dia (7.00mm) |
|
M43P100KB40TRIMMER 10 OHM 0.75W PC PIN SIDE |
96 |
|
Datasheet | 43 | Box | Active | 10 Ohms | 0.75W, 3/4W | ±10% | ±100ppm/°C | 18.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.252" x 0.189" Face (6.40mm x 4.80mm) |
|
P8SY103KB25TRIMMER 10K OHM 0.5W PC PIN TOP |
100 |
|
Datasheet | P8S | Box | Active | 10 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Round - 0.335" Dia (8.50mm) |
|
|
M70Y503KB25TRIMMER 50K OHM 0.5W PC PIN SIDE |
33 |
|
Datasheet | 70 | Box | Active | 50 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 20.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.325" x 0.196" Face (8.25mm x 4.98mm) |
|
|
P8PT473KB25TRIMMER 47K OHM 1W SOLDER HOOK |
19 |
|
Datasheet | P8P | Box | Active | 47 kOhms | 1W | ±10% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Panel Mount | Solder Hook | Round - 0.433" Dia (11.00mm) |
|
T73YB503KT20TRIMMER 50K OHM 0.5W PC PIN TOP |
28 |
|
Datasheet | T73 | Tube | Active | 50 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.276" x 0.260" Face (7.00mm x 6.60mm) |
|
M64Y105KB40TRIMMER 1M OHM 0.063W PC PIN TOP |
80 |
|
Datasheet | 64 | Box | Active | 1 MOhms | 0.063W | ±10% | ±100ppm/°C | 21.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.382" x 0.197" Face (9.70mm x 5.00mm) |
|
M64Z502KB40TRIMMER 5K OHM 0.5W PC PIN SIDE |
28 |
|
Datasheet | 64 | Box | Active | 5 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 21.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.382" x 0.197" Face (9.70mm x 5.00mm) |
|
M64P102KB40TRIMMER 1K OHM 0.5W PC PIN SIDE |
61 |
|
Datasheet | 64 | Box | Active | 1 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 21.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.382" x 0.205" Face (9.70mm x 5.20mm) |
|
T63XB502KT20TRIMMER 5K OHM 0.25W PC PIN SIDE |
95 |
|
Datasheet | T63 | Tube | Active | 5 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 15.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.268" x 0.197" Face (6.80mm x 5.00mm) |
|
T7YA223MB40TRIMMER 22K OHM 0.5W PC PIN TOP |
52 |
|
Datasheet | T7 | Bulk | Active | 22 kOhms | 0.5W, 1/2W | ±20% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Round - 0.276" Dia (7.00mm) |
|
|
M43P500KB40TRIMMER 50 OHM 0.75W PC PIN SIDE |
36 |
|
Datasheet | 43 | Box | Active | 50 Ohms | 0.75W, 3/4W | ±10% | ±100ppm/°C | 18.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.252" x 0.189" Face (6.40mm x 4.80mm) |
|

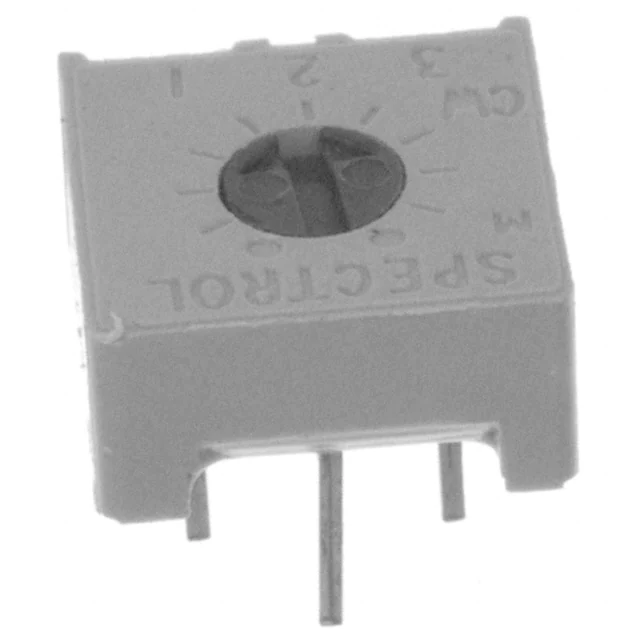

M63P502KB40TRIMMER 5K OHM 0.5W PC PIN SIDE |
55 |
|
Datasheet | 63 | Bulk | Active | 5 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Square - 0.395" x 0.395" Face (10.03mm x 10.03mm) |
|

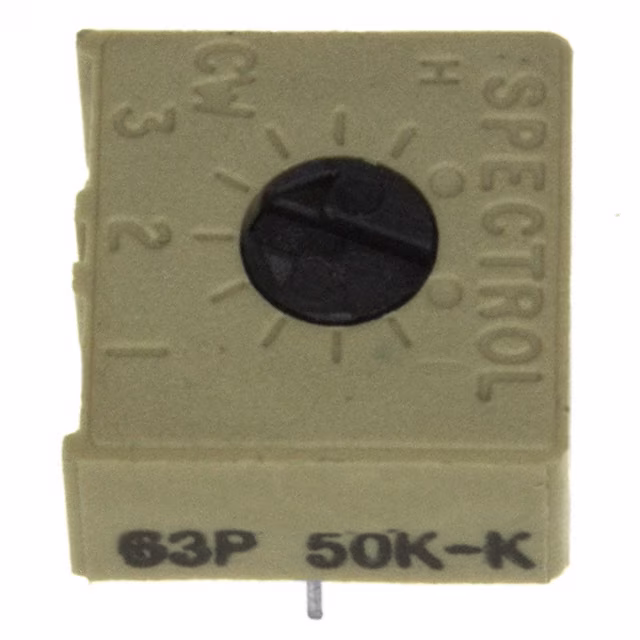

M63P503KB40TRIMMER 50K OHM 0.5W PC PIN SIDE |
39 |
|
Datasheet | 63 | Bulk | Active | 50 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Square - 0.395" x 0.395" Face (10.03mm x 10.03mm) |
|
|
M70Y100KB25TRIMMER 10 OHM 0.5W PC PIN SIDE |
96 |
|
Datasheet | 70 | Box | Active | 10 Ohms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 20.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.325" x 0.196" Face (8.25mm x 4.98mm) |
|
|
M70Y501KB25TRIMMER 500 OHM 0.5W PC PIN SIDE |
67 |
|
Datasheet | 70 | Box | Active | 500 Ohms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 20.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.325" x 0.196" Face (8.25mm x 4.98mm) |
|
|
P8PY503KB25TRIMMER 50K OHM 0.5W PC PIN TOP |
50 |
|
Datasheet | P8P | Box | Active | 50 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Round - 0.335" Dia (8.50mm) |
|
|
M70Y101KB25TRIMMER 100 OHM 0.5W PC PIN SIDE |
35 |
|
Datasheet | 70 | Box | Active | 100 Ohms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 20.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.325" x 0.196" Face (8.25mm x 4.98mm) |
|
|
M70Y102KB25TRIMMER 1K OHM 0.5W PC PIN SIDE |
70 |
|
Datasheet | 70 | Box | Active | 1 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 20.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.325" x 0.196" Face (8.25mm x 4.98mm) |
