TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMAJ15A-TRTVS DIODE 15VWM 32.5VC SMA |
28,028 |
|
Datasheet | DO-214AC, SMA | SMAJ, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 15V | 16.7V | 32.5V | 71A (8/20µs) | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
SZESD9X5.0ST5GTVS DIODE 5VWM 12.3VC SOD923 |
24,471 |
|
Datasheet | SOD-923 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6.2V | 12.3V | 8.7A (8/20µs) | 107W | No | - | 65pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-923 |
|

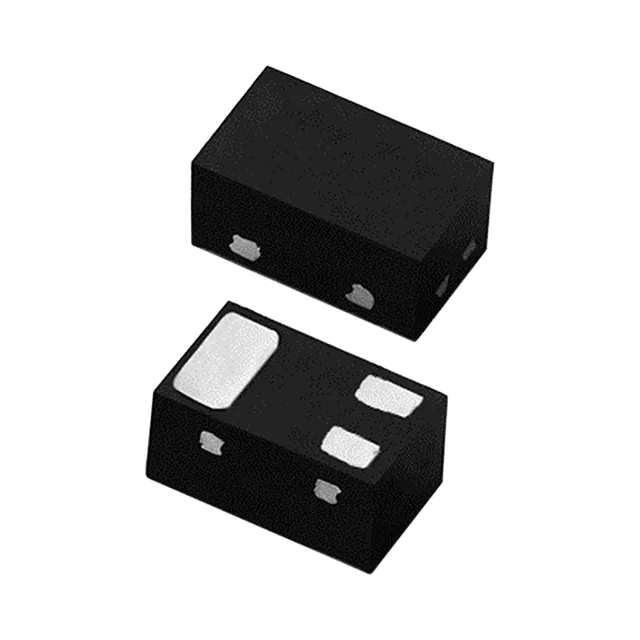

SP3222-02ETGTVS DIODE 3.3VWM 10VC SOD883 |
22,709 |
|
Datasheet | 3-UFDFN | SP3222, SPA® | Tape & Reel (TR) | Active | Zener | 2 | - | 3.3V (Max) | 6.1V | 10V (Typ) | 3A | 30W | Yes | USB | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOD-883 |
|
SMBJ30AQ-13-FTVS DIODE 30VWM 48.4VC SMB |
21,540 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 12.4A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMB |
|
SMS15T1GTVS DIODE 15VWM 29VC SC74 |
20,789 |
|
Datasheet | SC-74, SOT-457 | - | Tape & Reel (TR) | Active | Zener | 4 | - | 15V | 16.7V | 29V | 12A (8/20µs) | 350W | No | General Purpose | 60pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-74 |
|
SP1105S-01UTGTVS DIODE 5VWM 9.2VC 2DFN |
18,001 |
|
Datasheet | 0603 (1610 Metric) | SPA® | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | - | 9.2V (Typ) | 80A (8/20µs) | - | No | General Purpose | 630pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 2-DFN (1.6x1) |
|
SM6T15ATVS DIODE 12.8VWM 21.2VC SMB |
16,505 |
|
Datasheet | DO-214AA, SMB | SM6T, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 12.8V | 14.3V | 21.2V | 28A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
SMAJ8.5CATVS DIODE 8.5VWM 14.4VC DO214AC |
13,491 |
|
Datasheet | DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | - | 1 | 8.5V | 9.44V | 14.4V | 27.8A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
SP1233-01ETGTVS DIODE 20A SOD882 |
13,258 |
|
Datasheet | SOD-882 | SP1220, SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 4.2V (Typ) | 8.5V (Typ) | 20A (8/20µs) | 180W | No | - | 35pF @ 1MHz | -40°C ~ 125°C | Automotive | AEC-Q101 | Surface Mount | SOD-882 |
|
DESD1CAN2SOQ-7TVS DIODE 24VWM 70VC SOT23 |
12,595 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 24V (Max) | 25.4V | 70V | 3A (8/20µs) | 200W | No | CAN | 11pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
SMF4L16ATVS DIODE 16VWM 26VC SOD123FL |
10,822 |
|
Datasheet | SOD-123F | SMF4L | Tape & Reel (TR) | Active | Zener | 1 | - | 16V | 17.8V | 26V | 15.4A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
DT2041-04SO-7TVS DIODE 5.5VWM 10.5VC SOT26 |
10,080 |
|
Datasheet | SOT-23-6 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5.5V (Max) | 6V | 10.5V | 10A (8/20µs) | 105W | Yes | - | 1pF @ 1MHz | -55°C ~ 85°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOT-26 |
|
|
SMAJ26CAQ-13-FTVS DIODE 26VWM 42.1VC SMA |
9,491 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | - | 1 | 26V | 28.9V | 42.1V | 9.5A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMA |
|
SD12-01FTGTVS DIODE 12VWM 22.5VC SOD323 |
8,057 |
|
Datasheet | SC-76, SOD-323 | SD, SPA® | Tape & Reel (TR) | Active | Zener | 1 | - | 12V (Max) | - | 22.5V | 17A (8/20µs) | 450W | No | General Purpose | 150pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
SA22CATVS DIODE 22VWM 35.5VC DO204AC |
6,956 |
|
Datasheet | DO-204AC, DO-15, Axial | SA | Tape & Reel (TR) | Active | Zener | - | 1 | 22V | 24.4V | 35.5V | 14.4A | 500W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
SZESD8551MXWT5GTVS DIODE 3.3VWM 16VC 2X2DFNW |
5,771 |
|
Datasheet | 2-XDFN | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 5.5V | 16V (Typ) | 16A | - | No | USB 3.0 | 0.3pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | 2-X2DFNW (1x0.6) |
|
P6KE7.5ATVS DIODE 6.4VWM 11.3VC DO204AC |
3,890 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | 1 | - | 6.4V | 7.13V | 11.3V | 54A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
SMF30CATVS SOD123FL 30V 200W BIDIR |
2,240 |
|
Datasheet | SOD-123F | SMF | Tape & Reel (TR) | Active | Zener | - | 1 | 30V | 33.3V | 48.4V | 4.1A | 200W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
D18V0L1B2LPQ-7BTVS DIODE 20VWM 30VC DFN1006-2 |
160,650 |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 20V (Max) | 21V | 30V | 2A (8/20µs) | 68W | No | HDMI, USB | 7pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | X1-DFN1006-2 |
|
P6SMB33CATVS DIODE 28.2VWM 45.7VC DO214AA |
116,046 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 28.2V | 31.4V | 45.7V | 13.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
