TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMBJ26CATVS DIODE 26VWM 42.1VC DO214AA |
28,329 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 26V | 28.9V | 42.1V | 14.3A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
SPHV15-01ETG-CTVS DIODE 15VWM 30VC SOD882 |
28,246 |
|
Datasheet | SOD-882 | SPHV-C, SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 15V (Max) | 16.7V | 30V | 5A (8/20µs) | 200W | No | - | 24pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-882 |
|
SA48CATVS DIODE 48VWM 77.4VC DO204AC |
28,192 |
|
Datasheet | DO-204AC, DO-15, Axial | SA | Tape & Reel (TR) | Active | Zener | - | 1 | 48V | 53.3V | 77.4V | 6.6A | 500W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
SP0402U-ELC-01ETGTVS DIODE 7VWM 13VC 0402/2DFN |
27,484 |
|
Datasheet | 0402 (1006 Metric) | SPA® | Tape & Reel (TR) | Active | Zener | 1 | - | 7V | 8.8V (Typ) | 13V (Typ) | 2.5A (8/20µs) | - | No | General Purpose | 0.3pF @ 1MHz | -30°C ~ 85°C (TA) | - | - | Surface Mount | 0402/2DFN (1x0.60) |
|
SESD9L5.0ST5GTVS DIODE 5VWM 9.8VC SOD923 |
24,883 |
|
Datasheet | SOD-923 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 5.4V | 9.8V | 1A (8/20µs) | - | No | General Purpose | 0.5pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-923 |
|
|
SMBJ150ATVS DIODE 150VWM 243VC DO214AA |
21,853 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 150V | 167V | 243V | 2.5A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
SM6T39ATVS DIODE 33.3VWM 53.9VC SMB |
18,832 |
|
Datasheet | DO-214AA, SMB | SM6T, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 33.3V | 37.1V | 53.9V | 11.1A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
SPHV15-01ETGTVS DIODE 15VWM 28VC SOD882 |
16,902 |
|
Datasheet | SOD-882 | SPHV, SPA® | Tape & Reel (TR) | Active | Zener | 1 | - | 15V (Max) | 16.7V | 28V | 5A (8/20µs) | 200W | No | - | 46pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-882 |
|
TPSMF4L36ATVS DIODE 36VWM 58.1VC SOD123FL |
14,675 |
|
Datasheet | SOD-123F | TPSMF4L | Tape & Reel (TR) | Active | Zener | 1 | - | 36V | 40V | 58.1V | 6.9A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123F |
|
SMAJ24AQ-13-FTVS DIODE 24VWM 38.9VC SMA |
13,898 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.7V | 38.9V | 10.3A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMA |
|
SMAJ14ATVS DIODE 14VWM 23.2VC DO214AC |
13,418 |
|
Datasheet | DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 14V | 15.6V | 23.2V | 17.2A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
SMF28A-T13TVS DIODE 28VWM 45.4VC SOD123FL |
12,674 |
|
Datasheet | SOD-123F | SMF | Tape & Reel (TR) | Active | Zener | 1 | - | 28V | 31.1V | 45.4V | 4.4A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
ESDA6V1-4BC6TVS DIODE 3VWM SOT23-6 |
11,375 |
|
Datasheet | SOT-23-6 | ESDA, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 4 | 3V | 6.1V | - | - | 80W | No | General Purpose | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
|
SMBJ26A-TRTVS DIODE 26VWM 42.1VC SMB |
10,801 |
|
Datasheet | DO-214AA, SMB | SMBJ, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 26V | 28.9V | 42.1V | 14.9A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
SZSMF36AT1GTVS DIODE 36VWM 58.1VC SOD123FL |
9,311 |
|
Datasheet | SOD-123F | SZSMF | Tape & Reel (TR) | Active | Zener | 1 | - | 36V | 40V | 58.1V | 3.4A | 200W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123F |
|
SMF4L15ATVS DIODE 15VWM 24.4VC SOD123FL |
9,053 |
|
Datasheet | SOD-123F | SMF4L | Tape & Reel (TR) | Active | Zener | 1 | - | 15V | 16.7V | 24.4V | 16.4A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
.jpg)
|

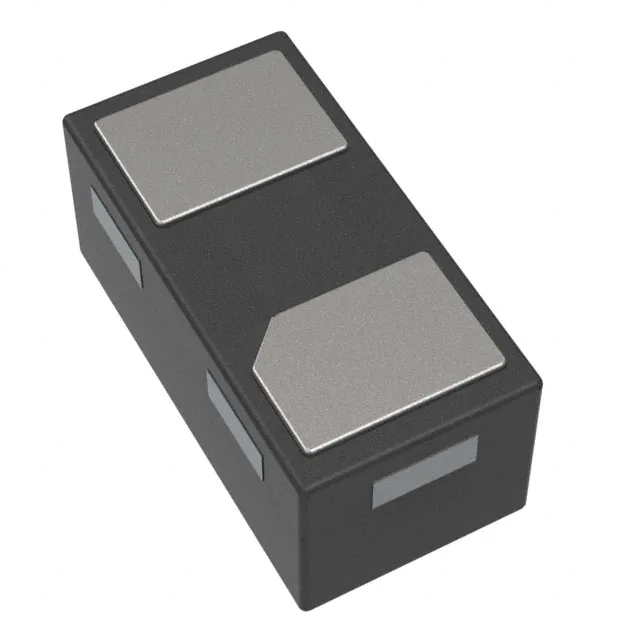

SP0201U-ULC-01UTGTVS DIODE 7VWM 9.2VC 0201 |
7,683 |
|
Datasheet | 0201 (0603 Metric) | SPA® | Tape & Reel (TR) | Active | Zener | 1 | - | 7V (Max) | 9V (Typ) | 9.2V (Typ) | 2A (8/20µs) | - | No | General Purpose | 0.2pF @ 1MHz | -30°C ~ 85°C (TA) | Automotive | AEC-Q101 | Surface Mount | 0201 |
|
SMF58ATVS SOD123FL 58V 200W UNIDIR |
7,381 |
|
Datasheet | SOD-123F | SMF | Tape & Reel (TR) | Active | Zener | 1 | - | 58V | 64.4V | 93.6V | 2.1A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
1.5SMC68CATVS DIODE 58.1VWM 92VC DO214AB |
6,723 |
|
Datasheet | DO-214AB, SMC | 1.5SMC | Tape & Reel (TR) | Active | Zener | - | 1 | 58.1V | 64.6V | 92V | 16.5A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SP1112-01UTGTVS DIODE 12VWM 26.5VC 2DFN |
6,491 |
|
Datasheet | 0603 (1610 Metric) | SPA® | Tape & Reel (TR) | Active | Zener | 1 | - | 12V (Max) | - | 26.5V (Typ) | 40A (8/20µs) | - | No | General Purpose | 230pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 2-DFN (1.6x1) |
