TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MA3075WALT1GTVS DIODE 6.5VWM SOT23-3 |
2,091 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 6.5V | 7.2V | - | - | 15W | No | - | 80pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 (TO-236) |
|
D3V3AP2WF-7SURGE PROTECTION PP SOD123F T&R |
1,928 |
|
Datasheet | SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V | 5.2V | 8V | 28.2A | 225W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
SMBJ51CA-13-FTVS DIODE 51VWM 82.4VC SMB |
133,459 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 51V | 56.7V | 82.4V | 7.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
SMBJ48CA-13-FTVS DIODE 48VWM 77.4VC SMB |
125,240 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 48V | 53.3V | 77.4V | 7.7A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
ESD7381MUT5GTVS DIODE 3.3VWM 10VC 2X3DFN |
77,010 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V (Max) | 5V | 10V | 3A (8/20µs) | - | No | RF Antenna | 0.37pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 2-X3DFN (0.6x0.3) (0201) |
|
|
SMBJ26CA-13-FTVS DIODE 26VWM 42.1VC SMB |
75,221 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 26V | 28.9V | 42.1V | 14.2A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
DUP2105SOQ-7TVS DIODE 24VWM 44VC SOT23 T&R |
64,852 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 24V (Max) | 26.2V | 44V | 8A | 350W | No | - | 30pF @ 1MHz (Max) | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|

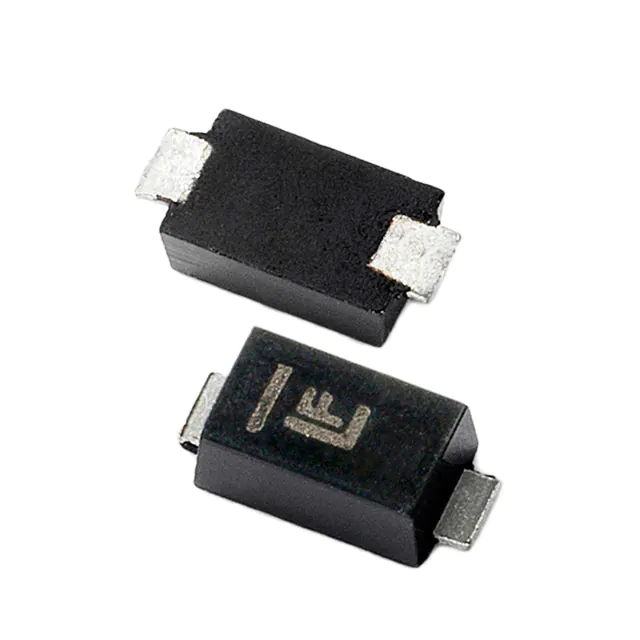

TPSMF4L54ATVS DIODE 54VWM 87.1VC SOD123FL |
56,798 |
|
Datasheet | SOD-123F | TPSMF4L | Tape & Reel (TR) | Active | Zener | 1 | - | 54V | 60V | 87.1V | 4.6A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123F |
|
SMA6J12ATVS DIODE 12VWM 19.9VC DO214AC |
54,570 |
|
Datasheet | DO-214AC, SMA | SMA6J | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.3V | 19.9V | 30.2A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ33CAQ-13-FTVS DIODE 33VWM 53.3VC SMA |
44,320 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | - | 1 | 33V | 36.7V | 53.3V | 7.5A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMA |
|
SMAJ400CATVS DIODE 400VWM 648VC DO214AC |
33,172 |
|
Datasheet | DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | - | 2 | 400V | 447V | 648V | 1A | 400W | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AC (SMAJ) |
|
|
SMBJ24CA-13-FTVS DIODE 24VWM 38.9VC SMB |
25,482 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 24V | 26.7V | 38.9V | 15.4A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
ESDA13P70-1U1MTVS DIODE 12VWM 20VC 1610 |
21,903 |
|
Datasheet | 2-UDFN | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 12.5V | 20V | 60A (8/20µs) | 1300W (1.3kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 1610 |
|
D1213A-02SM-7TVS DIODE 3.3VWM 10VC SOT25 |
19,852 |
|
Datasheet | SC-74A, SOT-753 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 3.3V | 6V | 10V (Typ) | 1A (8/20µs) | - | Yes | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-25 |
|
SMBJ45CATVS DIODE 45VWM 72.7VC DO214AA |
19,548 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 45V | 50V | 72.7V | 8.3A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
D5V0F1U2S9Q-7TVS DIODE 5.5VWM 12VC SOD923 |
16,732 |
|
Datasheet | SOD-923 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5.5V (Max) | 6V | 12V | 1.5A (8/20µs) | - | No | HDMI, USB | 0.5pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-923 |
|
|
SMBJ54CA-13-FTVS DIODE 54VWM 87.1VC SMB |
16,632 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 54V | 60V | 87.1V | 6.9A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
SMBJ13CATVS DIODE 13VWM 21.5VC DO214AA |
13,949 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 13V | 14.4V | 21.5V | 28A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
SMCJ45ATVS DIODE 45VWM 72.7VC DO214AB |
13,494 |
|
Datasheet | DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | 1 | - | 45V | 50V | 72.7V | 20.6A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
D5V0F4U6V-7TVS DIODE 5.5VWM 12VC SOT563 |
13,079 |
|
Datasheet | SOT-563, SOT-666 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5.5V (Max) | 6V | 12V | 3A (8/20µs) | - | Yes | HDMI | 0.5pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-563 |
