TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N6290ATVS DIODE 53VWM 85VC AXIAL |
7,139 |
|
Datasheet | DO-201AD, Axial | Mosorb™ | Bulk | Obsolete | Zener | 1 | - | 53V | 58.9V | 85V | - | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | Axial |
|
|
1N6286ATVS DIODE 36.8VWM 59.3VC AXIAL |
7,195 |
|
Datasheet | DO-201AD, Axial | Mosorb™ | Bulk | Obsolete | Zener | 1 | - | 36.8V | 40.9V | 59.3V | - | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | Axial |
|
SMDJ17ATVS DIODE 17VWM 27.6VC DO214AB |
5,936 |
|
Datasheet | DO-214AB, SMC | SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 17V | 18.9V | 27.6V | 108.7A | 3000W (3kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SMDJ7.5ATVS DIODE 7.5VWM 12.9VC DO214AB |
3,310 |
|
Datasheet | DO-214AB, SMC | SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 7.5V | 8.33V | 12.9V | 232.56A | 3000W (3kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
DSL05-012SC6TVS DIODE 10VWM SOT23-6 |
2,667 |
|
Datasheet | SOT-23-6 | DSL | Tape & Reel (TR) | Active | Zener | 1 | - | 10V | 12.8V | - | 30A (8/20µs) | - | Yes | General Purpose | 1.5pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-6 |
|
SP0508BACTTVS DIODE 5.5VWM 8VC 10CSP |
4,579 |
|
Datasheet | 10-TFBGA, CSPBGA | SP05xBAC | Tape & Reel (TR) | Obsolete | Zener | 8 | - | 5.5V (Min) | - | 8V | - | - | No | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-CSP (3.1x1.15) |
|
P6SMB200AT3GTVS DIODE 171VWM 274VC SMB |
4,893 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 171V | 190V | 274V | 2.2A | 600W | No | General Purpose | 115pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
P6SMB56AT3GTVS DIODE 47.8VWM 77VC SMB |
8,729 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 47.8V | 53.2V | 77V | 7.8A | 600W | No | General Purpose | 365pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
SMA6F13A-TRTVS DIODE 13VWM 23.9VC SMAFLAT |
2,968 |
|
Datasheet | DO-221AC, SMA Flat Leads | SMA6F, TRANSIL™ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 13V | 14.4V | 23.9V | 147A (8/20µs) | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SMAflat |
|
ESD206B102ELSE6327XTSA1TVS DIODE 5.5VWM 9.6VC TSSLP-2-3 |
5,402 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 5.5V (Max) | 6.1V | 9.6V (Typ) | 6A (8/20µs) | - | No | General Purpose | 12pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | PG-TSSLP-2-3 |
|
ESD204B102ELE6327XTMA1TVS DIODE 14VWM 28VC TSLP-2-20 |
2,812 |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Last Time Buy | Zener | - | 1 | 14V (Max) | 8.5V | 28V | 1A (8/20µs) | - | No | General Purpose | 4pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TSLP-2-20 |
|
AQ1026-01UTGTVS DIODE 6VWM 13.4VC 2UDFN |
8,922 |
|
Datasheet | 0201 (0603 Metric) | AQ1026, SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 6V (Max) | 7.8V (Typ) | 13.4V (Typ) | 2A (8/20µs) | - | No | - | 15pF @ 1MHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q101 | Surface Mount | 2-µDFN (0.60x0.30) |
|
|
SP1220-01ETGTVS DIODE 5.75VWM 11VC SOD882 |
3,616 |
|
Datasheet | SOD-882 | SP1220, SPA® | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 5.75V (Max) | 7V (Typ) | 11V | 20A (8/20µs) | 250W | No | - | 290pF @ 1MHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-882 |
|

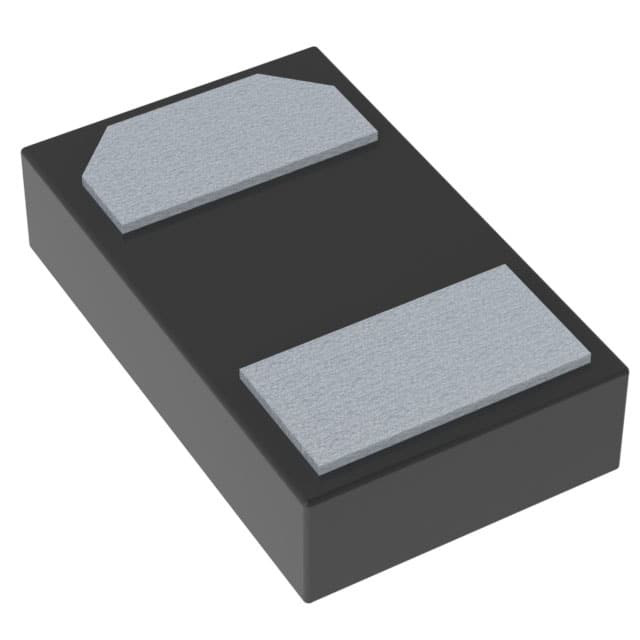

ESDL4151MX4T5GTVS DIODE 15VWM 26VC 2X3DFN |
5,500 |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 15V (Max) | 15.5V | 26V | 47.5A (8/20µs) | - | No | USB 2.0, USB 3.0 | 0.8pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 2-X3DFN (1x0.6) |
 Exposed Pad.jpg)
|
CM1238-08DETVS DIODE 5.5V 10V 16TDFN |
2,116 |
|
Datasheet | 16-WFDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 8 | - | 5.5V (Max) | 6V | 10V (Typ) | 1A (8/20µs) | - | Yes | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TDFN EEP (4x1.6) |
|
|
SMCJ100CAQ-13-FTRANSIENT VOLTAGE SUPPRESSOR PP |
7,485 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 100V | 111V | 162V | 9.3A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMC |
|
|
TPD4S009DBVRG4TVS DIODE 5.5VWM SOT23-6 |
7,756 |
|
Datasheet | SOT-23-6 | - | Tape & Reel (TR) | Discontinued at Digi-Key | Steering (Rail to Rail) | 4 | - | 5.5V (Max) | 9V | - | - | 25W | Yes | Ethernet, HDMI | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
TPD4S009DCKRG4TVS DIODE 5.5VWM SC70-6 |
9,253 |
|
Datasheet | 6-TSSOP, SC-88, SOT-363 | - | Tape & Reel (TR) | Discontinued at Digi-Key | Steering (Rail to Rail) | 4 | - | 5.5V (Max) | 9V | - | - | 25W | Yes | Ethernet, HDMI | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-6 |
|
NUP4302MR6T1TVS DIODE 25VWM 6TSOP |
9,600 |
|
Datasheet | SOT-23-6 Thin, TSOT-23-6 | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 4 | - | 25V (Max) | 30V | - | - | - | No | General Purpose | 28pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 6-TSOP |
|
PACDN044Y5RTVS DIODE 5.5VWM 8VC SOT23-5 |
9,839 |
|
Datasheet | SC-74A, SOT-753 | - | Tape & Reel (TR) | Obsolete | Zener | 4 | - | 5.5V | 6.2V | 8V | - | - | No | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
