TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMBJ40A-13-FTVS DIODE 40VWM 64.5VC SMB |
183,566 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 40V | 44.4V | 64.5V | 9.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
D12V0H1U2LP1610-7TVS DIODE 12VWM 20VC U-DFN1610-2 |
179,215 |
|
Datasheet | 0603 (1610 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V (Max) | 13V | 20V | 50A (8/20µs) | 1000W (1kW) | No | General Purpose | 350pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | U-DFN1610-2 (Type B) |
|
DT6250-06MR-13TVS DIODE 5VWM 10VC 8-MSOP |
164,582 |
|
Datasheet | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 6 | - | 5V (Max) | 6V | 10V (Typ) | 4A (8/20µs) | - | Yes | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
SMAJ13A-13-FTVS DIODE 13VWM 21.5VC SMA |
150,843 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 13V | 14.4V | 21.5V | 18.6A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
|
SMBJ16A-13-FTVS DIODE 16VWM 26VC SMB |
144,561 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 16V | 17.8V | 26V | 23.1A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
SMAJ22A-13-FTVS DIODE 22VWM 35.5VC SMA |
123,920 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 22V | 24.4V | 35.5V | 11.2A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
ESDA12-1KTVS DIODE 12VWM 28VC SOD523 |
115,121 |
|
Datasheet | SC-79, SOD-523 | ESDA, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 12V | 28V | 16A (8/20µs) | 450W | No | General Purpose | 150pF @ 1MHz | -40°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-523 |
|
ESDCAN06-2BWYTVS DIODE 35VWM 59VC SOT323-3 |
62,224 |
|
Datasheet | SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 35V | 38V | 59V | 3A (8/20µs) | 170W | No | CAN | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-323-3 |
|
ESDA051-1JYTVS DIODE 5VWM 12.8VC SOD323 |
61,663 |
|
Datasheet | SC-76, SOD-323 | ESDA | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6.2V | 12.8V | 20A (8/20µs) | - | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
D3V3H1B2LP-7BTVS DIODE 3.3VWM 9.5VC DFN1006-2 |
58,548 |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 3.8V | 9.5V | 40A (8/20µs) | 380W | No | General Purpose | 100pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | X1-DFN1006-2 |
|
HSP051-4N10TVS DIODE 3.6VWM 10VC 10UQFN |
47,558 |
|
Datasheet | 10-XFDFN | HSP | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 3.6V | 4.5V | 10V | 1A (8/20µs) | - | Yes | HDMI | 0.4pF @ 200MHz ~ 2.5GHz | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 10-uQFN (1.9x1) |
|
ESDA8P30-1T2TVS DIODE 6.3VWM 12VC SOD882T |
46,826 |
|
Datasheet | SOD-882 | ESDA | Tape & Reel (TR) | Active | Zener | 1 | - | 6.3V | 6.9V | 12V | 30A (8/20µs) | 300W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-882T |
|
|
SMBJ36A-13-FTVS DIODE 36VWM 58.1VC SMB |
40,653 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 36V | 40V | 58.1V | 10.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
SMBJ24A-TRTVS DIODE 24VWM 38.9VC SMB |
35,945 |
|
Datasheet | DO-214AA, SMB | SMBJ, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.7V | 38.9V | 16A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
SMAJ64CATVS DIODE 64VWM 103VC DO214AC |
32,063 |
|
Datasheet | DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | - | 2 | 64V | 71.1V | 103V | 3.9A | 400W | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AC (SMAJ) |
|
|
SMAJ100A-13-FTVS DIODE 100VWM 162VC SMA |
25,667 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 100V | 111V | 162V | 2.5A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
SMAJ7.0ATVS DIODE 7VWM 12VC DO214AC |
21,979 |
|
Datasheet | DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 7V | 7.78V | 12V | 33.3A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
NUP5120X6T1GTVS DIODE 5VWM SOT563 |
20,364 |
|
Datasheet | SOT-563, SOT-666 | - | Tape & Reel (TR) | Active | Zener | 5 | - | 5V (Max) | 6.2V | - | - | 90W | No | General Purpose | 54pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-563 |
|
SMAJ70ATVS DIODE 70VWM 113VC DO214AC |
18,334 |
|
Datasheet | DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 70V | 77.8V | 113V | 3.5A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|

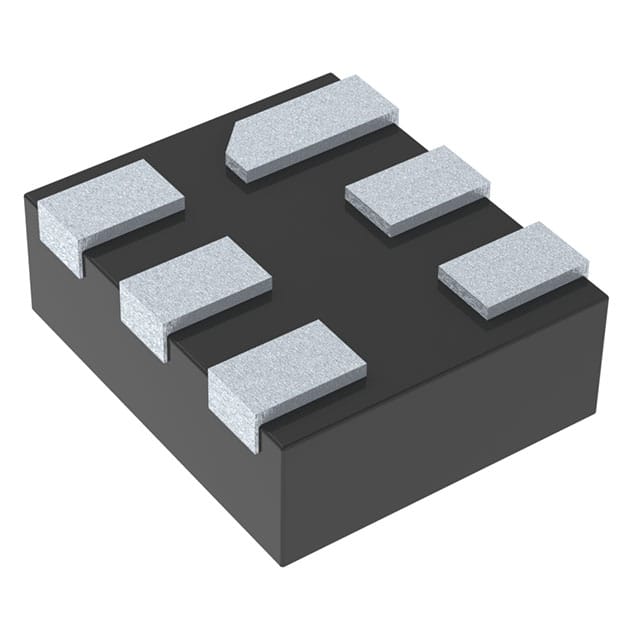

ESDR0502NMUTAGTVS DIODE 5.5VWM 6UDFN |
18,098 |
|
Datasheet | 6-UFDFN | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 3 | - | 5.5V (Max) | 6V | - | - | 100W | Yes | Ethernet | 0.3pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-UDFN (1.2x1) |
