TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESD751DYARQ1AUTOMOTIVE, 2.5-PF, 24-V, 22-KV |
4,206 |
|
Datasheet | SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V (Max) | 25.5V | 36.5V (Typ) | 2.8A (8/20µs) | 102W | No | CAN | 1.6pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOT-5X3 |
|
D5V0X1B2LPQ-7BDATALINE PROTECTION PP X1-DFN100 |
1,542 |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5.5V (Max) | 7V | 14V | 1.5A (8/20µs) | - | No | HDMI, USB | 0.3pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | X1-DFN1006-2 |
|
D20V0L1B2WS-7TVS DIODE 20VWM 30VC SOD323 |
294,796 |
|
Datasheet | SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 20V (Max) | 21V | 30V | 3A (8/20µs) | 90W | No | General Purpose | 10pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
SMBJ18CA-13-FTVS DIODE 18VWM 29.2VC SMB |
204,723 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 18V | 20V | 29.2V | 20.5A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
SMAJ6.5A-13-FTVS DIODE 6.5VWM 11.2VC SMA |
199,094 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 6.5V | 7.22V | 11.2V | 35.7A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
|
SMAJ17A-13-FTVS DIODE 17VWM 27.6VC SMA |
172,529 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 17V | 18.9V | 27.6V | 14.5A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
DT1446-04TS-7TVS DIODE 5VWM 8.5VC TSOT26 |
141,035 |
|
Datasheet | SOT-23-6 Thin, TSOT-23-6 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 8.5V | 4.7A (8/20µs) | - | Yes | HDMI | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TSOT-26 |
|
|
SMAJ14A-13-FTVS DIODE 14VWM 23.2VC SMA |
135,160 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 14V | 15.6V | 23.2V | 17.2A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
DRTR5V0U4LP16-7TVS DIODE 5.5VWM 12V U-DFN1616-6 |
93,440 |
|
Datasheet | 6-UFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5.5V (Max) | 6V | 12V | 1A (8/20µs) | - | Yes | General Purpose | 1pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | U-DFN1616-6 |
|
DFLT27A-7TVS DIODE 27VWM 43.7VC PWRDI 123 |
86,072 |
|
Datasheet | POWERDI®123 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 27V | 30V | 43.7V | 5.15A | 225W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | PowerDI™ 123 |
|
|
SMBJ28CAQ-13-FTVS DIODE 28VWM 45.4VC SMB |
69,042 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 28V | 31.1V | 45.4V | 13.2A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMB |
|
|
D5V0H1U2LP-7BTVS DIODE 5.5VWM 14VC DFN1006-2 |
55,207 |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5.5V (Max) | 6.2V | 14V | 30A (8/20µs) | 420W | No | General Purpose | 190pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | X1-DFN1006-2 |
|
|
SMBJ48A-13-FTVS DIODE 48VWM 77.4VC SMB |
33,770 |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 48V | 53.3V | 77.4V | 7.7A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
SMAJ60ATVS DIODE 60VWM 96.8VC DO214AC |
16,689 |
|
Datasheet | DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 60V | 66.7V | 96.8V | 4.1A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|

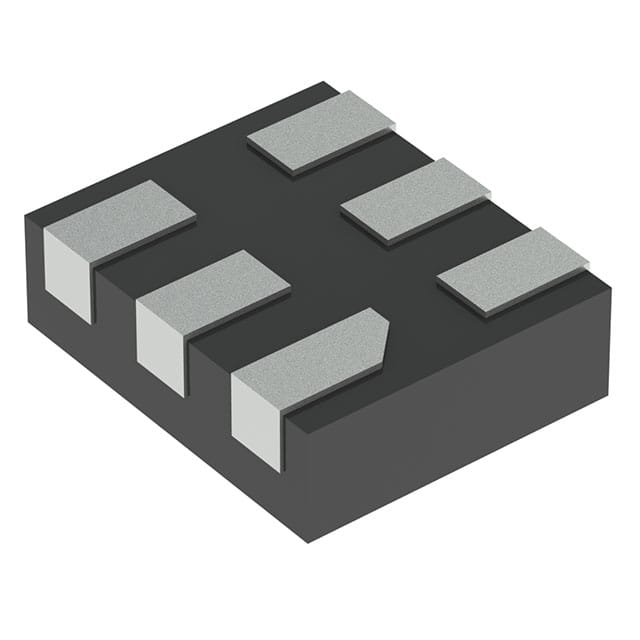

ESDR0502NMUTBGTVS DIODE 5.5VWM 6UDFN |
13,663 |
|
Datasheet | 6-UFDFN | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 3 | - | 5.5V (Max) | 6V | - | - | 100W | Yes | Ethernet | 0.3pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-UDFN (1.2x1) |
-Type-C;-;-2.jpg)
|
D24V0L1B2LPSQ-7BTVS DIODE 24VWM 46VC DFN1006-2 |
9,277 |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V (Max) | 26V | 46V | 2A (8/20µs) | 90W | No | - | 6pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | X1-DFN1006-2 |
|
SZNUP1301ML3T1GTVS DIODE SOT23-3 |
7,934 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 1 | - | - | 70V | - | - | - | No | - | 0.9pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 (TO-236) |
|
VS4V5BU1QST18RTVS DIODE 4.5VWM 12VC SMD1006 |
2,754 |
|
Datasheet | 2-SMD, No Lead | - | Tape & Reel (TR) | Active | Zener | - | 1 | 4.5V (Max) | 5.3V | 12V | 50A (8/20µs) | 600W | No | General Purpose | - | -55°C ~ 150°C (TA) | - | - | Surface Mount | SMD1006 |
|
|
SMAJ30A-13-FTVS DIODE 30VWM 48.4VC SMA |
544,079 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 8.3A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
|
SMAJ6.0A-13-FTVS DIODE 6VWM 10.3VC SMA |
278,342 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 6V | 6.67V | 10.3V | 38.8A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
