TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM1205-08CPTVS DIODE 3.3VWM 8VC 10WLCSP |
1 |
|
Datasheet | 10-WFBGA, WLCSP | - | Tape & Reel (TR) | Obsolete | Zener | 8 | - | 3.3V (Max) | 5.6V | 8V | - | - | No | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-WLCSP (3.1x1.15) |
|
1.5KE62ARLTVS DIODE 53VWM 111VC DO201 |
3,150 |
|
Datasheet | DO-201AA, DO-27, Axial | 1.5KE, TRANSIL™ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 53V | 58.9V | 111V | 90A (8/20µs) | 1500W (1.5kW) | No | General Purpose | 1700pF @ 1MHz | - | - | - | Through Hole | DO-201 |
|
SM30T7.5CAYTVS DIODE 6.5VWM 11.2VC SMC |
2,241 |
|
Datasheet | DO-214AB, SMC | SM30TY, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 6.5V | 7.13V | 11.2V | 268A | 3000W (3kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMC |
|
|
1.5KE56ARLTVS DIODE 47.8VWM 100VC DO201 |
1,239 |
|
Datasheet | DO-201AA, DO-27, Axial | 1.5KE, TRANSIL™ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 47.8V | 53.2V | 100V | 100A (8/20µs) | 1500W (1.5kW) | No | General Purpose | 1800pF @ 1MHz | - | - | - | Through Hole | DO-201 |
|
SZESD1014MUTAG4 LINE SURGE RATED RAIL-RAIL PRO |
3,000 |
|
Datasheet | 10-UFDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 4 | - | 3.3V (Max) | 5V | 11V | 30A (8/20µs) | 450W | Yes | - | 3.8pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 10-UDFN (2.6x2.6) |
|
SMCJ160A-13TVS DIODE 160V 259V SMC |
27,551 |
|
Datasheet | DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | 1 | - | 160V | 178V | 259V | 5.8A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SMCJ7.5A-13TVS DIODE 7.5V 12.9V SMC |
9,003 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | 1 | - | 7.5V | 8.33V | 12.9V | 116.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
|
SMCJ110A-13TVS DIODE 110V 177V SMC |
3,018 |
|
Datasheet | DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | 1 | - | 110V | 122V | 177V | 8.5A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SMCJ54A-13TVS DIODE 54V 87.1V SMC |
2,332 |
|
Datasheet | DO-214AB, SMC | - | Cut Tape (CT) | Active | Zener | 1 | - | 54V | 60V | 87.1V | 17.2A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
|
SMCJ11A-13-FTVS DIODE 11VWM 18.2VC SMC |
2,263 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 11V | 12.2V | 18.2V | 82.4A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
.jpg)
|
MSMCJ26ATVS DIODE 26VWM 42.1VC DO214AB |
200 |
|
Datasheet | DO-214AB, SMC | - | Bulk | Active | Zener | 1 | - | 26V | 28.9V | 42.1V | 35.6A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Surface Mount | DO-214AB (SMCJ) |
|
|
SMCJ8.5A-13-FTVS DIODE 8.5V 14.4V SMC |
23,241 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 8.5V | 9.44V | 14.4V | 104.2A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
TPSMC170ATVS 1.5KW 170V 5%UNI DO-214AB |
2,816 |
|
Datasheet | DO-214AB, SMC | TPSMC | Tape & Reel (TR) | Active | Zener | 1 | - | 145.35V | 161.5V | 234V | 6.5A | 1500W (1.5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMC |
|
SMC30J20CATVS DIODE 20VWM 32.4VC SMC |
2,219 |
|
Datasheet | DO-214AB, SMC | SMC30J | Tape & Reel (TR) | Active | Zener | - | 1 | 20V | 22.2V | 32.4V | 93A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SMC |
|

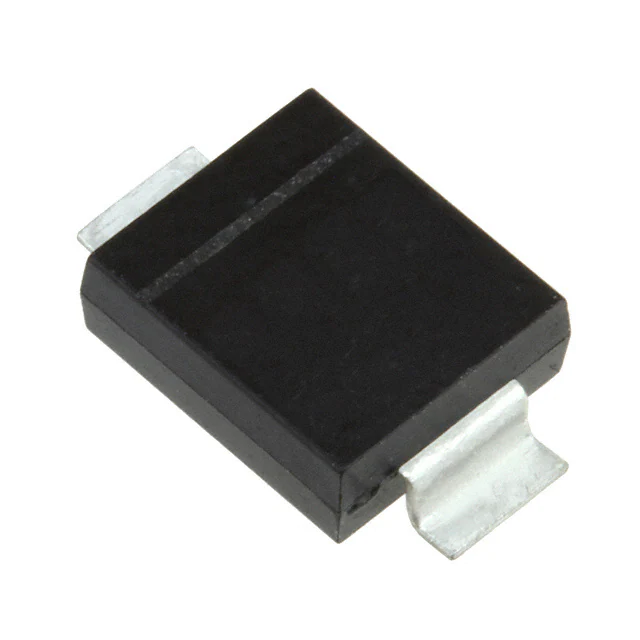

MSMCG170ATVS DIODE 170VWM 275VC SMCG |
200 |
|
Datasheet | DO-215AB, SMC Gull Wing | - | Bulk | Active | Zener | 1 | - | 170V | 189V | 275V | 5.5A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Surface Mount | DO-214AB (SMCG) |
|
|
MSMCG7.5ATVS DIODE 7.5VWM 12.9VC SMCG |
200 |
|
Datasheet | DO-215AB, SMC Gull Wing | - | Bulk | Active | Zener | 1 | - | 7.5V | 8.33V | 12.9V | 116.3A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Surface Mount | DO-214AB (SMCG) |
|
|
MSMCJ8.0CAE3TVS DIODE 8VWM 13.6VC DO214AB |
200 |
|
Datasheet | DO-214AB, SMC | - | Bulk | Active | Zener | - | 1 | 8V | 8.89V | 13.6V | 110.3A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Surface Mount | DO-214AB (SMCJ) |
|
|
MSMCG10ATVS DIODE 10VWM 17VC SMCG |
180 |
|
Datasheet | DO-215AB, SMC Gull Wing | - | Bulk | Active | Zener | 1 | - | 10V | 11.1V | 17V | 88.2A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Surface Mount | DO-214AB (SMCG) |
|
|
MSMCJ17CATVS DIODE 17VWM 27.6VC DO214AB |
170 |
|
Datasheet | DO-214AB, SMC | - | Bulk | Active | Zener | - | 1 | 17V | 18.9V | 27.6V | 53.3A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Surface Mount | DO-214AB (SMCJ) |
|
|
SMCJ9.0CA-13TVS DIODE 9V 15.4V SMC |
22,652 |
|
Datasheet | DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | - | 2 | 9V | 10V | 15.4V | 97.4A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
