TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMBJ170A-13TVS DIODE 170VWM 275VC SMB |
3,000 |
|
- |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | 1 | - | 170V | 189V | 275V | 2.2A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
SMBJ160A-13TVS DIODE 160V 259V SMB |
1,021 |
|
- |
DO-214AA, SMB | SMBJ | Cut Tape (CT) | Active | Zener | 1 | - | 160V | 178V | 259V | 2.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
MRJ2535-2LFGTRANS VOLTAGE SUPPRESSOR DIODE |
280,205 |
|
Datasheet | - | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
3.0SMCJ14CATVS DIOD 3000W DO-214AB 14V |
3,000 |
|
Datasheet | DO-214AB, SMC | 3.0SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 14V | 15.6V | 23.2V | 129.3A | 3000W (3kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
3.0SMCJ24CATVS DIOD 3000W DO-214AB 24V |
1,982 |
|
Datasheet | DO-214AB, SMC | 3.0SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 24V | 26.7V | 38.9V | 77.1A | 3000W (3kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
BZW06-376RLTVS DIODE 376VWM 776VC DO15 |
1,059 |
|
Datasheet | DO-204AC, DO-15, Axial | BZW06, TRANSIL™ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 376V | 418V | 776V | 5.7A (8/20µs) | 600W | No | General Purpose | 350pF @ 1MHz | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|

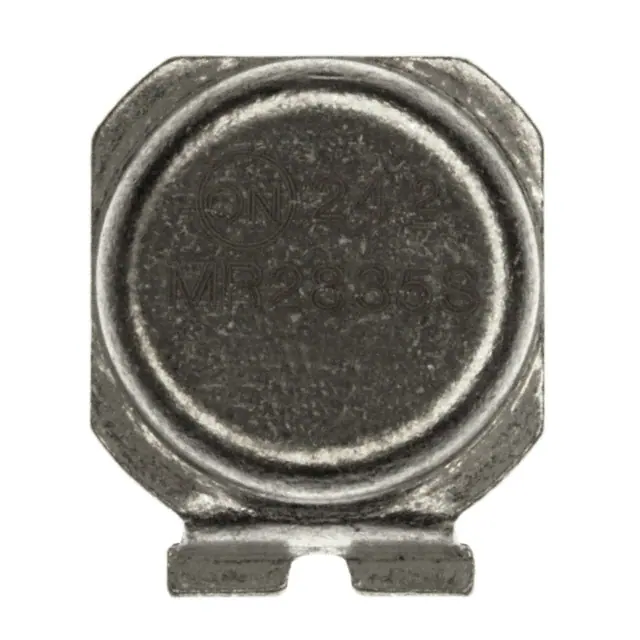

MR2835SKTVS DIODE 23VWM TOP CAN |
5,333 |
|
Datasheet | Top Can | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 23V | 24V | - | - | - | No | General Purpose | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TOP CAN |
|
|
3.0SMCJ12CATVS DIOD 3000W DO-214AB 12V |
1,718 |
|
Datasheet | DO-214AB, SMC | 3.0SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 13.3V | 19.9V | 150.8A | 3000W (3kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SMBJ58CA-13TVS DIODE 58VWM 93.6VC SMB |
9,000 |
|
- |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | - | 1 | 58V | 64.4V | 93.6V | 6.4A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
SMBJ85CA-13TVS DIODE 85VWM 137VC SMB |
3,000 |
|
- |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | - | 1 | 85V | 94.4V | 137V | 4.4A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
LFTVS10-1F3TVS DIODE 8VWM 13VC 4FLIPCHIP |
1,200 |
|
- |
4-UFBGA, FCBGA | LFTVS, TRANSIL™ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 8V | 10V | 13V | 1A (8/20µs) | 350W | No | General Purpose | 200pF @ 1MHz | - | - | - | Surface Mount | 4-FlipChip (0.77x0.77) |
|
TPSMC13ATVS DIODE 11.1VWM 18.2VC DO214AB |
2,535 |
|
Datasheet | DO-214AB, SMC | TPSMC | Tape & Reel (TR) | Active | Zener | 1 | - | 11.1V | 12.4V | 18.2V | 83.5A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCJ) |
|
SMC30J40ATVS DIODE 40VWM 64.5VC SMC |
1,614 |
|
Datasheet | DO-214AB, SMC | SMC30J | Tape & Reel (TR) | Active | Zener | 1 | - | 40V | 44.4V | 64.5V | 43.5A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SMC |
|
ESD8004MUTAGTVS DIODE 3.3VWM 8VC 10UDFN |
445 |
|
Datasheet | 10-UFDFN | - | Tape & Reel (TR) | Obsolete | Zener | 4 | - | 3.3V (Max) | 5.5V | 8V (Typ) | 16A | - | No | USB | 0.3pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 10-UDFN (2.5x1) |
|
MSMBG6.0CATVS DIODE 6VWM 10.3VC SMBG |
145 |
|
Datasheet | DO-215AA, SMB Gull Wing | - | Bulk | Active | Zener | - | 1 | 6V | 6.67V | 10.3V | 58.3A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Surface Mount | DO-214AA (SMBG) |
|
TPSMD40ATVS DIODE 40VWM 64.5VC DO214AB |
4,223 |
|
Datasheet | DO-214AB, SMC | TPSMD | Tape & Reel (TR) | Active | Zener | 1 | - | 40V | 44.4V | 64.5V | 46.5A | 3000W (3kW) | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCJ) |
|
|
TPSMD24CATVS DIODE 24VWM 38.9VC DO214AB |
2,880 |
|
Datasheet | DO-214AB, SMC | TPSMD | Tape & Reel (TR) | Active | Zener | - | 1 | 24V | 26.7V | 38.9V | 77.1A | 3000W (3kW) | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCJ) |
|
|
SM30T6.8CAYTVS DIODE 5VWM 9.2VC SMC |
929 |
|
Datasheet | DO-214AB, SMC | SM30TY, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 6.45V | 9.2V | 327A | 3000W (3kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMC |
|
|
TPSMD10ATVS DIODE 10VWM 17VC DO214AB |
529 |
|
Datasheet | DO-214AB, SMC | TPSMD | Tape & Reel (TR) | Active | Zener | 1 | - | 10V | 11.1V | 17V | 176.5A | 3000W (3kW) | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCJ) |
|
TPSMC130ATVS 1.5KW 130V 5%UNI DO-214AB |
6,000 |
|
Datasheet | DO-214AB, SMC | TPSMC | Tape & Reel (TR) | Active | Zener | 1 | - | 111.15V | 123.5V | 179V | 8.5A | 1500W (1.5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMC |
