TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMC30J28ATVS DIODE 28VWM 45.4VC SMC |
2,621 |
|
Datasheet | DO-214AB, SMC | SMC30J | Tape & Reel (TR) | Active | Zener | 1 | - | 28V | 31.1V | 45.4V | 66A | 3000W (3kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMC (DO-214AB) |
|
3.0SMCJ40CATVS DIOD 3000W DO-214AB 40V |
2,457 |
|
Datasheet | DO-214AB, SMC | 3.0SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 40V | 44.4V | 64.5V | 46.5A | 3000W (3kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SMA6T56CAYTVS DIODE 48VWM 100VC SMA |
13,085 |
|
Datasheet | DO-214AC, SMA | SMA6TY, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 48V | 53.3V | 100V | 40A (8/20µs) | 600W | No | - | - | -40°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SMA6T24CAYTVS DIODE 20.5VWM 42.8VC SMA |
4,619 |
|
Datasheet | DO-214AC, SMA | SMA6TY, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 20.5V | 22.8V | 42.8V | 93A (8/20µs) | 600W | No | - | - | -40°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
SMCJ10CA-13-FTVS DIODE 10VWM 17VC SMC |
3,031 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 10V | 11.1V | 17V | 88.2A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
SMDA03-6E3/TR7TVS DIODE 3.3VWM 9VC 8-SO |
1,549 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | TVSarray™ | Tape & Reel (TR) | Active | Zener | 6 | - | 3.3V | 4V | 9V | 5A (8/20µs) | 300W | No | General Purpose | 800pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
SM30T21AYTVS DIODE 18VWM 29.2VC SMC |
7,542 |
|
Datasheet | DO-214AB, SMC | SM30TY, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 18V | 20V | 29.2V | 102.7A | 3000W (3kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMC |
.jpg)
|
SMC30J33ATVS DIODE 33VWM 53.3VC SMC |
4,697 |
|
Datasheet | DO-214AB, SMC | SMC30J | Tape & Reel (TR) | Active | Zener | 1 | - | 33V | 36.7V | 53.3V | 56A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SMC |
|

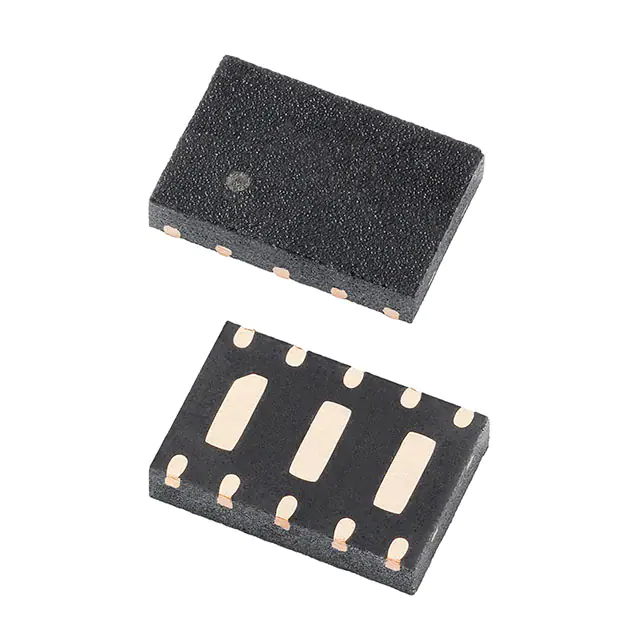

SP2525NUTGTVS DIODE 2.5VWM 11VC 10UDFN |
3,079 |
|
Datasheet | 10-UDFN Exposed Pad | SP2525N, SPA® | Tape & Reel (TR) | Active | Zener | 4 | - | 2.5V (Max) | 5.5V | 11V | 30A (8/20µs) | - | No | Ethernet | 1.7pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-µDFN (3x2) |
|
SM6T18CAYTVS DIODE 15.3VWM 25.2VC SMB |
13,663 |
|
Datasheet | DO-214AA, SMB | SM6TY, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 15.3V | 17.1V | 25.2V | 24A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMB |
|
|
SMA6T39CAYTVS DIODE 33.3VWM 69.7VC SMA |
4,156 |
|
Datasheet | DO-214AC, SMA | SMA6TY, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 33.3V | 37.1V | 69.7V | 57A (8/20µs) | 600W | No | - | - | -40°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
SMDJ60CA-T7TVS DIODE 60VWM 96.8VC DO214AB |
960 |
|
Datasheet | DO-214AB, SMC | SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 60V | 66.7V | 96.8V | 31A | 3000W (3kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SMDJ12CA-T7TVS DIODE 12VWM 19.9VC DO214AB |
300 |
|
Datasheet | DO-214AB, SMC | SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 13.3V | 19.9V | 150.8A | 3000W (3kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SMDJ78CA-T7TVS DIODE 78VWM 126VC DO214AB |
1,300 |
|
Datasheet | DO-214AB, SMC | SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 78V | 86.7V | 126V | 23.8A | 3000W (3kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
TPSMD13ATVS DIODE 13VWM 21.5VC DO214AB |
2,650 |
|
Datasheet | DO-214AB, SMC | TPSMD | Tape & Reel (TR) | Active | Zener | 1 | - | 13V | 14.4V | 21.5V | 139.5A | 3000W (3kW) | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCJ) |
|
|
SM15T68AYTVS DIODE 58.1VWM 121VC SMC |
10,857 |
|
Datasheet | DO-214AB, SMC | SM15TY, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 58.1V | 64.6V | 121V | 83A (8/20µs) | 1500W (1.5kW) | No | - | - | -40°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMC |
|
|
SMCJ17A-13-FTVS DIODE 17VWM 27.6VC SMC |
6,163 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 17V | 18.9V | 27.6V | 53.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
|
SM30T47AYTVS DIODE 40VWM 64.5VC SMC |
1,681 |
|
Datasheet | DO-214AB, SMC | SM30TY, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 40V | 44.4V | 64.5V | 43.5A | 3000W (3kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMC |
|
SMC30J33CATVS DIODE 33VWM 53.3VC SMC |
1,915 |
|
Datasheet | DO-214AB, SMC | SMC30J | Tape & Reel (TR) | Active | Zener | - | 1 | 33V | 36.7V | 53.3V | 56A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SMC |
|
|
SMCJ150A-13-FTVS DIODE 150VWM 243VC SMC |
9,462 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 150V | 167V | 243V | 6.2A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
