TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1.5KE36CATVS DIODE 30.8VWM 64.3VC DO201 |
297 |
|
Datasheet | DO-201AA, DO-27, Axial | 1.5KE, TRANSIL™ | Cut Tape (CT) | Active | Zener | - | 1 | 30.8V | 34.2V | 64.3V | 156A (8/20µs) | 1500W (1.5kW) | No | General Purpose | 1250pF @ 1MHz | - | - | - | Through Hole | DO-201 |
|
SP3006-02XTGTVS DIODE 6VWM 15VC SOT563 |
11,523 |
|
Datasheet | SOT-563, SOT-666 | SP3006, SPA® | Tape & Reel (TR) | Active | Zener | - | 2 | 6V (Max) | 9V | 15V (Typ) | 2A (8/20µs) | - | No | General Purpose | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-563 |
|
SMDJ170ATVS DIODE 170VWM 275VC DO214AB |
7,041 |
|
Datasheet | DO-214AB, SMC | SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 170V | 189V | 275V | 10.91A | 3000W (3kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SMA6T28AYTVS DIODE 24VWM 44.3VC SMA |
3,171 |
|
Datasheet | DO-214AC, SMA | SMA6TY, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.7V | 44.3V | 80A (8/20µs) | 600W | No | - | - | -40°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
SMCJ160CATVS DIODE 160VWM 259VC DO214AB |
2,534 |
|
Datasheet | DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | - | 2 | 160V | 178V | 259V | 5.8A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SM15T56CAYTVS DIODE 48VWM 100VC SMC |
1,739 |
|
Datasheet | DO-214AB, SMC | SM15TY, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 48V | 53.3V | 100V | 100A (8/20µs) | 1500W (1.5kW) | No | - | - | -40°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMC |
|
SMCJ12A-TRTVS DIODE 12VWM 25.3VC SMC |
877 |
|
Datasheet | DO-214AB, SMC | SMCJ, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.3V | 25.3V | 394A (8/20µs) | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
3.0SMCJ58A-13TVS DIODE 58VWM 93.6VC SMC |
8,026 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 58V | 64.4V | 93.6V | 32.1A | 3000W (3kW) | No | General Purpose | 1500pF @ 1MHz | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SMC |
|
|
SMCJ11CAQ-13-FTRANSIENT VOLTAGE SUPPRESSOR SMC |
3,000 |
|
Datasheet | DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 11V | 12.2V | 18.2V | 82.4A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMC |
|
|
SMCJ18CAQ-13-FTVS DIODE 18VWM 29.2VC SMC |
1,817 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 18V | 20V | 29.2V | 51.4A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMC |
|
|
SM15T100CATVS DIODE 85.5VWM 178VC SMC |
1,057 |
|
Datasheet | DO-214AB, SMC | SM15T, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 85.5V | 95V | 178V | 56A (8/20µs) | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
|
SMDJ90CATVS DIODE 90VWM 146VC DO214AB |
9,441 |
|
Datasheet | DO-214AB, SMC | SMDJ | Tape & Reel (TR) | Active | Zener | - | 2 | 90V | 100V | 146V | 20.55A | 3000W (3kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
D28V0H1U2P5Q-13TVS DIODE 28VWM 44VC POWERDI 5 |
9,051 |
|
Datasheet | PowerDI™ 5 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 28V (Max) | 31V | 44V | 41A | 1800W (1.8kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerDI™ 5 |
|

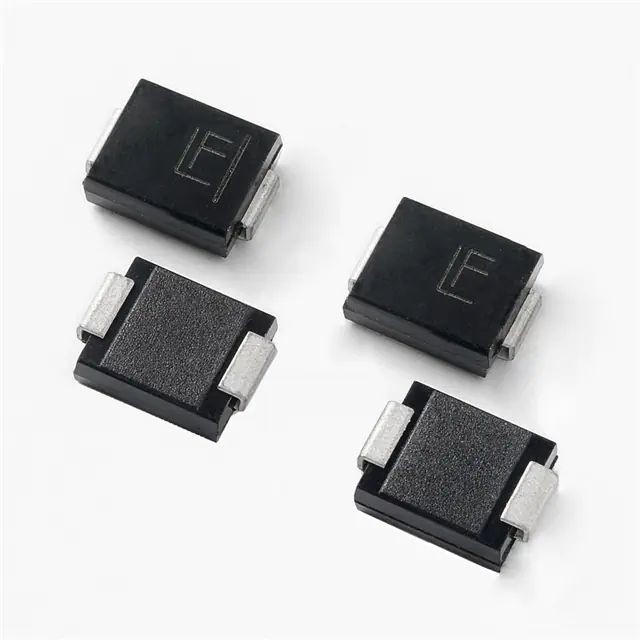

3.0SMCJ20ATVS DIODE 3000W UNI DO-214AB 20V |
3,000 |
|
Datasheet | DO-214AB, SMC | 3.0SMCJ | Tape & Reel (TR) | Active | Zener | 1 | - | 20V | 22.2V | 32.4V | 92.6A | 3000W (3kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SMDJ26CA-T7TVS DIODE 26VWM 42.1VC DO214AB |
2,000 |
|
Datasheet | DO-214AB, SMC | SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 26V | 28.9V | 42.1V | 71.3A | 3000W (3kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SM6T68CAYTVS DIODE 58.1VWM 92VC SMB |
11,585 |
|
Datasheet | DO-214AA, SMB | SM6TY, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 58.1V | 64.6V | 92V | 6.5A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMB |
|
|
SMDJ30CA-T7TVS DIODE 30VWM 48.4VC DO214AB |
1,500 |
|
Datasheet | DO-214AB, SMC | SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 30V | 33.3V | 48.4V | 62A | 3000W (3kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SMDJ20CA-T7TVS DIODE 20VWM 32.4VC DO214AB |
900 |
|
Datasheet | DO-214AB, SMC | SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 20V | 22.2V | 32.4V | 92.6A | 3000W (3kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SMDJ43CA-T7TVS DIODE 43VWM 69.4VC DO214AB |
207 |
|
Datasheet | DO-214AB, SMC | SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 43V | 47.8V | 69.4V | 43.2A | 3000W (3kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SMA6T30CAYTVS DIODE 25.6VWM 53.5VC SMA |
4,787 |
|
Datasheet | DO-214AC, SMA | SMA6TY, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 25.6V | 28.5V | 53.5V | 75A (8/20µs) | 600W | No | - | - | -40°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
