Tantalum Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Type | ESR (Equivalent Series Resistance) | Operating Temperature | Lifetime @ Temp. | Mounting Type | Size / Dimension | Height - Seated (Max) | Lead Spacing | Manufacturer Size Code | Ratings | Features | Failure Rate | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
597D476X9050Z8TCAP TANT 47UF 10% 50V 3024 |
2,546 |
|
- |
TANTAMOUNT™, 597D | Tape & Reel (TR) | Active | 47 µF | ±10% | 50 V | Conformal Coated | 240mOhm | -55°C ~ 125°C | - | Surface Mount | 0.299" L x 0.236" W (7.60mm x 6.00mm) | 0.252" (6.40mm) | - | Z | - | General Purpose | - | - | - |
|
597D107X0040H2TCONFORMAL COATED TANTALUM CAP |
283 |
|
- |
TANTAMOUNT™, 597D | Tape & Reel (TR) | Active | 100 µF | ±20% | 40 V | Conformal Coated | 150mOhm @ 100kHz | -55°C ~ 125°C | - | Surface Mount | 0.315" L x 0.260" W (8.00mm x 6.60mm) | 0.220" (5.60mm) | - | H | - | General Purpose | - | - | - |
|
T513E687K006AH6110CAP TANT 680UF 10% 6.3V 2924 |
809 |
|
- |
T513 | Tape & Reel (TR) | Active | 680 µF | ±10% | 6.3 V | Molded | 23mOhm | -55°C ~ 125°C | 2000 Hrs @ 85°C | Surface Mount | 0.287" L x 0.236" W (7.30mm x 6.00mm) | 0.150" (3.80mm) | - | E | COTS | High Reliability | - | - | - |
|
T350L107K016ATCAP TANT 100UF 10% 16V RADIAL |
2,230 |
|
- |
T350, UltraDip II | Bulk | Active | 100 µF | ±10% | 16 V | Conformal Coated | 800mOhm | -55°C ~ 125°C | - | Through Hole | 0.350" Dia (8.90mm) | 0.630" (16.00mm) | 0.200" (5.08mm) | L | - | General Purpose | - | - | - |
|
T350M476K035ATCAP TANT 47UF 10% 35V RADIAL |
292 |
|
- |
T350, UltraDip II | Bulk | Active | 47 µF | ±10% | 35 V | Conformal Coated | 800mOhm | -55°C ~ 125°C | - | Through Hole | 0.402" Dia (10.20mm) | 0.669" (17.00mm) | 0.200" (5.08mm) | M | - | General Purpose | - | - | - |
-MIL.jpg)
|
T429H107K015BC4252CAP TANT 100UF 10% 15V 2915 |
989 |
|
- |
CWR29 | Tape & Reel (TR) | Active | 100 µF | ±10% | 15 V | Molded | 180mOhm @ 100kHz | -55°C ~ 125°C | - | Surface Mount | 0.285" L x 0.150" W (7.24mm x 3.81mm) | 0.125" (3.17mm) | - | H | - | High Reliability | B (0.1%) | Military | MIL-PRF-55365/11 |
|
T97Z476K050CSACAP TANT 47UF 10% 50V 3024 |
1,400 |
|
- |
TANTAMOUNT™, T97 | Tape & Reel (TR) | Active | 47 µF | ±10% | 50 V | Conformal Coated | 240mOhm | -55°C ~ 85°C | - | Surface Mount | 0.299" L x 0.236" W (7.60mm x 6.00mm) | 0.252" (6.40mm) | - | Z | COTS | High Reliability | - | - | - |
|
|
T97Z476K050ESACAP TANT 47UF 10% 50V 3024 |
251 |
|
- |
TANTAMOUNT™, T97 | Tape & Reel (TR) | Active | 47 µF | ±10% | 50 V | Conformal Coated | 240mOhm | -55°C ~ 85°C | - | Surface Mount | 0.299" L x 0.236" W (7.60mm x 6.00mm) | 0.252" (6.40mm) | - | Z | COTS | High Reliability | - | - | - |
|
|
T97Z476K050ESBCAP TANT 47UF 10% 50V 3024 |
6,549 |
|
- |
TANTAMOUNT™, T97 | Tape & Reel (TR) | Active | 47 µF | ±10% | 50 V | Conformal Coated | 240mOhm | -55°C ~ 85°C | - | Surface Mount | 0.299" L x 0.236" W (7.60mm x 6.00mm) | 0.252" (6.40mm) | - | Z | COTS | High Reliability | - | - | - |
|

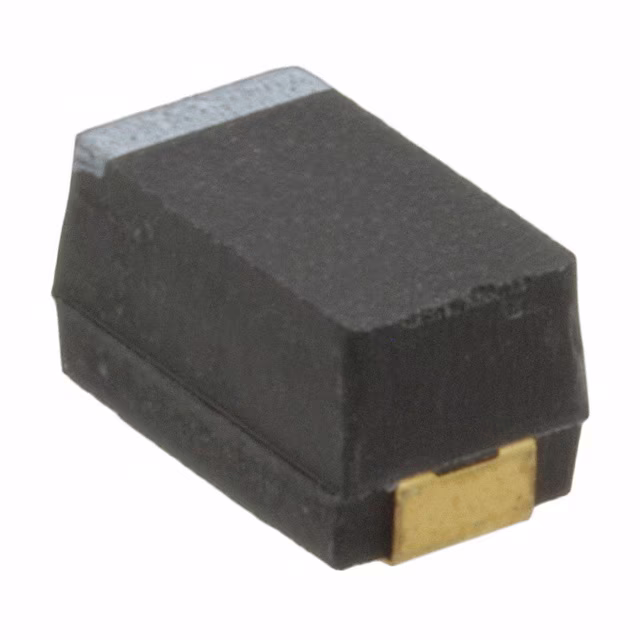

TH5E106K021A1000CAP TANT 10UF 10% 21V 2917 |
1,196 |
|
- |
TANTAMOUNT™, TH5 | Tape & Reel (TR) | Active | 10 µF | ±10% | 21 V | Molded | 1Ohm | -55°C ~ 200°C | - | Surface Mount | 0.287" L x 0.170" W (7.29mm x 4.32mm) | 0.169" (4.30mm) | - | E | - | High Reliability | - | - | - |
|
M39003/01-2380CAP TANT 22UF 10% 50V AXIAL |
267 |
|
- |
CSR13 | Tray | Active | 22 µF | ±10% | 50 V | Hermetically Sealed | 1Ohm | -55°C ~ 125°C | - | Through Hole | 0.351" Dia x 0.922" L (8.92mm x 23.42mm) | - | - | D | - | High Reliability | M (1%) | Military | MIL-PRF-39003/1 |
|
|
M39003/01-2312CAP TANT 47UF 10% 35V AXIAL |
313 |
|
- |
CSR13 | Tray | Active | 47 µF | ±10% | 35 V | Hermetically Sealed | 800mOhm | -55°C ~ 125°C | - | Through Hole | 0.351" Dia x 0.922" L (8.92mm x 23.42mm) | - | - | D | - | High Reliability | M (1%) | Military | MIL-PRF-39003/1 |
|
|
CWR29HC476KCHCCAP TANT 47UF 10% 15V 2915 |
1,437 |
|
- |
CWR29 | Tape & Reel (TR) | Active | 47 µF | ±10% | 15 V | Molded | 180mOhm @ 100kHz | -55°C ~ 125°C | - | Surface Mount | 0.285" L x 0.150" W (7.24mm x 3.81mm) | 0.125" (3.17mm) | - | H | - | High Reliability | C (0.01%) | Military | MIL-PRF-55365/11 |
|
|
T97Z476K050LSACAP TANT 47UF 10% 50V 3024 |
750 |
|
- |
TANTAMOUNT™, T97 | Tape & Reel (TR) | Active | 47 µF | ±10% | 50 V | Conformal Coated | 240mOhm | -55°C ~ 85°C | - | Surface Mount | 0.299" L x 0.236" W (7.60mm x 6.00mm) | 0.252" (6.40mm) | - | Z | COTS | High Reliability | - | - | - |
|
M39006/25-0250CAP TANT 10UF 10% 100V AXIAL |
164 |
|
- |
CLR81 | Bulk | Active | 10 µF | ±10% | 100 V | Hermetically Sealed | - | -55°C ~ 125°C | - | Through Hole | 0.219" Dia x 0.515" L (5.56mm x 13.08mm) | - | - | T1 | - | High Reliability | R (0.01%) | Military | MIL-PRF-39006/25 |
|
109D826X9075F2CAP TANT 82UF 10% 75V AXIAL |
345 |
|
- |
TANTALEX™, 109D | Tray | Active | 82 µF | ±10% | 75 V | Hermetically Sealed | 2.5Ohm | -55°C ~ 125°C | - | Through Hole | 0.312" Dia x 0.796" L (7.92mm x 20.22mm) | - | - | F | - | Wet Tantalum | - | - | - |
|
|
109D107X9060F2CAP TANT 100UF 10% 60V AXIAL |
325 |
|
- |
TANTALEX™, 109D | Tray | Active | 100 µF | ±10% | 60 V | Hermetically Sealed | 2.5Ohm | -55°C ~ 125°C | - | Through Hole | 0.312" Dia x 0.796" L (7.92mm x 20.22mm) | - | - | F | - | Wet Tantalum | - | - | - |
|
135D106X9100C6CAP TANT 10UF 10% 100V AXIAL |
87 |
|
- |
135D | Tray | Active | 10 µF | ±10% | 100 V | Hermetically Sealed | 5.9Ohm | -55°C ~ 200°C | - | Through Hole | 0.203" Dia x 0.453" L (5.16mm x 11.51mm) | - | - | C | - | Wet Tantalum | - | - | - |
|
|
135D685X9125C6CAP TANT 6.8UF 10% 125V AXIAL |
32 |
|
- |
135D | Tray | Active | 6.8 µF | ±10% | 125 V | Hermetically Sealed | 11.7Ohm | -55°C ~ 200°C | - | Through Hole | 0.203" Dia x 0.453" L (5.16mm x 11.51mm) | - | - | C | - | Wet Tantalum | - | - | - |
|
135D226X9100F6CAP TANT 22UF 10% 100V AXIAL |
173 |
|
- |
135D | Tray | Active | 22 µF | ±10% | 100 V | Hermetically Sealed | 4.8Ohm | -55°C ~ 200°C | - | Through Hole | 0.296" Dia x 0.641" L (7.52mm x 16.28mm) | - | - | F | - | Wet Tantalum | - | - | - |
