Tantalum Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Type | ESR (Equivalent Series Resistance) | Operating Temperature | Lifetime @ Temp. | Mounting Type | Size / Dimension | Height - Seated (Max) | Lead Spacing | Manufacturer Size Code | Ratings | Features | Failure Rate | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
592D158X06R3R2T20HCAP TANT 1500UF 20% 6.3V 2824 |
4,641 |
|
- |
TANTAMOUNT™, 592D | Tape & Reel (TR) | Active | 1500 µF | ±20% | 6.3 V | Conformal Coated | 120mOhm | -55°C ~ 125°C | - | Surface Mount | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.079" (2.00mm) | - | R | - | General Purpose | - | - | - |
|
173D226X9035YWE3CAP TANT 22UF 10% 35V AXIAL |
227 |
|
- |
TANTALEX™, 173D | Tape & Reel (TR) | Active | 22 µF | ±10% | 35 V | Molded | - | -55°C ~ 125°C | - | Through Hole | 0.280" Dia x 0.550" L (7.11mm x 13.97mm) | - | - | Y | - | General Purpose | - | - | - |
|
T354K226K035ATCAP TANT 22UF 10% 35V RADIAL |
174 |
|
- |
T354, UltraDip II | Bulk | Active | 22 µF | ±10% | 35 V | Conformal Coated | 1.3Ohm @ 100kHz | -55°C ~ 125°C | - | Through Hole | 0.350" Dia (8.90mm) | 0.610" (15.50mm) | 0.250" (6.35mm) | K | - | General Purpose | - | - | - |
|
597D107X0035F2TCAP TANT 100UF 20% 35V 3024 |
4,715 |
|
- |
TANTAMOUNT™, 597D | Tape & Reel (TR) | Active | 100 µF | ±20% | 35 V | Conformal Coated | 100mOhm | -55°C ~ 125°C | - | Surface Mount | 0.299" L x 0.236" W (7.60mm x 6.00mm) | 0.201" (5.10mm) | - | F | - | General Purpose | - | - | - |
|
|
597D477X9010E2TCAP TANT 470UF 10% 10V 2917 |
186 |
|
- |
TANTAMOUNT™, 597D | Tape & Reel (TR) | Active | 470 µF | ±10% | 10 V | Conformal Coated | 28mOhm | -55°C ~ 125°C | - | Surface Mount | 0.299" L x 0.173" W (7.60mm x 4.40mm) | 0.173" (4.40mm) | - | E | - | General Purpose | - | - | - |
|
TM8M106K6R3UBACAP TANT 10UF 10% 6.3V 0603 |
1,865 |
|
- |
MICROTAN®, TM8 | Tape & Reel (TR) | Active | 10 µF | ±10% | 6.3 V | Molded | 5Ohm | -55°C ~ 125°C | - | Surface Mount | 0.063" L x 0.033" W (1.60mm x 0.85mm) | 0.039" (0.99mm) | - | M | - | High Reliability | - | - | - |
|
|
TM8R106K016UBACAP TANT 10UF 10% 16V 0805 |
504 |
|
- |
MICROTAN®, TM8 | Tape & Reel (TR) | Active | 10 µF | ±10% | 16 V | Molded | 6Ohm | -55°C ~ 125°C | - | Surface Mount | 0.081" L x 0.053" W (2.06mm x 1.35mm) | 0.062" (1.57mm) | - | R | - | High Reliability | - | - | - |
|
|
TM8R106K010UBACAP TANT 10UF 10% 10V 0805 |
550 |
|
- |
MICROTAN®, TM8 | Tape & Reel (TR) | Active | 10 µF | ±10% | 10 V | Molded | 6Ohm | -55°C ~ 125°C | - | Surface Mount | 0.081" L x 0.053" W (2.06mm x 1.35mm) | 0.062" (1.57mm) | - | R | - | High Reliability | - | - | - |
|

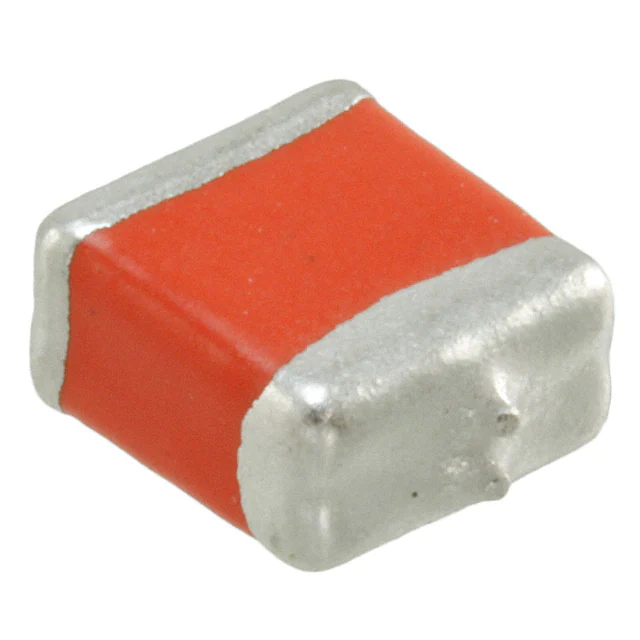

597D227X0025M2TCAP TANT 220UF 20% 25V 3226 |
2,611 |
|
- |
TANTAMOUNT™, 597D | Tape & Reel (TR) | Active | 220 µF | ±20% | 25 V | Conformal Coated | 100mOhm | -55°C ~ 125°C | - | Surface Mount | 0.315" L x 0.260" W (8.00mm x 6.60mm) | 0.157" (4.00mm) | - | M | - | General Purpose | - | - | - |
|
|
597D227X9025M2TCAP TANT 220UF 10% 25V 3226 |
668 |
|
- |
TANTAMOUNT™, 597D | Tape & Reel (TR) | Active | 220 µF | ±10% | 25 V | Conformal Coated | 100mOhm | -55°C ~ 125°C | - | Surface Mount | 0.315" L x 0.260" W (8.00mm x 6.60mm) | 0.157" (4.00mm) | - | M | - | General Purpose | - | - | - |
|
|
597D108X9010F2TCAP TANT 1000UF 10% 10V 2924 |
210 |
|
- |
TANTAMOUNT™, 597D | Tape & Reel (TR) | Active | 1000 µF | ±10% | 10 V | Conformal Coated | 120mOhm | -55°C ~ 125°C | - | Surface Mount | 0.299" L x 0.236" W (7.60mm x 6.00mm) | 0.203" (5.16mm) | - | F | - | General Purpose | - | - | - |
|
|
592D228X96R3X2T20HCAP TANT 2200UF 10% 6.3V 5829 |
22,487 |
|
- |
TANTAMOUNT™, 592D | Tape & Reel (TR) | Active | 2200 µF | ±10% | 6.3 V | Conformal Coated | 55mOhm | -55°C ~ 125°C | - | Surface Mount | 0.571" L x 0.290" W (14.50mm x 7.37mm) | 0.079" (2.00mm) | - | X | - | General Purpose | - | - | - |
|

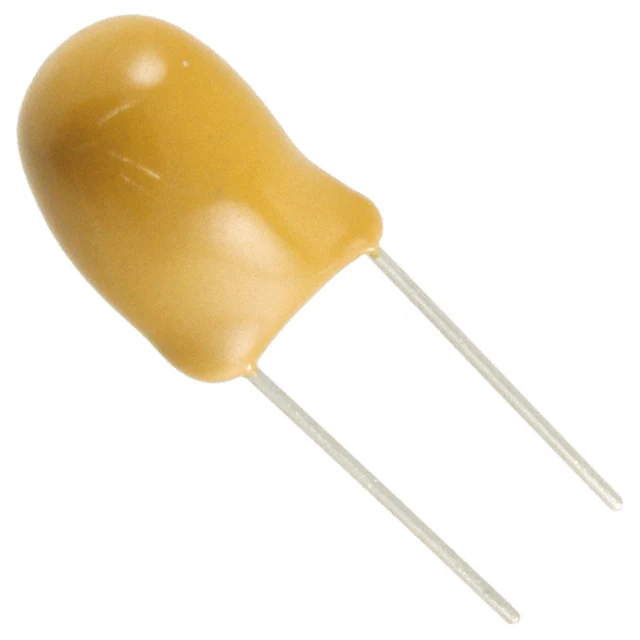

T350K106K050ATCAP TANT 10UF 10% 50V RADIAL |
868 |
|
- |
T350, UltraDip II | Bulk | Active | 10 µF | ±10% | 50 V | Conformal Coated | 1.6Ohm | -55°C ~ 125°C | - | Through Hole | 0.350" Dia (8.90mm) | 0.532" (13.50mm) | 0.200" (5.08mm) | K | - | General Purpose | - | - | - |
|
|
T95R337K016LSALCAP TANT 330UF 10% 16V 2824 |
122 |
|
- |
TANTAMOUNT™, T95 | Tape & Reel (TR) | Active | 330 µF | ±10% | 16 V | Conformal Coated | 55mOhm | -55°C ~ 125°C | - | Surface Mount | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.150" (3.80mm) | - | R | COTS | High Reliability | - | - | - |
|
|
597D226X0050R2TCAP TANT 22UF 20% 50V 3024 |
1,590 |
|
- |
TANTAMOUNT™, 597D | Tape & Reel (TR) | Active | 22 µF | ±20% | 50 V | Conformal Coated | 220mOhm | -55°C ~ 125°C | - | Surface Mount | 0.299" L x 0.236" W (7.60mm x 6.00mm) | 0.157" (4.00mm) | - | R | - | General Purpose | - | - | - |
|
|
T95R226K050LSALCAP TANT 22UF 10% 50V 2824 |
337 |
|
- |
TANTAMOUNT™, T95 | Tape & Reel (TR) | Active | 22 µF | ±10% | 50 V | Conformal Coated | 300mOhm | -55°C ~ 125°C | - | Surface Mount | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.150" (3.80mm) | - | R | COTS | High Reliability | - | - | - |
|
M39003/01-2289CAP TANT 15UF 10% 20V AXIAL |
762 |
|
- |
CSR13 | Bulk | Active | 15 µF | ±10% | 20 V | Hermetically Sealed | 2.3Ohm | -55°C ~ 125°C | - | Through Hole | 0.185" Dia x 0.610" L (4.70mm x 15.49mm) | - | - | B | - | High Reliability | M (1%) | Military | MIL-PRF-39003/1 |
|
|
M39003/01-2271CAP TANT 22UF 10% 15V AXIAL |
225 |
|
- |
CSR13 | Bulk | Active | 22 µF | ±10% | 15 V | Hermetically Sealed | 2Ohm | -55°C ~ 125°C | - | Through Hole | 0.185" Dia x 0.610" L (4.70mm x 15.49mm) | - | - | B | - | High Reliability | M (1%) | Military | MIL-PRF-39003/1 |
|
|
M39003/01-2286CAP TANT 10UF 10% 20V AXIAL |
835 |
|
- |
CSR13 | Bulk | Active | 10 µF | ±10% | 20 V | Hermetically Sealed | 2.9Ohm | -55°C ~ 125°C | - | Through Hole | 0.185" Dia x 0.610" L (4.70mm x 15.49mm) | - | - | B | - | High Reliability | M (1%) | Military | MIL-PRF-39003/1 |
|
CWR09HC106KBCAP TANT 10UF 10% 15V 2214 |
215 |
|
- |
CWR09 | Tape & Reel (TR) | Active | 10 µF | ±10% | 15 V | Molded | 2.5Ohm | -55°C ~ 125°C | - | Surface Mount | 0.220" L x 0.135" W (5.59mm x 3.43mm) | 0.085" (2.16mm) | - | - | - | High Reliability | B (0.1%) | Military | MIL-PRF-55365/4 |
