Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P11S1V0FLSY00222KAPOT 2.2K OHM 1W CERMET LINEAR |
0 |
|
Datasheet | P11S | Box | Active | 2.2k | ±10% | 1W | - | 1.0 | - | Linear | 1 | User Defined | ±500ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
P11S1V0FLSY00252KAPOT 2.5K OHM 1W CERMET LINEAR |
0 |
|
Datasheet | P11S | Box | Active | 2.5k | ±10% | 1W | - | 1.0 | - | Linear | 1 | User Defined | ±500ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
P11S1V0FGSW00222KAPOT 2.2K OHM 1W CERMET LINEAR |
0 |
|
Datasheet | P11S | Box | Active | 2.2k | ±10% | 1W | - | 1.0 | - | Linear | 1 | Top Adjustment | ±500ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.630" (16.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
P11S1V0FLSY00472KAPOT 4.7K OHM 1W CERMET LINEAR |
0 |
|
Datasheet | P11S | Box | Active | 4.7k | ±10% | 1W | - | 1.0 | - | Linear | 1 | User Defined | ±500ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
P11S1V0FLSY00253KAPOT 25K OHM 1W CERMET LINEAR |
0 |
|
Datasheet | P11S | Box | Active | 25k | ±10% | 1W | - | 1.0 | - | Linear | 1 | User Defined | ±500ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
P11S1V0FLSY00474KAPOT 470K OHM 1W CERMET LINEAR |
0 |
|
Datasheet | P11S | Box | Active | 470k | ±10% | 1W | - | 1.0 | - | Linear | 1 | User Defined | ±500ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
P11S1T0AJSY00103JAPOT 10K OHM 1W CERMET LINEAR |
0 |
|
Datasheet | P11S | Box | Active | 10k | ±5% | 1W | - | 1.0 | - | Linear | 1 | User Defined | ±500ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.866" (22.00mm) | 0.118" (3.00mm) | M6 x 0.75 | Panel Mount |
|
|
P11S1Q0EJSX00223JAPOT 22K OHM 1W CERMET LINEAR |
0 |
|
Datasheet | P11S | Box | Active | 22k | ±5% | 1W | - | 1.0 | - | Linear | 1 | Side Adjustment | ±500ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.866" (22.00mm) | 0.157" (4.00mm) | M7 x 0.75 | Panel Mount |
|
|
P11S1T0AJSY00474JAPOT 470K OHM 1W CERMET LINEAR |
0 |
|
Datasheet | P11S | Box | Active | 470k | ±5% | 1W | - | 1.0 | - | Linear | 1 | User Defined | ±500ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.866" (22.00mm) | 0.118" (3.00mm) | M6 x 0.75 | Panel Mount |
|
|
P11S1T0AJSZ00223JAPOT 22K OHM 1W CERMET LINEAR |
0 |
|
Datasheet | P11S | Box | Active | 22k | ±5% | 1W | - | 1.0 | - | Linear | 1 | Side Adjustment | ±500ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.866" (22.00mm) | 0.118" (3.00mm) | M6 x 0.75 | Panel Mount |
|
|
P11S1Q0EJSZ00223JAPOT 22K OHM 1W CERMET LINEAR |
0 |
|
Datasheet | P11S | Box | Active | 22k | ±5% | 1W | - | 1.0 | - | Linear | 1 | Side Adjustment | ±500ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.866" (22.00mm) | 0.157" (4.00mm) | M7 x 0.75 | Panel Mount |
|
|
P11S1T0AJSZ00472JAPOT 4.7K OHM 1W CERMET LINEAR |
0 |
|
Datasheet | P11S | Box | Active | 4.7k | ±5% | 1W | - | 1.0 | - | Linear | 1 | Side Adjustment | ±500ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.866" (22.00mm) | 0.118" (3.00mm) | M6 x 0.75 | Panel Mount |
|
|
P11S1Q0EJSZ00471JAPOT 470 OHM 1W CERMET LINEAR |
0 |
|
Datasheet | P11S | Box | Active | 470 | ±5% | 1W | - | 1.0 | - | Linear | 1 | Side Adjustment | ±500ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.866" (22.00mm) | 0.157" (4.00mm) | M7 x 0.75 | Panel Mount |
|
|
P11S1Q0EJSZ00104JAPOT 100K OHM 1W CERMET LINEAR |
0 |
|
Datasheet | P11S | Box | Active | 100k | ±5% | 1W | - | 1.0 | - | Linear | 1 | Side Adjustment | ±500ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.866" (22.00mm) | 0.157" (4.00mm) | M7 x 0.75 | Panel Mount |
|

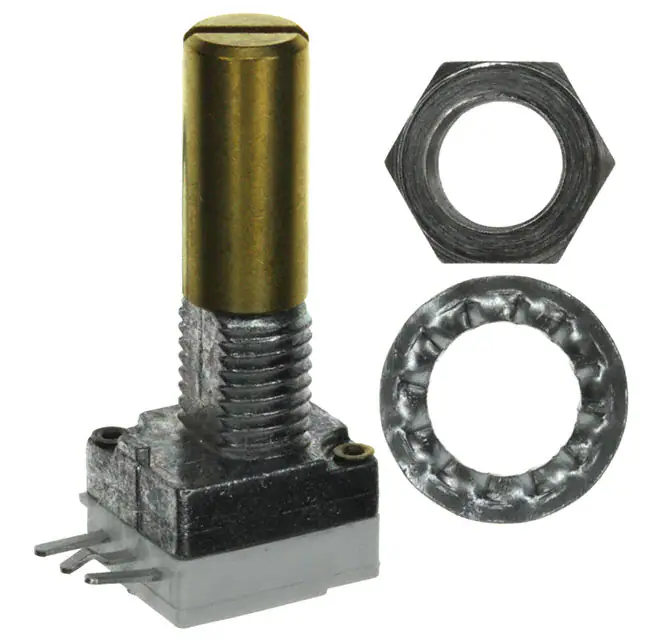

P11A1T0AJSY00103KAPOT 10K OHM 1/2W PLASTIC LIN |
0 |
|
Datasheet | P11A | Bulk | Active | 10k | ±10% | 0.5W, 1/2W | None | 1.0 | - | Linear | 1 | User Defined | ±500ppm/°C | 300° | Conductive Plastic | Solder Lug | Slotted | 0.866" (22.00mm) | 0.118" (3.00mm) | M6 x 0.75 | Panel Mount |
|
|
P11A1T0AJSZ00103KAPOT 10K OHM 1/2W PLASTIC LINEAR |
0 |
|
Datasheet | P11A | Box | Active | 10k | ±10% | 0.5W, 1/2W | - | 1.0 | - | Linear | 1 | Side Adjustment | ±500ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.866" (22.00mm) | 0.118" (3.00mm) | M6 x 0.75 | Panel Mount |
|
|
P11A1T0AJSZ00203KAPOT 20K OHM 1/2W PLASTIC LINEAR |
0 |
|
Datasheet | P11A | Box | Active | 20k | ±10% | 0.5W, 1/2W | - | 1.0 | - | Linear | 1 | Side Adjustment | ±500ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.866" (22.00mm) | 0.118" (3.00mm) | M6 x 0.75 | Panel Mount |
|
|
P11A1T0AJSY00474KAPOT 470K OHM 1/2W PLASTIC LINEAR |
0 |
|
Datasheet | P11A | Box | Active | 470k | ±10% | 0.5W, 1/2W | - | 1.0 | - | Linear | 1 | User Defined | ±500ppm/°C | 300° | Conductive Plastic | Solder Lug | Slotted | 0.866" (22.00mm) | 0.118" (3.00mm) | M6 x 0.75 | Panel Mount |
|
|
P11A1T0AJSY00473KAPOT 47K OHM 1/2W PLASTIC LINEAR |
0 |
|
Datasheet | P11A | Box | Active | 47k | ±10% | 0.5W, 1/2W | - | 1.0 | - | Linear | 1 | User Defined | ±500ppm/°C | 300° | Conductive Plastic | Solder Lug | Slotted | 0.866" (22.00mm) | 0.118" (3.00mm) | M6 x 0.75 | Panel Mount |
|
|
P11A1T0AJSX00474KAPOT 470K OHM 1/2W PLASTIC LINEAR |
0 |
|
Datasheet | P11A | Box | Active | 470k | ±10% | 0.5W, 1/2W | - | 1.0 | - | Linear | 1 | Side Adjustment | ±500ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.866" (22.00mm) | 0.118" (3.00mm) | M6 x 0.75 | Panel Mount |
