Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
534B1101JCPOT 100 OHM 2W WIREWOUND LINEAR |
2 |
|
Datasheet | 534 | Bulk | Active | 100 | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
534B1102JCPOT 1K OHM 2W WIREWOUND LINEAR |
3 |
|
Datasheet | 534 | Bulk | Active | 1k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
249FGJS0XB25102KAPOT 1K OHM 1W CERMET LINEAR |
0 |
|
Datasheet | 249 | Box | Active | 1k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 295° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
PE30L0FR103MABPOT 10K OHM 3W CERMET LINEAR |
0 |
|
Datasheet | PE30 | Box | Active | 10k | ±20% | 3W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Round | 1.969" (50.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|

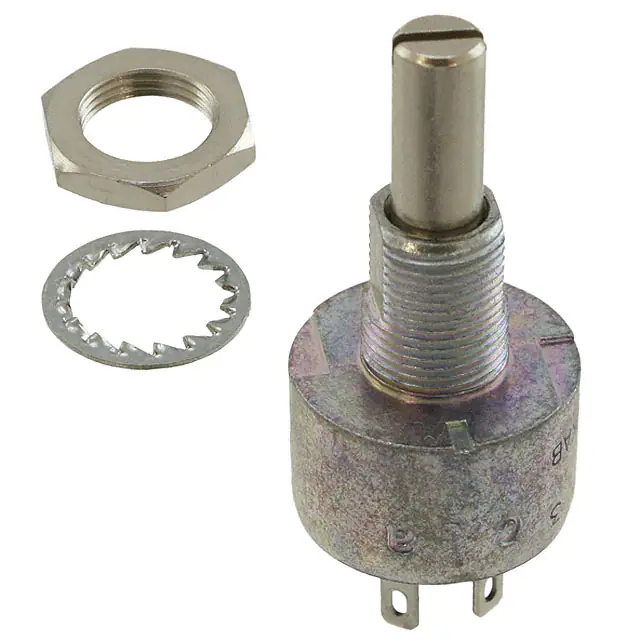

PE30L0FL472KABPOT 4.7K OHM 3W CERMET LINEAR |
0 |
|
Datasheet | PE30 | Bulk | Active | 4.7k | ±10% | 3W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
140B00103POT 10K OHM 2W WIREWOUND LINEAR |
0 |
|
Datasheet | 140 | Bulk | Active | 10k | ±5% | 2W | None | 1.0 | - | Linear | 1 | User Defined | ±20ppm/°C | 330° | Wirewound | Solder Turret | Slotted | 0.700" (17.78mm) | 0.1248" (3.17mm) | 1/4-32 | Panel Mount |
|
830B1103POT 10K OHM 3W WIREWOUND LINEAR |
1 |
|
Datasheet | 830 | Box | Active | 10k | ±3% | 3W | None | 3.0 | - | Linear | 1 | User Defined | ±20ppm/°C | 1080° | Wirewound | Solder Lug | Round | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
P1004-95POT 100K OHM 1/4W WIREWOUND LIN |
4 |
|
Datasheet | P1004 | Bulk | Active | 100k | ±10% | 0.25W, 1/4W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Wirewound | Solder Lug | Knurled and Slotted | - | - | - | Panel Mount |
|
PRV6SAABJYB25103KAPOT 10K OHM 1.5W CERMET LINEAR |
0 |
|
Datasheet | PRV6 | Box | Active | 10k | ±10% | 1.5W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.866" (22.00mm) | 0.125" (3.18mm) | - | Panel Mount |
.jpg)
|
P11S1V0FLSY00103KAPOT 10K OHM 1W CERMET LINEAR |
0 |
|
Datasheet | P11S | Box | Active | 10k | ±10% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
P11S1V0FLSY00105KAPOT 1M OHM 0.12W CERMET LINEAR |
0 |
|
Datasheet | P11S | Box | Active | 1M | ±10% | 0.12W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M6 x 0.75 | Panel Mount |
|
P11S1V0FLSY00503KLPOT 50K OHM 1/2W CERMET LOG |
5 |
|
Datasheet | P11S | Box | Active | 50k | ±10% | 0.5W, 1/2W | None | 1.0 | Sealed | Logarithmic | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M6 x 0.75 | Panel Mount |
|
P1004-15POT 1.5M OHM 1/4W WIREWOUND LIN |
0 |
|
Datasheet | P1004 | Bulk | Active | 1.5M | ±10% | 0.25W, 1/4W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Wirewound | Solder Lug | Knurled and Slotted | - | - | - | Panel Mount |
|
P1004-12POT 3M OHM 1/4W WIREWOUND LINEAR |
2 |
|
Datasheet | P1004 | Bulk | Active | 3M | ±10% | 0.25W, 1/4W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Wirewound | Solder Lug | Knurled and Slotted | - | - | - | Panel Mount |
|
P16NP472KAB15POT 4.7K OHM 1W CERMET LINEAR |
0 |
|
Datasheet | P16 | Box | Active | 4.7k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | - | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
P1004-13POT 5M OHM 1/4W WIREWOUND LINEAR |
0 |
|
Datasheet | P1004 | Bulk | Active | 5M | ±10% | 0.25W, 1/4W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Wirewound | Solder Lug | Knurled and Slotted | - | - | - | Panel Mount |
|
534B1102JC8872POT 1K OHM 2W WIREWOUND LINEAR |
5 |
|
Datasheet | 534 | Box | Active | 1k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.236" (6.00mm) | 3/8-32 | Panel Mount |
|
|
534B1203JLPOT 20K OHM 2W WIREWOUND LINEAR |
2 |
|
Datasheet | 534 | Box | Active | 20k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

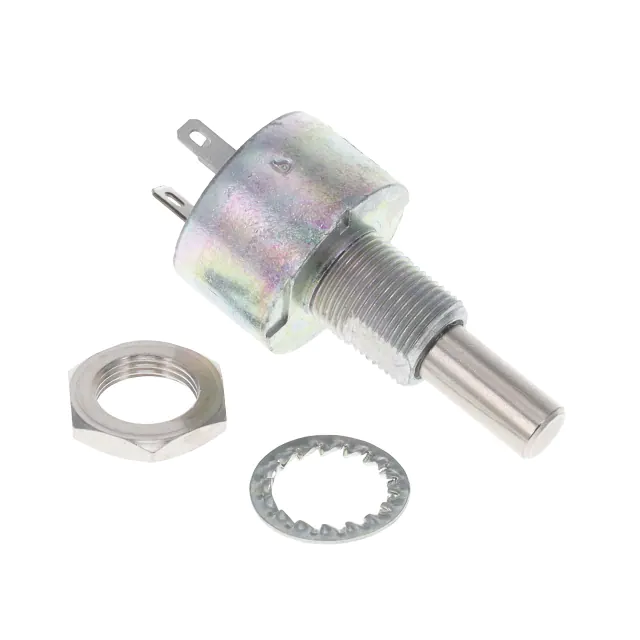

P30LL0FLR502MAPOT 5K OHM 3W CERMET LINEAR |
5 |
|
Datasheet | P30L | Box | Active | 5k | ±20% | 3W | None | 1.0 | Long Life | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Round | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
P1004-175POT 200K OHM 1/4W WIREWOUND LIN |
1 |
|
Datasheet | P1004 | Bulk | Active | 200k | ±10% | 0.25W, 1/4W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Wirewound | Solder Lug | Knurled and Slotted | - | - | - | Panel Mount |
