Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P16NM472MAB15CV1DP16 NM 4K7 20% A BO E3 CV1D |
39 |
|
Datasheet | P16 | Box | Active | 4.7k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Round | 0.402" (10.20mm) | 0.370" (9.40mm) | M10 x 0.75 | Panel Mount |
|
|
249FGJSPXB25104KAPOT 100K OHM 0.9W CERMET LINEAR |
100 |
|
Datasheet | 249 | Box | Active | 100k | ±10% | 0.9W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 295° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8 | Panel Mount |
|
|
248FGJSPXB25103MAPOT 10K OHM 1/2W PLASTIC LINEAR |
98 |
|
Datasheet | 248 | Box | Active | 10k | ±20% | 0.5W, 1/2W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±500ppm/°C | 295° | Conductive Plastic | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8 | Panel Mount |
|
|
14820F0GJSX13103KAPOT 10K OHM 1/2W PLASTIC LINEAR |
36 |
|
Datasheet | 148 | Box | Active | 10k | ±10% | 0.5W, 1/2W | None | 1.0 | - | Linear | 2 | Side Adjustment | ±500ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 1/4-32 | Panel Mount |
|
|
P11A2Q0EBSZ00103KLPOT 10K OHM 1/4W PLASTIC LOG |
26 |
|
Datasheet | P11A | Box | Active | 10k | ±10% | 0.25W, 1/4W | None | 1.0 | Sealed | Logarithmic | 2 | Side Adjustment | ±500ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.492" (12.50mm) | 0.157" (4.00mm) | 3/8 | Through Hole |
|
|
P11A1Q0EBSZ00103KAPOT 10K OHM 1/2W PLASTIC LINEAR |
34 |
|
Datasheet | P11A | Box | Active | 10k | ±10% | 0.5W, 1/2W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±500ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.492" (12.50mm) | 0.157" (4.00mm) | 3/8 | Through Hole |
|
|
14810AABHSX10103KAPOT 10K OHM 1/2W PLASTIC LINEAR |
25 |
|
Datasheet | 148 | Box | Active | 10k | ±10% | 0.5W, 1/2W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±500ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.750" (19.05mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
P16NM205KAB15POT 2M OHM 1W CERMET LINEAR |
15 |
|
Datasheet | P16 | Box | Active | 2M | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.370" (9.40mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
|
PE30L0FG223KABPOT 22K OHM 3W CERMET LINEAR |
20 |
|
Datasheet | PE30 | Box | Active | 22k | ±10% | 3W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.630" (16.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
357B0103MAB251S22POT 10K OHM 1W PLASTIC LINEAR |
48 |
|
Datasheet | 357 | Bulk | Active | 10k | ±20% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±600ppm/°C | Continuous | Conductive Plastic | Solder Turret | Slotted | 0.874" (22.20mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
249FGJSPXB25253KAPOT 25K OHM 1W CERMET LINEAR |
90 |
|
Datasheet | 249 | Box | Active | 25k | ±10% | 1W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 295° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8 | Panel Mount |
|
|
PRV4F0GJS104KAB10POT |
20 |
|
Datasheet | PRV4 | Box | Active | 100k | ±10% | 2W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±300ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
534B1202JLPOT 2K OHM 2W WIREWOUND LINEAR |
29 |
|
Datasheet | 534 | Box | Active | 2k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
P13LFL222MAB10POT 2.2K OHM 1.5W CERMET LINEAR |
30 |
|
Datasheet | P13 | Box | Active | 2.2k | ±20% | 1.5W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
PE30L0FL223KLBPOT 22K OHM 1.5W CERMET LOG |
40 |
|
Datasheet | PE30 | Box | Active | 22k | ±10% | 1.5W | None | 1.0 | Sealed | Logarithmic | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
249FGJSPXB25501KAPOT 500 OHM 1W CERMET LINEAR |
98 |
|
Datasheet | 249 | Box | Active | 500 | ±10% | 1W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 295° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8 | Panel Mount |
|
|
248BBHS0XB25503MAPOT 50K OHM 1/2W PLASTIC LINEAR |
62 |
|
Datasheet | 248 | Box | Active | 50k | ±20% | 0.5W, 1/2W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±500ppm/°C | 295° | Conductive Plastic | PC Pins | Slotted | 0.750" (19.05mm) | 0.125" (3.18mm) | 1/4 | Panel Mount |
|
|
P16SNM105MLB15POT 1M OHM 0.12W CERMET LOG |
20 |
|
Datasheet | P16S | Box | Active | 1M | ±20% | 0.12W | None | 1.0 | Sealed | Logarithmic | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.370" (9.40mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
|
P16SNM471MLB15POT 470 OHM 1/2W CERMET LOG |
19 |
|
Datasheet | P16S | Box | Active | 470 | ±20% | 0.5W, 1/2W | None | 1.0 | Sealed | Logarithmic | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.370" (9.40mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|

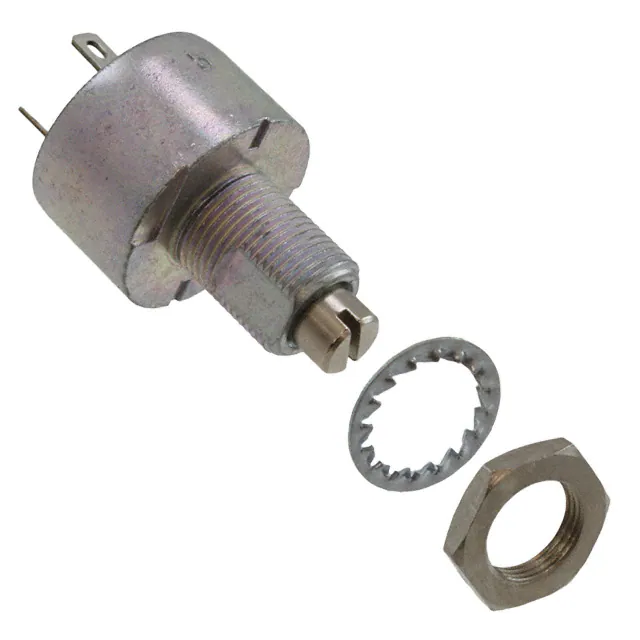

PE30L0FG102MABPOT 1K OHM 3W CERMET LINEAR |
55 |
|
Datasheet | PE30 | Bulk | Active | 1k | ±20% | 3W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.630" (16.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
