Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
249FGJS0XB25503KAPOT 50K OHM 1W CERMET LINEAR |
26 |
|
Datasheet | 249 | Box | Active | 50k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 295° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
248BBHS0XB25252MAPOT 2.5K OHM 1/2W PLASTIC LINEAR |
20 |
|
Datasheet | 248 | Box | Active | 2.5k | ±20% | 0.5W, 1/2W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±500ppm/°C | 295° | Conductive Plastic | PC Pins | Slotted | 0.750" (19.05mm) | 0.125" (3.18mm) | 1/4 | Panel Mount |
|
|
249BBHS0XB25502KAPOT 5K OHM 1W CERMET LINEAR |
20 |
|
Datasheet | 249 | Box | Active | 5k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 295° | Cermet | PC Pins | Slotted | 0.750" (19.05mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
534B1503JLPOT 50K OHM 2W WIREWOUND LINEAR |
44 |
|
Datasheet | 534 | Box | Active | 50k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

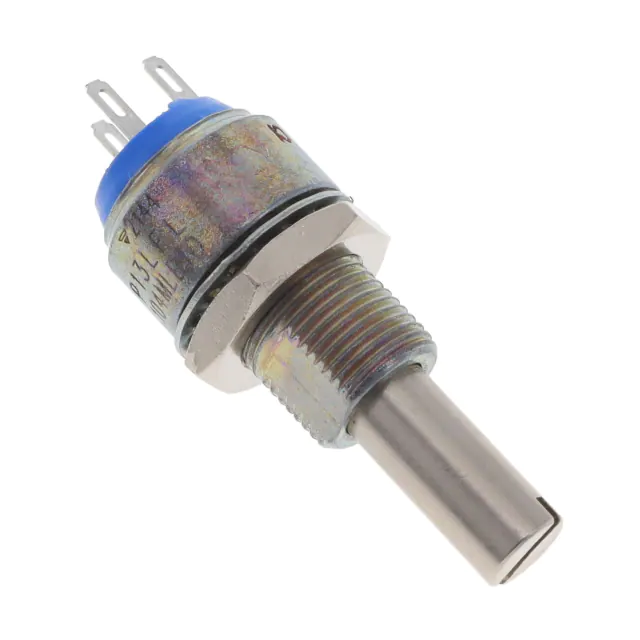

P13LFL104MLB10POT 100K OHM 3/4W CERMET LOG |
55 |
|
Datasheet | P13 | Box | Active | 100k | ±20% | 0.75W, 3/4W | None | 1.0 | Sealed | Logarithmic | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
157B102MX9001POT 1K OHM 1W PLASTIC LINEAR |
13 |
|
Datasheet | 157 | Box | Active | 1k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±600ppm/°C | 360° | Conductive Plastic | Solder Turret | Round | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
PE30L0FL473KABPOT 47K OHM 1.91W CERMET LINEAR |
6 |
|
Datasheet | PE30 | Box | Active | 47k | ±10% | 1.91W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
PE30L0FR224KABPOT 220K OHM 0.41W CERMET LINEAR |
9 |
|
Datasheet | PE30 | Box | Active | 220k | ±10% | 0.41W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Round | 1.969" (50.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
PE30L0FL103KLBPOT 10K OHM 1.5W CERMET LOG |
8 |
|
Datasheet | PE30 | Box | Active | 10k | ±10% | 1.5W | None | 1.0 | - | Logarithmic | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
PE30MEFD103KABPOT 10K OHM 3W CERMET LINEAR |
7 |
|
Datasheet | PE30 | Box | Active | 10k | ±10% | 3W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.512" (13.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
536B202POT 2K OHM 2W WIREWOUND LINEAR |
24 |
|
Datasheet | 536 | Bulk | Active | 2k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
157B103MX9001POT 10K OHM 1W PLASTIC LINEAR |
21 |
|
Datasheet | 157 | Box | Active | 10k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±600ppm/°C | 360° | Conductive Plastic | Solder Turret | Round | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
157B502MX9001POT 5K OHM 1W PLASTIC LINEAR |
8 |
|
Datasheet | 157 | Box | Active | 5k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±600ppm/°C | 360° | Conductive Plastic | Solder Turret | Round | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
PE60L0FGW101MAPOT 100 OHM 6W CERMET LINEAR |
21 |
|
Datasheet | PE60 | Box | Active | 100 | ±20% | 6W | None | 1.0 | - | Linear | 1 | User Defined | ±250ppm/°C | 300° | Cermet | Wire Leads | Slotted | 0.630" (16.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
PE60L0FGW471MAPOT 470 OHM 6W CERMET LINEAR |
9 |
|
Datasheet | PE60 | Box | Active | 470 | ±20% | 6W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | - | 300° | Cermet | Wire Leads | Slotted | 0.630" (16.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
P13LFL103MAB10POT 10K OHM 1.5W CERMET LINEAR |
20 |
|
Datasheet | P13 | Box | Active | 10k | ±20% | 1.5W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
PE60L0FLW101MAPOT 100 OHM 6W CERMET LINEAR |
10 |
|
Datasheet | PE60 | Box | Active | 100 | ±20% | 6W | None | 1.0 | - | Linear | 1 | User Defined | ±250ppm/°C | 300° | Cermet | Wire Leads | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|

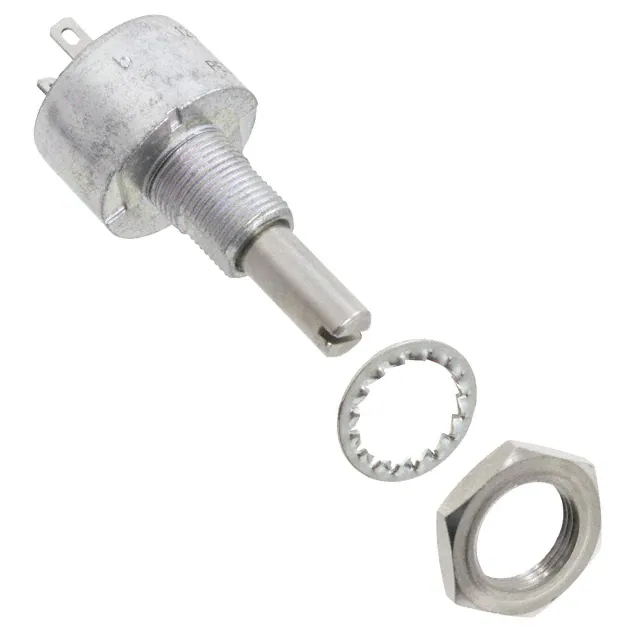

PE30L0FL222KABPOT 2.2K OHM 3W CERMET LINEAR |
20 |
|
Datasheet | PE30 | Bulk | Active | 2.2k | ±10% | 3W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
.jpg)
|
RT025AS10R0KBPOT 10 OHM 25W WIREWOUND LINEAR |
6 |
|
Datasheet | RT25 | Bulk | Active | 10 | ±10% | 25W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Wirewound | Solder Lug | Round | 0.866" (22.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
RT025AS4700KBPOT 470 OHM 25W WIREWOUND LINEAR |
12 |
|
Datasheet | RT25 | Bulk | Active | 470 | ±10% | 25W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Wirewound | Solder Lug | Round | 0.866" (22.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
