RFI and EMI - Shielding and Absorbing Materials
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Shape | Length | Width | Thickness - Overall | Operating Temperature | Adhesive | Material | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-240X240T0800.JPG)
|
EFX(05)-240X240T1500RF EMI ABSORB SHEET 9.449X9.449" |
85 |
|
Datasheet | EFX - FLEX SUPPRESSOR® | Bulk | Not For New Designs | Absorbing Sheet | Square | 9.449" (240.00mm) | 9.449" (240.00mm) | 0.025" (0.64mm) | -40°C ~ 105°C | Non-Conductive, Single Sided | Polymer, Magnetic Powder | - | - |
-120X120T2900.jpg)
|
EFS(10)-120X120T0800RF EMI ABSORB SHEET 4.724X4.724" |
37 |
|
Datasheet | EFS - FLEX SUPPRESSOR® | Bulk | Active | Absorbing Sheet | Square | 4.724" (120.00mm) | 4.724" (120.00mm) | 0.041" (1.03mm) | -40°C ~ 105°C | Non-Conductive, Single Sided | Polymer, Magnetic Powder | - | - |
|

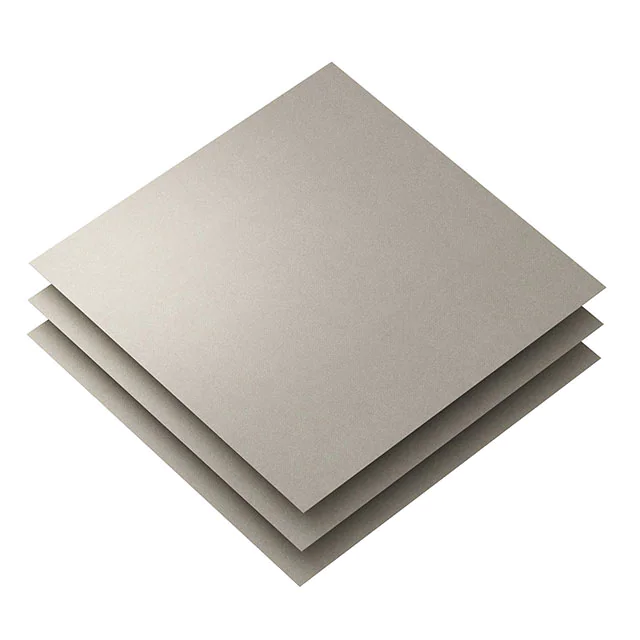

EFW(03)-240X240T0800RF EMI ABSORB SHEET 9.449X9.449" |
30 |
|
Datasheet | EFW - FLEX SUPPRESSOR® | Bulk | Active | Absorbing Sheet | Square | 9.449" (240.00mm) | 9.449" (240.00mm) | 0.013" (0.33mm) | -40°C ~ 105°C | Non-Conductive, Single Sided | Polymer, Magnetic Powder | - | - |
|
|
EFF(03)-240X240T0800RF EMI ABSORB SHEET 9.449X9.449" |
110 |
|
Datasheet | EFF - FLEX SUPPRESSOR® | Bulk | Not For New Designs | Absorbing Sheet | Square | 9.449" (240.00mm) | 9.449" (240.00mm) | 0.013" (0.33mm) | -40°C ~ 105°C | Non-Conductive, Single Sided | Polymer, Magnetic Powder | - | - |
|
|
EFA(01)-240X240T0800RF EMI ABSORB SHEET 9.449X9.449" |
16 |
|
Datasheet | EFA - FLEX SUPPRESSOR® | Bulk | Active | Absorbing Sheet | Square | 9.449" (240.00mm) | 9.449" (240.00mm) | 0.005" (0.13mm) | -40°C ~ 105°C | Non-Conductive, Single Sided | Polymer Resin, Magnetic Powder | - | - |
|
|
EFF4(02)-240X240RF EMI ABSORB SHEET 9.449X9.449" |
41 |
|
Datasheet | EFF4 - FLEX SUPPRESSOR® | Bulk | Active | Absorbing Sheet | Square | 9.449" (240.00mm) | 9.449" (240.00mm) | 0.008" (0.20mm) | -40°C ~ 125°C | - | Polymer, Magnetic Powder | Automotive | AEC-Q200 |
|
|
EFF(01)-240X240T0800RF EMI ABSORB SHEET 9.449X9.449" |
71 |
|
Datasheet | EFF - FLEX SUPPRESSOR® | Bulk | Not For New Designs | Absorbing Sheet | Square | 9.449" (240.00mm) | 9.449" (240.00mm) | 0.005" (0.13mm) | -40°C ~ 105°C | Non-Conductive, Single Sided | Polymer, Magnetic Powder | - | - |
|
|
EFX6(02)-240X240RF EMI ABSORB SHEET 9.449X9.449" |
26 |
|
Datasheet | EFX6 - FLEX SUPPRESSOR® | Bulk | Active | Absorbing Sheet | Square | 9.449" (240.00mm) | 9.449" (240.00mm) | 0.008" (0.20mm) | -40°C ~ 105°C | Non-Conductive, Single Sided | Polymer, Magnetic Powder | - | - |
|
|
EFA(03)-240X240T0800RF EMI ABSORB SHEET 9.449X9.449" |
12 |
|
Datasheet | EFA - FLEX SUPPRESSOR® | Bulk | Active | Absorbing Sheet | Square | 9.449" (240.00mm) | 9.449" (240.00mm) | 0.013" (0.33mm) | -40°C ~ 105°C | Non-Conductive, Single Sided | Polymer Resin, Magnetic Powder | - | - |
|
|
EFG2(03)-240X240T0800RF EMI ABSORB SHEET 9.449X9.449" |
101 |
|
Datasheet | EFG2 - FLEX SUPPRESSOR® | Bulk | Active | Absorbing Sheet | Square | 9.449" (240.00mm) | 9.449" (240.00mm) | 0.013" (0.33mm) | -40°C ~ 105°C | Non-Conductive, Single Sided | Polymer, Magnetic Powder | - | - |
|
|
EFF(02)-240X240T0800RF EMI ABSORB SHEET 9.449X9.449" |
10 |
|
Datasheet | EFF - FLEX SUPPRESSOR® | Bulk | Not For New Designs | Absorbing Sheet | Square | 9.449" (240.00mm) | 9.449" (240.00mm) | 0.009" (0.23mm) | -40°C ~ 105°C | Non-Conductive, Single Sided | Polymer, Magnetic Powder | - | - |
|
|
EFR(10)-240X240T1500RF EMI ABSORB SHEET 9.449X9.449" |
37 |
|
Datasheet | EFR - FLEX SUPPRESSOR® | Bulk | Not For New Designs | Absorbing Sheet | Square | 9.449" (240.00mm) | 9.449" (240.00mm) | 0.045" (1.14mm) | -40°C ~ 105°C | Non-Conductive, Single Sided | Polymer, Magnetic Powder | - | - |
|
|
EFX(01)-240X240T0800RF EMI ABSORB SHEET 9.449X9.449" |
16 |
|
Datasheet | EFX - FLEX SUPPRESSOR® | Bulk | Not For New Designs | Absorbing Sheet | Square | 9.449" (240.00mm) | 9.449" (240.00mm) | 0.005" (0.13mm) | -40°C ~ 105°C | Non-Conductive, Single Sided | Polymer, Magnetic Powder | - | - |
|
|
EFG(02)-240X240T0800RF EMI ABSORB SHEET 9.449X9.449" |
0 |
|
Datasheet | EFG - FLEX SUPPRESSOR® | Bulk | Not For New Designs | Absorbing Sheet | Square | 9.449" (240.00mm) | 9.449" (240.00mm) | 0.009" (0.23mm) | -40°C ~ 105°C | Non-Conductive, Single Sided | Polymer, Magnetic Powder | - | - |
|
|
EFF4(01)-120X120T0800RF EMI ABSORB SHEET 4.724X4.724" |
0 |
|
Datasheet | EFF4 - FLEX SUPPRESSOR® | Bulk | Active | Absorbing Sheet | Square | 4.724" (120.00mm) | 4.724" (120.00mm) | 0.005" (0.13mm) | -40°C ~ 125°C | Non-Conductive, Single Sided | Polymer, Magnetic Powder | Automotive | AEC-Q200 |
-240X80T0800.jpg)
|
EFG3(03)-240X80T0800RF EMI ABSORB SHEET 9.449"X3.15" |
33 |
|
Datasheet | EFG3 - FLEX SUPPRESSOR® | Bulk | Active | Absorbing Sheet | Sheet | 9.449" (240.00mm) | 3.150" (80.00mm) | 0.013" (0.33mm) | -40°C ~ 105°C | Non-Conductive, Single Sided | Polymer, Magnetic Powder | - | - |
|
|
EFW(03)-240X80T0800RF EMI ABSORB SHEET 9.449"X3.15" |
30 |
|
Datasheet | EFW - FLEX SUPPRESSOR® | Bulk | Active | Absorbing Sheet | Sheet | 9.449" (240.00mm) | 3.150" (80.00mm) | 0.013" (0.33mm) | -40°C ~ 105°C | Non-Conductive, Single Sided | Polymer, Magnetic Powder | - | - |
|
ESTX(50)-9X10MT0859RF EMI ABSORB TAPE 10M X 0.354" |
31 |
|
Datasheet | ESTX - FLEX SUPPRESSOR® | Bulk | Active | Absorbing Tape | Roll | 32.808' (10.00m) | 0.354" (9.00mm) | 0.004" (0.10mm) | -40°C ~ 85°C | Non-Conductive, Single Sided | Polymer, Magnetic Powder | - | - |
|
|
ESTV(50)-9X10MT0859RF EMI ABSORB TAPE 10M X 0.354" |
18 |
|
Datasheet | ESTV - FLEX SUPPRESSOR® | Bulk | Active | Absorbing Tape | Roll | 32.808' (10.00m) | 0.354" (9.00mm) | 0.004" (0.10mm) | -40°C ~ 85°C | Non-Conductive, Single Sided | Polymer, Magnetic Powder | - | - |
-240X80T0800.jpg)
|
EFF4(05)-240X80T0800RF EMI ABSORB SHEET 9.449"X3.15" |
25 |
|
Datasheet | EFF4 - FLEX SUPPRESSOR® | Bulk | Active | Absorbing Sheet | Sheet | 9.449" (240.00mm) | 3.150" (80.00mm) | 0.021" (0.53mm) | -40°C ~ 125°C | Non-Conductive, Single Sided | Polymer, Magnetic Powder | Automotive | AEC-Q200 |
