RF Transceiver Modules and Modems
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | RF Family/Standard | Protocol | Modulation | Frequency | Data Rate | Power - Output | Sensitivity | Serial Interfaces | Antenna Type | Utilized IC / Part | Memory Size | Voltage - Supply | Current - Receiving | Current - Transmitting | Mounting Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RN2903A-I/RM105RF TXRX MOD ISM<1GHZ CAST SMD |
398 |
|
Datasheet | - | Module | Tray | Active | Not Verified | General ISM < 1GHz | LoRa™ | FSK, GFSK | 902MHz ~ 928MHz | 300kbps | 18.5dBm | -146dBm | I2C, SPI, UART | Antenna Not Included, Castellation | - | - | 2.1V ~ 3.6V | - | 42.6mA ~ 124.4mA | Surface Mount | -40°C ~ 85°C |
|
DA16200MOD-AAC4WA32RF TXRX MODULE WIFI CHIP SMD |
5,362 |
|
Datasheet | DA16200MOD-AA | 37-SMD Module | Tape & Reel (TR) | Active | Not Verified | WiFi | 802.11b/g/n | CCK, DSSS, OFDM | - | 54Mbps | 19dBm | -98.5dBm | GPIO, I2C, I2S, PWM, SDIO, SPI, UART | Chip | DA16200 | 256kB ROM, 512kB SRAM | 2.1V ~ 3.6V | 28.1mA ~ 37.4mA | 200mA ~ 280mA | Surface Mount | -40°C ~ 85°C |
|
CYBT-483056-02RF TXRX MODULE BLUETOOTH SMD |
853 |
|
Datasheet | - | - | Tape & Reel (TR) | Active | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CYBLE-212006-01RF TXRX MOD BT TH SMD |
2,952 |
|
Datasheet | EZ-BLE™ PRoC™ | 30-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth | Bluetooth v4.2 | - | 2.4GHz | 1Mbps | 7.5dBm | -93dBm | I2C, SPI, UART | Integrated, Trace | - | 256kB Flash, 32kB SRAM | 1.8V ~ 4.5V | 16.4mA | 15.6mA | Surface Mount | -40°C ~ 85°C |
|
WGM160PX22KGA3RF TXRX MODULE WIFI CHIP SMD |
318 |
|
Datasheet | Wi-Fi® | 55-SMD Module | Strip | Not For New Designs | Not Verified | WiFi | 802.11b/g/n | - | 2.412GHz ~ 2.484GHz | 72.2Mbps | 16dBm | -95.5dBm | Ethernet, I2C, SPI, UART, USART, USB | Integrated, Chip | - | 2MB Flash, 512kB RAM | 3V ~ 3.6V | 34.5mA ~ 38.5mA | 131.4mA ~ 141.3mA | Surface Mount | -40°C ~ 85°C (TA) |
|
CYBLE-202007-01RF TXRX MOD BT TH SMD |
1,727 |
|
Datasheet | PRoC™ BLE | 30-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth | Bluetooth v4.2 | - | 2.4GHz | 1Mbps | 7.5dBm | -93dBm | I2C, SPI, UART | Integrated, Trace | - | 256kB Flash, 32kB SRAM | 1.8V ~ 4.5V | 16.4mA | 27mA | Surface Mount | -40°C ~ 85°C |
|
MRF24J40ME-I/RMRF TXRX MODULE 802.15.4U.FL SMD |
897 |
|
Datasheet | - | 12-SMD Module | Tray | Active | Not Verified | 802.15.4 | Zigbee® | - | 2.4GHz | 250kbps | 19dBm | -104dBm | SPI | Antenna Not Included, U.FL | - | - | 3V ~ 3.6V | 32mA | 140mA | Surface Mount | -40°C ~ 85°C |
|
CYBLE-224116-01RF TXRX MOD BLUETOOTH CHIP SMD |
2,188 |
|
Datasheet | EZ-BLE™ PSOC™ | 32-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth | Bluetooth v4.2 | - | 2.4GHz | 8Mbps | 9.5dBm | -95dBm | I2C, SPI, UART | Integrated, Chip | - | 256kB Flash, 32kB SRAM | 2V ~ 3.6V | 21.5mA | 20mA | Surface Mount | -40°C ~ 105°C |
|
MGM13P12F512GA-V2RF TXRX MOD BT TRACE SMD |
2,564 |
|
Datasheet | Mighty Gecko | 31-SMD Module | Strip | Active | Not Verified | 802.15.4, Bluetooth | Bluetooth v5.0, Thread, Zigbee® | DSSS, GFSK, O-QPSK | 2.4GHz | 2Mbps | 19dBm | -102.1dBm | GPIO, I2C, I2S, SPI, UART | Integrated, Trace | EFR32MG13 | 512kB Flash, 64kB RAM | 1.8V ~ 3.8V | 11mA | 8.5mA | Surface Mount | -40°C ~ 85°C |
|
|
DWM3000TR13DWM3000 UWB XCVR MODULE |
1,083 |
|
Datasheet | - | 24-SMD Module | Tape & Reel (TR) | Active | - | 802.15.4, Bluetooth, Cellular | UWB, Zigbee® | - | 6.25GHz ~ 8.25GHz | 6.8Mbps | - | - | GPIO, SPI | Integrated, Ceramic Patch | DW3110 | - | 1.62V ~ 3.6V, 2.5V ~ 3.6V | 50mA ~ 55mA | 40mA ~ 45mA | Surface Mount | -40°C ~ 85°C |
|
|
DWM1000RX TXRX MODULE 802.15.4 CHIP SMD |
348 |
|
Datasheet | - | 24-SMD Module | Tape & Reel (TR) | Active | Not Verified | 802.15.4 | IR-UWB | BPM, BPSK | 3.5GHz ~ 6.5GHz | 6.8Mbps | - | - | SPI | Integrated, Chip | CC1110 | - | 2.8V ~ 3.6V | 64mA | 31mA | Surface Mount | -40°C ~ 85°C |
|
WL1835MODGBMOCRRF TXRX MOD BLUETOOTH WIFI SMD |
1,997 |
|
Datasheet | WiLink™ | Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth 4.2 | CCK, DSSS, GFSK, OFDM | 2.4GHz | 54Mbps | 17.3dBm | -96.3dBm | SDIO, UART | - | - | - | 2.9V ~ 4.8V | 49mA ~ 85mA | 238mA ~ 420mA | Surface Mount | -20°C ~ 70°C |
|
CC3235MODASF12MONRRF TXRX MOD WIFI TH SMD |
1,522 |
|
Datasheet | SimpleLink™ | 63-SMD Module | Tape & Reel (TR) | Active | Not Verified | WiFi | 802.11a/b/g/n | CCK, DSSS, OFDM | 2.412GHz ~ 2.472GHz, 5.18GHz ~ 5.825GHz | 54Mbps | 16.3dBm | -94.5dBm | ADC, GPIO, I2C, I2C, JTAG, PWM, SPI, UART | Integrated, Trace | CC3235SF | 1MB Flash, 256kB RAM | 2.3V ~ 3.6V | 53mA ~ 80mA | 154mA ~ 329mA | Surface Mount | -40°C ~ 85°C (TA) |
|
|
RS9116N-DB00-CC1-B00RF TXRX MOD BLUETOOTH WIFISMD |
302 |
|
Datasheet | - | 155-FLGA Module | Strip | Active | Not Verified | Bluetooth, WiFi | 802.11a/b/g/n, Bluetooth v5.0 | CCK, DSSS, OFDM | 2.4GHz, 5GHz | 54Mbps | 18dBm | -102dBm | SPI, UART, USB | Antenna Not Included | - | 16kB Flash, 512kB ROM | 3V ~ 3.63V | 10.2mA ~ 135mA | 9.9mA ~ 313mA | Surface Mount | -40°C ~ 85°C |
|
BLED112-V1CRF TXRX MOD BT THCONNECTOR MOUNT |
501 |
|
Datasheet | - | Module | Strip | Last Time Buy | Not Verified | Bluetooth | Bluetooth v4.0 | GFSK | 2.402GHz ~ 2.48GHz | 1Mbps | 0dBm | -93dBm | UART, USB | Integrated, Trace | - | 128kB Flash, 8kB SRAM | - | - | - | Connector Mount | - |
|
ETRX357RF TXRX MOD 802.15.4 CHIP SMD |
4,489 |
|
Datasheet | - | Module | Tape & Reel (TR) | Not For New Designs | Not Verified | 802.15.4 | Zigbee® | - | 2.4GHz | 250kbps | 3dBm | -100dBm | - | Integrated, Chip | EM357 | 192kB Flash, 12kB RAM | 2.1V ~ 3.6V | 27mA | 31mA | Surface Mount | -40°C ~ 85°C |
|
ETRX357HRRF TXRX MODULE 802.15.4U.FL SMD |
1,418 |
|
Datasheet | - | Module | Tape & Reel (TR) | Not For New Designs | Not Verified | 802.15.4 | Zigbee® | - | 2.4GHz | 250kbps | 18dBm | -105dBm | I2C, JTAG, SPI, UART | Antenna Not Included, U.FL | EM357 | 192kB Flash, 12kB RAM | 2.1V ~ 3.6V | 22mA ~ 28.5mA | 23.5mA ~ 42mA | Surface Mount | -40°C ~ 85°C |
|
|
RS9116W-DB00-CC1-B2BRF TXRX MOD BT CELL WIFISMD |
455 |
|
Datasheet | - | 155-FLGA Module | Tray | Active | - | Bluetooth, Cellular, WiFi | 802.11a/b/g/n, Bluetooth v5.0, GLONASS, GPS, GSM, LTE, WCDMA | CCK, DSSS, OFDM | 2.4GHz, 5GHz | 54Mbps | 18dBm | -103dBm | I2C, I2S, PCM, SDIO, SPI, UART, USB | Antenna Not Included | RS9116 | 4MB Flash, 512kB ROM, 384kB SRAM | 3V ~ 3.63V | 10.2mA ~ 135mA | 8.9mA ~ 313mA | Surface Mount | -40°C ~ 85°C |
|
WL1837MODGIMOCRRF TXRX MOD BLUETOOTH WIFI SMD |
2,069 |
|
Datasheet | WiLink™ | 100-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth, WiFi | 802.11a/b/g/n, Bluetooth v5.1 | CCK, DSSS, GFSK, OFDM | 2.4GHz, 5GHz | 54Mbps | 18dBm | -95dBm | SDIO, UART | - | - | - | 2.9V ~ 4.8V | 49mA ~ 85mA | 243mA ~ 510mA | Surface Mount | -40°C ~ 85°C |
|

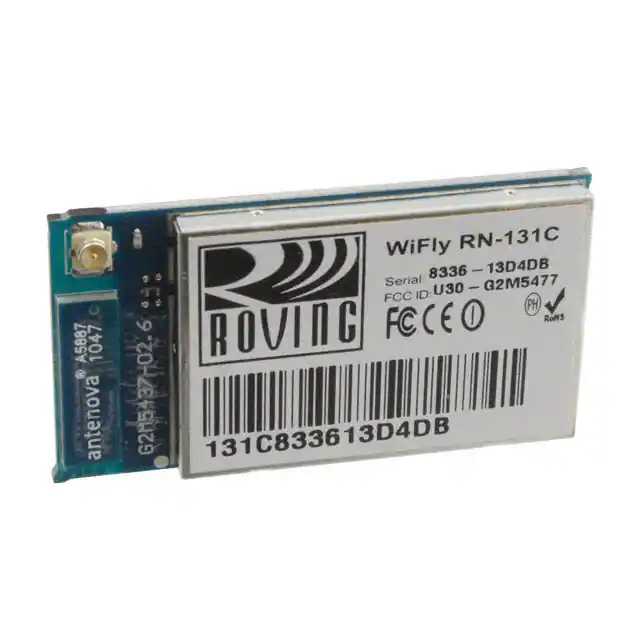

RN131C/RMRF TXRX MOD WIFI CHIP + U.FL SMD |
138 |
|
Datasheet | - | Module | Tray | Active | Not Verified | WiFi | 802.11b/g | CDK, DBPSK, DQPSK, DSSS, OFDM | 2.4GHz | 54Mbps | 18dBm | -85dBm | SPI, UART | Integrated, Chip + U.FL | - | 8MB Flash, 2MB ROM, 128kB RAM | 3.3V | 40mA | 210mA | Surface Mount | 0°C ~ 70°C |
