RF Transceiver Modules and Modems
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | RF Family/Standard | Protocol | Modulation | Frequency | Data Rate | Power - Output | Sensitivity | Serial Interfaces | Antenna Type | Utilized IC / Part | Memory Size | Voltage - Supply | Current - Receiving | Current - Transmitting | Mounting Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BGM220PC22WGA2RRF TXRX MOD BLUETOOTH CHIP SMD |
1,803 |
|
Datasheet | - | 31-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth | Bluetooth v5.2 | GFSK | 2.4GHz ~ 2.4835GHz | 2Mbps | 8dBm | -98.9dBm | ADC, I2C, I2S, PWM, SPI, IrDA, UART, USART | Integrated, Chip | EFR32BG22 | 352kB Flash, 32kB RAM | 1.8V ~ 3.8V | 4.3mA ~ 4.8mA | 4.8mA ~ 10.8mA | Surface Mount | -40°C ~ 85°C (TA) |
|
CYBT-343026-01RF TXRX MOD BT TH SMD |
3,437 |
|
Datasheet | EZ-BT™ WICED® | 24-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth | Bluetooth v4.2 | 8DPSK, DQPSK, GFSK | 2.402GHz ~ 2.48GHz | 6Mbps | 12dBm | -96.5dBm | I2C, I2S, PCM, SPI, UART | Integrated, Trace | - | 512kB Flash | 2.3V ~ 3.6V | 26.4mA | 60.3mA | Surface Mount | -30°C ~ 85°C (TA) |
|
DA16200MOD-AAE4WA32RF TXRX MODULE WIFI U.FL SMD |
567 |
|
Datasheet | DA16200MOD-AA | 37-SMD Module | Tape & Reel (TR) | Active | Not Verified | WiFi | 802.11b/g/n | CCK, DSSS, OFDM | - | 54Mbps | 19dBm | -98.5dBm | GPIO, I2C, I2S, PWM, SDIO, SPI, UART | Antenna Not Included, U.FL | DA16200 | 256kB ROM, 512kB SRAM | 2.1V ~ 3.6V | 28.1mA ~ 37.4mA | 200mA ~ 280mA | Surface Mount | -40°C ~ 85°C |
|

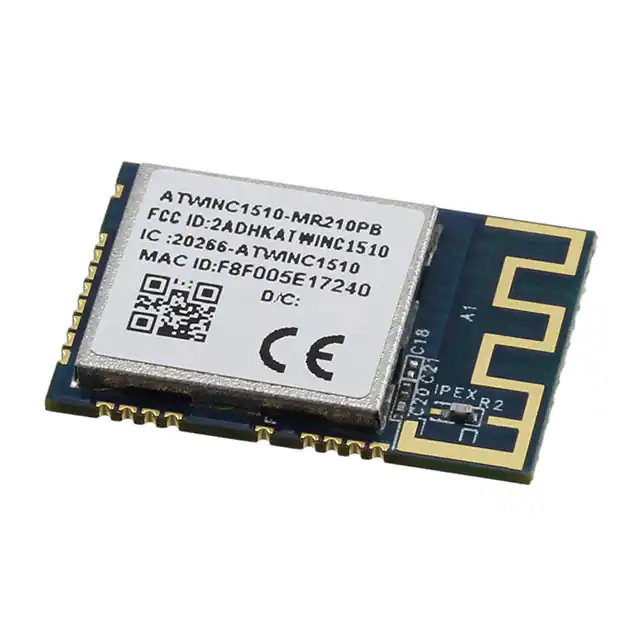

ATWINC1510-MR210PB1952RF TXRX MOD WIFI TH SMD |
211 |
|
Datasheet | - | Module | Tray | Active | Not Verified | WiFi | 802.11b/g/n | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK | 2.4GHz | 72.2Mbps | 18.5dBm | -95dBm | I2C, SPI, UART | Integrated, Trace | ATWINC1500B | 8MB Flash, 128kB RAM | 2.7V ~ 3.6V | 61mA | 265mA | Surface Mount | -40°C ~ 85°C |
|
BLUENRG-M2SARF TXRX MOD BLUETOOTH CHIP SMD |
2,387 |
|
Datasheet | BlueNRG | 23-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth | Bluetooth v5.0 | - | 2.4GHz ~ 2.4835GHz | - | 5dBm | -85dBm | ADC, GPIO, I2C, SPI, UART | Integrated, Chip | BlueNRG-2 | 256kB Flash, 24kB RAM | 1.7V ~ 3.6V | 7.55mA | 7.01mA ~ 14.78mA | Surface Mount | -40°C ~ 85°C (TA) |
|
BGM220SC22HNA2RF TXRX MOD BLUETOOTH CHIP SMD |
2,393 |
|
Datasheet | - | 44-SMD Module | Tray | Active | Not Verified | Bluetooth | Bluetooth v5.2 | GFSK | 2.4GHz ~ 2.4835GHz | 2Mbps | 6dBm | -106.4dBm | ADC, I2C, I2S, PWM, SPI, IrDA, UART, USART | Integrated, Chip | EFR32BG22 | 512kB Flash, 32kB RAM | 1.8V ~ 3.8V | 4.2mA ~ 4.8mA | 4.6mA ~ 8.8mA | Surface Mount | -40°C ~ 105°C (TA) |
|
BGM13P22F512GA-V2RRF TXRX MOD BLUETOOTH CHIP SMD |
62,680 |
|
Datasheet | Blue Gecko | Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth | Bluetooth v5.0 | GFSK | 2.4GHz | 2Mbps | 8dBm | -94.8dBm | GPIO, I2C, I2S, SPI, UART | Integrated, Chip | EFR32BG | 512kB Flash, 64kB RAM | 1.8V ~ 3.8V | 9.9mA | 9.5mA | Surface Mount | -40°C ~ 85°C |
|
MGM210PA22JIA2RF TXRX MOD 802.15.4 BT CHIP SMD |
139 |
|
Datasheet | Mighty Gecko | 31-SMD Module | Strip | Active | Not Verified | 802.15.4, Bluetooth | Bluetooth v5.3, Thread, Zigbee® | DSSS, GFSK, O-QPSK | 2.4GHz ~ 2.4835GHz | 2Mbps | 10dBm | -104.5dBm | ADC, GPIO, I2C, I2S, IrDA, PWM, SPI, UART | Integrated, Chip | EFR32MG21 | 1MB Flash, 96kB RAM | 1.71V ~ 3.8V | 9.1mA ~ 9.9mA | 16.1mA ~ 34.1mA | Surface Mount | -40°C ~ 125°C (TA) |
|
|
BGM220PC22HNA2RF TXRX MOD BLUETOOTH CHIP SMD |
1,471 |
|
Datasheet | - | 31-SMD Module | Strip | Active | Not Verified | Bluetooth | Bluetooth v5.2 | GFSK | 2.4GHz ~ 2.4835GHz | 2Mbps | 8dBm | -98.9dBm | ADC, I2C, I2S, PWM, SPI, IrDA, UART, USART | Integrated, Chip | EFR32BG22 | 512kB Flash, 32kB RAM | 1.8V ~ 3.8V | 4.3mA ~ 4.8mA | 4.8mA ~ 10.8mA | Surface Mount | -40°C ~ 105°C (TA) |
|
|
BGM220PC22HNA2RRF TXRX MOD BLUETOOTH CHIP SMD |
278 |
|
Datasheet | - | 31-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth | Bluetooth v5.2 | GFSK | 2.4GHz ~ 2.4835GHz | 2Mbps | 8dBm | -98.9dBm | ADC, I2C, I2S, PWM, SPI, IrDA, UART, USART | Integrated, Chip | EFR32BG22 | 512kB Flash, 32kB RAM | 1.8V ~ 3.8V | 4.3mA ~ 4.8mA | 4.8mA ~ 10.8mA | Surface Mount | -40°C ~ 105°C (TA) |
|

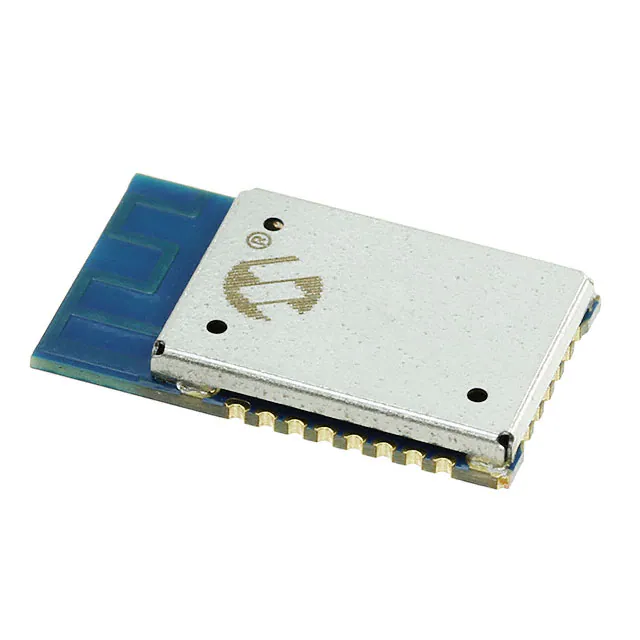

RN4020-V/RMBEC133RF TXRX MOD BT TH SMD |
8,304 |
|
Datasheet | - | Module | Tray | Active | Not Verified | Bluetooth | Bluetooth v4.1 | GFSK | 2.4GHz | 1Mbps | 7.5dBm | -92.5dBm | AIO, PIO, SPI, UART | Integrated, Trace | - | 64kB Flash | 1.8V ~ 3.6V | 16mA | 16mA | Surface Mount | -30°C ~ 85°C |
|
RN4020-V/RM123RF TXRX MOD BT TH SMD |
2,698 |
|
Datasheet | - | Module | Tray | Active | Not Verified | Bluetooth | Bluetooth v4.1 | GFSK | 2.4GHz | 1Mbps | 7.5dBm | -92.5dBm | AIO, PIO, SPI, UART | Integrated, Trace | - | 64kB Flash | 1.8V ~ 3.6V | 16mA | 16mA | Surface Mount | -30°C ~ 85°C |
|

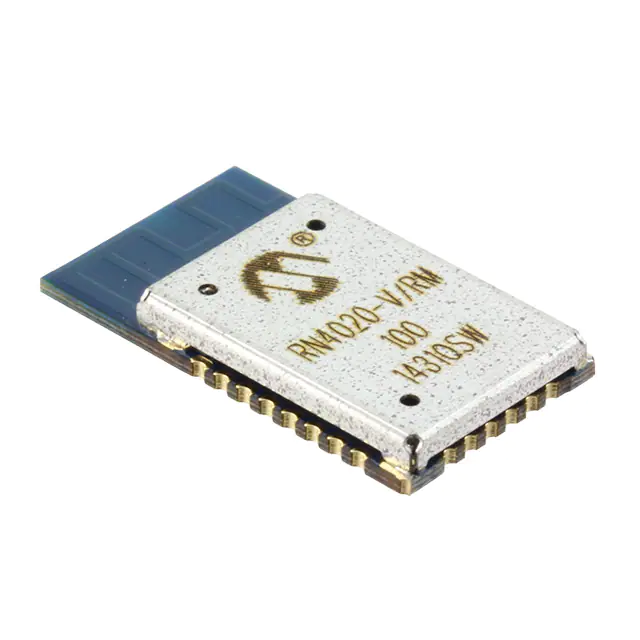

RN4020-V/RMRF TXRX MOD BT TH SMD |
266 |
|
Datasheet | - | Module | Tray | Active | Not Verified | Bluetooth | Bluetooth v4.1 | GFSK | 2.4GHz | 1Mbps | 7.5dBm | -92.5dBm | AIO, PIO, SPI, UART | Integrated, Trace | - | 64kB Flash | 1.8V ~ 3.6V | 16mA | 16mA | Surface Mount | -30°C ~ 85°C |
|

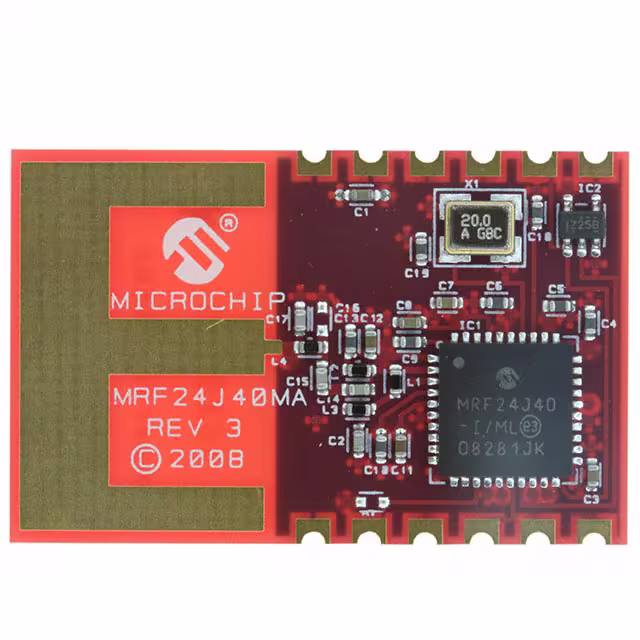

MRF24J40MA-I/RMRF TXRX MOD 802.15.4 TH SMD |
4,043 |
|
Datasheet | - | Module | Tray | Active | Not Verified | 802.15.4 | Zigbee® | - | 2.4GHz | 250kbps | 0dBm | -94dBm | SPI | Integrated, Trace | - | - | 2.4V ~ 3.6V | 19mA | 23mA | Surface Mount | -40°C ~ 85°C |
|
|
MRF24J40MAT-I/RMRF TXRX MOD 802.15.4 TH SMD |
1,594 |
|
Datasheet | - | Module | Tape & Reel (TR) | Active | Not Verified | 802.15.4 | Zigbee® | - | 2.4GHz | 250kbps | 0dBm | -94dBm | SPI | Integrated, Trace | - | - | 2.4V ~ 3.6V | 19mA | 23mA | Surface Mount | -40°C ~ 85°C |
|

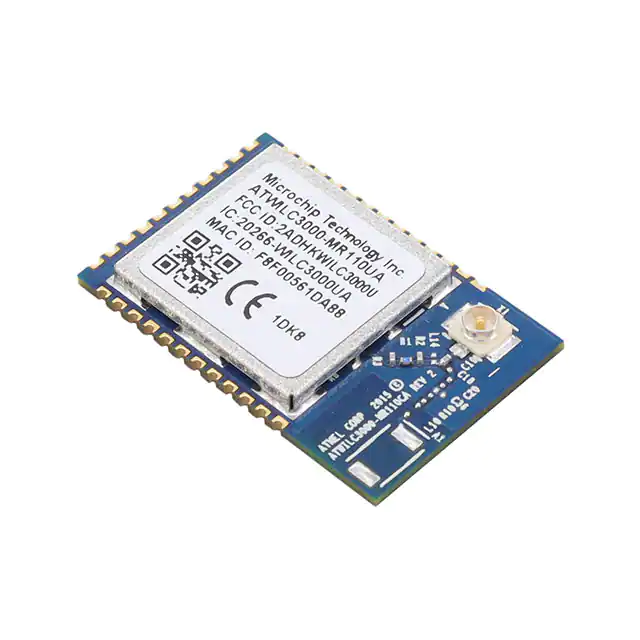

ATWILC3000-MR110UARF TXRX MOD BT WIFIU.FL SMD |
311 |
|
Datasheet | - | Module | Tray | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v5.0 | - | 2.4GHz | 72Mbps | 19dBm | -98dBm | I2C, SPI, UART | Antenna Not Included, U.FL | - | - | 1.62V ~ 3.6V | 68mA | 230mA | Surface Mount | -40°C ~ 85°C |
|
STM32WB5MMGH6TRRF TXRX MOD 802.15.4 BT CHIP SMD |
3,311 |
|
Datasheet | - | 86-LFLGA Module | Tape & Reel (TR) | Active | Not Verified | 802.15.4, Bluetooth | Bluetooth v5.0, Thread, Zigbee® | - | 2.4GHz | 2Mbps | 6dBm | -100dBm | ADC, I2C, SPI, UART, USART, USB | Integrated, Chip | STM32WB55VGY | 1MB Flash, 256kB SRAM | 1.71V ~ 3.6V | - | - | Surface Mount | -40°C ~ 85°C (TA) |
|
BLUENRG-M0LRF TXRX MOD BLUETOOTH CHIP SMD |
5,280 |
|
Datasheet | BlueNRG | 11-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth | Bluetooth v4.2 | - | 2.4GHz ~ 2.4835GHz | - | 6dBm | -85dBm | SPI | Integrated, Chip | BlueNRG-MS | - | 1.7V ~ 3.6V | 16.36mA | 13.25mA ~ 27.35mA | Surface Mount | -40°C ~ 85°C (TA) |
|

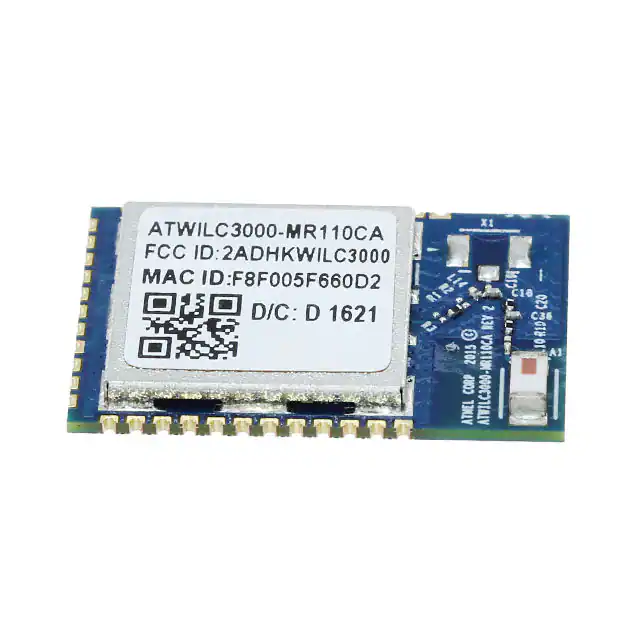

ATWILC3000-MR110CARF TXRX MOD BT WIFI CHIP SMD |
10,221 |
|
Datasheet | - | Module | Tray | Active | Not Verified | Bluetooth, WiFi | 802.11b/g/n, Bluetooth v5.0 | - | 2.4GHz | 72Mbps | 19dBm | -98dBm | I2C, SPI, UART | Integrated, Chip | - | - | 1.62V ~ 3.6V | 68mA | 230mA | Surface Mount | -40°C ~ 85°C |
|
BLUENRG-M0ARF TXRX MOD BLUETOOTH CHIP SMD |
5,503 |
|
Datasheet | BlueNRG | 11-SMD Module | Tape & Reel (TR) | Active | Not Verified | Bluetooth | Bluetooth v4.2 | - | 2.4GHz ~ 2.4835GHz | - | 6dBm | -85dBm | SPI | Integrated, Chip | BlueNRG-MS | - | 1.7V ~ 3.6V | 9.36mA | 7.82mA ~ 16.5mA | Surface Mount | -40°C ~ 85°C (TA) |
