PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2920L260/24DRPTC RESET FUSE 24V 2.6A 2920 |
476 |
|
Datasheet | 2920 (7351 Metric), Concave | POLY-FUSE®, 2920L | Tape & Reel (TR) | Active | Polymeric | 24V | 2.6 A | 5 A | 40 A | 10 s | 25 mOhms | 75 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.049" (1.25mm) | - |
|
RXEF300PTC RESET FUSE 72V 3A RADIAL |
9,263 |
|
Datasheet | Radial, Disc | PolySwitch®, RXEF | Bag | Active | Polymeric | 72V | 3 A | 6 A | 40 A | 19.8 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.941" Dia x 0.118" T (23.90mm x 3.00mm) | 1.126" (28.60mm) | - | 0.400" (10.15mm) |
|
1812L260/16MRPTC RESET FUSE 16V 2.6A 1812 |
8,508 |
|
Datasheet | 1812 (4532 Metric), Concave | POLY-FUSE®, 1812L | Tape & Reel (TR) | Active | Polymeric | 16V | 2.6 A | 5 A | 100 A | 5 s | 15 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.186" L x 0.131" W (4.72mm x 3.33mm) | - | 0.079" (2.00mm) | - |
|
NANOASMDCH035F/30-2PTC RESET FUSE 30V 350MA 1206 |
8,431 |
|
Datasheet | 1206 (3216 Metric), Concave | PolySwitch®, ASMD | Tape & Reel (TR) | Active | Polymeric | 30V | 350 mA | 1.75 A | 20 A | 200 ms | 400 mOhms | 2.2 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.126" L x 0.062" W (3.20mm x 1.58mm) | - | 0.045" (1.14mm) | - |
|
3425L300/36MR3425L PPTC |
4,218 |
|
Datasheet | Nonstandard SMD | 3425L | Tape & Reel (TR) | Active | Polymeric | 36V | 3 A | 6 A | 20 A | 20 s | 10 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.341" L x 0.250" W (8.65mm x 6.35mm) | - | 0.055" (1.40mm) | - |
|
|
3425L200/60MR3425L PPTC |
2,134 |
|
Datasheet | Nonstandard SMD | 3425L | Tape & Reel (TR) | Active | Polymeric | 60V | 2 A | 4 A | 20 A | 10 s | 40 mOhms | 200 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.341" L x 0.250" W (8.65mm x 6.35mm) | - | 0.071" (1.80mm) | - |
|

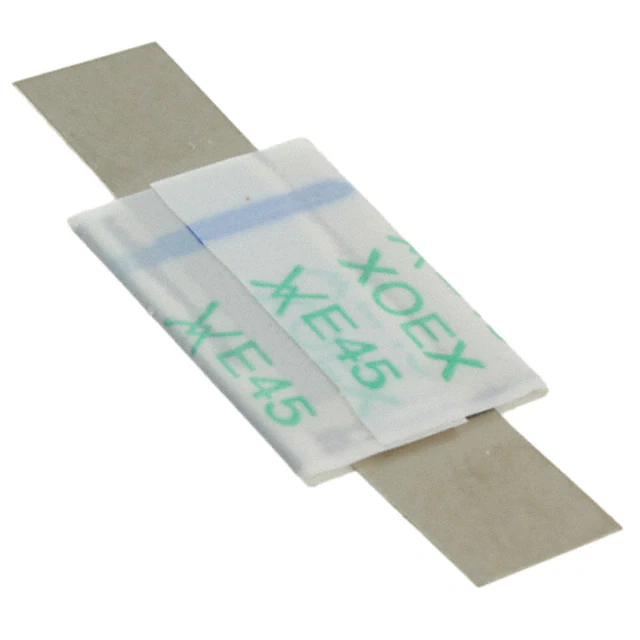

LR4-450FPTC RESET FUSE 20V 4.5A STRAP |
6,004 |
|
Datasheet | Strap | PolySwitch®, LR4 | Bag | Active | Polymeric | 20V | 4.5 A | 8.9 A | 100 A | 5 s | 11 mOhms | 28 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.984" L x 0.413" W (25.00mm x 10.50mm) | - | 0.039" (1.00mm) | - |
|
NANOSMDCH030F/24-02PTC RESET FUSE 24V 300MA 1206 |
12,722 |
|
Datasheet | 1206 (3216 Metric) | PolySwitch®, nanoSMD | Tape & Reel (TR) | Active | Polymeric | 24V | 300 mA | 820 mA | 10 A | 100 ms | 500 mOhms | 1.95 Ohms | - | -40°C ~ 125°C | - | - | - | Surface Mount | 0.134" L x 0.071" W (3.40mm x 1.80mm) | - | 0.049" (1.25mm) | - |
|

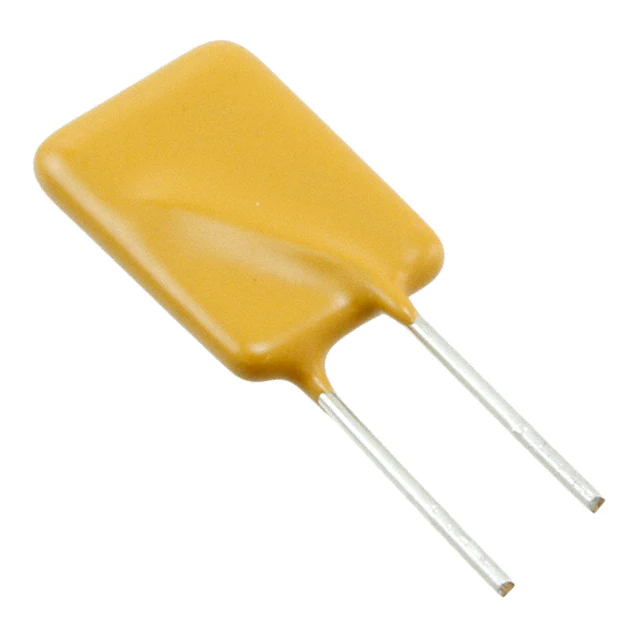

LVR075S-240PTC RESET FUSE 240V 750MA RADIAL |
6,626 |
|
Datasheet | Radial, Disc | PolySwitch®, LVR | Bulk | Active | Polymeric | 240V (265V Int) | 750 mA | 1.5 A | 7.5 A | 18 s | 316 mOhms | 839 mOhms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.450" L x 0.189" W (11.43mm x 4.80mm) | 0.921" (23.40mm) | - | 0.200" (5.08mm) |
|
LVR055SPTC RESET FUSE 240V 550MA RADIAL |
1,000 |
|
Datasheet | Radial, Disc | PolySwitch®, LVR | Bulk | Active | Polymeric | 240V (265V Int) | 550 mA | 1.25 A | 7 A | 26 s | 450 mOhms | 1.45 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.161" W (14.00mm x 4.10mm) | 0.854" (21.70mm) | - | 0.200" (5.08mm) |
|
RUEF900PTC RESET FUSE 30V 9A RADIAL |
5,738 |
|
Datasheet | Radial, Disc | PolySwitch®, RUEF | Bag | Active | Polymeric | 30V | 9 A | 18 A | 100 A | 20 s | 5 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.949" L x 0.118" W (24.10mm x 3.00mm) | 1.142" (29.00mm) | - | 0.400" (10.15mm) |
|
RXEF375PTC RESET FUSE 72V 3.75A RADIAL |
790 |
|
Datasheet | Radial, Disc | PolySwitch®, RXEF | Bag | Active | Polymeric | 72V | 3.75 A | 7.5 A | 40 A | 24 s | 30 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 1.071" Dia x 0.118" T (27.20mm x 3.00mm) | 1.252" (31.80mm) | - | 0.400" (10.15mm) |
|
0805L075SLYRPTC RESET FUSE 6V 750MA 0805 |
23,696 |
|
Datasheet | 0805 (2012 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 750 mA | 1.5 A | 50 A | 200 ms | 40 mOhms | 160 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.030" (0.75mm) | - |
|
AHEF500PTC RESET FUSE 32V 5A RADIAL |
2,201 |
|
Datasheet | Radial, Disc | PolySwitch®, AHEF | Bag | Active | Polymeric | 32V | 5 A | 10 A | 100 A | 9 s | 15 mOhms | 40 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.551" L x 0.150" W (14.00mm x 3.80mm) | 0.949" (24.10mm) | - | 0.199" (5.05mm) |
|
RKEF500PTC RESET FUSE 60V 5A RADIAL |
11,046 |
|
Datasheet | Radial, Disc | PolySwitch®, RKEF | Bag | Active | Polymeric | 60V | 5 A | 10 A | 40 A | 28 s | 12 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.949" L x 0.118" W (24.10mm x 3.00mm) | 1.142" (29.00mm) | - | 0.400" (10.15mm) |
|
LVR100S-240PTC RESET FUSE 240V 1A RADIAL |
3,435 |
|
Datasheet | Radial, Disc | PolySwitch®, LVR | Bulk | Active | Polymeric | 240V (265V Int) | 1 A | 2 A | 10 A | 21 s | 218 mOhms | 580 mOhms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.736" Dia x 0.201" T (18.70mm x 5.10mm) | 0.961" (24.40mm) | - | 0.400" (10.15mm) |
|
1206L050/24WRPTC RESET FUSE 24V 500MA 1206 |
4,385 |
|
Datasheet | 1206 (3216 Metric), Concave | POLY-FUSE®, 1206L | Tape & Reel (TR) | Active | Polymeric | 24V | 500 mA | 1 A | 100 A | 100 ms | 150 mOhms | 750 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.049" (1.25mm) | - |
|

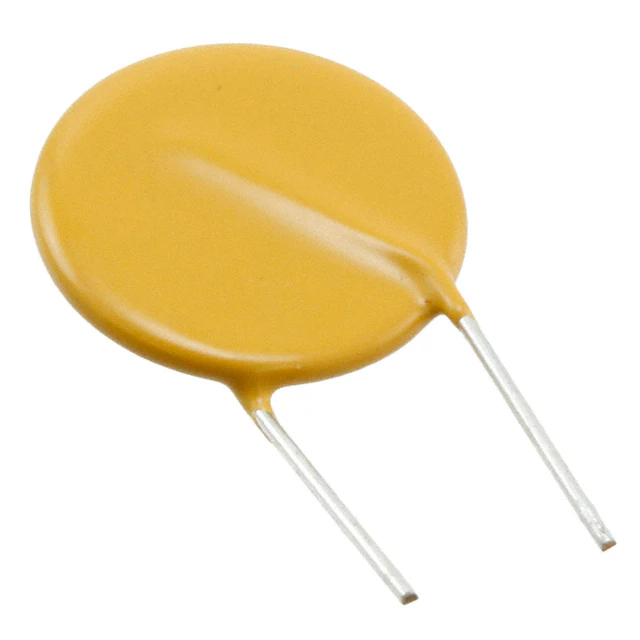

LVR125S-240PTC RESET FUSE 240V 1.25A RADIAL |
5,132 |
|
Datasheet | Radial, Disc | PolySwitch®, LVR | Bulk | Active | Polymeric | 240V (265V Int) | 1.25 A | 2.5 A | 12.5 A | 23 s | 165 mOhms | 440 mOhms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.835" Dia x 0.209" T (21.20mm x 5.30mm) | 1.079" (27.40mm) | - | 0.400" (10.15mm) |
|
0603L002/60YRPTC RESET FUSE 60V 20MA 0603 |
7,096 |
|
Datasheet | 0603 (1608 Metric), Concave | POLY-FUSE®, 0603L | Tape & Reel (TR) | Active | Polymeric | 60V | 20 mA | 60 mA | 40 A | 1 s | 12 Ohms | 70 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.039" (1.00mm) | - |
|
|
0603L001/60YRPTC RESET FUSE 60V 10MA 0603 |
2,408 |
|
Datasheet | 0603 (1608 Metric), Concave | POLY-FUSE®, 0603L | Tape & Reel (TR) | Active | Polymeric | 60V | 10 mA | 50 mA | 40 A | 1 s | 15 Ohms | 100 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.039" (1.00mm) | - |
